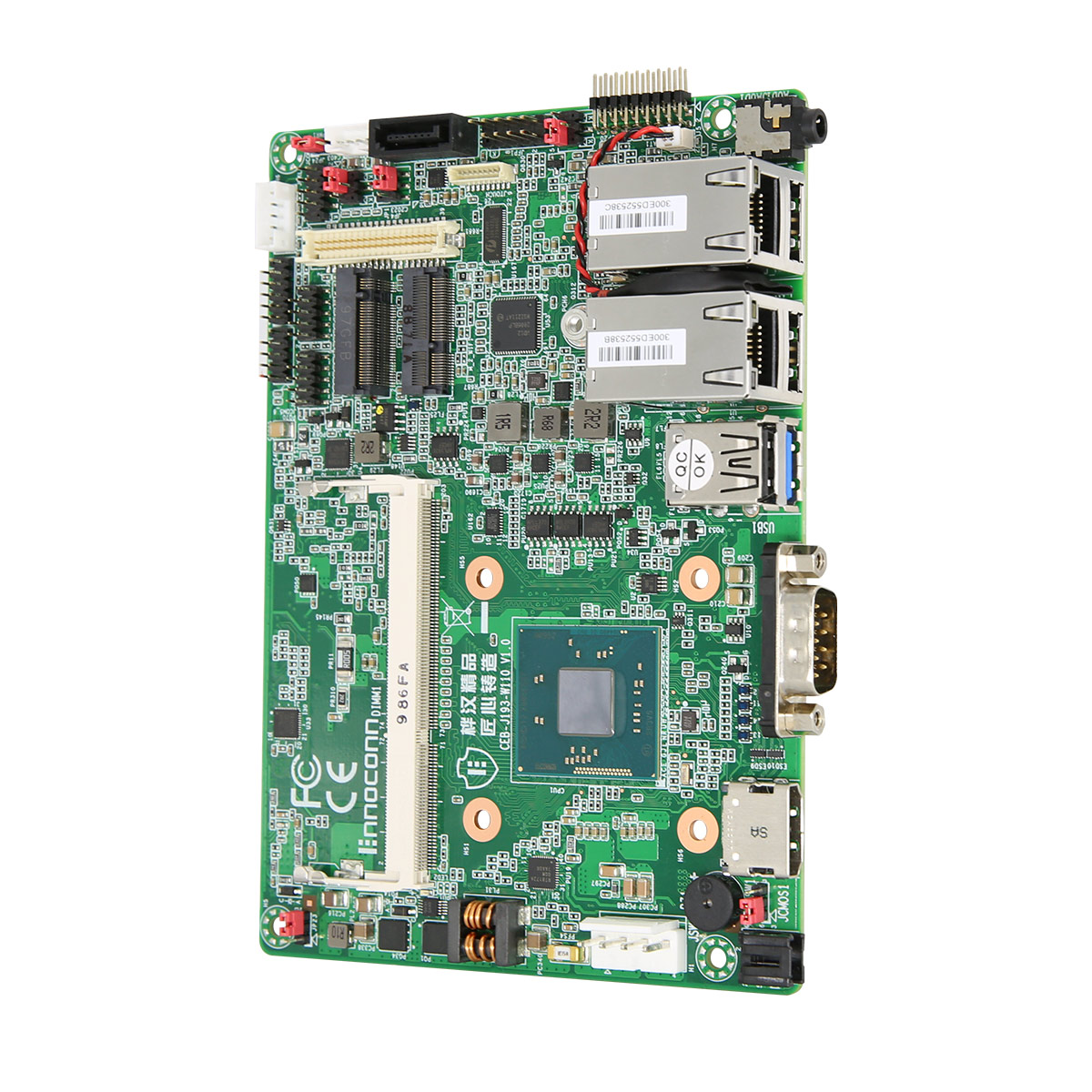

CEB-J193-W110

■ 规格 Specification

处理器 Processor

Intel® Bay Trail Celeron® J1900 Processor (2.00 GHz)

内存 Memory

Single Channel, 1 x SO-DIMM Slot, DDR3L(1.35V)1333MHz, up to 8 GB

存储 Storage

1 x SATA 2.0, 1 x M.2 2242 (mSATA supported), 1 x Mini-PCIe[1]

显示 Display

Intel® HD Graphics

网口 Ethernet

2 x Intel® I211AT GbE (10/100/1000 Mbps)

音频 Audio

Realtek® ALC269 HD Audio codec, supports 2.1-channel

BIOS

AMI UEFI BIOS

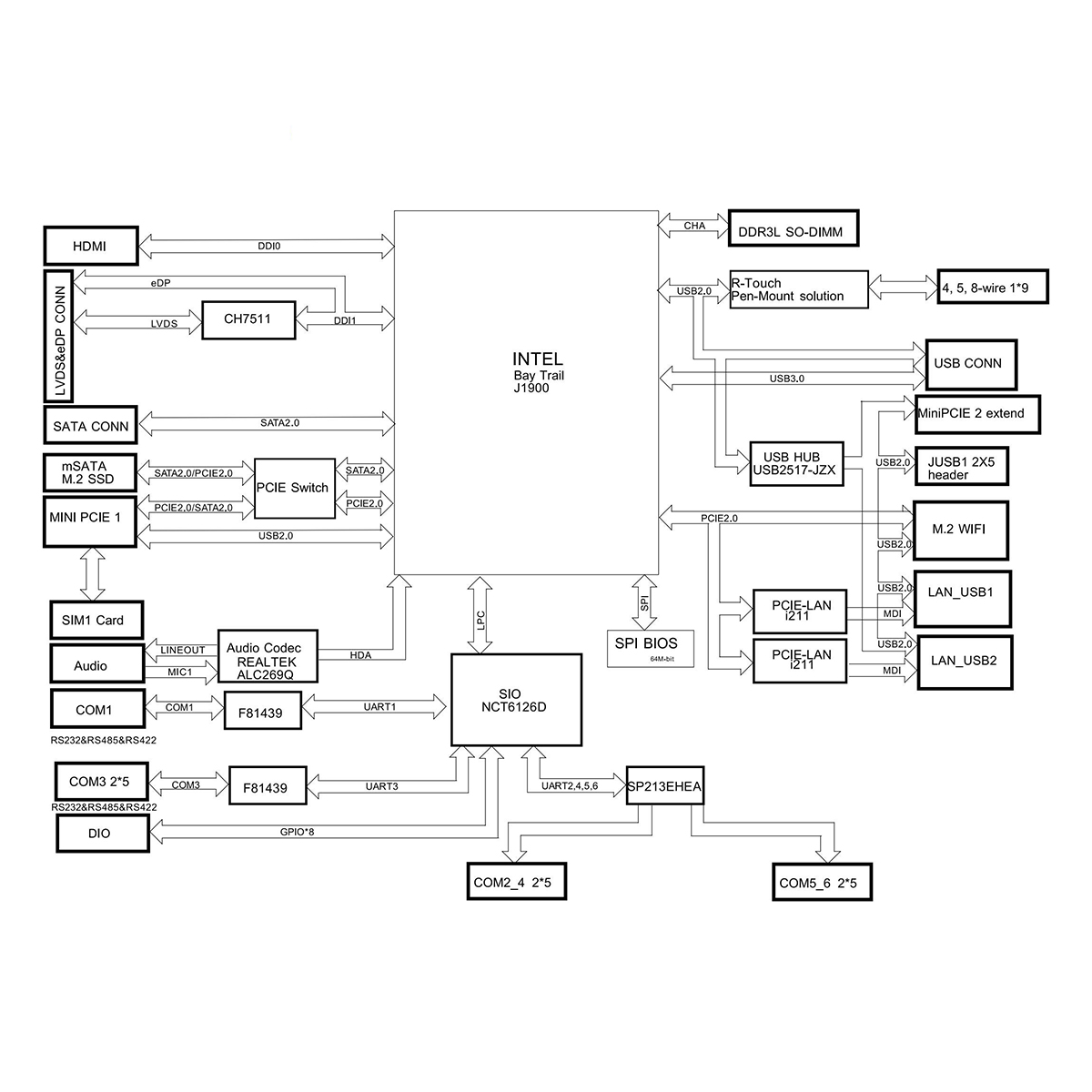

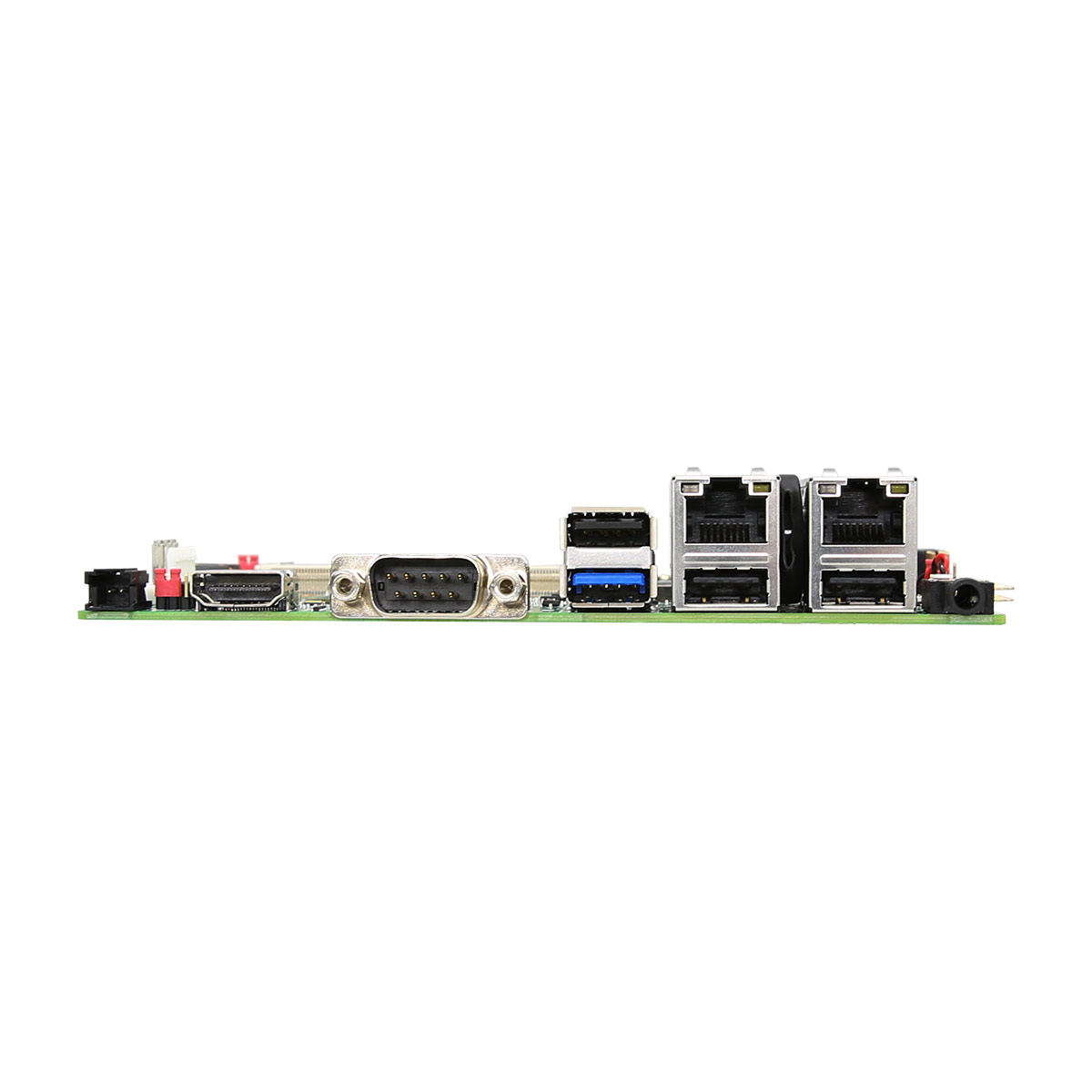

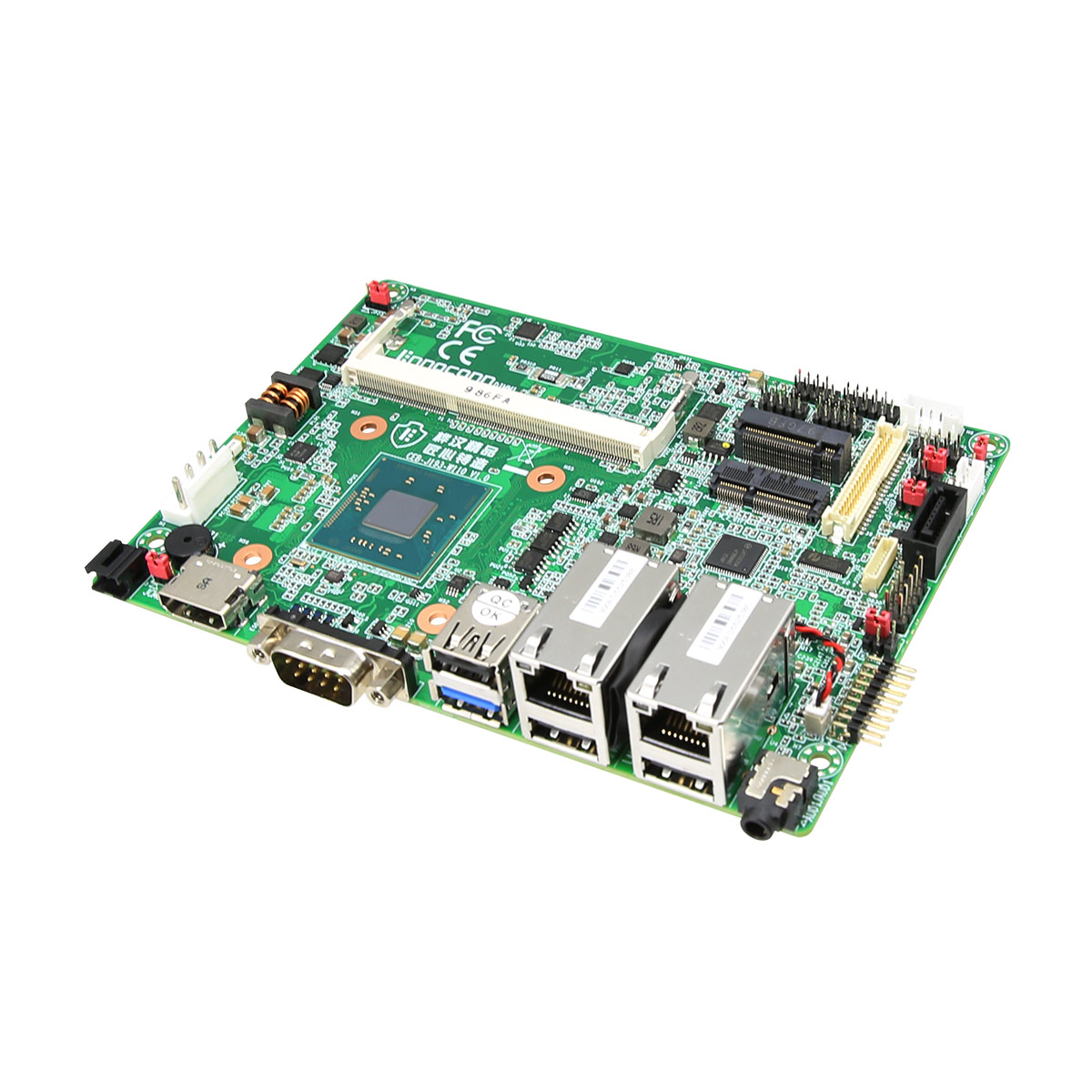

外部接口 Rear I/O

1 x HDMI: max resolution up to 1920 x 1200@60Hz
3 x USB2.0 (USB SR Pro supported), 1 x USB3.0 (USB SR Pro supported)
2 x RJ45
1 x RS232/422/485
1 x Remote
1 x Line-out, 1 x Mic-in

内部接口 Internal I/O

1 x LVDS or 1 x eDP[2]
2 x USB2.0
1 x 8 bit GPIO
4 x RS232, 1 x RS232/422/485
1 x SATA2.0
1 x Touch
1 x DC IN
1 x F_Panel (Power LED, HDD LED, Power button, reset button)

扩展接口 Expansion

1 x Mini-PCIe (WiFi/4G/3G/mSATA supported)
1 x M.2 2230 (WiFi supported)
1 x SIM

看门狗 Watchdog Timer

System Reset, Programmable via software from 1 to 255 seconds

环境 Environment

操作温度 Operation Temp.: 0℃ ~ 60℃
存储温度 Storage Temp.: -40℃ ~ 85℃
操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing

电源输入 Power Input

宽压 9~36V DC-IN

尺寸 Dimensions

3.5" (146 x 105mm)

操作系统 OS

Windows 7/8/10, Linux

注 明：[1] Mini-PCIe与 M.2 2242共用SATA信号。
                     [2] LVDS与eDP共用连接器，所以不可同时使用。
Remark: [1] Mini-PCIe and M.2 2242 share the same SATA signal.
                     [2] LVDS and eDP share the same connector, so they can't use simultaneously.

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

35074TC00-38L-G

Power Cable,120mm+/-10mm,18AWG,4pin+2pin

选配
Optional

型号 Model

描述 Description

2T71A6J00-JTW-G

ceb-j193-heatsink-screw,NA,67*53*29,G,00

35105RS00-JTU-G

USB*2 Type A(F) black cable 20cm

35105J200-JTU-G

SATA Power data cable,150mm+/-10mm

35105R200-JTU-G

COM3, COM cable,150mm+/-10mm

35074RQ00-JTU-G

COM2_4, COM Cable, 200mm

35105R300-JTU-G

Remote SW conn

10038H700-0D9-G

Peripheral Board,JINCHI-ELE,CEA-3COM-1F2N
