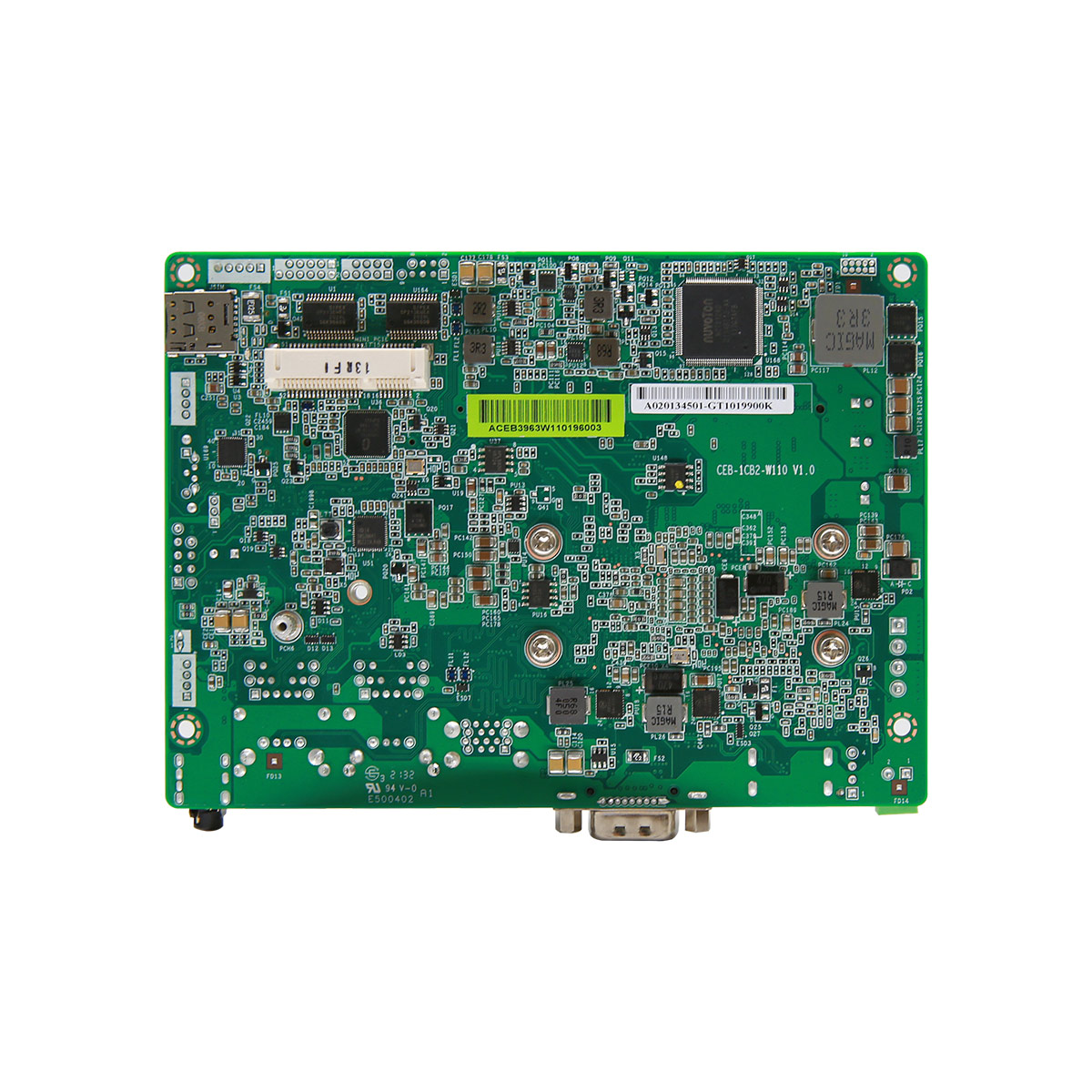

CEB-3963-W110

■ 规格 Specification

处理器 Processor

Intel® Celeron® 3965U Processor (2.2 GHz)

内存 Memory

Single Channel, 1 x SO-DIMM Slot, DDR4 2133MHz , up to 16GB

存储 Storage

1 x SATA 3.0, 1 x M.2 2242 (SATA SSD supported)

显示 Display

Intel® HD Graphics 610

网口 Ethernet

1 x RJ45 Intel® I219-LM Gbm(10/100/1000 Mbps)
1 x RJ45 Intel® I211AT (10/100/1000 Mbps)

音频 Audio

Realtek® ALC888S HD Audio Codec

BIOS

AMI UEFI BIOS

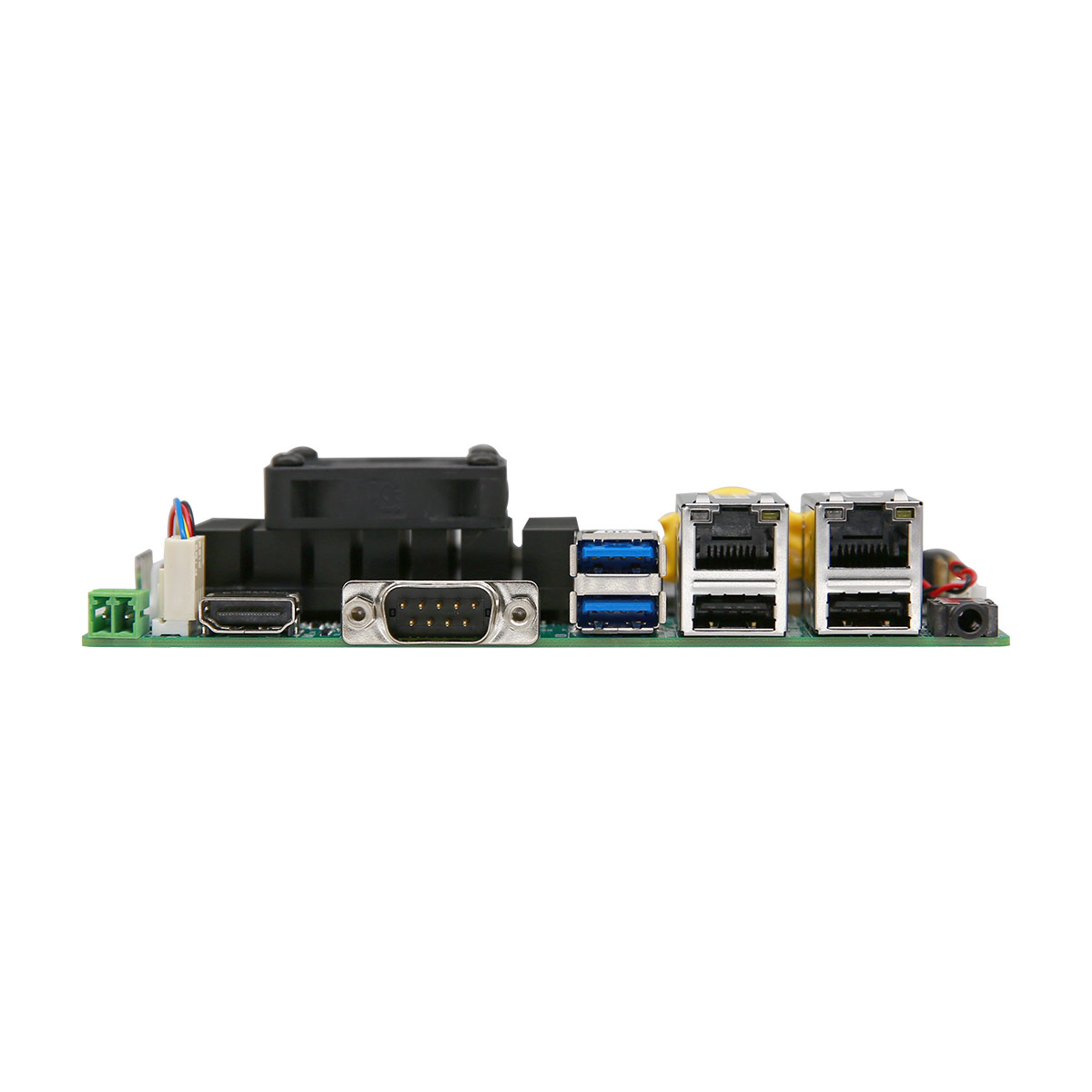

外部接口 Rear I/O

1 x HDMI: max resolution up to 4096 x 2304@24Hz
2 x USB2.0, 2 x USB3.0 (USB SR Pro supported)
2 x RJ45
1 x RS232/422/485
1 x Remote
1 x Line out&Mic in (2 in 1)

内部接口 Internal I/O

1 x LVDS: max resolution up to 1920 x 1200@60Hz【1】
1 x eDP: max resolution up to 4096 x 2304@60Hz【1】
4 x USB2.0
1 x 8 bit GPIO
1 x RS232/422/485, 4 x RS232
1 x F_Panel (Power LED, HDD LED, Power button, reset button)
1 x DC IN
1 x Speaker Out (3W/4ohm)

扩展接口 Expansion

1 x M.2 2230 (WiFi/PCIe/USB2.0 signal supported)
1 x M.2 2242 (SATA signal supported)
1 x Mini-PCIe (WiFi/3G/4G supported)
1 x SIM

看门狗 Watchdog Timer

System Reset, Programmable via software from 1 to 255 seconds

环境 Environment

操作温度 Operation Temp.: -20℃ ~ 60℃
存储温度 Storage Temp.: -40℃ ~ 85℃
操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing

电源输入 Power Input

宽压 9~36V DC-IN

尺寸 Dimensions

3.5" (146 x 105mm)

操作系统 OS

Windows 10, Linux

注明：[1] LVDS和EDP共用一个端子。
Remark: [1]LVDS and EDP share the same connector.

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

35074TC00-38L-G

Power Cable,120mm+/-10mm,18AWG,4pin+2pin

选配
Optional

型号 Model

描述 Description

CTO-6203-cooler

CPU cooler for 1CB2

35105R200-JTU-G

USB*2 Type A(F) black cable 20cm

35074RQ00-JTU-G

SATA Power data cable,150mm+/-10mm

35105J200-JTU-G

COM3, COM cable,150mm+/-10mm

35105RS00-JTU-G

COM2_4, COM Cable, 200mm

34046QJ00-600-G

Remote SW conn
