CEB-6X03-W100

■ 规格 Specification

处理器 Processor

Intel® 6th Core ™ i3-6100U Processor (2.3 GHz)
Intel® 6th Core ™ i5-6200U Processor (2.3 GHz)
Intel® 6th Core ™ i7-6500U Processor (2.5 GHz)

内存 Memory

Single Channel, 1 x SO-DIMM Slot, DDR4 1866/2133/2400MHz , up to 16GB

存储 Storage

1 x SATA3.0, 1 x M.2 2242 (SATA/PCIe X1 supported)

显示 Display

Intel® HD Graphics 520

网口 Ethernet

1 x RJ45 Intel® I211AT (10/100/1000 Mbps)
1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps)

音频 Audio

Realtek® ALC269Q HD Audio Codec

BIOS

BIOS AMI UEFI BIOS

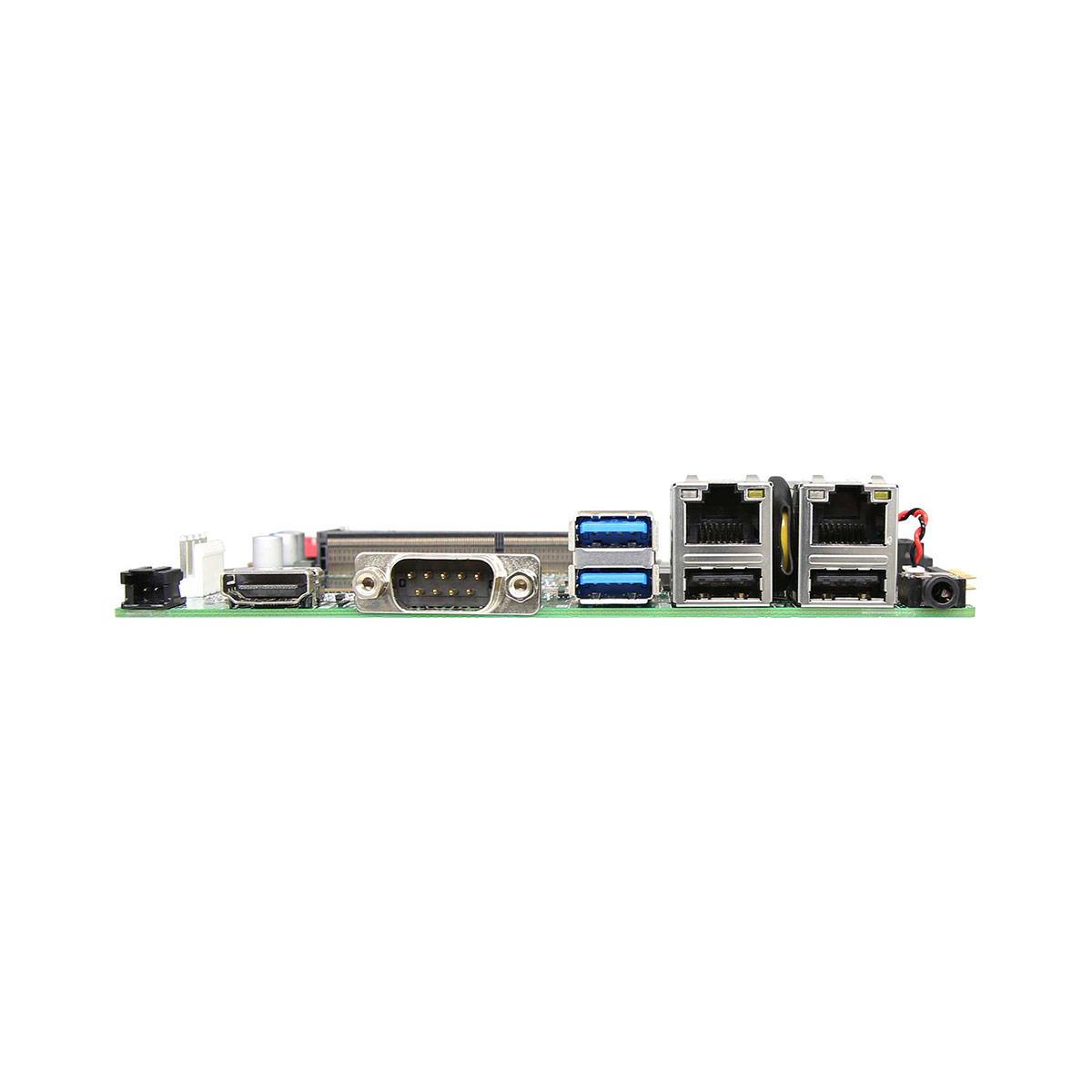

外部接口 Rear I/O

1 x HDMI: max resolution up to 4096 x 2304@24Hz
2 x USB2.0, 2 xUSB3.0 (USB SR Pro supported)
2 x RJ45
1 x RS232/422/485
1 x Remote
1 x Line out&Mic in (2 in 1)

内部接口 Internal I/O

1 x LVDS: max resolution up to 1920 x 1200@60Hz
2 x USB2.0
1 x 8 bit GPIO
1 x RS232
1 x Touch
1 x F_Panel (Power LED, HDD LED, Power button, reset button)
1 x DC IN

扩展接口 Expansion

1 x M.2 2230 (WiFi/PCIe/USB2.0 signal supported)
1 x M.2 2242 (SATA/PCIe X1 signal supported)
1 x Mini-PCIe ( WiFi/3G/4G/mSATA supported)
1 x SIM

看门狗 Watchdog Timer

System Reset, Programmable via software from 1 to 255 seconds

环境 Environment

操作温度 Operation Temp.: -20℃ ~ 60℃
存储温度 Storage Temp.: -40℃ ~ 85℃
操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing

电源输入 Power Input

宽压 9~36V DC-IN

尺寸 Dimensions

3.5" (146 x 105mm)

操作系统 OS

Windows 7/8/10, Linux

■配置Configuration

型号 Model

CPU 型号

主频 / 超频

CEB-6103-W100

i3-6100U

2.3 GHz/ 不支持

CEB-6203-W100

i5-6200U

2.3 GHz/2.8 GHz

CEB-6503-W100

i7-6500U

2.5 GHz/3.1 GHz

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

35074TC00-38L-G

Power Cable,120mm+/-10mm,18AWG,4pin+2pin

选配
Optional

型号 Model

描述 Description

CTO-6203-cooler

CPU cooler for 1CB2

35105J200-JTU-G

COM2,COM cable,150mmm+/-10mm

35105R200-JTU-G

USB*2 type A(F) black cable 20cm

35074RQ00-JTU-G

SATA Power data cable,150mm+/-10mm

10038H700-0D9-G

I/O expansion card, 3 x COM
