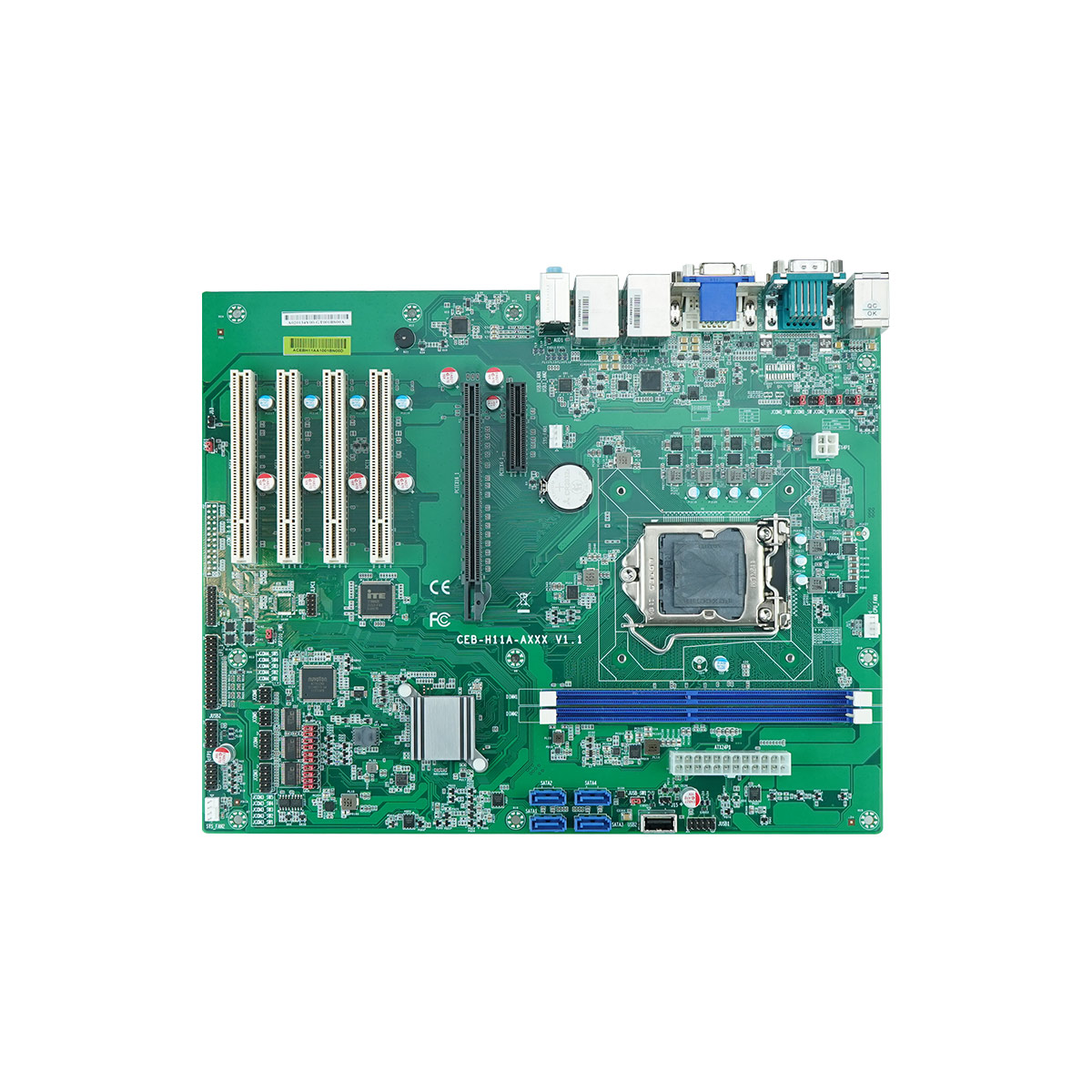

CEB-H11A-A100

Intel®6/7代酷睿 i7/i5/i3/奔腾®/赛扬®处理器, 功耗最高支援到95W
双通道 DDR4 1866/2133/2400 MHz, 高达32GB
支持VGA 和 DVI-D 独立双显
支持双Intel GbEs, SATA3.0, USB3.0, 16位GPIO
支持2个RS232/422/485、2个RS232/485和2个RS232串联端口
海岸线USB端口支援USB SR Pro技术
1个PCIe X16 (Gen3)和1个PCIe X4, 和5个PCI 扩展口

返回列表

联系我们

首页 ꄲ CEB ꄲ CEB-H11A-A100

■ 规格 Specification
处理器 Processor	Intel®6th/7th Core ™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1151 Socket, TDP up to 95W
芯片组 Chipset	Intel® H110
内存 Memory	Dual Channel, 2 x U-DIMM Slot, DDR4 1866/2133/2400MHz, up to 32GB
存储 Storage	4 x SATA3.0
显示 Display	Intel® HD Graphics
网口 Ethernet	1 x Intel® I211AT, 1 x Intel® I219LM GbE (10/100/1000 Mbps)
音频 Audio	Realtek® ALC269 HD Audio codec, supports 2.1-channel
BIOS	AMI UEFI BIOS
外部接口 Rear I/O	1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 2 x USB2.0, 4 x USB3.0 2 x RJ45 2 x RS232/422/485 (with auto flow control) 1 x PS2 (Mini-DIN-6)
内部接口 Internal I/O	2 x RS232/485 2 x RS232 4 x USB2.0 (Type-A share USB signal with one USB2.0) 1 x 16 bit GPIO 4 x SATA3.0
扩展接口 Expansion	1 x PCIe X16 (Gen3) 1 x PCIe X4 5 x PCI
看门狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
信赖平台模块 TPM	Nuvoton TPM1.2 (optional, need MOQ)
环境 Environment	操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
电源输入 Power Input	ATX
尺寸 Dimensions	304.8 x 244 mm (12" x 9.6")
操作系统 OS	6th Gen CPU : Windows7/8.1/10, Linux 7th Gen CPU : Windows10, Linux
注明：JUSB2可支持两组USB2.0信号, 其中一个与USB2.0(Tape-A)共用，可通过跳帽默认JUSB2切换信号。 Remark：JUSB2 can support two sets of USB signal, and USB2(Type -A) share signal with one of JUSB2, you can switch signal by jumper Default JUSB2.
■ 订购清单 Order List
标配 Standard	型号 Model	描述 Description
	35107V900-JTU-G	SATA Signal Cable Assembly,400mm+/-20mm
	2T718YM00-G9F-G	IO 挡板 ,IO shielding
选配 Optional	型号 Model	描述 Description
	35107V900-JTU-G	LPT cable with bracket, 450mm,
	35106ER00-38L-G	COM3~4,COM Cable with bracket,300mm+/-10mm
	35106EH00-38L-G	COM5~6,COM Cable with bracket,300mm+/-10mm
	351061S00-JTU-G	GPIO cable with bracket,350mm
	35106BR00-38L-G	1 to 2 USB Cable with bracket,300mm+/-15mm
	480301K00-JV0-G	CPU Cooler, support 65W, LGA115X Series
