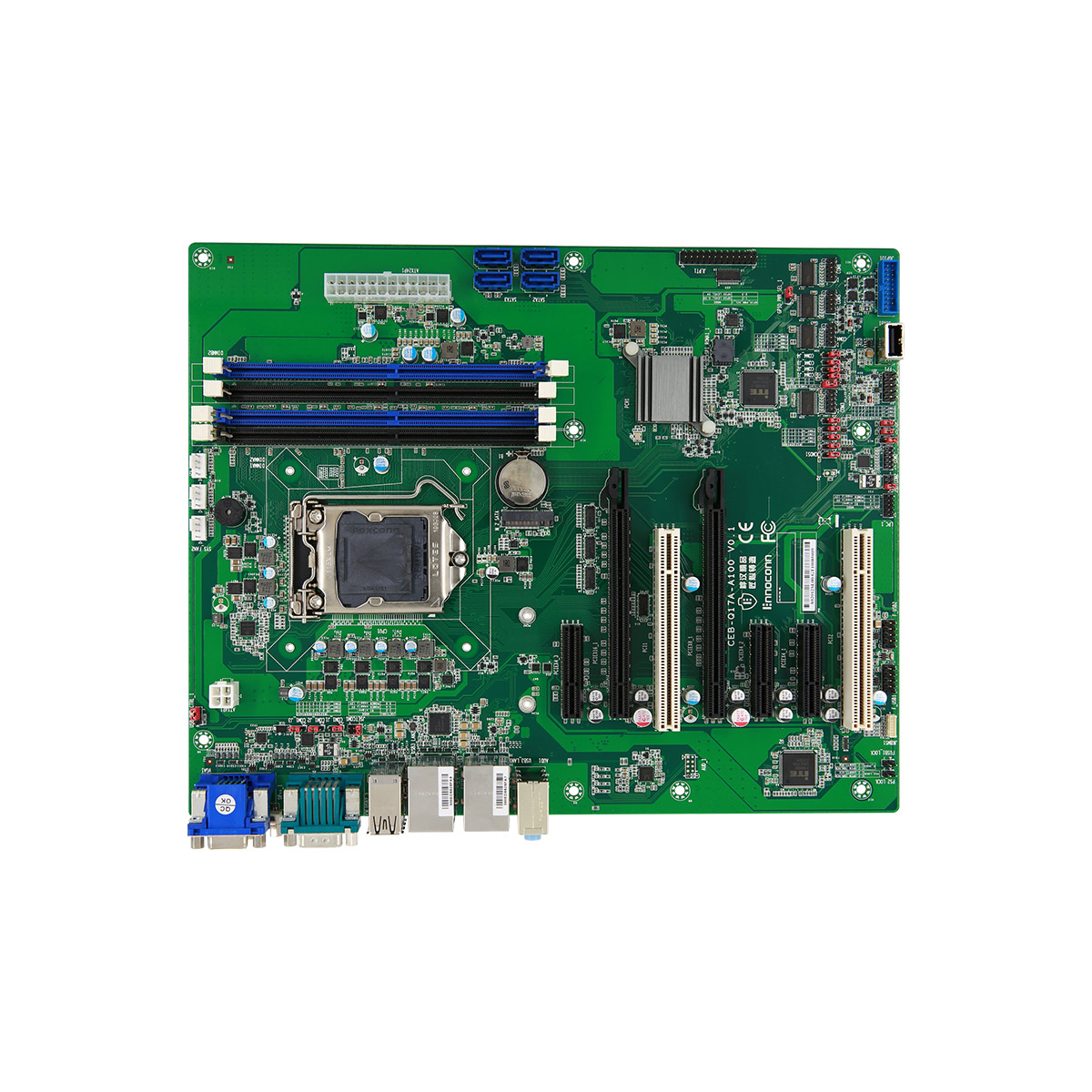

CEB-Q17A-A100

■ 规格 Specification

处理器 Processor

Intel® 6th/7th Gen Core ™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1151 Socket, TDP up to 95W

芯片组 Chipset

Intel® Q170

内存 Memory

Dual Channel, 4 x U-DIMM Slot, DDR4 2133/2400MHz , up to 64GB

存储 Storage

4 x SATA3.0, 1 x M.2 2242/2280 (SATA3.0/PCIe3.0x1 supported)

显示 Display

Intel® HD Graphics

网口 Ethernet

1 x Intel® i219-LM GbE, 1 x Intel® i211-AT (10/100/1000 Mbps)

音频 Audio

Realtek® ALC888S HD Audio codec, supports 2.1-channel

BIOS

AMI UEFI BIOS

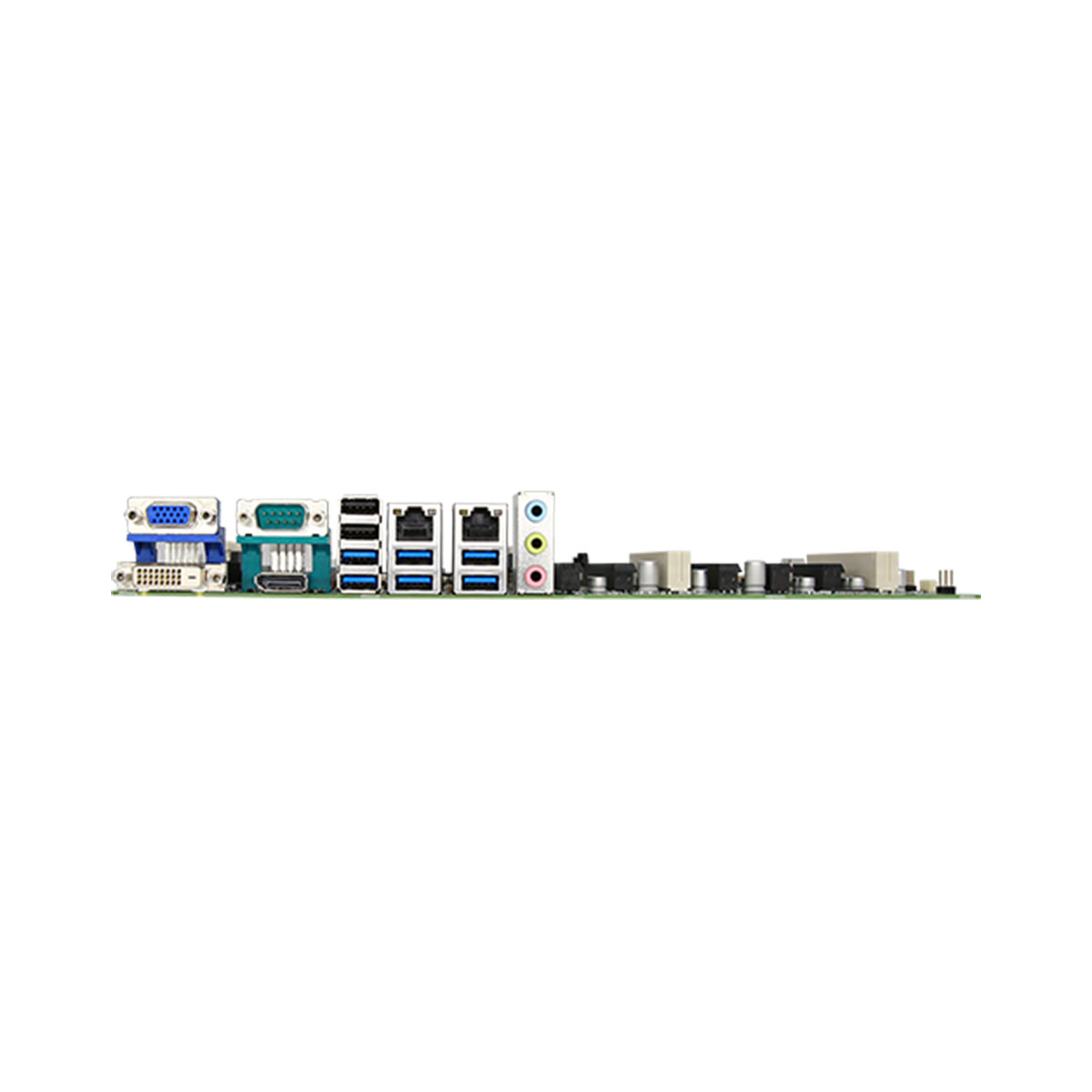

外部接口 Rear I/O

1 x DVI-D: max resolution up to 1920 x 1200@60Hz
1 x VGA: max resolution up to 1920 x 1200@60Hz
1 x DP: max resolution up to 4096 x 2304@60Hz
2 x USB2.0, 6 x USB3.0
2 x RJ45
1 x RS232/422/485 (witn auto flow control)
1 x Line-out, Line-in, Mic-in

内部接口 Internal I/O

1 x RS232/422/485
2 x RS232/485
2 x RS232
5 x USB2.0 (Type-A share USB signal with one USB2.0)
1 x 16 bit GPIO
4 x SATA3.0
1 x PS/2 (for Keyboard and Mouse)
1 xLPT

扩展接口 Expansion

2x PCIe X16 (Gen3, 1 x 16 or 2 x 8 link)
3 x PCIe X4 (X4 link)
2 x PCI
1 x M.2 2242/2280 (SATA3.0/PCIe3.0x1 supported)

看门狗 Watchdog Timer

System Reset, Programmable via software from 1 to 255 seconds

信赖平台模块 TPM

Nuvoton TPM1.2 (optional, need MOQ)

环境 Environment

操作温度 Operation Temp.: 0℃ ~ 60℃
存储温度 Storage Temp.: -40℃ ~ 85℃
操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing

电源输入 Power Input

ATX

尺寸 Dimensions

304.8 x 244 mm (12" x 9.6")

操作系统 OS

6th Gen CPU : Windows7/8.1/10, Linux
7th Gen CPU : Windows10, Linux

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

35091AW00-JTU-G

SATA Signal Cable Assembly,400mm+/-20mm

2T718YM00-G9F-G

IO 挡板 ,IO shielding

选配
Optional

型号 Model

描述 Description

35107V900-JTU-G

LPT cable with bracket, 450mm,

351061S00-JTU-G

GPIO cable with bracket,350mm

35106BR00-38L-G

1 to 2 USB Cable with bracket,300mm+/-15mm

35106WJ00-38L-G

COM2,COM Cable with Bracket,400+/-10mm

35106WK00-38L-G

COM3~4/COM5~6,COM Cable with Bracket,400+/-10mm

480301K00-JV0-G

CPU Cooler, support 65W, LGA115X Series
