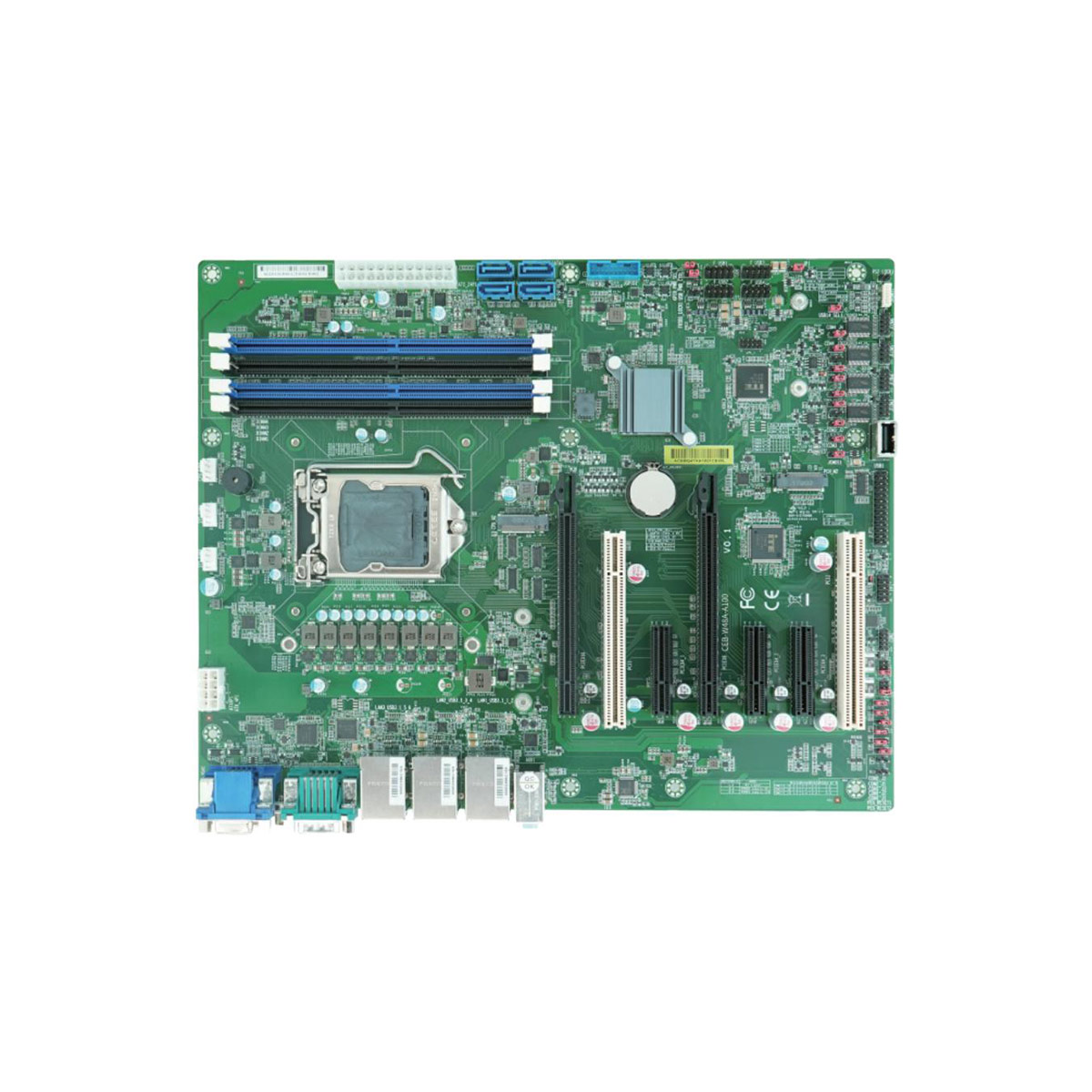

CEB-W48A-A100

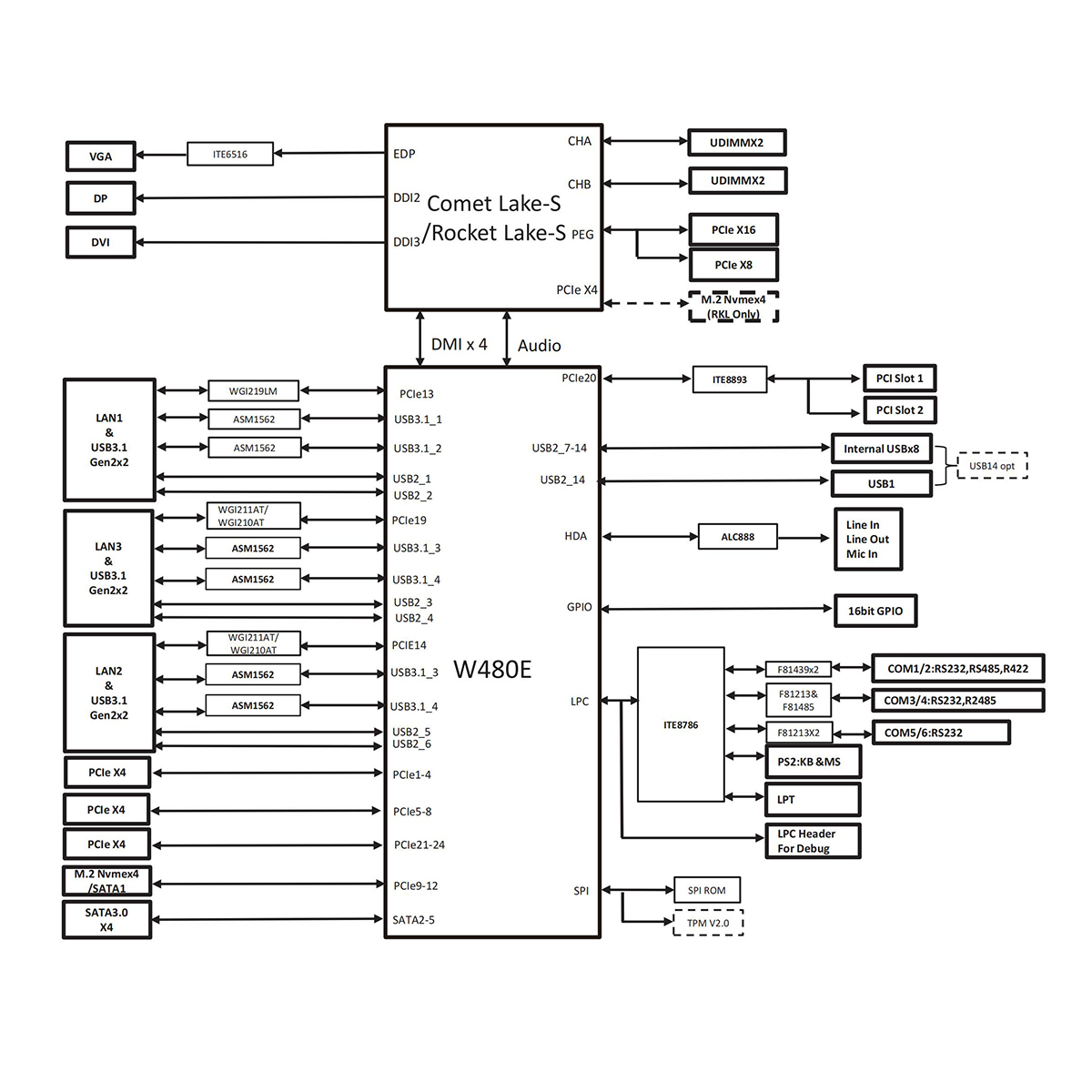

■ 规格 Specification

处理器 Processor

Intel® 10th/11th Gen Core ™ i9/i7/i5/i3/Pentium®/Celeron®/Xeon®Processor, LGA1200, TDP up to 125W

芯片组 Chipset

W480E

内存 Memory

4 x DDR4 ECC/Non-ECC 2400/2666/2933 MHz U-DIMM Slot, up to 128GB

存储 Storage

4 x SATA 3.0, 1 x M.2 (SATA3.0/PCIe 3.0 x 4) 2242/2280,1 x M.2( PCIe3.0 x 4 NVME ) 2242/2280 only 11th CPU supported

显示 Display

Intel® UHD Graphics 630 (10th CPU) 750 (11th CPU)

网口 Ethernet

1 x Intel® i219-LM GbE, 2 x Intel® i211-AT/i210-AT (10/100/1000 Mbps)

音频 Audio

Realtek® ALC888S/ALC897 HD Audio codec, supports 5.1-channel

BIOS

AMI UEFI BIOS

外部接口 Rear I/O

1 x DVI-D: max resolution up to 1920 x 1200 @ 60Hz
1 x VGA: max resolution up to 1920 x 1200 @ 60Hz
1 x DP: max resolution up to 4096 x 2304 @ 60Hz (10th CPU)/ 5120x3200@60Hz (11th CPU)
6 x USB3.2 Gen2
3 x RJ45
1 x RS232/422/485 (with auto flow control)
1 x Line-out, Line-in, Mic-in

内部接口 Internal I/O

1 x RS232/422/485 (with auto flow control)
2 x RS232/485
2 x RS232
8 x USB2.0 (1 x Type-A)
1 x 16 bit GPIO
4 x SATA3.0
1 x PS/2 (for Keyboard and Mouse)
1 x CPU_FAN
2 x SYS_FAN
1 x LPT
1 x FP (power button,power led,reset,HDD led)

扩展接口 Expansion

2 x PCIe X16 (Gen3, 1 x 16 or 2 x 8 link)
3 x PCIe X4 (X4 link)
2 x PCI
1 x M.2 (SATA3.0/PCIe3.0 x 4)
1 x M.2 ( PCIe3.0 x 4 NVME ) 2242/2280 only 11th CPU supported

信赖平台模块 TPM

Nuvoton TPM1.2 (optional, need MOQ)

环境 Environment

操作温度 Operation Temp.: 0℃ ~ 60℃
存储温度 Storage Temp.: -40℃ ~ 85℃
操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing

电源输入 Power Input

ATX

尺寸 Dimensions

304.8 x 244 mm (12" x 9.6")

操作系统 OS

Windows 10, Linux

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

35091AW00-JTU-G

SATA Signal Cable Assembly,400mm+/-20mm

2T71B4Q00-G9F-G

Q47A IO shielding

选配
Optional

型号 Model

描述 Description

351061R00-JTU-G

LPT cable with bracket, 450mm,

351061S00-JTU-G

GPIO cable with bracket, 350mm

35106BR00-38L-G

1 to 2 USB Cable with bracket, 300mm+/-15mm

35106WJ00-38L-G

COM2,COM Cable witht Bracket, 400+/-10mm

480301K00-JV0-G

CPU Cooler, support 65W, LGA115X Series

35107VA00-38L-G

PS2 KBMS /1*6Pin,400mm,+/-10mm,VSO,SR4H05621

35106WK00-38L-G

COM3~4/COM5~6,COM Cable with Bracket,400+/-10mm
