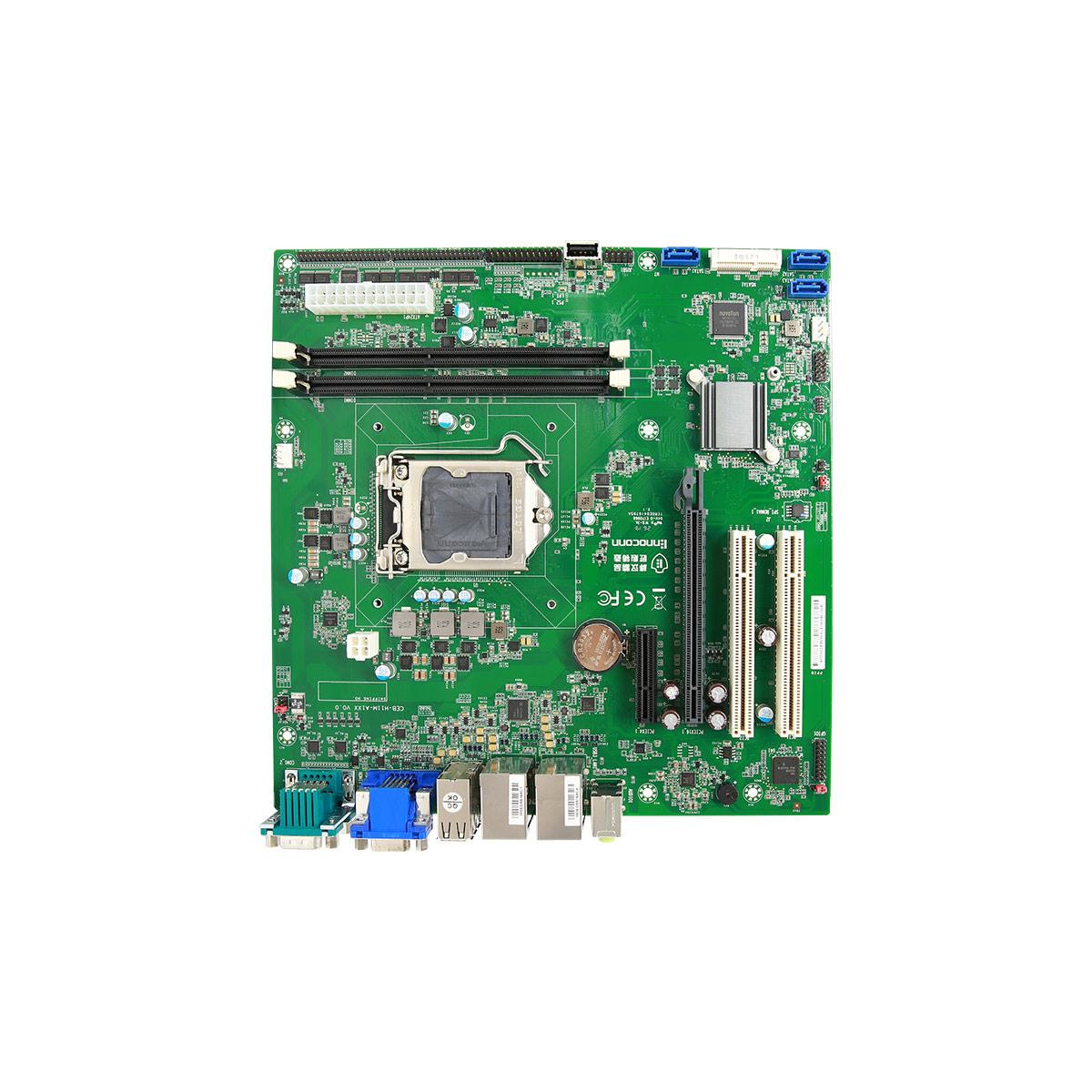

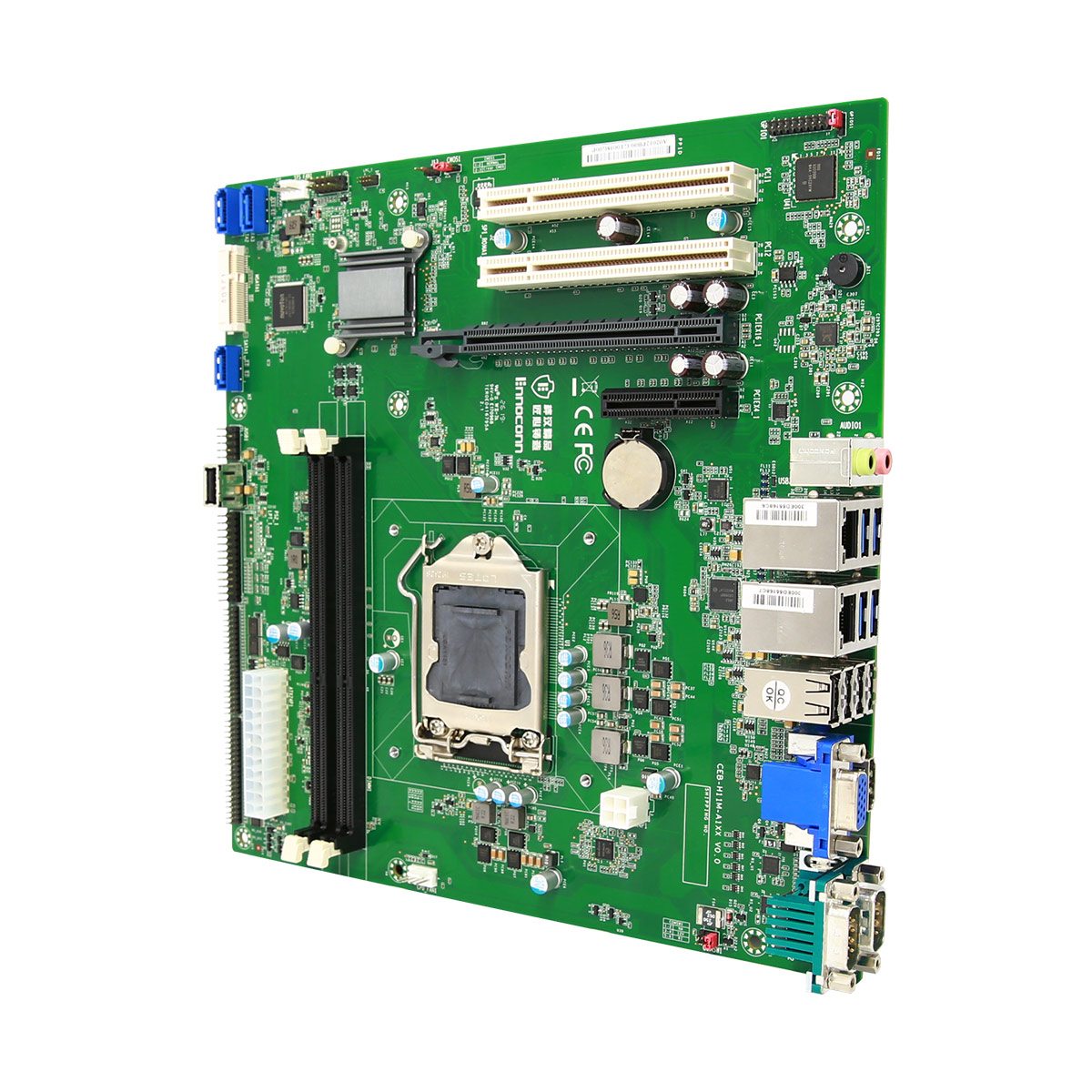

CEB-H11M-A110

支持Intel® 6th/7th Gen. Core™ i3/i5/i7, Pentium®, Celeron®高性能处理器
支持双通道DDR3L(1.35V)1333/1600 DIMM内存插槽, 内存容量最大可达16GB
支持HDMI, VGA双显
支持Ennoconn USB SR Pro技术
支持双Intel千兆网口、10 x USB、10 x COM(2 x RS232/422/485 with auto Flow, 8 x RS232)
支持 1 x PCIe X16, 1 x PCIe X4, 2 x PCI 扩展槽
支持 S5状态下USB断电功能

返回列表

联系我们

首页 ꄲ CEB ꄲ CEB-H11M-A110

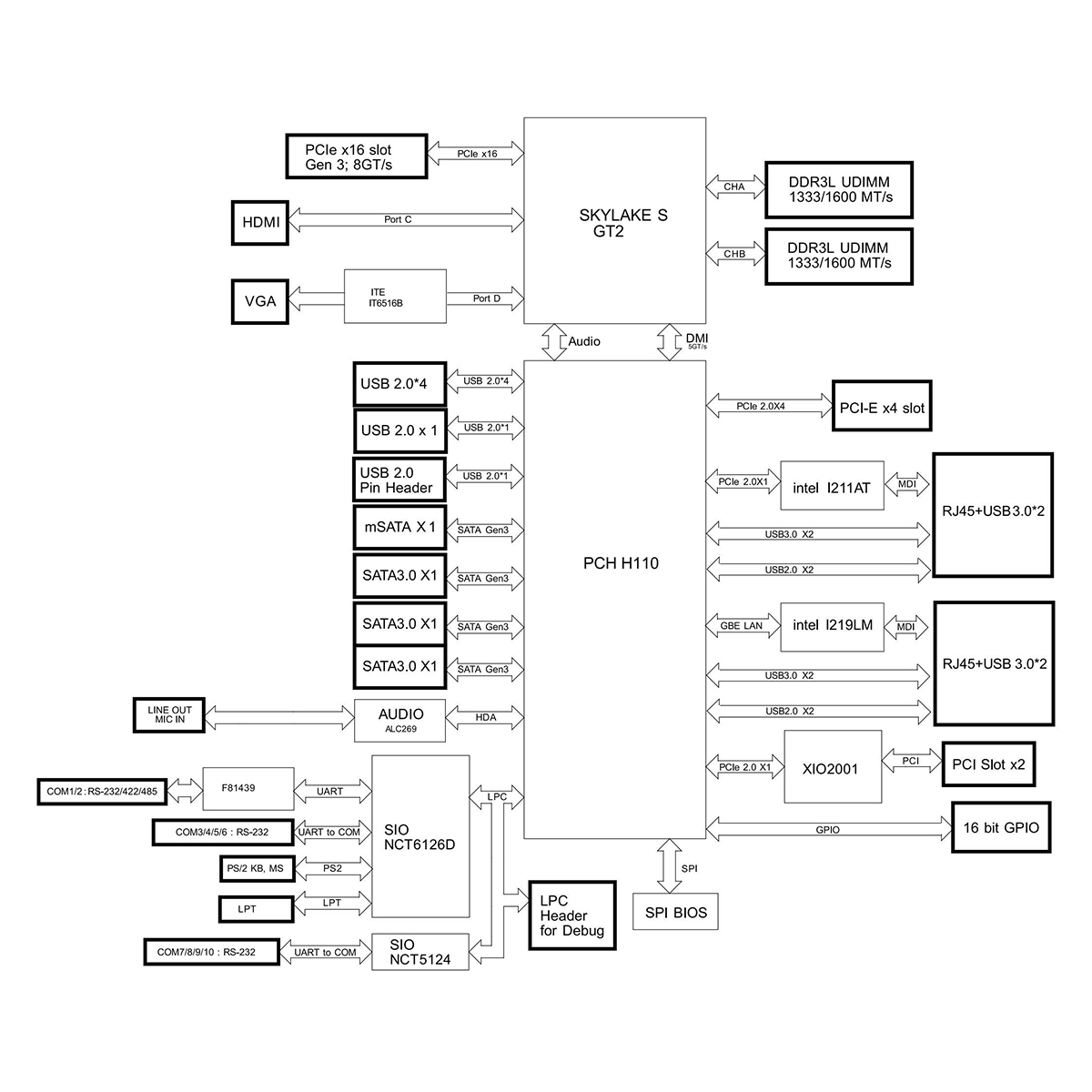

■ 规格 Specification
处理器 Processor	Intel® 6th/7th Gen. Core ™ i3/i5/i7, Pentium®, Celeron® Processor, LGA1151 Socket, TDP up to 65w
芯片组 Chipset	Intel® H110
内存 Memory	Dual Channel, 2 x U-DIMM Slot, DDR3L (1.35V) 1333/1600MHz, up to 16GB
存储 Storage	3 x SATA3.0, 1 x mSATA
显示 Display	Intel® HD Graphics
网口 Ethernet	1 x Intel® I211AT GbE (10/100/1000 Mbps) 1 x Intel® I219LM GbE (10/100/1000 Mbps)
音频 Audio	Realtek® ALC269 HD Audio codec, supports 2.1-channel
BIOS	AMI UEFI BIOS
外部接口 Rear I/O	1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 2 x RJ45 4 x USB2.0 (USB SR Pro supported), 4 x USB3.0 (USB SR Pro supported) 2 x RS232/422/485 with auto flow control 1 x Line-out, 1 x Mic-in
内部接口 Internal I/O	8x RS232 1 x USB2.0, 1 x USB2.0 (Type-A) 1 x 16 bit GPIO 1 x LPT 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x PS/2 (for Keyboard and Mouse)
看门狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
扩展接口 Expansion	1 x PCIe X16 1 x PCIe X4 2 x PCI
环境 Environment	操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
电源输入 Power Input	ATX
尺寸 Dimensions	244 x 244 mm (9.6" x 9.6"
操作系统 OS	6th Gen CPU : Windows7/8/10, Linux 7th Gen CPU : Windows10, Linux
■ 订购清单 Order List
标配 Standard	型号 Model	描述 Description
	35091AW00-JTU-G	SATA Signal Cable Assembly,400mm,+/-20mm
	2T680B300-G9F-G	IO SHIELDING
选配 Optional	型号 Model	描述 Description
	35105BH00-38L-G	COM3~6/COM7~10,COM cable with bracket,500mm+/-20mm
	480301K00-JV0-G	CPU Cooler, support 65W, LGA115X Series
