CEB-H81M-A101

Intel®4代酷睿 i7/i5/i3/奔腾®/赛扬®处理器, 功耗最高支援到65W
双通道 DDR3(1.5V)1333/1600MHz, 高达16GB
支持VGA,DVI-D, HDMI，独立双显
支持双 GbEs,SATA3.0,USB3.0, 8位GPIO
支持6个RS232串联端口
1个PCIe X16 (Gen2)和1个PCIe X1(Gen2), 和2个PCI 扩展口

返回列表

联系我们

南京博开捷咨询热线：025-86511168 ꄲ CEB ꄲ CEB-H81M-A101

■ 规格 Specification
处理器 Processor	Intel®4th Core ™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1150 Socket, TDP up to 65W
芯片组 Chipset	Intel® H81
内存 Memory	Dual Channel, 2 x U-DIMM Slot, DDR3 (1.5V) 1333/1600MHz, up to 16GB
存储 Storage	2 x SATA2.0, 2 x SATA3.0
显示 Display	Intel® HD Graphics
网口 Ethernet	2 x Realtek® 8111G-CG GbE (10/100/1000 Mbps)
音频 Audio	Realtek® ALC269 HD Audio codec, supports 2.1-channel
BIOS	AMI UEFI BIOS

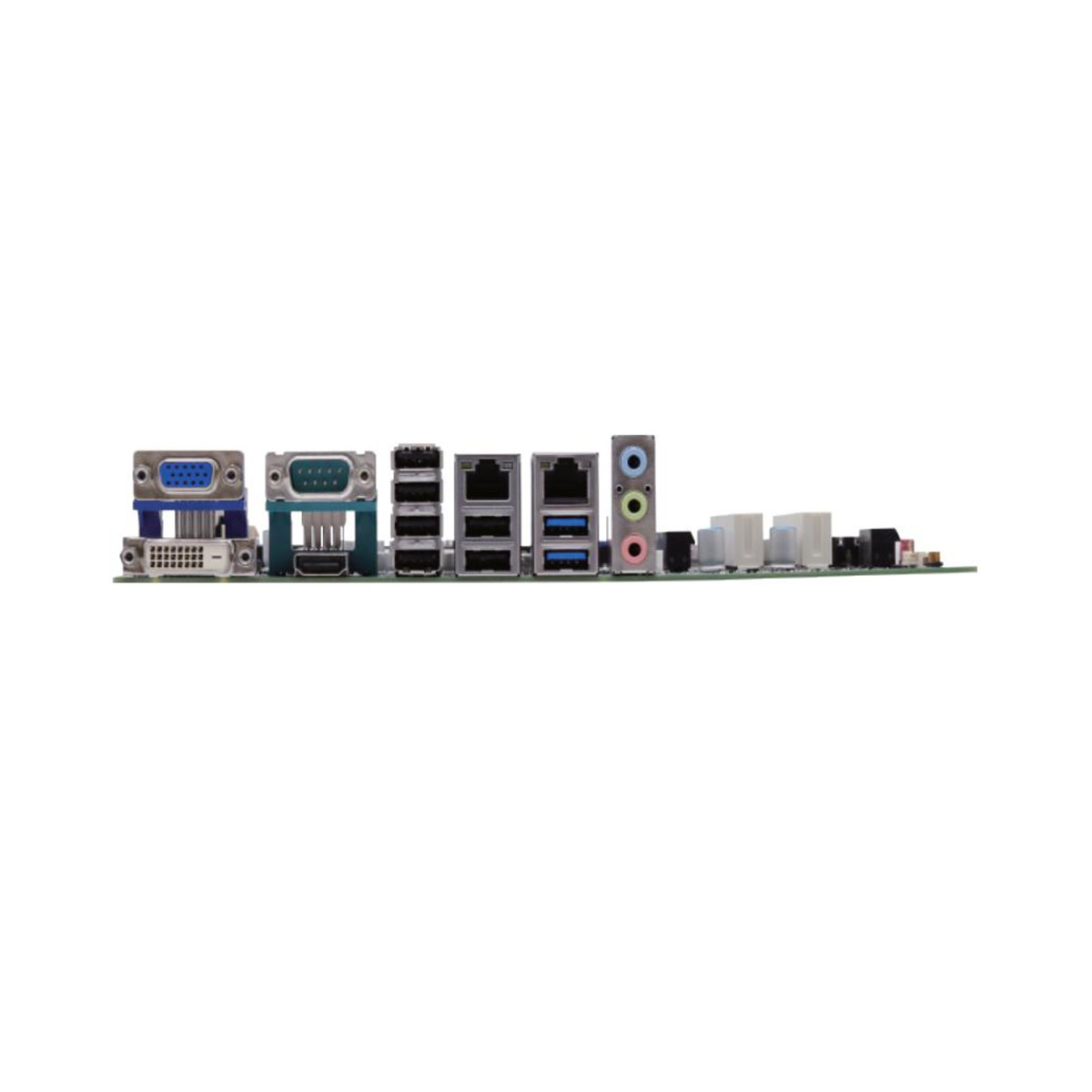

外部接口 Rear I/O	1 x VGA: max resolution up to 1920 x 1600@60Hz 1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x RS232 2 x USB3.0, 6 x USB2.0 2 x RJ45 1 x Line-in, 1 x Line-out, 1 x Mic-in
内部接口 Internal I/O	6 x USB2.0 5 x RS232 1 x 8 bit GPIO 1 x CPU_Fan, 1 x SYS_Fan 1 x F_Panel (Power LED, HDD LED, Power button, reset button)
扩展接口 Expansion	1 x PCIe X16 1 x PCIe X4 2 x PCI
看门狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
环境 Environment	操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
电源输入 Power Input	ATX
尺寸 Dimensions	244 x 244 mm (9.6" x 9.6"）
操作系统 OS	Windows/7/8.1/10, Linux
■ 订购清单 Order List
标配 Standard	型号 Model	描述 Description
	35091AW00-JTU-G	SATA Signal Cable Assembly,400mm+/-20mm
	2T680B300-G9F-G	IO SHIELDING
选配 Optional	型号 Model	描述 Description
	35105BH00-38L-G	COM3~6/COM7~10,COM cable with bracket,500mm+/-20mm
	35106KY00-38L-G	COM2, COM Cable with bracket,360+/-10mm
	35106KW00-38L-G	2 to 4 USB Cable with bracket,250mm+/-15mm
	35106BR00-38L-G	1 to 2 USB Cable with bracket
	480301K00-JV0-G	CPU Cooler, support 65W, LGA115X Series
