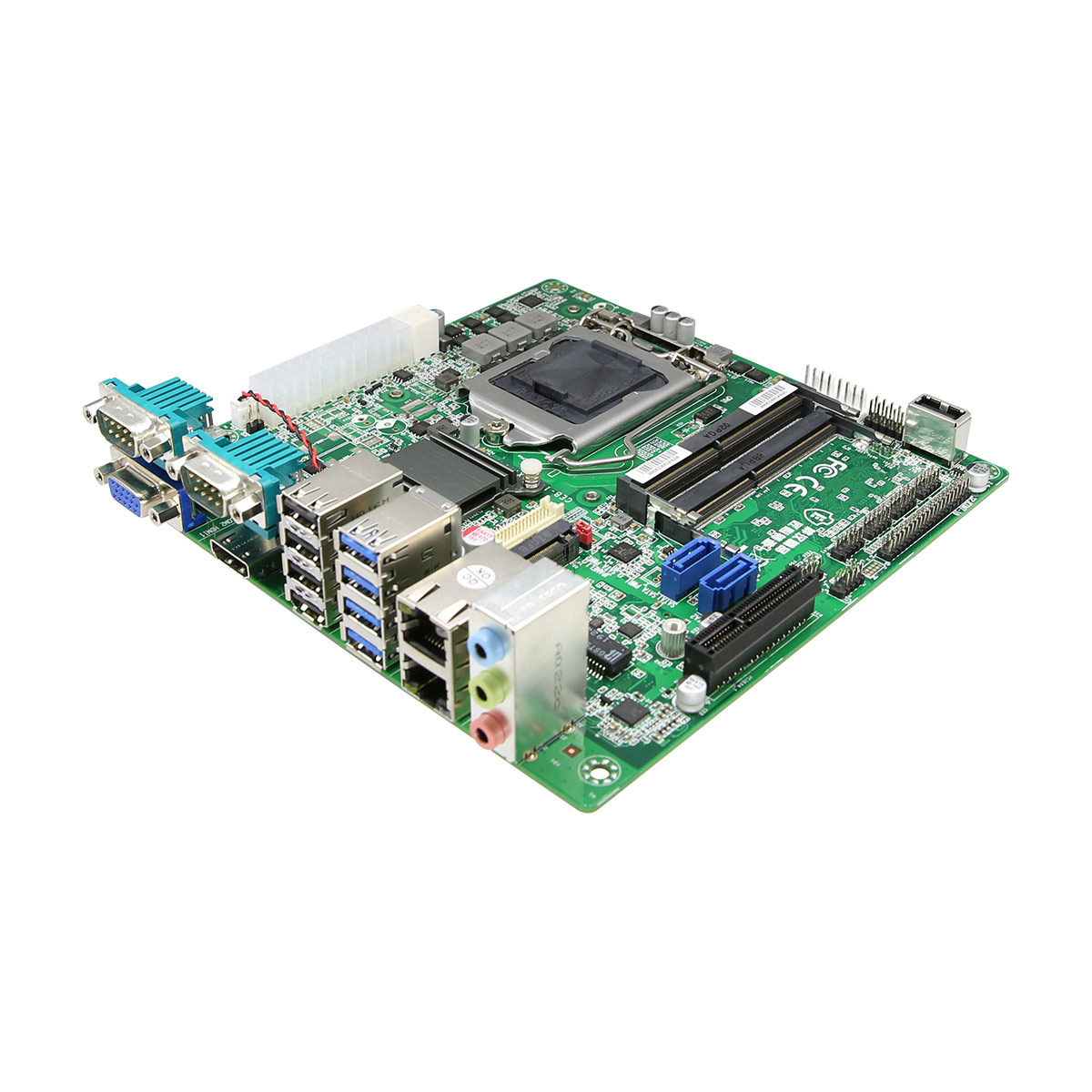

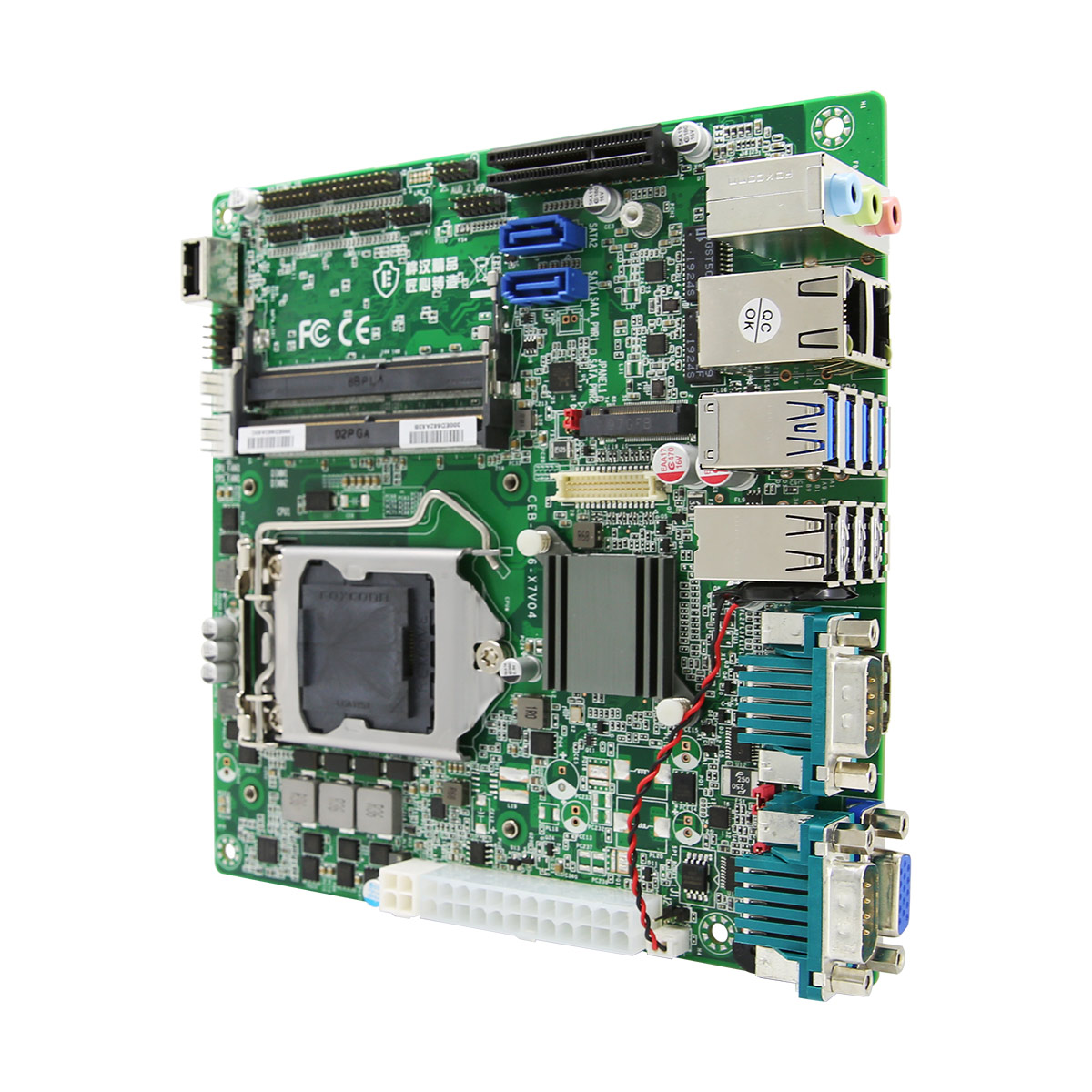

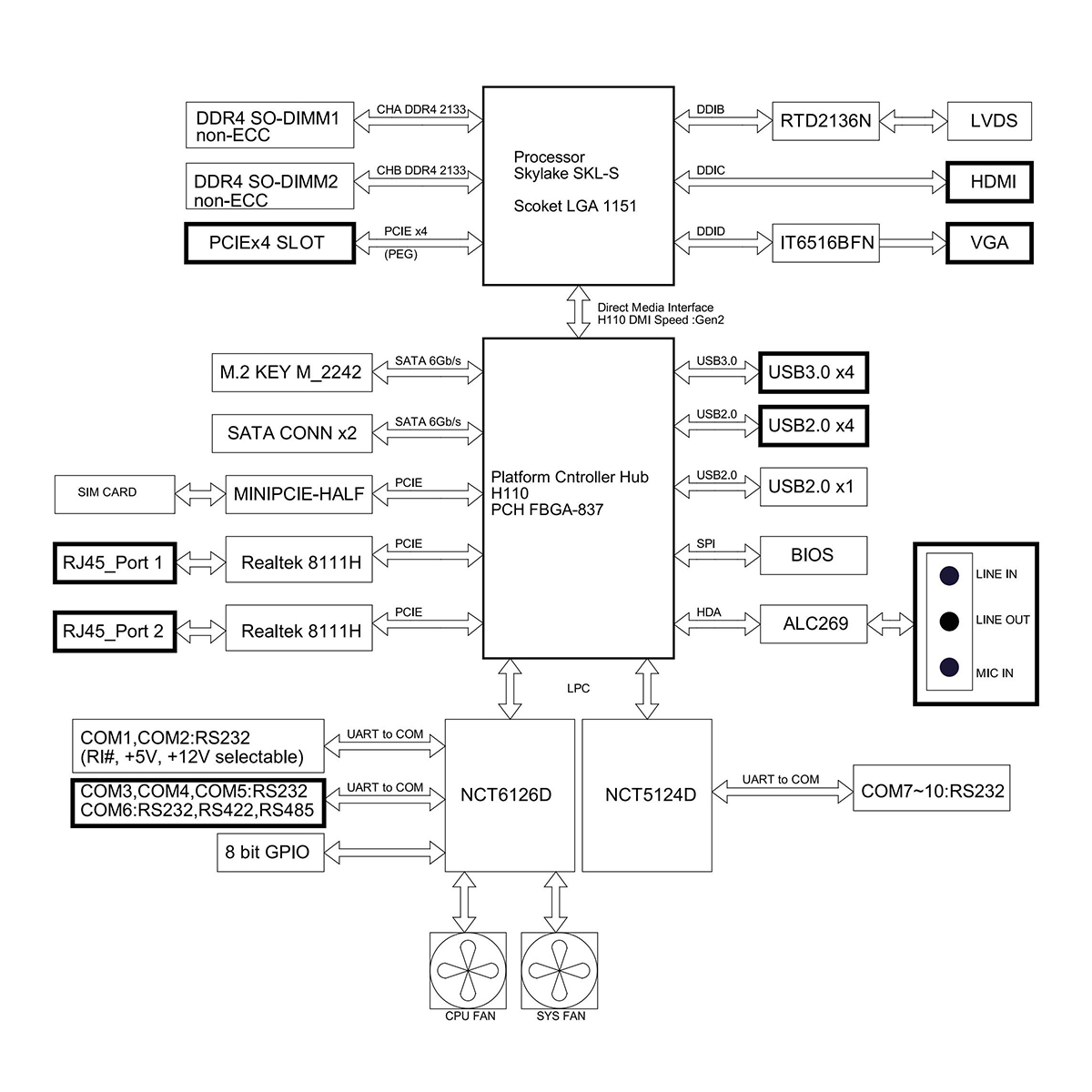

CEB-H11I-A100

■ 规格 Specification

处理器 Processor

Intel® 6th/7th Gen. Core ™ i3/i5/i7, Pentium®, Celeron® Processor, LGA1151 Socket, TDP up to 65W

芯片组 Chipset

Intel® H110

内存 Memory

Dual Channel, 2 x U-DIMM Slot, DDR4 2133/1866MHz, up to 32GB

存储 Storage

2 x SATA 3.0, 1 x M.2 2242 (SATA)

显示 Display

Intel® HD Graphics

网口 Ethernet

2 x RJ45 Realtek 8111H GbE (10/100/1000 Mbps)

音频 Audio

Realtek® ALC269Q HD Audio Codec, 1 x Line-in, 1 x Line-out, 1 x Mic-in

BIOS

AMI UEFI BIOS

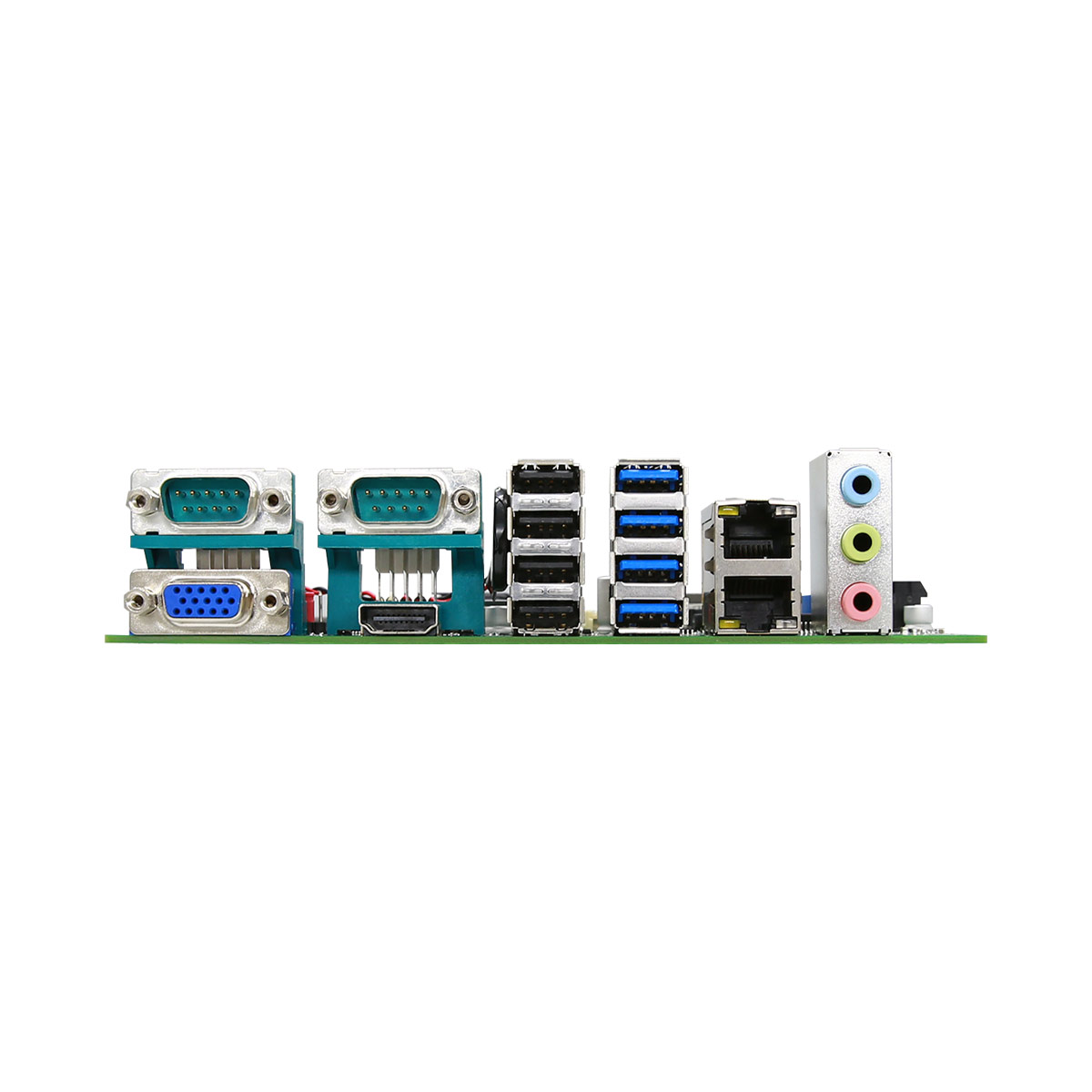

外部接口 Rear I/O

1 x HDMI: max resolution up to 4096 x 2304@24Hz
1 x VGA: max resolution up to 1920 x 1200@60Hz
4 x USB2.0, 4 x USB3.0
2 x RJ45
2 x RS232
1 x Line-in, 1 x Line-out, 1 x Mic-in

内部接口 Internal I/O

1x LVDS: max resolution up to 1920 x 1200@60Hz
1 x USB2.0 (Type -A)
1 x 8 bit GPIO
7 x RS232, 1 x RS232/422/485
1 x F_Panel (Power LED, HDD LED, Power button, reset button)
1 x CPU_Fan, 1 x SYS_Fan

扩展接口 Expansion

1 x Mini-PCIe
1 x PCIe X4
1 x M.2 2242 (SATA)

看门狗 Watchdog Timer

System Reset, Programmable via software from 1 to 255 seconds

信赖平台模块 TPM

fTPM2.0

环境 Environment

操作温度 Operation Temp.: 0℃ ~ 60℃
存储温度 Storage Temp.: -40℃ ~ 85℃
操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing

电源输入 Power Input

ATX

尺寸 Dimensions

Mini-ITX (170 x 170mm)

操作系统 OS

6th Gen CPU : Windows7/8/10, Linux
7th Gen CPU : Windows10, Linux

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

35091AW00-JTU-G

SATA Signal Cable Assembly,400mm+/-20mm

2T717YS00-G9F-G

IO-SHIELDING

选配
Optional

型号 Model

描述 Description

35105BH00-38L-G

COM3~6/COM7~10,COM cable with bracket,500mm+/-20mm

35106KY00-38L-G

CPU Cooler, support 65W, LGA115X Series

480301K00-JV0-G

CPU Cooler,support 65W,LGA115X Series
