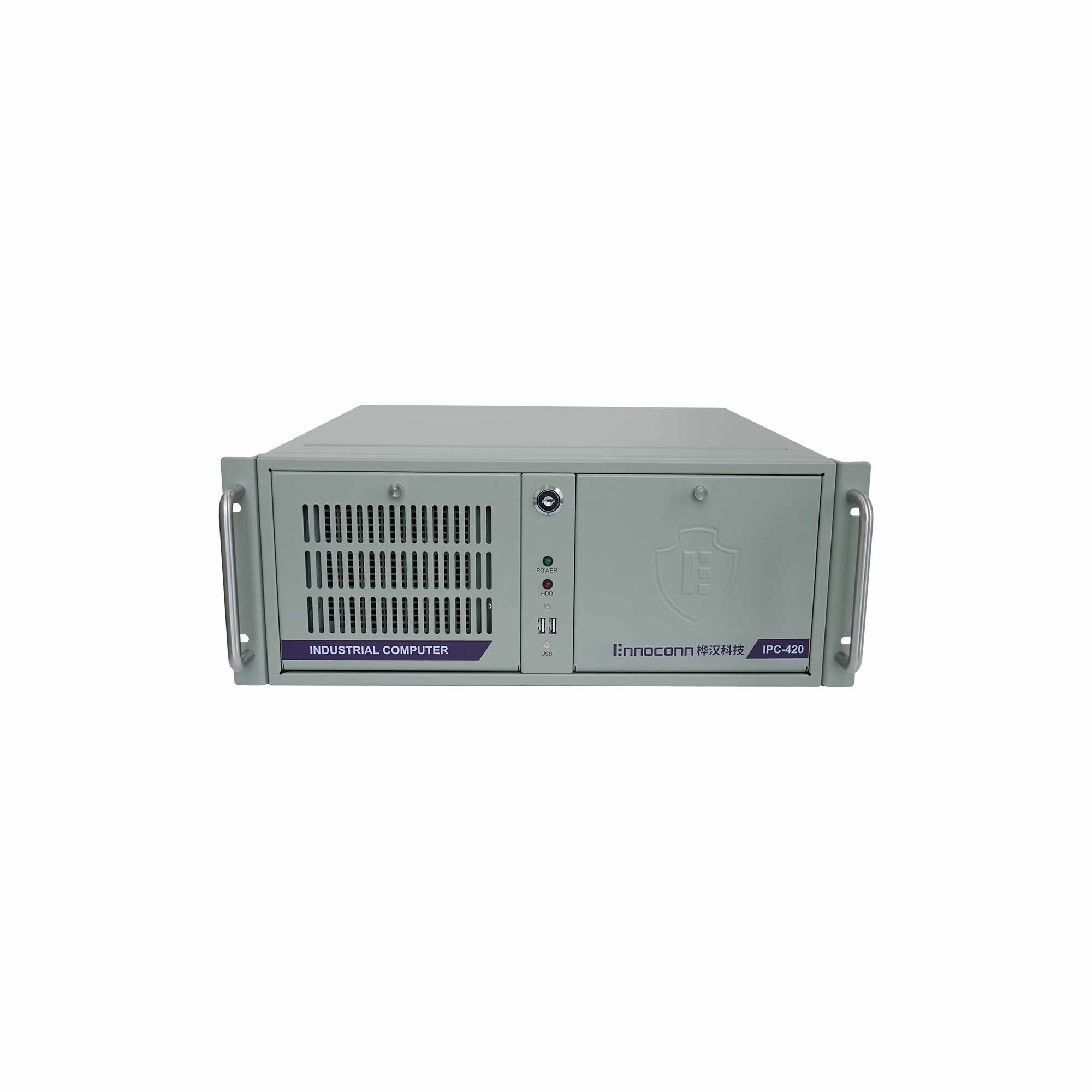

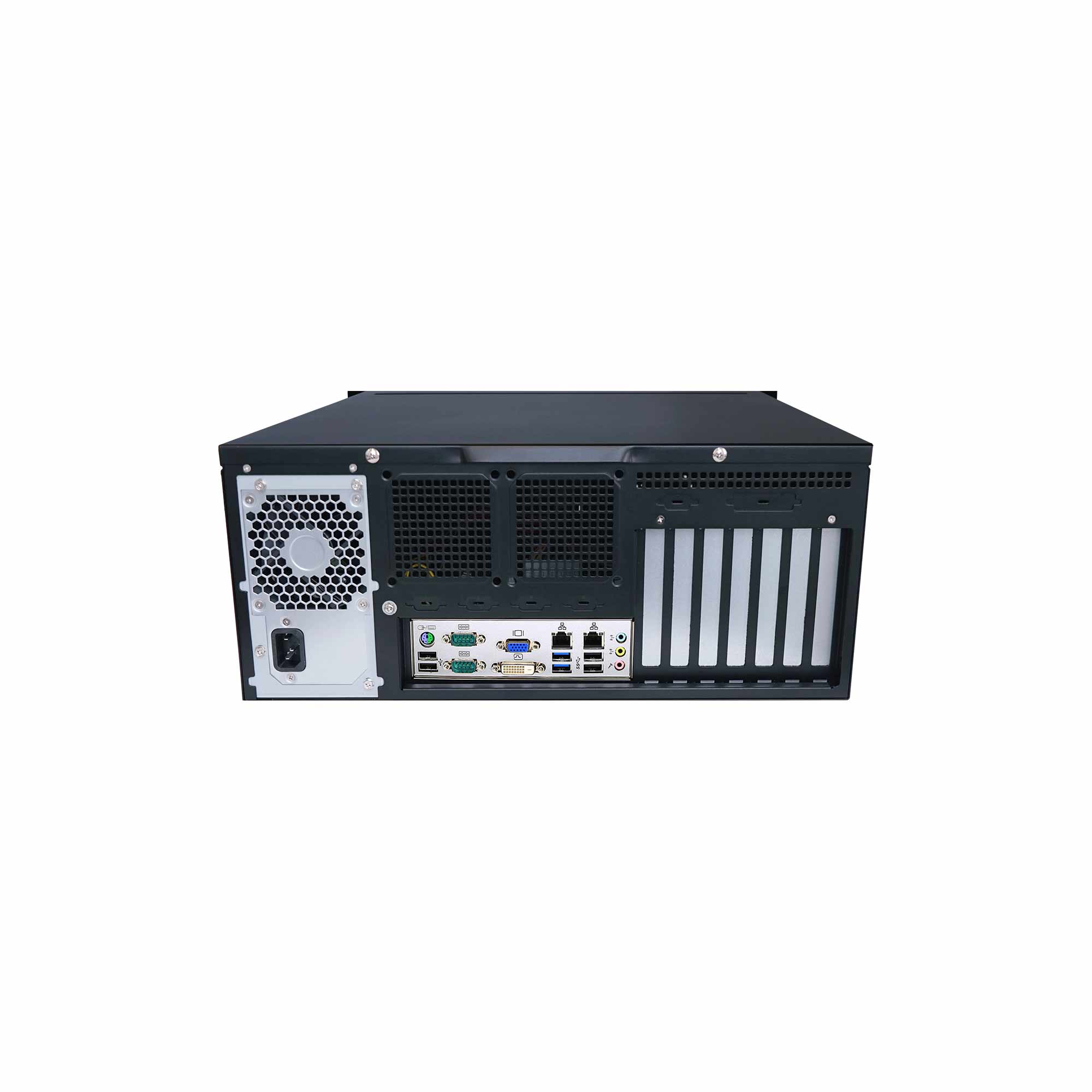

CEFS-RA22-H81A-4U
采用H81芯片组
支持双千兆网口
支持VGA、DVI双屏异显
内置PCI,PCIe插槽，支持多种模块扩展
抗震动磁盘架设计，可支持1个5.25"光驱、2个2.5"SSD、3个3.5"HDD硬盘
前部可访问 USB接口，更易于数据传输
海岸线上的USB端口支持Ennoconn USB SR Pro技术
|
■ 规格 Specification |
|
||||
|
系统 System |
|||||
|
处理器 Processor |
Intel® 4th Gen. Core ™ i3/i5/i7, Pentium®, Celeron® processor, LGA1150 Socket,TDP up to 95W |
||||
|
芯片 Chipset |
Intel® H81 |
||||
|
内存 Memory |
Dual Channel, 2 x U-DIMM Slot, DDR3 (1.5V) 1333/1600MHz, up to 16GB |
||||
|
存储 Storage |
2 x SATA2.0, 1 x SATA3.0, 1 x M.2 (SATA3.0 signal) 2242/2280 |
||||
|
图形 Graphics |
Intel® HD Graphics, dual display |
||||
|
操作系统 OS |
Windows7/8.1/10, Linux |
||||
|
外部接口 External I/O |
|||||
|
网口 Ethernet |
2 x RJ45 Intel i211AT GbE (10/100/1000 Mbps) |
||||
|
显示 Video |
1 x DVI-D: max resolution up to 1920 x 1200@60Hz |
||||
|
串口 COM |
2xRS232/RS422/RS485(with auto flow control) |
||||
|
USB |
6 x USB 2.0, 2 x USB 3.0 (Support Ennoconn USB SR Pro Technology) |
||||
|
PS/2 |
1 x PS/2(mini-DIN-6) |
||||
|
按钮 Button |
1 x Power Button, 1 x Reset Button |
||||
|
指示灯 LED |
1 x Power LED, 1 x HDD LED |
||||
|
内部接口 Internal I/O |
|||||
|
扩展接口 Expansion |
1 x PCIe X 16, 2 x PCIe X 4(X 1 Link), 4 x PCI |
||||
|
USB |
2 x USB2.0 (Type-A share USB signal with one USB2.0) |
||||
|
风扇 FAN |
1 x CPU Fan, 2 x System Fan |
||||
|
GPIO |
1 x 16-bit GPIO |
||||
|
串口 COM |
2 x RS232/485, 2 x RS232 |
||||
|
环境 Environmental |
|||||
|
操作温度 Operating Temp. |
0℃ ~ 40℃ |
||||
|
存储温度 Storage Temp. |
-20℃ ~ 60℃ |
||||
|
湿度 Relative Humidity |
5% ~ 95%, 非凝结状态 Non-condensing |
||||
|
随机振动 Random Vibration |
5~500Hz, 1Grms (HDD)operation |
||||
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
||||
|
机械冲击 Shock |
10G @ 11ms operation |
||||
|
电源 Power |
|||||
|
电源输入 Power Input |
100~240V (AC) |
||||
|
电源功耗 Power Watt |
300W |
||||
|
机构 Mechanical |
|||||
|
外观 Housing |
SGCC |
||||
|
尺寸 Dimension |
464 (L) x 430 (W) x 177 (H)mm |
||||
|
重量 Weight |
15kg ( 约 ) |
||||
|
安装方式 Mounting |
机柜式 (Rack-Mount) |
||||
|
认证 Certification |
|||||
|
安规认证 Safety Certification |
CCC |
||||
|
■ 订购清单 Order List |
|||||
|
标配 |
型号 Model |
描述 Description |
|||
|
35074KN00-704-G |
AC Power Cable, 1500mm, +70/-0mm, I-SHENG, T |
||||
|
35091AW00-JTU-G |
SATA Signal Cable Assembly, 400mm, +/-20mm |
||||
|
选配 |
型号 Model |
描述 Description |
|||
|
860117E00-289-G |
Desktop SPS, 500W, LITEON, G, PS-8501-2EN |
||||
|
860117D00-289-G |
Desktop SPS, 650W Non PFC, LITEON, PS-8651- |
||||
|
86020E400-66A-G |
Server SPS, 850W 1U, GREATWALL, GW-ATX850BL |
||||
|
351061R00-JTU-G |
LPT cable with bracket, 450mm |
||||
|
35106BS00-38L-G |
COM3~4/COM5~6, COM Cable with bracket, 300mm+/-10mm |
||||
|
351061S00-JTU-G |
GPIO cable with bracket, 350mm+/-10mm |
||||
|
35106BR00-38L-G |
1 to 2 USB Cable with bracket, 300mm+/-15mm |
||||
