CEFS-TA21-Q37A

Intel® 8th/9th 酷睿 i9/i7/i5/i3/奔腾®/赛扬®处理器, 功耗最高支援到95W
采用Q370
支持双千兆网口
支持VGA、DVI-D、DP三屏异显
内置PCI,PCIe插槽,支持多种模块扩展
抗震动磁盘架设计,可支持1个5.25寸光驱、2个2.5"SSD、2个3.5"HDD硬盘

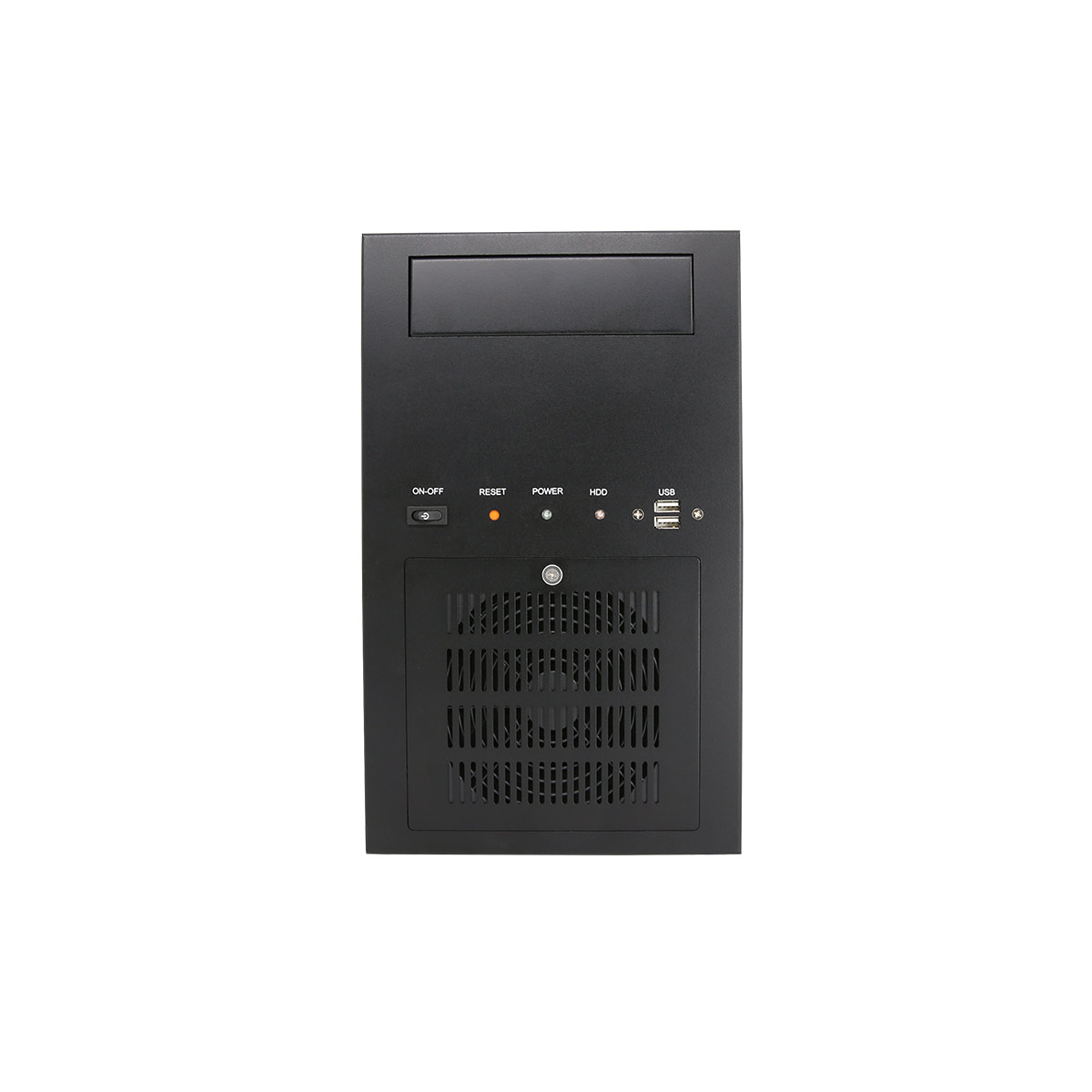

前部可访问 USB接口,更易于数据传输
海岸线上的USB端口支持Ennoconn USB SR Pro
返回列表
联系我们
首页    CEFS    CEFS-TA21-Q37A

■ 规格 Specification

系统 System

处理器 Processor

Intel® 8th/9th Gen Core ™ i9/i7/i5/i3/Pentium®/Celeron® Processor, TDP up to 95W

芯片 Chipset

Intel® Q370

内存 Memory

Dual Channel,4 x U-DIMM Slot,DDR4 2400/2666 MHz, up to 128GB

图形 Graphics

Intel® HD Graphics, triple display

存储 Storage

4 x SATA3.0, 1 x M.2 (PCIe3.0 x 4 Support NVME)2242/2280

操作系统 OS

Windows 10, Linux

外部接口 External I/O

网口 Ethernet

1 x Intel® i219-LM GbE, 1 x Intel® i211-AT (10/100/1000 Mbps)

显示 Video

1 x DVI-D: max resolution up to 1920 x 1200 @ 60Hz
1 x VGA: max resolution up to 1920 x 1200 @ 60Hz
1 x DP: max resolution up to 4096 x 2304 @ 60Hz

音频 Audio

1 x Line-in, 1 x Line-out, 1 x Mic-in

串口 COM

1 x RS232/422/485 (with auto flow control)

USB

4 x USB3.2 Gen2, 2 x USB3.2 Gen1, 4 x USB2.0

按钮 Button

1 x Power Button, 1 x Reset Button

指示灯 LED

1 x Power LED, 1 x HDD LED

内部接口 Internal I/O

扩展接口 Expansion

2 x PCIe X16 (Gen3, 1 x 16 or 2 x 8 link), 3 x PCIe X4 (X4 link), 2 x PCI

USB

3 x USB2.0 (2 x Type-A)

风扇FAN

1 x CPU Fan, 2 x System Fan

GPIO

1 x 16-bit GPIO

串口 COM
Mini-PCIE Slot

1 x RS232/422/485 (with auto flow control), 2 x RS232/485, 2 x RS232
1 x Mini-PCIe(PCIe3.0/SATA3.0、USB2.0)

SATA

4 x SATA3.0

PS/2

1 x PS/2 (keyboard and mouse)

LPT

1 x LPT

信赖平台模块

Nuvoton TPM1.2

环境 Environmental

操作温度 Operating Temp.

0℃ ~ 40℃

存储温度 Storage Temp.

-20℃ ~ 60℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

随机振动 Random Vibration

5~500Hz, 1Grms (HDD)operation

正弦振动 Sine Vibration

5~500Hz, 2G Non-operation

机械冲击 Shock

10G @ 11ms operation

电源 Power

电源输入 Power Input

100~240V (AC)

电源功耗 Power Watt

300W

机构 Mechanical

外观 Housing

SGCC

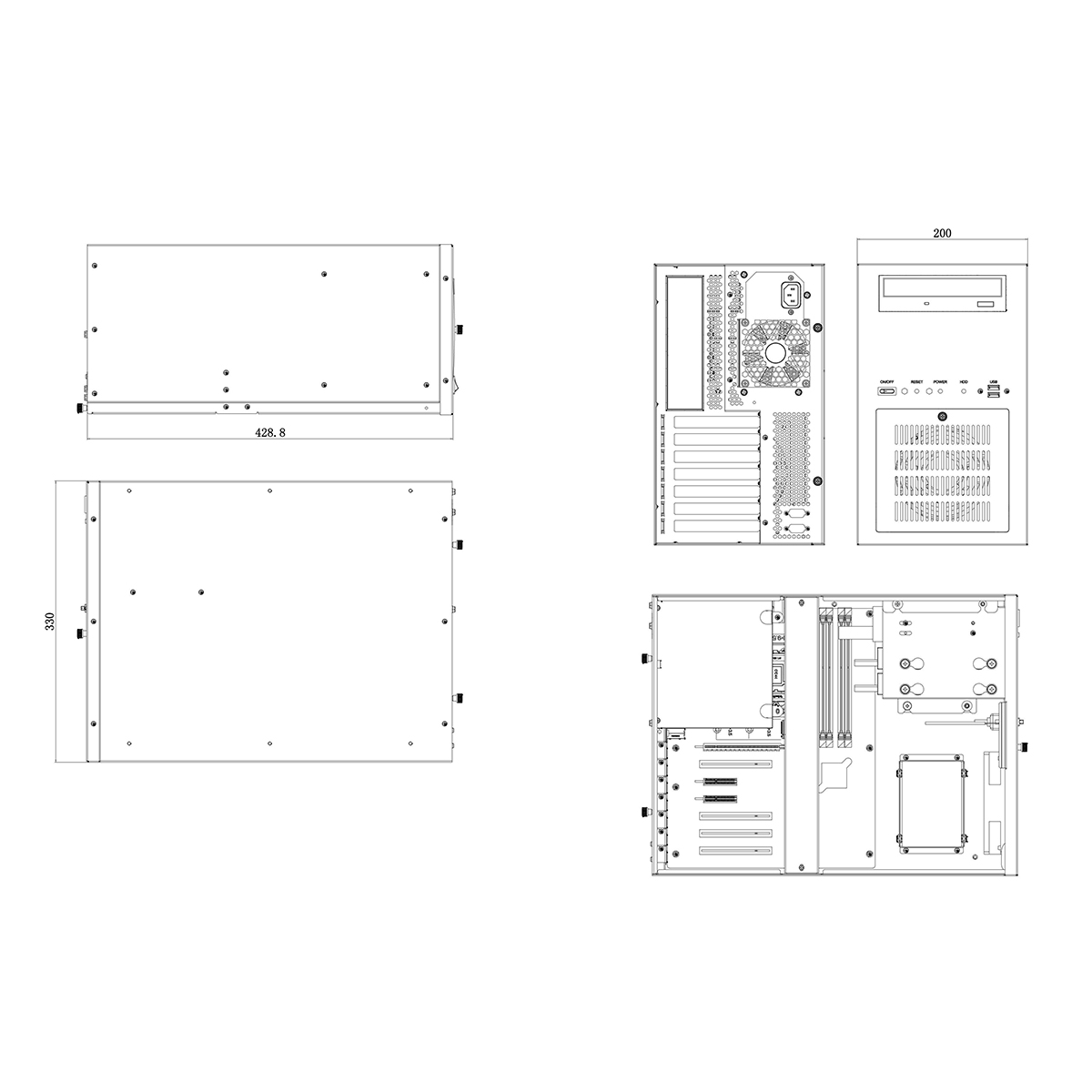

尺寸 Dimension

200(L) x 430(W) x 330(H)mm

重量 Weight

9.96kg( 约 )

安装方式 Mounting

壁挂式 (Wallmount)

认证 Certification

安规认证 Safety Certification

CCC

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

35074KN00-704-G

AC Power Cable, 1500mm, +70/-0mm, I-SHENG, T

35091AW00-JTU-G

SATA Signal Cable Assembly, 400mm, +/-20mm

选配
Optional

型号 Model

描述 Description

860117E00-289-G

Desktop SPS, 500W, LITEON, G, PS-8501-2EN

860117D00-289-G

Desktop SPS, 650W Non PFC, LITEON,PS-8651-

86020E400-66A-G

Server SPS, 850W 1U, GREATWALL, GW-ATX850BL

351061R00-JTU-G

LPT cable with bracket, 450mm

351061S00-JTU-G

GPIO cable with bracket,350mm

35106BR00-38L-G

1 to 2 USB Cable with bracket, 300mm+/-15mm

35106WJ00-38L-G

COM2, COM Cable with Bracket, 400+/-10mm

35106WK00-38L-G

COM3~4/COM5~6, COM Cable with Bracket, 400+/-10mm
