CEP-12RS-J19A

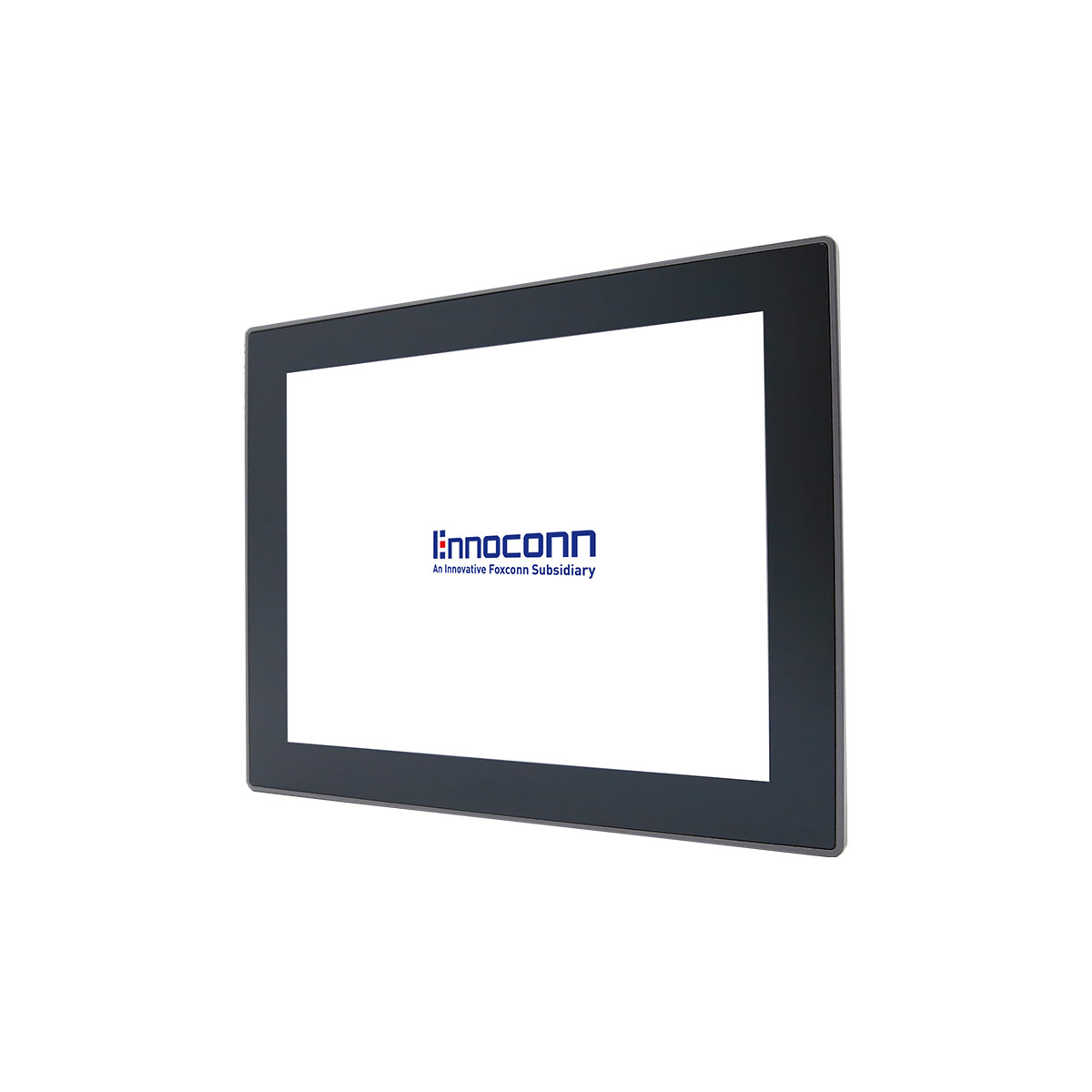

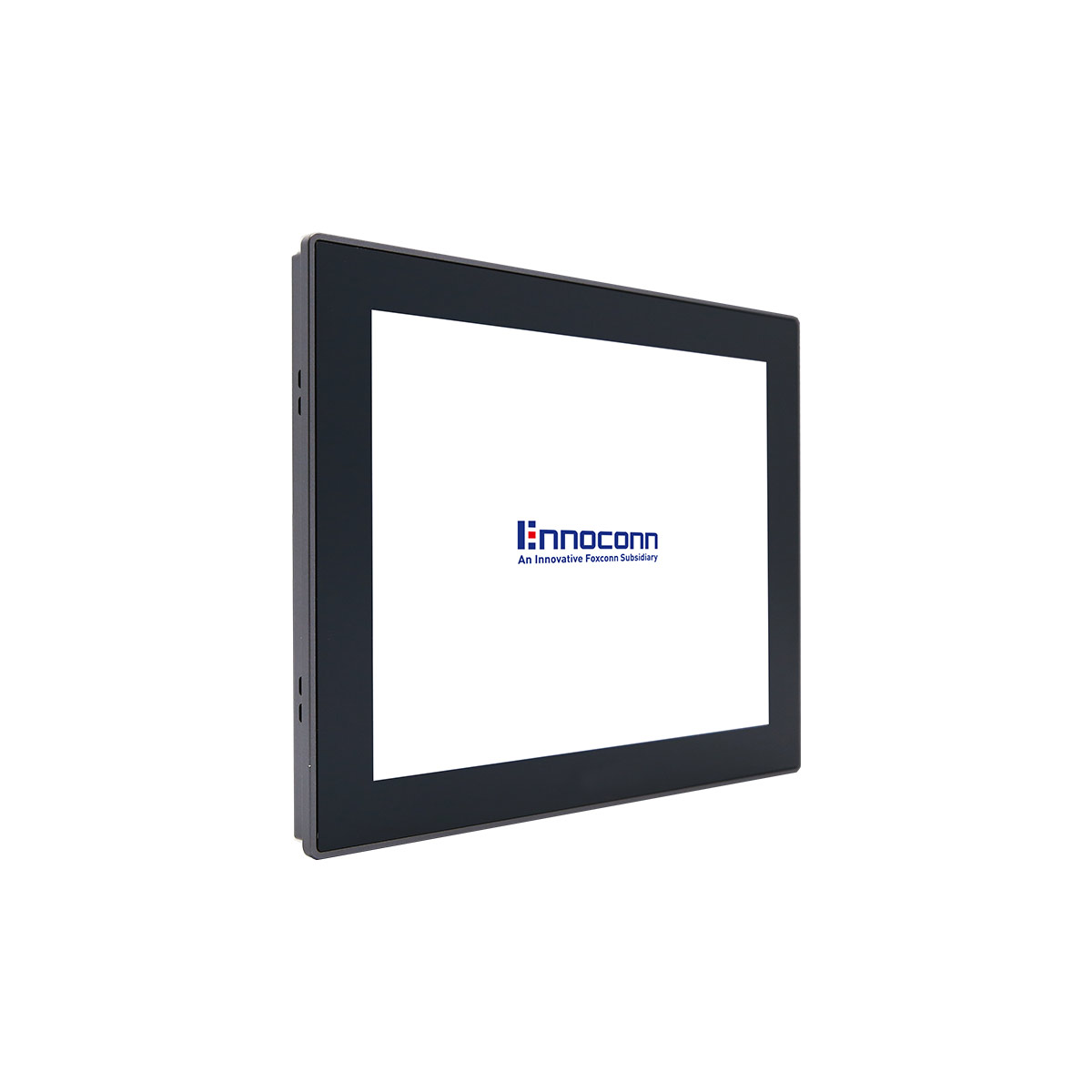

12.1寸 450nits高亮LED背光显示屏，前面框支持IP65防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级五线全平面电阻触摸屏
内置Mini-PCIe/M.2支持多种模块扩展
支持双千兆网口
宽压9~36V DC-IN，可锁附凤凰端子接口
支持远程开关
产品外壳接地保护
支持标准VESA及嵌入式安装方式
|
■ 规格 Specification |
|
||
|
系统 System |
|||
|
处理器 Processor |
Intel® Bay Trail Celeron® J1900 processor (2.00 GHz) |
||
|
内存 Memory |
1 x DDR3L 1333/1600 SO-DIMM slot, up to 8GB |
||
|
存储 Storage |
1 x M.2 2242 SSD slot, 1 x mSATA |
||
|
图形 Graphics |
Intel® HD Graphics for Intel® Atom® Processor Z3700 Series |
||
|
操作系统 OS |
Windows 7/8.1/10, Linux |
||
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |
||
|
显示屏 Display |
|||
|
尺寸 Size |
12.1 inches |
||
|
分辨率 Resolution |
1024 (H) x 768(V) |
||
|
屏幕宽高比 Ratio |
4：3 |
||
|
亮度 Brightness |
450 nits |
||
|
可视角 Viewing Angle |
80° (R)/80° (L) 80° (B)/75° (T) |
||
|
对比度 Contrast Ratio |
700 |
||
|
背光 Backlight |
LED Backlight |
||
|
背光寿命 Backlight Lifetime |
50000Hrs |
||
|
机构 Mechanical |
|||
|
前框 Front Panel |
铝 Aluminum |
||
|
铝挤 Heat-Sink |
铝 Aluminum |
||
|
底板 Rear Cover |
铁 SECC |
||
|
安装方式 Mounting |
Panel Mount, Wall and VESA-mount (75 x 75mm) |
||
|

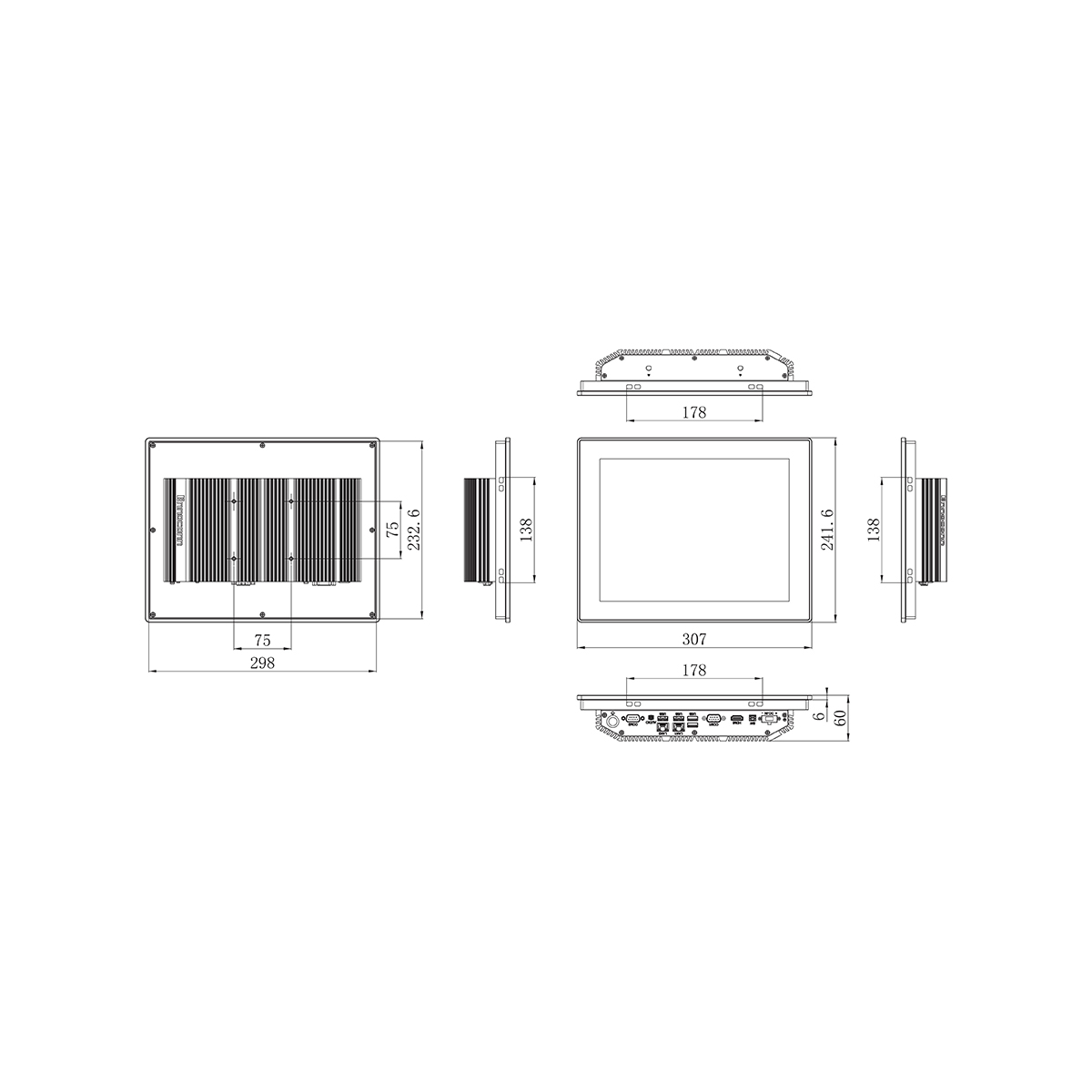

尺寸 Dimension |
307(W) x 241.6(H) x 60(D)mm |
||
|
建议开孔尺寸 Cut Out |
299 x 233.6mm |
||
|
重量 Weight |
2.9kg |
||
|
电源 Power |
|||
|
电源输入 Power Input |
9~36V DC |
||
|
触摸屏 Touchscreen |
|||
|
触摸屏 Touch Type |
全平面五线电阻屏 5-Wire Resistive Touch |
||
|
触击 Touch |
35,000,000 times |
||
|

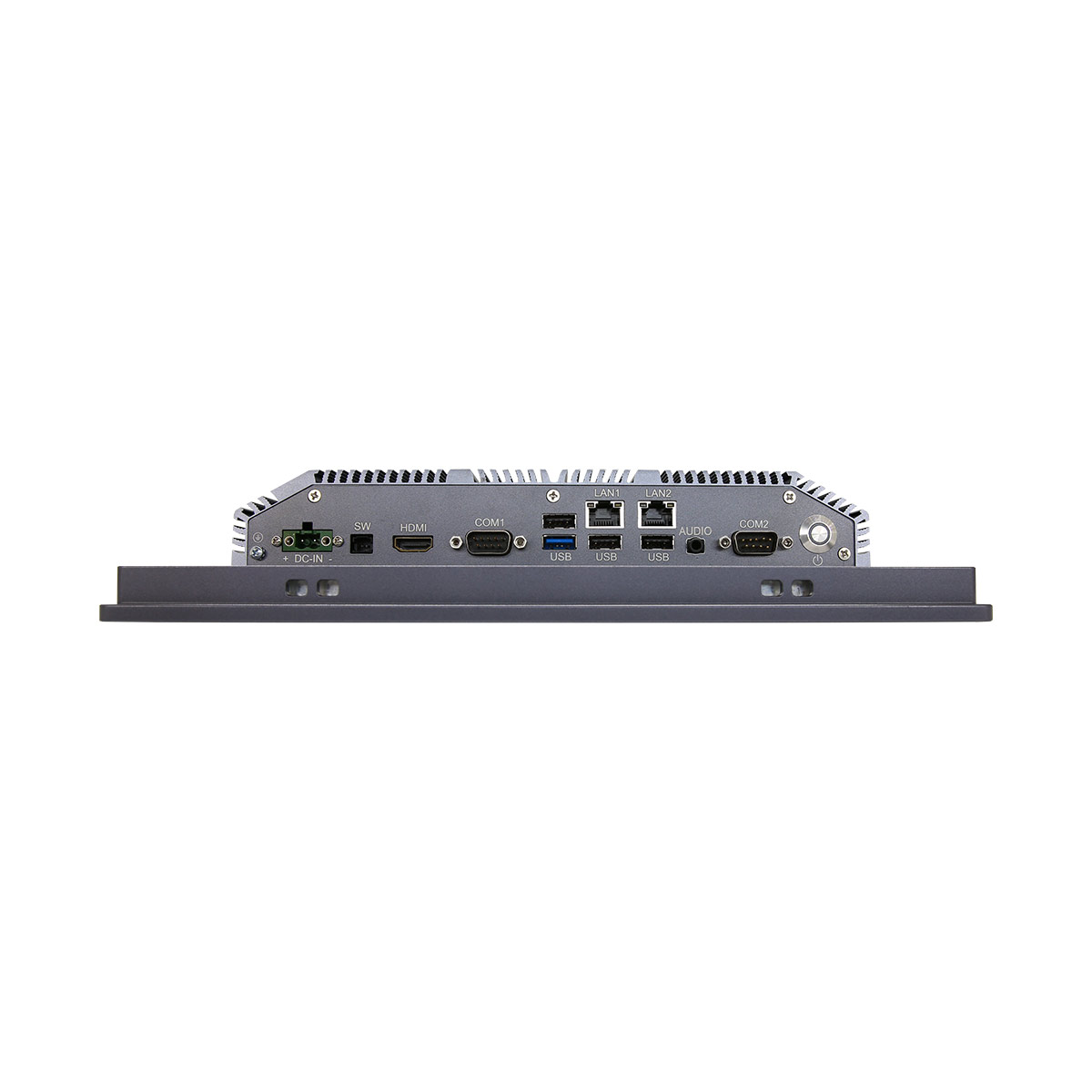

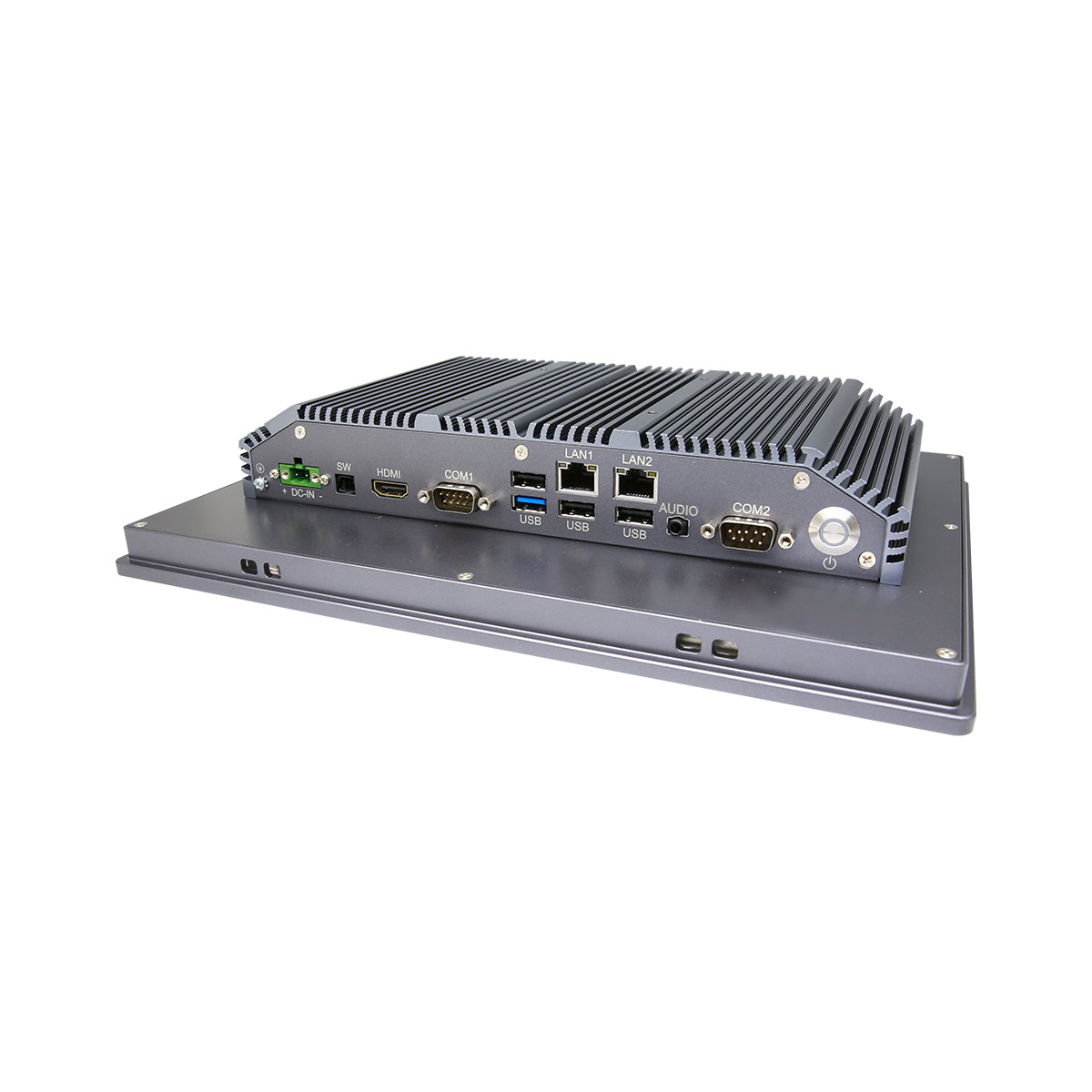

外部接口 External I/O |
|||
|
串口 COM |
2 x RS232/RS422/RS485 (COM1~2) |
||
|
USB |
3 x USB2.0, 1 x USB3.0 |
||
|
网口 Ethernet |
2 x RJ45, Intel® I211AT GbE (10/100/1000 Mbps) |
||
|
显示 Video |
1 x HDMI (up to 1920 x 1200) |
||
|
音频 Audio |
1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC269 HD Audio codec |
||
|
远程开关 Remote ON-OFF |
1 x Remote ON-OFF |
||
|
电源输入 Power Input |
1 x Power Connector (2P Phoenix) |
||
|
内部接口 Internal I/O |
|||
|
扩展接口 Expansion |
1 x Mini-PCIe slot (PCIe/SATA signal supported) |
||
|
环境 Environmental |
|||
|
操作温度 Operating Temp. |
-10℃ ~ 60℃ (SSD) |
||
|
存储温度 Storage Temp. |
-40℃ ~ 70℃ |
||
|
湿度 Relative Humidity |
5% ~ 95%, 非凝结状态 Non-condensing |
||
|
随机振动 Random Vibration |
5~500Hz, 2Grms (SSD)operation |
||
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
||
|
机械冲击 Shock |
10g 11ms operation, 30g 11ms Non-operation |
||
|
前面板防护 Ingress Protection |
Front panel IP65 |
||
|
认证 Certification |
|||
|
安规认证 Safety Certification |
CCC |
||
|
■ 订购清单 Order List |
|||
|
标配 |
型号 Model |
描述 Description |
|
|
1A03DV400-88A-G |
panel hook (4pcs in 1 package) |
||
|
34046QH00-GLA-G |
1x2P DC in Phoenix conn (5.00), female |
||
|
35106A500-0R3-G |
1x2P Remote conn (2.00), 300mm |
||
|
选配 |
型号 Model |
描述 Description |
|
|
CTO-060W-FSP0 |
CEA-060W-FSP0, FSP 60W adapter, 150cm power cord |
||
|
CTO-060W-LT00 |
CEA-060W-LT00, LITEON 60W adapter, 150cm power cord |
||
