CEP-15PW-7X0H

板载Intel® Skylake Core™ i3-7100U/i5-7200U/i7-7600U处理器
15.6寸 高分辨率LED背光显示屏,前面框支持IP65防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级10点投射式电容触摸屏
内置Mini-PCIe/M.2支持多种模块扩展
支持双千兆网口
宽压9~36V DC-IN,可锁附凤凰端子接口
支持远程开关
产品外壳接地保护
内置1 x 2.5寸HDD/SSD可扩充支架
支持标准VESA及嵌入式安装方式
返回列表
联系我们
首页    CEP    CEP-15PW-7X0H

■ 规格 Specification

系统 System

处理器 Processor

Intel® Core ™ i3-7100U Processor (2.4GHz)
Intel® Core ™ i5-7200U Processor (2.5GHz, up to 3.1GHz)
Intel® Core ™ i7-7600U Processor (2.8GHz, up to 3.9GHz))

内存 Memory

1 x DDR4 1866/2133MHz SO-DIMM, Up to 16 GB

存储 Storage

1 x 2.5" Drive Bay for SATA3.0 HDD/SSD
1 x M.2 2242 SSD slot, 1 x mSATA

图形 Graphics

Intel® HD Graphics 620

操作系统 OS

Windows 7/8.1/10, Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

显示屏 Display

尺寸 Size

15.6 inches

分辨率 Resolution

1920(H) x 1080(V)

屏幕宽高比 Ratio

16:9

亮度 Brightness

450 nits

可视角 Viewing Angle

CR ≥ 10; θx 160(H)/ θy 150° (V)

对比度 Contrast Ratio

800

背光 Backlight

LED Backlight

背光寿命 Backlight Lifetime

50000Hrs

机构 Mechanical

前框 Front Panel

铝 Aluminum

铝挤 Heat-Sink

铝 Aluminum

底板 Rear Cover

铁 SECC

安装方式 Mounting

Panel Mount, Wall and VESA-mount (75 x 75mm)

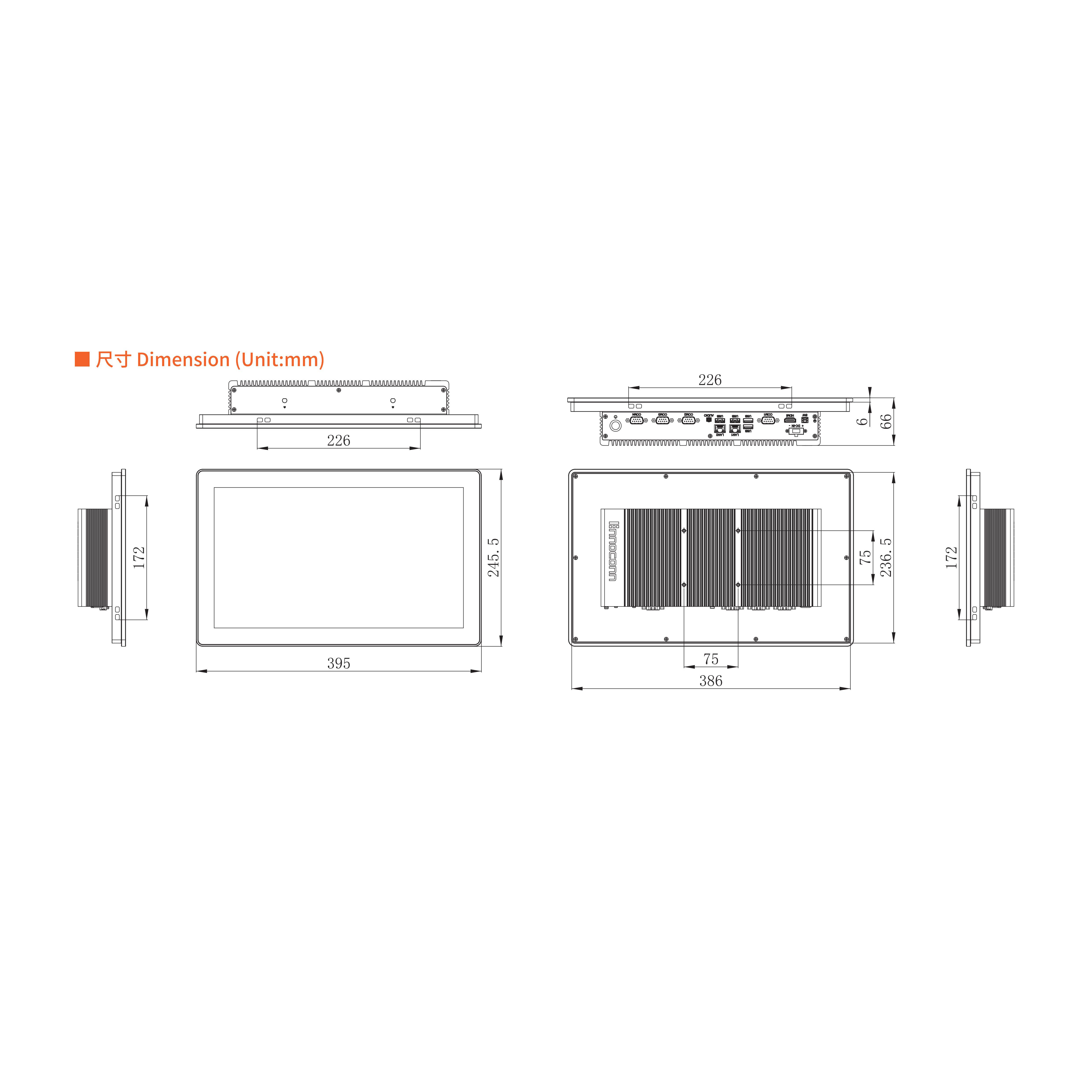

尺寸 Dimension

395 x 245.5 x 66mm

建议开孔尺寸 Cut Out

387 x 237.5mm

重量 Weight

3.5kg

电源 Power

电源输入 Power Input

9~36V DC

触摸屏 Touchscreen

触摸屏 Touch Type

10 点投射式电容屏 P-cap Multi-Touch

触击 Touch

35,000,000 times

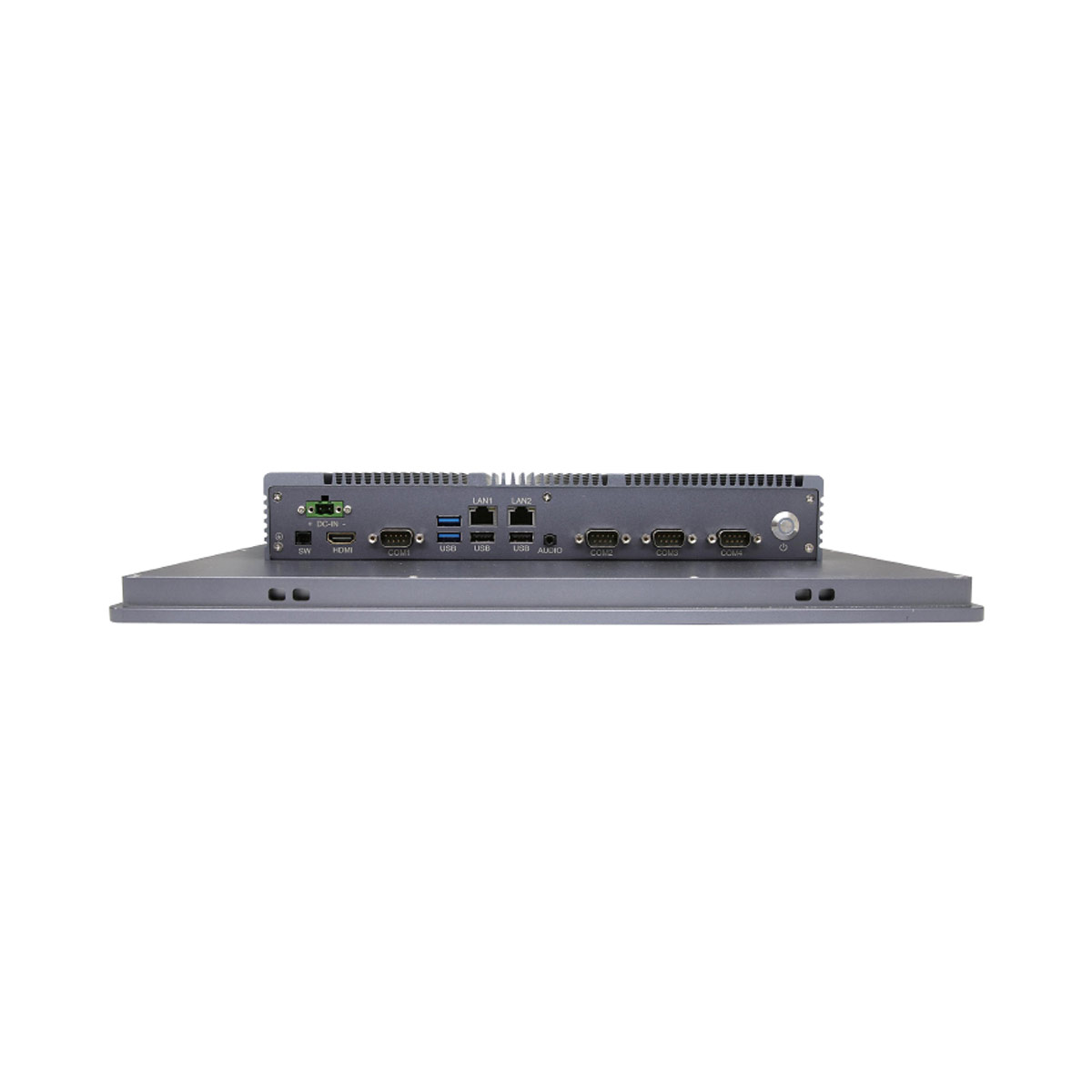

外部接口 External I/O

串口 COM

2 x RS232/RS422/RS485 (COM1~2)
2 x RS232 (COM3 & COM4)

USB

2 x USB3.0, 2 x USB2.0

网口 Ethernet

1 x RJ45 Intel® I211AT (10/100/1000 Mbps)
1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps)

显示 Video

1 x HDMI (up to 4096 x 2160)

音频 Audio

1 x Audio (Line-out&Mic-in 2 in 1), Realtek® ALC269 HD Audio codec

远程开关 Remote ON-OFF

1 x Remote ON-OFF

电源输入 Power Input

1 x Power Connector (2P Phoenix)

内部接口 Internal I/O

扩展接口 Expansion

1 x Mini-PCIe slot (PCIe/SATA signal supported)
1 x M.2 2242 slot (PCIe/SATA signal supported)
1 x M.2 2230 slot (WiFi supported)
1 x SIM socket

环境 Environmental

操作温度 Operating Temp.

-10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD)

存储温度 Storage Temp.

-40℃ ~ 70℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

随机振动 Random Vibration

5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation

正弦振动 Sine Vibration

5~500Hz, 2G Non-operation

机械冲击 Shock

10g 11ms operation, 30g 11ms Non-operation

前面板防护 Ingress Protection

Front panel IP65

认证 Certification

安规认证 Safety Certification

CCC

■ 配置Configuration

型号 Model

处理器 CPU

CEP-15PW-710H

Intel® Core ™ i3-7100U Processor (2.4GHz)

CEP-15PW-720H

Intel® Core ™ i5-7200U Processor (2.5GHz, up to 3.1GHz)

CEP-15PW-760H

Intel® Core ™ i7-7600U Processor (2.8GHz, up to 3.9GHz)

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

34046QH00-GLA-G

1x2P DC in Phoenix conn(5.00), female

35106A500-0R3-G

1x2P Remote conn(2.00), 300mm

35074RQ00-JTU-G

1xSATA, 7+4P,150mm, w/ lock, 180° / 90°

1A03DV400-88A-G

panel hook(4pcs in 1 package)

选配
Optional

型号 Model

描述 Description

CTO-060W-FSP0

CEA-060W-FSP0, FSP 60W adapter, 150cm power cord

CTO-060W-LT00

CEA-060W-LT00, LITEON 60W adapter, 150cm power cord
