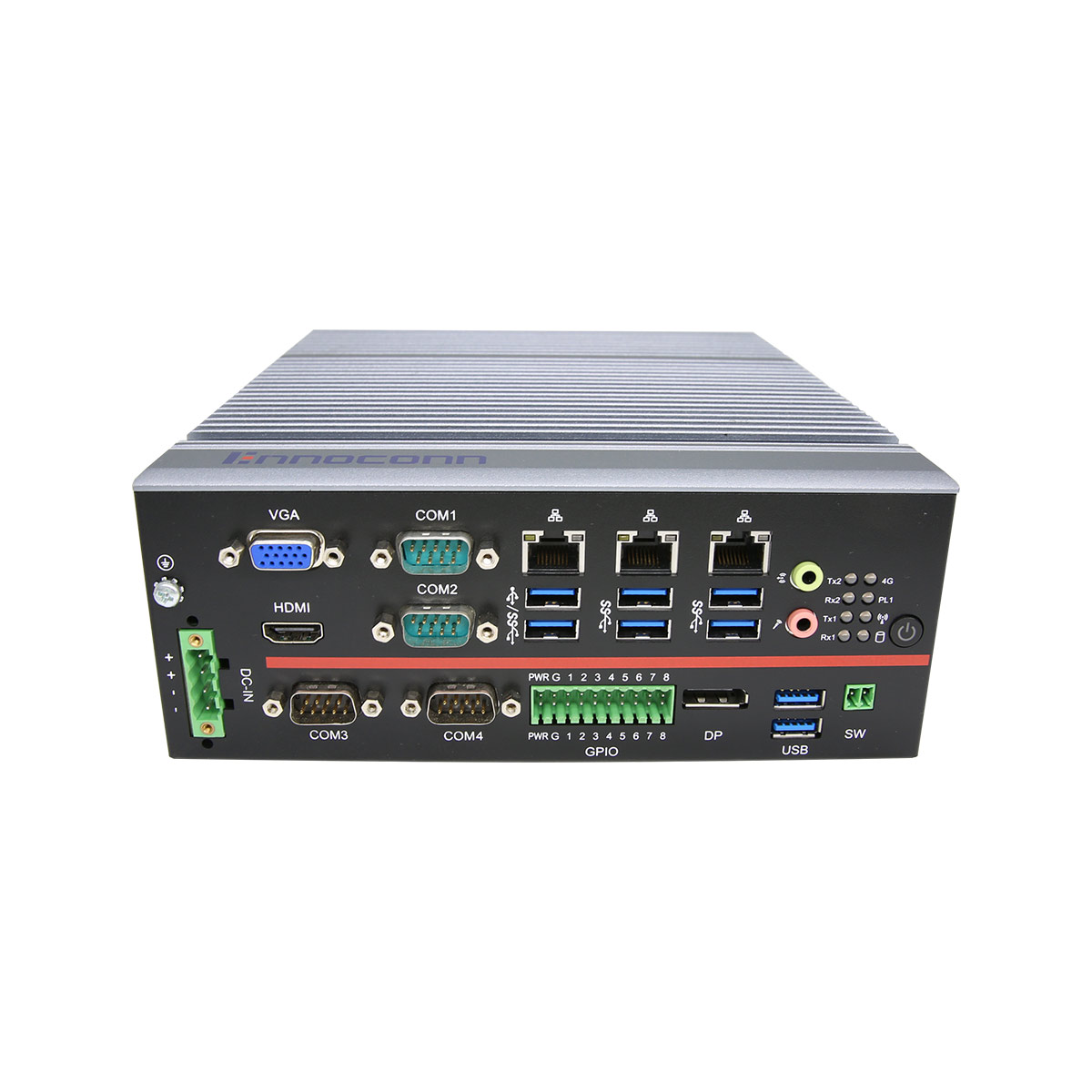

CES-EQ17-D340
支持双通道DDR4 2133MHz SODIMM内存插槽,内存容量最大可达32GB
支持三个千兆网口
支持VGA,HDMI及DP三显
内置2 x 2.5寸HDD/SSD支架
内置1 x Mini-PCIe/mSATA槽,1 x M.2 2230 wififi卡槽及1 x M.2 2242扩展槽
内置1 x M.2 3042/3052可选卡槽,可扩展5G模块
内置1 x 内置USB2.0接口,可接加密狗
可支持PCIe X16,PCIe X4,PCIe X1及PCI扩展插槽
标准19~24V DC电源输入,可选宽压9~36V DC-IN
支持桦汉oDoor模组技术,可灵活选配LAN/COM/CAN等
■ 规格 Specification |
|||
系统 System |
|||
处理器 Processor |
Intel® 6th/7th Gen. Pentium®, Celeron®, Core ™ i3/i5/i7 Processor, LGA1151 Socket, up to 65W |
||
芯片组 Chipset |
Intel Q170 Chipset |
||
内存 Memory |
2 x DDR4 2133MHz SO-DIMM, up to 32GB |
||
图形 Graphics |
Intel® HD Graphics 530/510 (Intel 6th Gen. CPU) Intel® HD Graphics 630 (Intel 7th Gen. CPU) |
||
存储 Storage |
2 x 2.5" SATA 3.0 HDD/SSD Bay, support RAID 0/1 1 x mSATA slot 1 x M.2 2242 SSD slot |
||
操作系统 OS |
Windows7/8/10,Linux(Intel® 6th/ CPU) Windows10,Linux(Intel® 7th/ CPU) |
||
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |
||
内部接口 Internal I/O |
|||
扩展接口 Expansion |
1 x Mini-PCIe slot (PCIe/SATA signal supported) 1 x M.2 2242 slot (PCIe/SATA signal supported) 1 x M.2 2230 Key-E slot(Wifi module supported) 1 x M.2 3042/3052 Key-B slot(5G communication module supported) |
||
SIM 卡 |
1 x 3G/4G SIM socket 1 x 5G SIM socket |
||
环境 Environmental |
|||
操作温度 OperatingTemp. |
-10℃ ~ 40℃ with 0.7m/s air flow(with 65W CPU and industrial SSD) -10℃ ~ 50℃ with 0.7m/s air flow(with 35W CPU and industrial SSD) 0℃ ~ 30℃ with 0.7m/s air flow(HDD) |
||
存储温度 Storage Temp. |
-40℃ ~ 85℃ |
||
湿度 Relative Humidity |
5% ~ 95%, 非凝结状态 Non-condensing |
||
振动 Vibration |
SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
||
机械冲击 Shock |
Operation: 10G@11ms Non-operation: 30G@11ms |
||
外部接口 External I/O |
|||
网口 Ethernet |
2 x RJ45, Intel® i211AT GbE (10/100/1000 Mbps) 1 x RJ45, Intel® I219LM GbE (10/100/1000 Mbps) |
||
显示 Video |
1 x VGA: max resolution up to 1920 x 1200 1 x HDMI: max resolution up to 4096 x 2160 1 x DP: max resolution up to 4096 x 2304 |
||
音频 Audio |
1 x Line-out, 1 x Mic-in, Realtek® ALC888S HD Audio codec |
||
串口 COM |
4 x RS232/422/485 auto-flow 2 x RS232 (optional by internal pin head) |
||
USB |
8 x USB3.0, 1 x internal USB2.0 (Type-A) |
||
GPIO |
1 x 16bit programmable GPIO (default 3.3V, 5V optional) |
||
按钮 Button |
1 x Power button |
||
指示灯 Indicators |
1xPower LED(Green for Power-on,Blink for Sleep mode,Off for Power-off) 1 x HDD LED (Red blink for Data read or write) 2 x COM1 LED for Rx1 and Tx1 2 x COM2 LED for Rx2 and Tx2 1 x Wifi communication LED(yellow blink for communication) 1 x 4G communication LED (yellow blink for communication) 1 x PL1 for user defination(can indicate CPU temperature,voltage dectact, CPU/SYS Fan speed, etc) |
||
远程开关 Remote ON-OFF |
1 x Remote ON-OFF |
||
机构 Mechanical |
|||
外观 Housing |
铝合金 Aluminum Alloy |
||

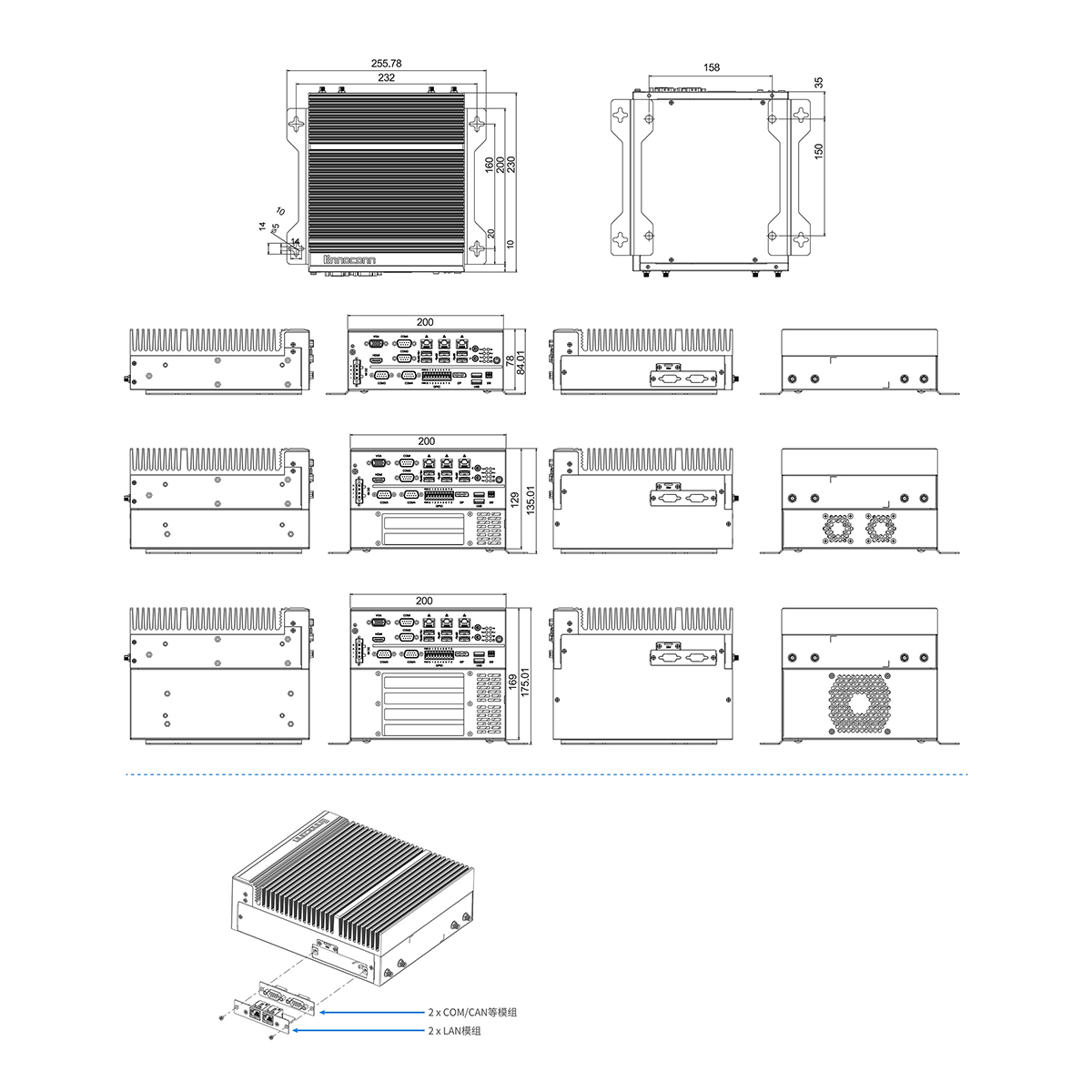

尺寸 Dimension |
200 x 230 x 78 mm( 基础型) 200 x 230 x 129 mm(2 槽扩张型) 200 x 230 x 169 mm(4 槽扩展型) |
||
重量 Weight |
3.5kg ( 基础型 ), 4.2kg (2 槽扩展型 ), 4.9kg (4 槽扩展型 ) |
||
安装方式 Mounting |
桌面式 (Desk-Mount), 壁挂式 (Wall-Mount) |
||
电源 Power |
|||
电源输入 Power Input |
19-24V DC, 4-pin phoenix connector (9-36V DC optional with power board) |
||
认证 Certification |
|||
安规认证 Safety Certification |
CCC, CE, FCC |
||
■ 订购清单 Order List |
|||
标配 Standard |
型号 Model |
描述 Description |
|
34046YU00-67Y-G |
1 x 16bit GPIO conn (3.50), female |
||
34046YV00-67Y-G |
1 x 4P DC in Phoenix conn (5.00), female |
||
34046QJ00-600-G |
1 x 2P Remote Phoenix conn (3.50), female |
||
2T719QH00-JTW-G |
sstandard wall mount kit |
||
选配 Optional |
型号 Model |
描述 Description |
|
350744V00-704-G |
150cm AC power cord |
||
10038WB00-0D9-G |
9-36V DC power board for CES-EQ17/EH11 |
||
CTO-CEAEQ17-2S20 |

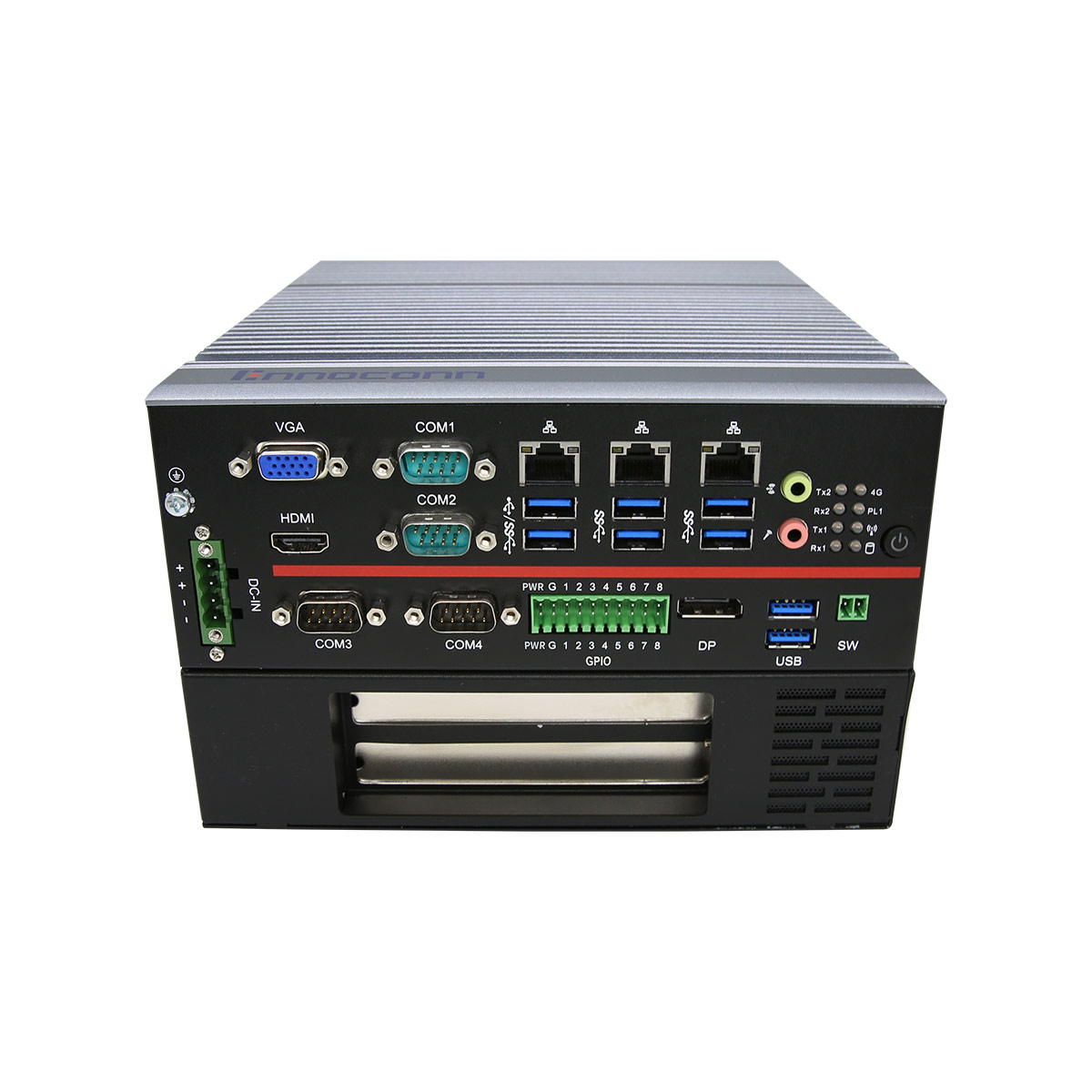

2 slots module (1 x PCIe X16 slot and 1 x PCIe X4 slot) for CES-EQ17 |
||
CTO-CEAEQ17-2S11 |
2 slots module (1 x PCIe X16 slot and 1 x PCI slot) for CES-EQ17/EH11 |
||
CTO-CEAEQ17-2S2A |
A 2 slots module (1 x PCIe X16 slot and 1 x PCIe X1 slot) for CES-EQ17/EH11 |
||
CTO-CEAEQ17-4S13 |

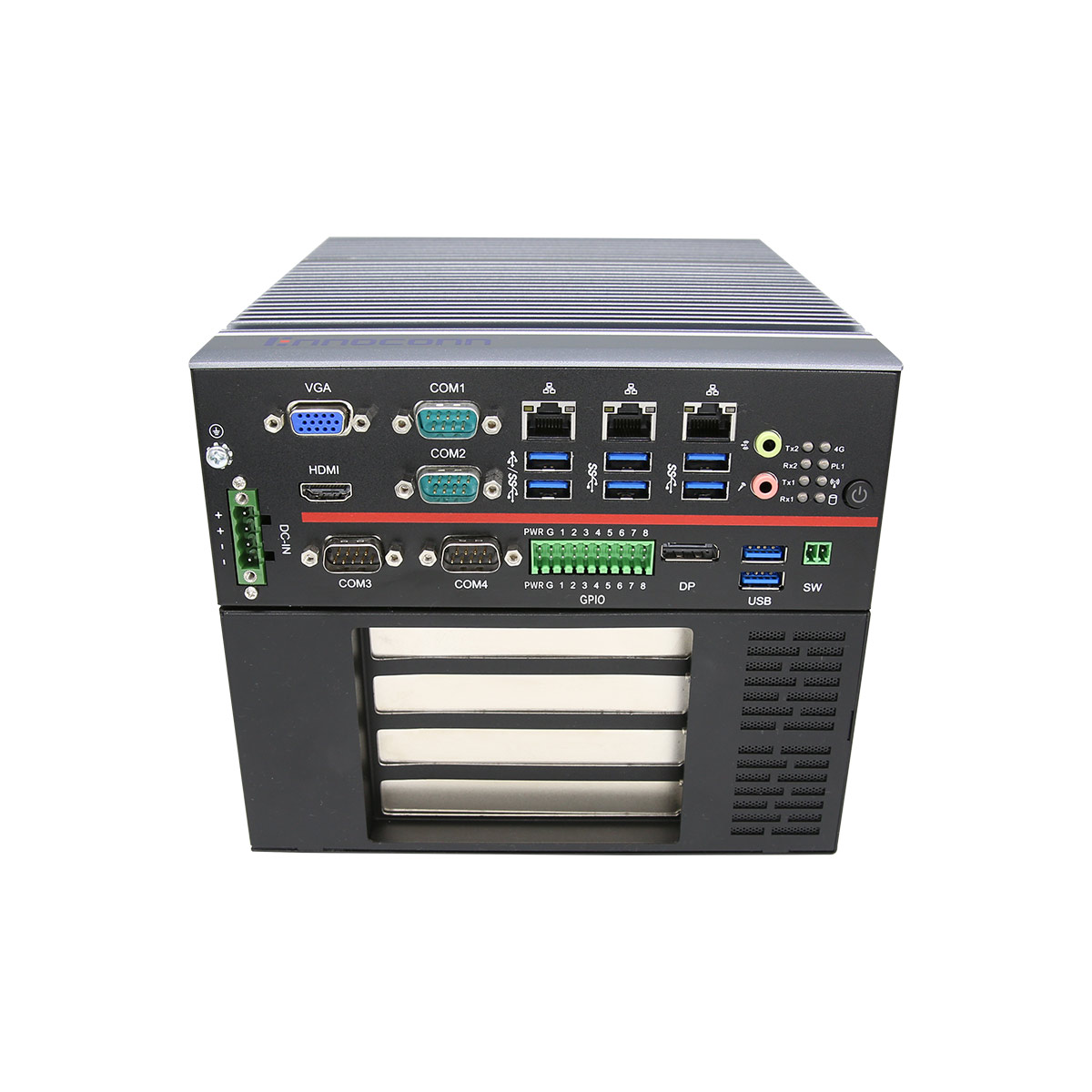

4 slots module (1 x PCIe X16 slot and 3 x PCI slot) for CES-EQ17/EH11 |
||
CTO-CEAEQ17-4S22 |
4 slots module (1 x PCIe X16 slot and 2 x PCI slot and 1 x PCIe X4 ) for CES-EQ17 |
||
870110K00-289-G |
LITEON 150W adapter, 19.5V @7.7A,4pin terminal |
||
870110L00-289-G |
LITEON 180W adapter, 19.5V @9.23A,4pin terminal |
||
870110C00-289-G |
LITEON 230W adapter, 19.5V @11.8A,4pin terminal |
||
870110R00-289-G |
LITEON 330W adapter, 19.5V @16.6A,4pin terminal |
||
35105G600-JTU-G |
2*5pin COM cable,150mm,+/-10mm |
||
100382S00-34U-G |
mPCIe to single isolated LAN Module |
||
2T71ASG00-JTW-G |
CES-EQ17-oDOOR-2USB-black,NA,86*19.4*2.2,G,00 |
||
2T71ASF00-JTW-G |
CES-EQ17-oDOOR-2LANBLACK,NA,86*19.4*2.2,G,00 |
