CES-R7X0-W26A

■ 规格 Specification

系统 System

处理器 Processor

Intel® Core ™ i3-7100U Processor (2.4GHz)
Intel® Core ™ i5-7200U Processor (2.5GHz, up to 3.1GHz)
Intel® Core ™ i7-7600U Processor (2.8GHz, up to 3.9GHz)

内存 Memory

1 x DDR4 1866/2133MHz SO-DIMM, up to 16 GB

图形 Graphics

Intel® HD Graphics 620, dual display

存储 Storage

1 x SATA 3.0 for 2.5" HDD/SSD
1 x mSATA, 1 x M.2 2242 Slot

操作系统 OS

Windows 7/8/10, Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

机构 Mechanical

外观 Housing

铝合金 Aluminum Alloy

安装方式 Mounting

Desk-Mount, Wall-Mount, DIN-Rail(optional)
VESA-mount (75 x 75mm,100 x 100mm,optional)

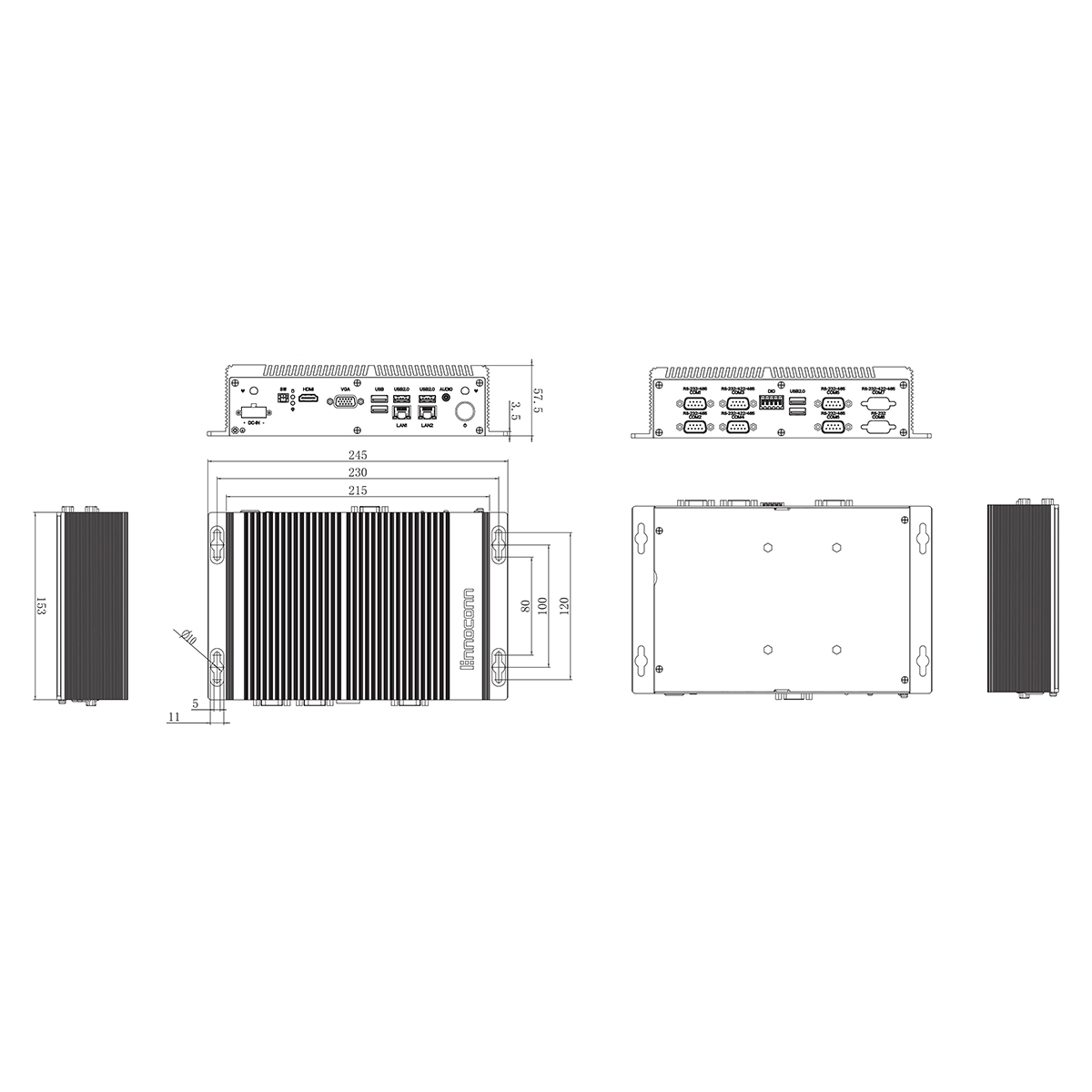

尺寸 Dimension

245 x 153 x 57.5 mm

重量 Weight

1.9kg

环境 Environmental

操作温度 OperatingTemp.

-20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD)

存储温度 Storage Temp.

-40℃ ~ 85℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

振动 Vibration

SSD: 5~500Hz, 2Grms operation
HDD: 5~500Hz, 1Grms operation

机械冲击 Shock

Operation: 10G@11ms
Non-operation: 30G@11ms

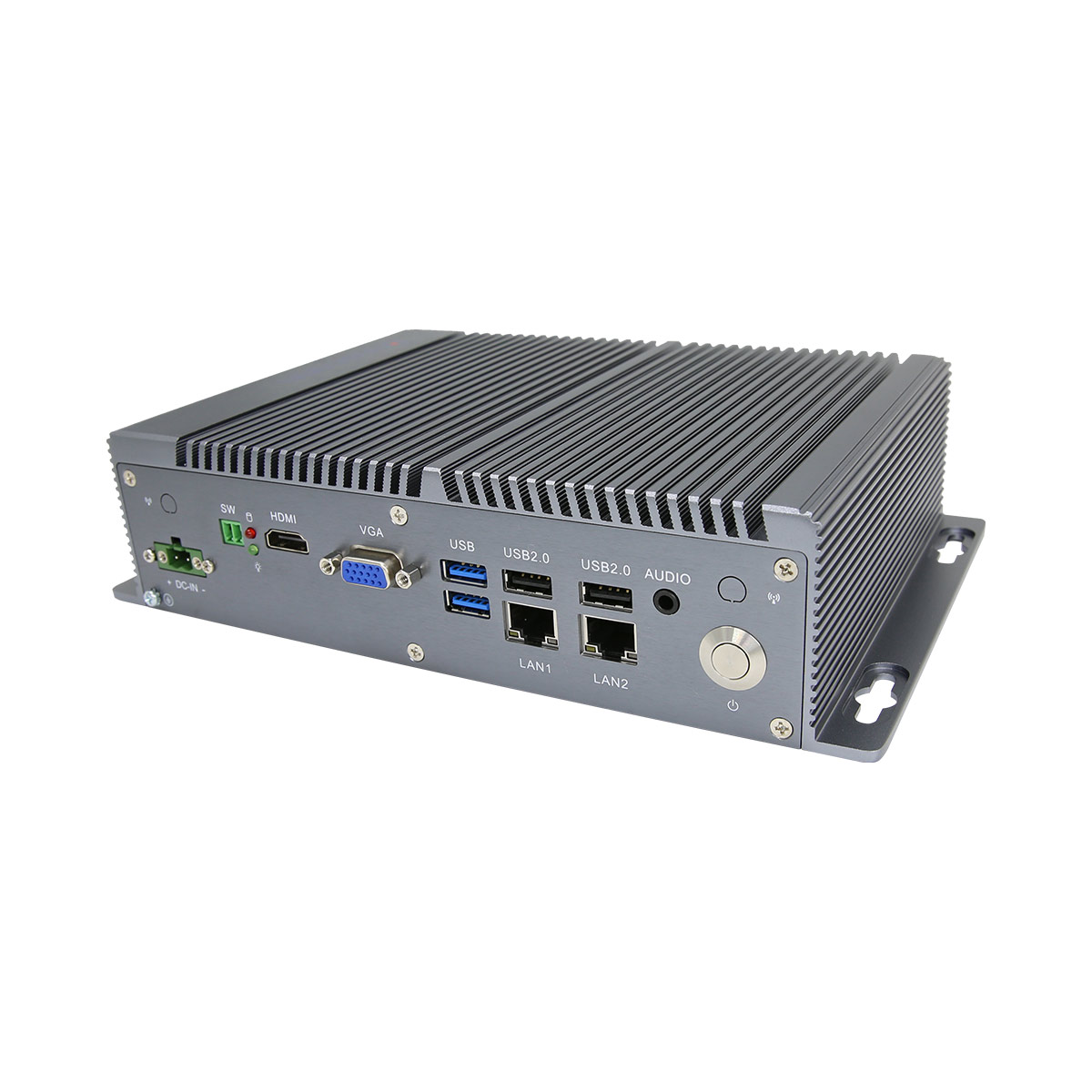

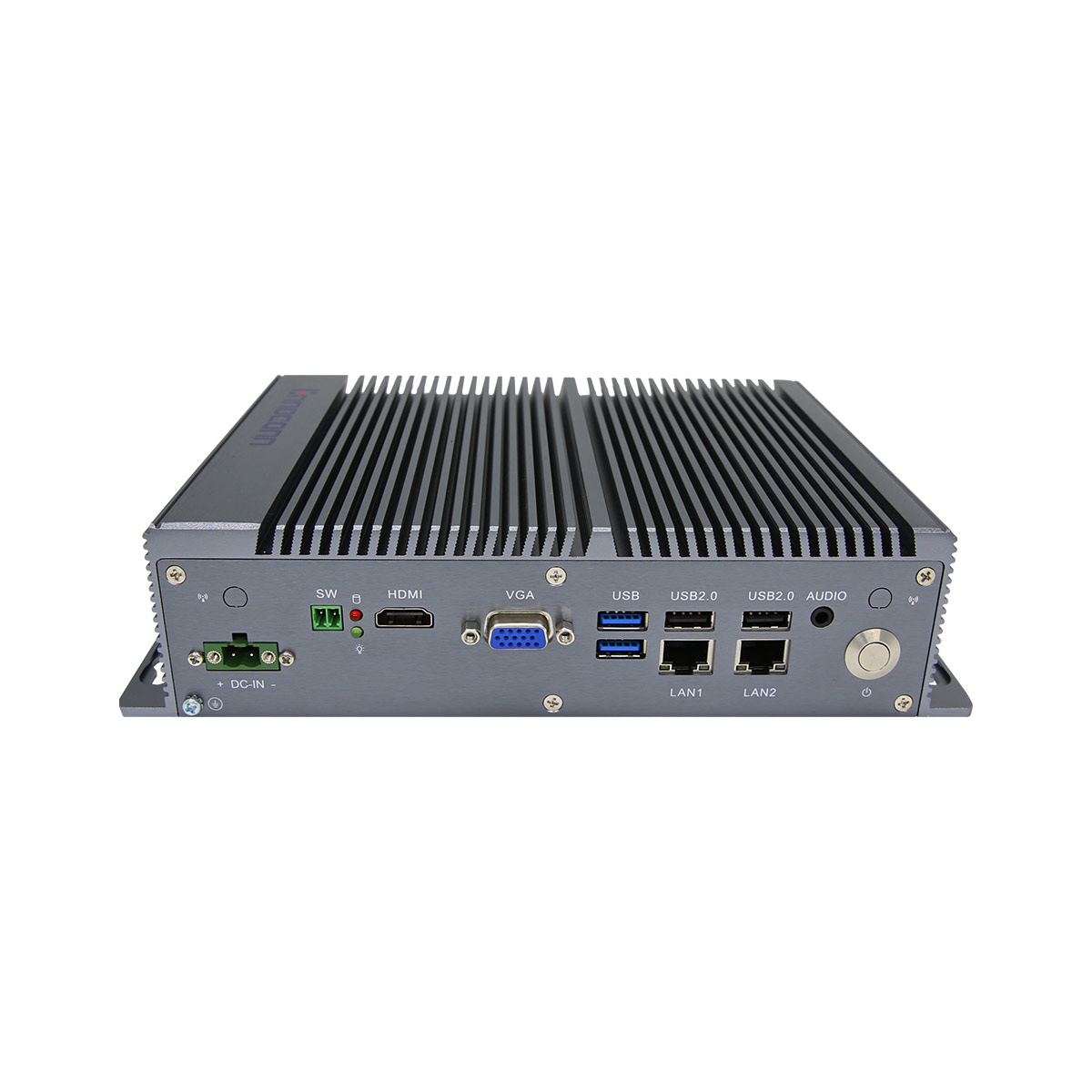

外部接口 External I/O

网口 Ethernet

2 x RJ45 Intel® i211AT GbE (10/100/1000 Mbps)

显示 Display

1 x VGA: max resolution up to 1920 x 1200
1 x HDMI: max resolution up to 4096 x 2160

音频 Audio

1 x Line-out&Mic-in (2 in 1), Realtek® ALC269 HD Audio codec

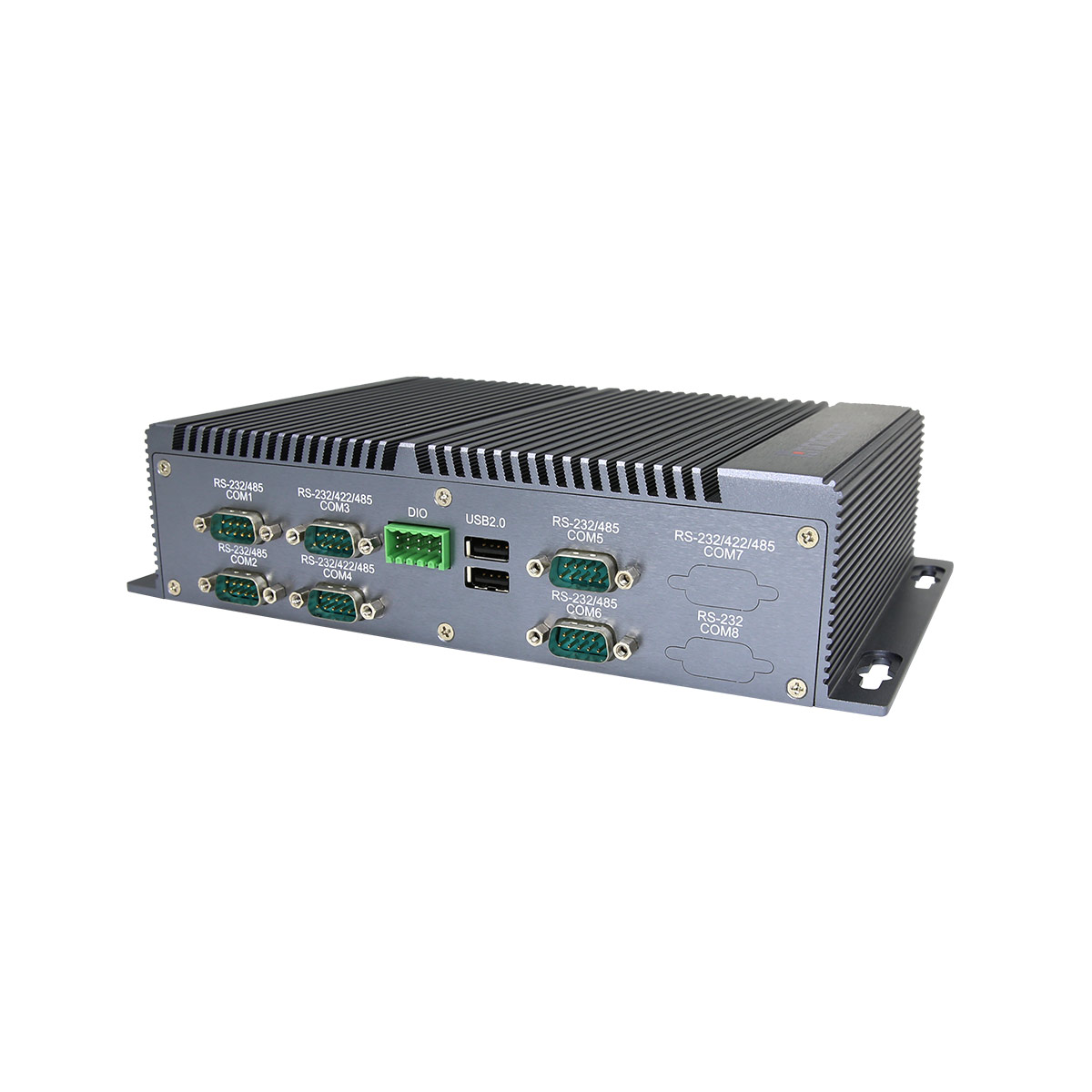

串口 COM

3 x RS232/422/485 (1 x RS232/422/485 optional)
4 x RS232/485
1 x RS232 (optional)

USB

4 x USB2.0, 2 x USB3.0

GPIO

1 x 8bit programmable GPIO

按钮 Button

1 x Power button

指示灯 LED

1 x Power LED (Green for Power-on，Blink for Sleep mode，
1 x HDD LED (Red blink for Data read or write)

远程开关 Remote ON-OFF

1 x Remote ON-OFF

内部接口 Internal I/O

扩展接口 Expansion

1 x Mini-PCIe slot (PCIe/SATA signal supported)
1 x M.2 2242 slot (PCIe/SATA signal supported)
1 x M.2 2230 slot (WiFi/PCIe/USB2.0 signal supported)

SIM 卡

1 x SIM socket

电源 Power

电源输入 Power Input

9~36V DC, 2-pin phoenix connector

认证 Certification

安规认证 Safety Certification

CCC, CE, FCC

■ 配置Configuration

型号 Model

处理器 CPU

CES-R710-W26A

Intel® Core ™ i3-7100U Processor (2.4GHz)

CES-R720-W26A

Intel® Core ™ i5-7200U Processor (2.5GHz, up to 3.1GHz)

CES-R760-W26A

Intel® Core ™ i7-7600U Processor (2.8GHz, up to 3.9GHz)

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

35074RQ00-JTU-G

SATA Power+data cable,150mm,+/-10mm,

2G1515N00-HUH-G

M.2 2242 SSD thermal pad

34046KC00-600-G

10pin GPIO Connector,3.5mm,FOXCONN

34046QH00-GLA-G

2pin DC-IN Phoenix Connector,5mm,FOXCONN

34046QJ00-600-G

2pin Remote Connector,3.5mm,DECA

选配
Optional

型号 Model

描述 Description

CTO-060W-FSP0

CEA-060W-FSP0,FSP 60W adapter, 150cm power cord

CTO-060W-LT00

CEA-060W-LT00,LITEON 60W adapter,150cm power cord

35105J200-JTU-G

2*5pin COM cable,150mm,+/-10mm

2T718TH00-JV5-G

CES-Rxxx-W_VESA-MOUNT/DIN-Rail Kit,244*140*14
