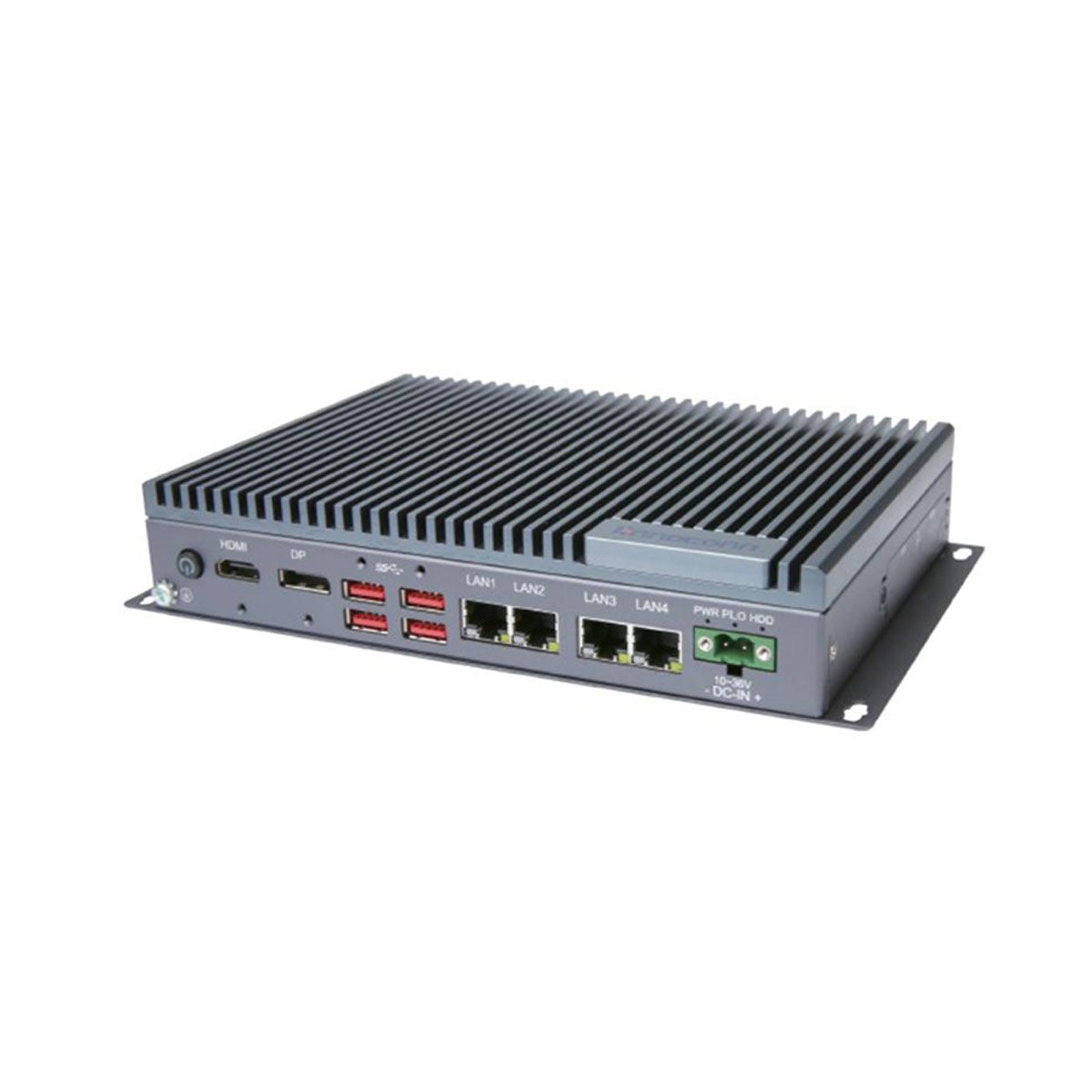

CES-R430-W44A

■ 规格 Specification

系统 System

处理器 Processor

Intel®Celeron 4305UE CPU (2.0GHz)

内存 Memory

1 x DDR4 1866/2133MHz SO-DIMM up to 32 GB

图形 Graphics

Intel@UHD Graphics 610, dual display

存储 Storage

1 x mSATA Colay Mini-PCIe Connect
1 x M.2 2242 SSD
1 x 2.5" SATA 3.0 HDD/SSD BAY ( 与 M.2 2242 组 Raid 0/1)

操作系统 OS

Windows 10, Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

机构 Mechanical

外观 Housing

铝合金 Aluminum Alloy

安装方式 Mounting

Desk-Mount ( 桌面式 )
 Wall-Mount ( 壁挂式 )
VESA-Mount (100 x 100mm)(optional)

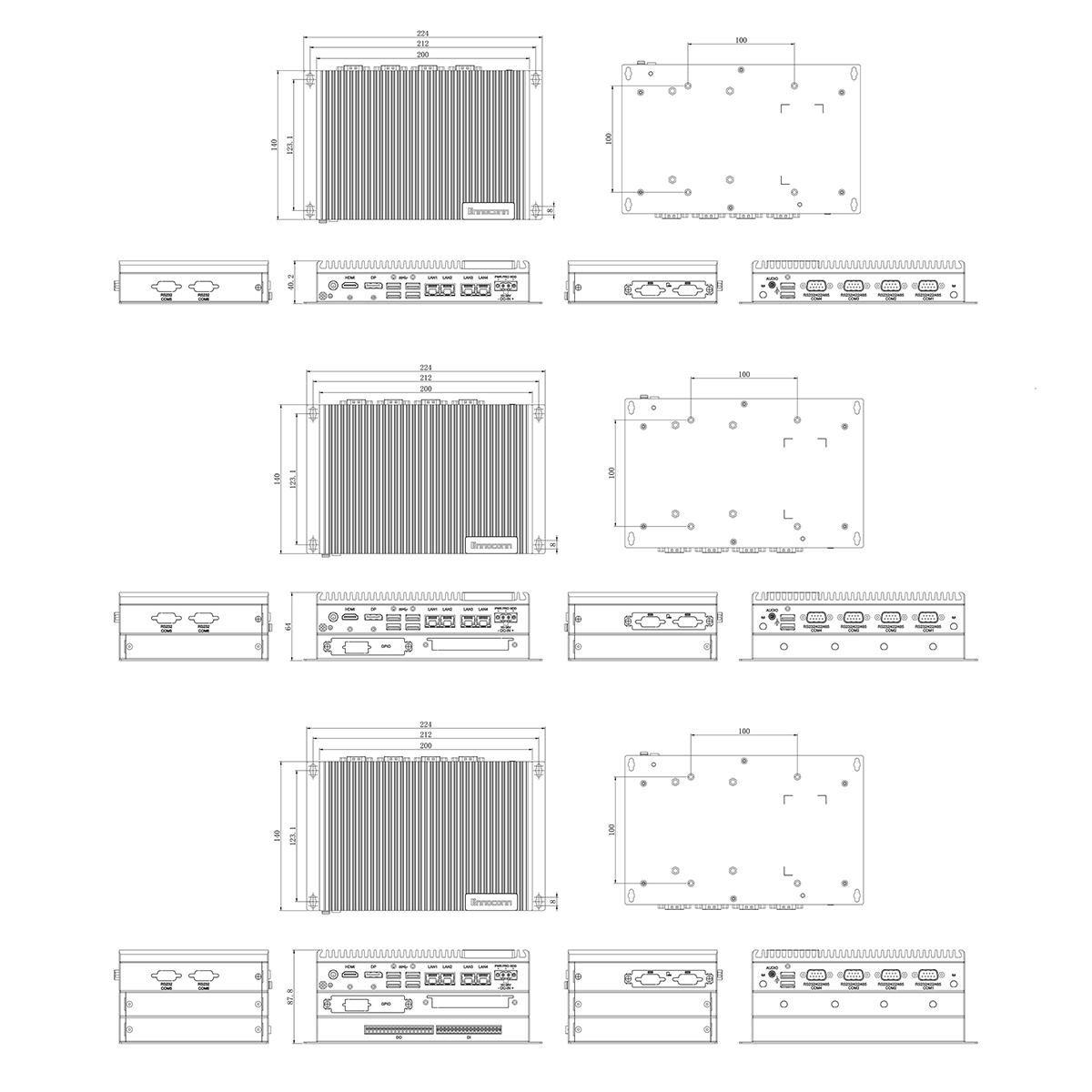

尺寸 Dimension

224 x 140 x 40.2 mm ( 基础型 )
224 x 140 x 64 mm ( 一层扩展 )
224 x 140 x 87.8 mm ( 二层扩展 )

重量 Weight

1.35kg

环境 Environmental

操作温度 OperatingTemp.

-20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD)

存储温度 Storage Temp.

-40℃ ~ 85℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

振动 Vibration

SSD: 5~500Hz, 2Grms operation
HDD: 5~500Hz, 1Grms operation

机械冲击 Shock

Operation: 10G@11ms
Non-operation: 30G@11ms

外部接口 External I/O

网口 Ethernet

4 x RJ45, Intel® 4x i211 GbE (10/100/1000 Mbps) support Wake On Lan

显示 Display

1 x HDMI: max resolution up to 4096x2304@24Hz
1 x DP: max resolution up to 4096x2304@60Hz

音频 Audio

1 x Audio(Line-out&Mic-in 2 in 1) Realtek® ALC888S HD Audio codec

串口 COM

4 x RS232/422/485 auto-flow
2 x Internal RS232（optional by 3*3 pin-head）

USB

4 x USB 3.1 Gen2
2 x USB 2.0

按钮 Button

1 x Power button(White for Power-on, Blink for Sleep mode,Off for Power-off)

指示灯 LED

1 x Power LED (Green for DC-in)
1 x HDD LED (Green blink for Data read or write)
1 x programmable LED (Green Default monitoring CPU temperature)

内部接口 Internal I/O

扩展接口 Expansion

1 x Mini-PCIe slot (PCIe/SATA/USB2.0 Singal Support）
1 x M.2 2230 Key-E slot (only supported CNVI WiFi module )

功放 Speaker

1 x Internal（3W 4Ω）Speaker pin-head

LPC

1 x LPC

GPIO

1 x Internal 8bit programmable GPIO pin-head

SIM 卡

1 x SIM Card socket for 3G/4G module

扩展模组 Extension module

Module A（optional）

1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported）
1 x M.2 3042/3052 Key-B slot (5G communication module supported)
1 x EDP: max resolution up to 4096x2304@60Hz
1 x SIM socket for 5G module

Module B（optional）[1]

1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported)
1 x Internal USB3.0
1 x EDP: max resolution up to 4096x2304@60Hz

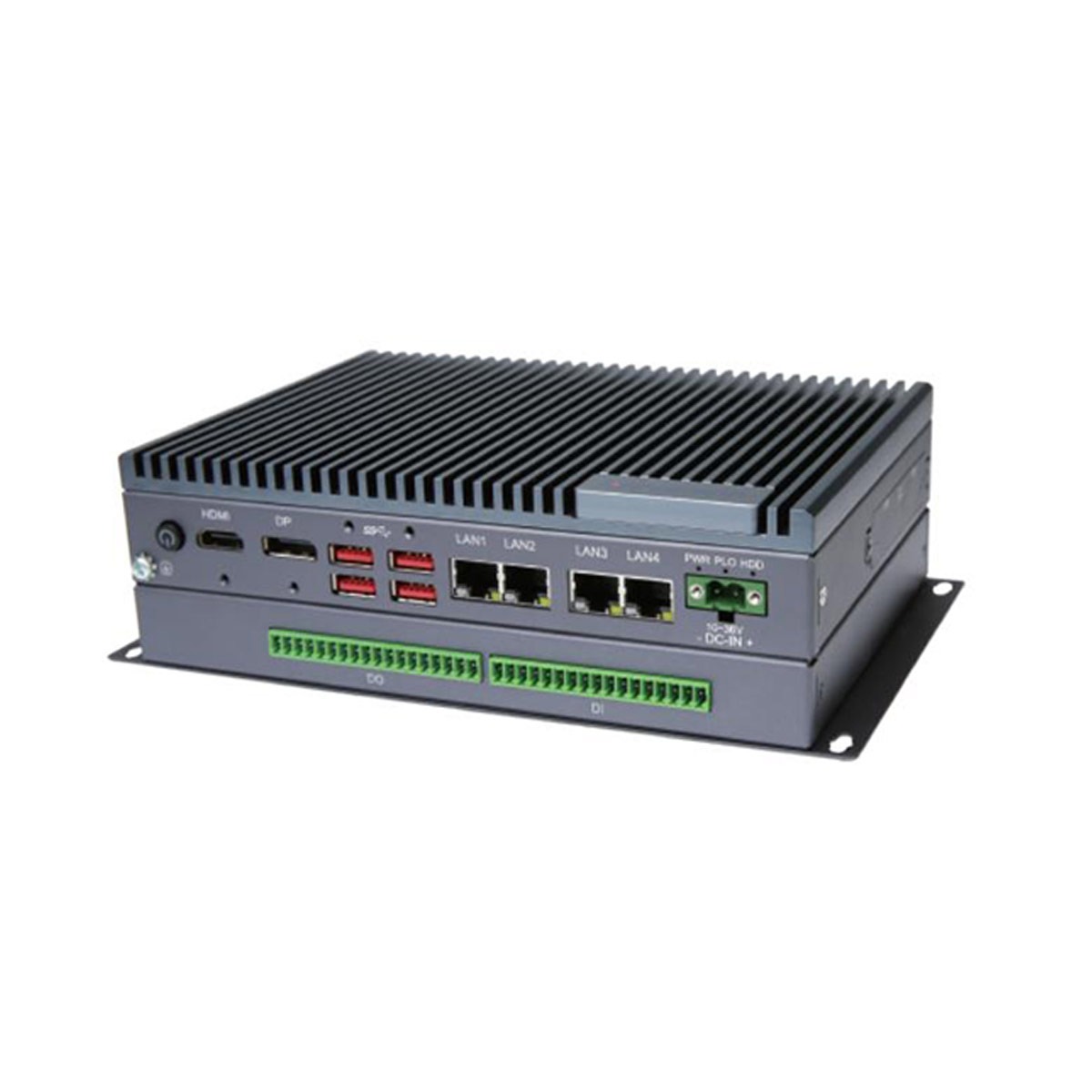

Module C（optional）

1 x 32bit DI/O with optocoupler isolation DI 2500vrms,
DO 2500vrms, response time ≤ 2ms, Output
Frequency ≤ 500Hz, Maximum driving capacity 100mA, NPN or PNP by optional

电源 Power

电源输入 Power Input

10~36V DC, 2-pin phoenix connector

认证 Certification

安规认证 Safety Certification

CCC

【1】Extension Module B 与 Extension Module A 不能同时选择

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

2G151DE00-HUH-G

M2-2242_THERMAL-PAD_28*26*2

2G151DT00-HUH-G

Memory_thermal-pad_57*12.5*1.5

CTO-R8xxPLUG

CES-R8xx-Wxxx PLUG 紧固配件

34046QH00-GLA-G

2pin DC-IN Phoenix Connector,5mm,FOXCONN

选配
Optional

型号 Model

描述 Description

CTO-135W-LT00

LITEON 20V 135W adapter,150cm power cord

35105R800-JTU-G

8bit GPIO Cable (DB9 Connect )

35107YP00-JTU-G

2*RS232 Y Cable

061001800-187-G

Wireless Card,CNVI,INTEL 9560NGW

061001E00-187-G

Wireless Card,CNVI,WIFI 6,INTEL AX200NGW,

2T71A7Y00-JTW-G

DIN-RAIL/VESA Bracket,165mm*115mm*10.5mm

Module A

Module A,w/5G,w/Mini-PCIe,w/EDP

Module B

Module B,w/USB3.0,w/Mini-PCIe,w/EDP

Module C

Module C,w/16bit DI/O
