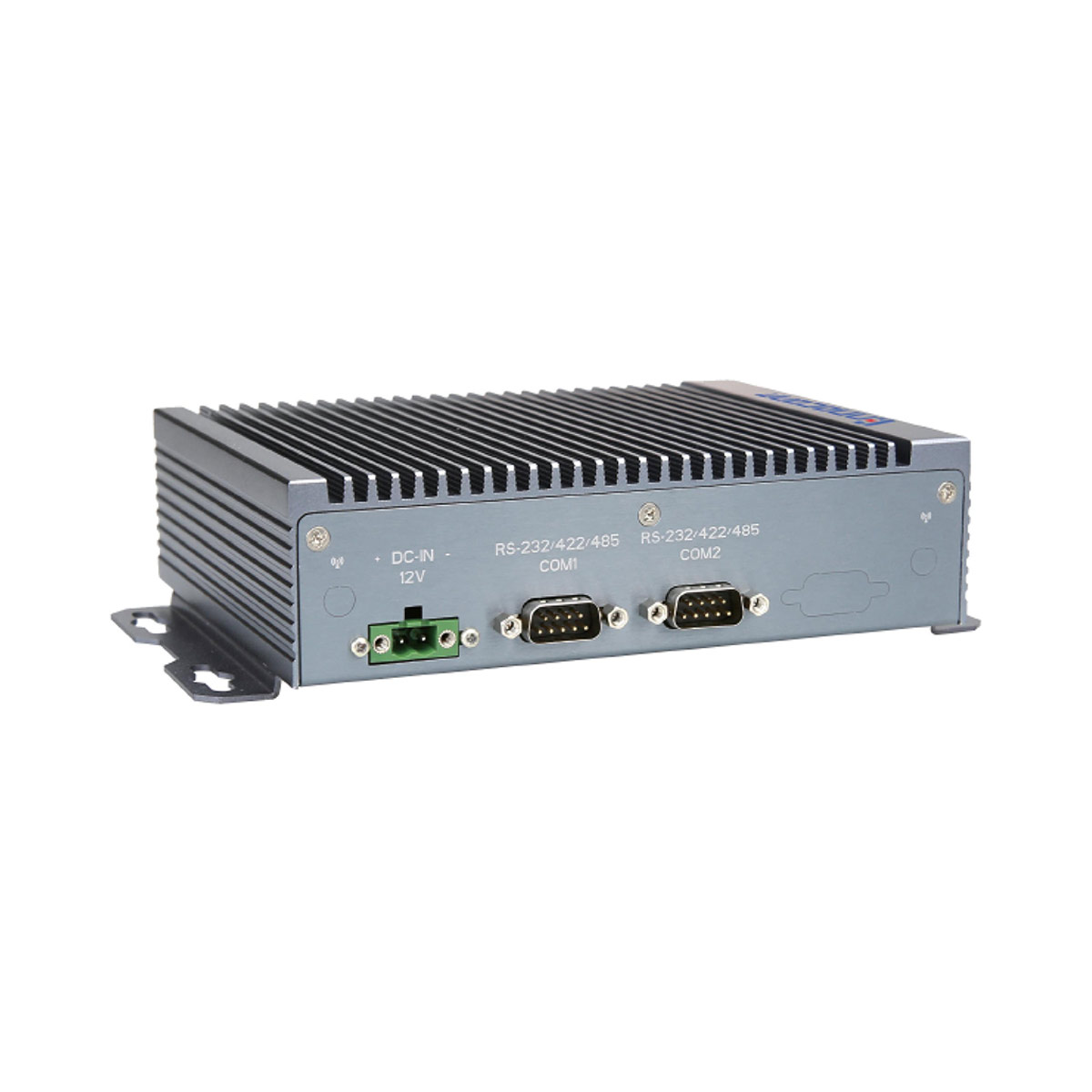

CES-P814-D32A

■ 规格 Specification

系统 System

处理器 Processor

Intel® 8th Gen. U Dual Core Processors i3-8145UE (2.2GHz up to 3.9GHz)

内存 Memory

1 x DDR4 2133/2400MHz SO-DIMM, up to 32 GB

图形 Graphics

Intel@UHD Graphics620, dual display

存储 Storage

1 x mSATA
1 x M.2 2242 SSD (SATA/NVME)

操作系统 OS

Windows 10, Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

网口 Ethernet

1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps)
2 x RJ45 Intel® I211AT (10/100/1000 Mbps)

显示 Display

1 x HDMI: max resolution up to 4096x2304@24Hz
1 x DP: max resolution up to 4096x2304@60Hz

音频 Audio

1 x Audio(Line-out&Mic-in 2 in 1) Realtek® ALC888S HD Audio codec

串口 COM

2 x RS232/422/485 auto-flow
1 x RS232(optional by pin-head)

USB

4 x USB 3.1 Gen2

GPIO

1 x 8bit programmable GPIO (optional)

开关

1 x Power Button

内部接口 Internal I/O

扩展接口 Expansion

1 x Mini-PCIe slot(PCIe/SATA/USB2.0 Singal Support)
1 x M.2 2230 Key-E slot(WiFi/PCIe/USB2.0 signal Support)
1 x M.2 2242 slot (PCIe/SATA signal Support)

SIM 卡

1 x SIM Card socket for 3G/4G module

环境 Environmental

操作温度 OperatingTemp.

-20℃ ~ 50℃(SSD), 0℃ ~ 40℃ (HDD)

存储温度 Storage Temp.

-40℃ ~ 85℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

振动 Vibration

SSD: 5~500Hz, 2Grms operation
HDD: 5~500Hz, 1Grms operation

机械冲击 Shock

Operation: 10G@11ms
Non-operation: 30G@11ms

机构 Mechanical

外观 Housing

铝合金 Aluminum Alloy

安装方式 Mounting

Desk-Mount（桌面式）
Wall-Mount（壁挂式）
VESA-Mount (75 x 75 / 100 x 100 mm)(optional)

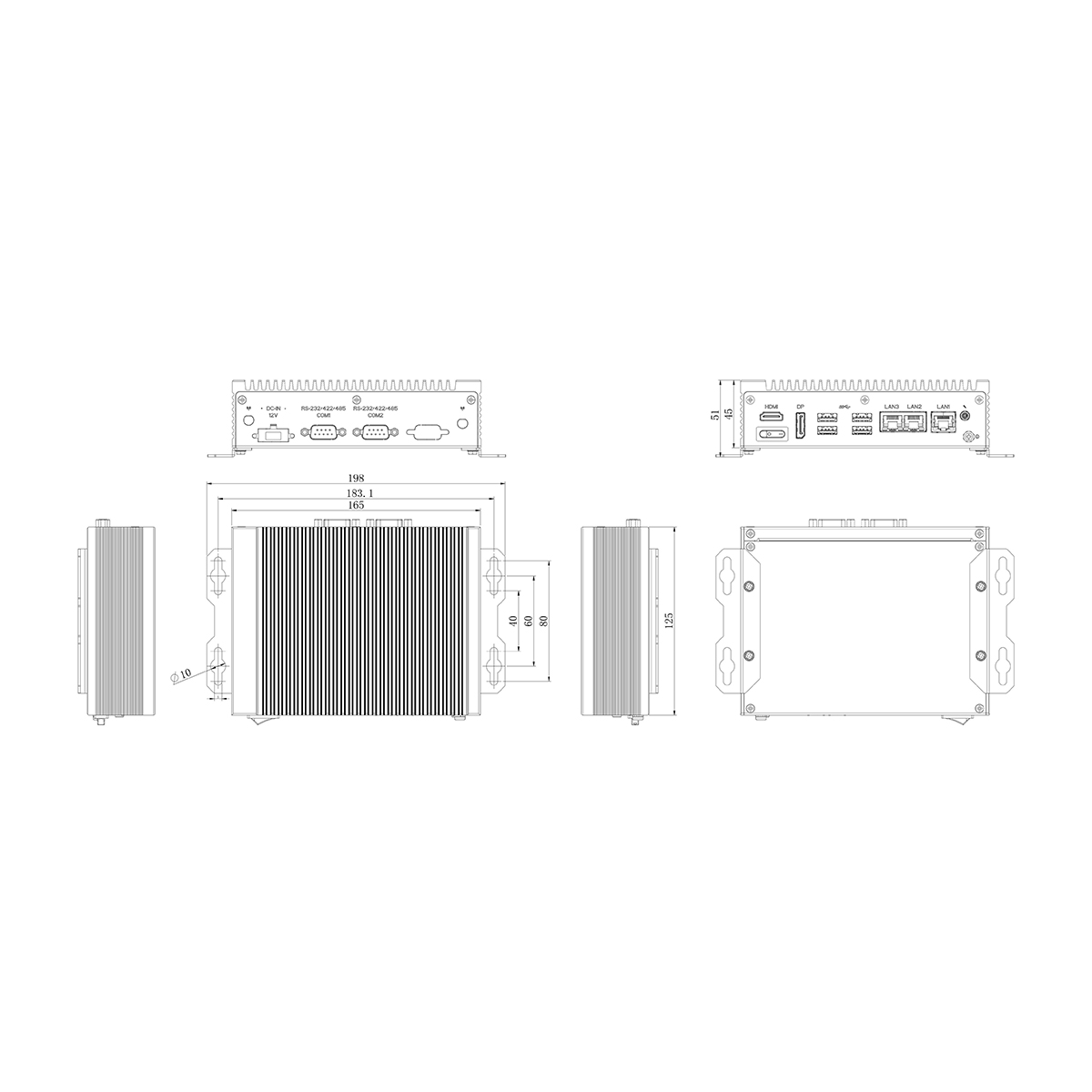

尺寸 Dimension

165 x 125 x 45 mm

重量 Weight

0.8kg

电源 Power

电源输入 Power Input

12V DC, 2-pin phoenix connector

认证 Certification

安规认证 Safety Certification

CCC

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

2G151DS00-HUH-G

M2-2242_THERMAL-PAD_28*26*1.5

2G151DT00-HUH-G

Memory_thermal-pad_57*12.5*1.5

34046QH00-GLA-G

2pin DC-IN Phoenix Connector, 5mm, FOXCONN

2T71A7V00-3G1-G

Desk/Wall-Mount, 96mm*29.5mm*6mm

选配
Optional

型号 Model

描述 Description

CTO-060W-FSP0

CEA-060W-FSP0, FSP 60W adapter, 150cm power cord

CTO-060W-LT00

CEA-060W-LT00, LITEON 60W adapter, 150cm power cord

2T71A7Y00-JTW-G

DIN-RAIL/VESA Bracket, 165mm*115mm*10.5mm
