■ 规格 Specification
|
|
|
系统 System
|
|
处理器 Processor
|
Intel® Bay Trail Celeron® J1900 processor (2.00 GHz)
|
|
内存 Memory
|
1 x DDR3L 1333 MHz SO-DIMM Slot, up to 8GB
|
|
图形 Graphics
|
Intel® HD Graphics for Intel Atom® Processor Z3700 Series, dual display
|
|
存储 Storage
|
1 x mSATA/M.2 2242 SSD slot
|
|
操作系统 OS
|
Windows 7/8/10, Linux
|
|
看门狗定时器 Watchdog Timer
|
Programmable 255 levels timer interval, from 1~255 sec/min
|
|
机构 Mechanical
|
|
外观 Housing
|
铝合金 Aluminum Alloy
|
|
安装方式 Mounting
|
Desk-Mount (Wall-Mount, DIN-Rail(optional)
VESA-mount (75 x 75mm,100 x 100mm optional)
|
|

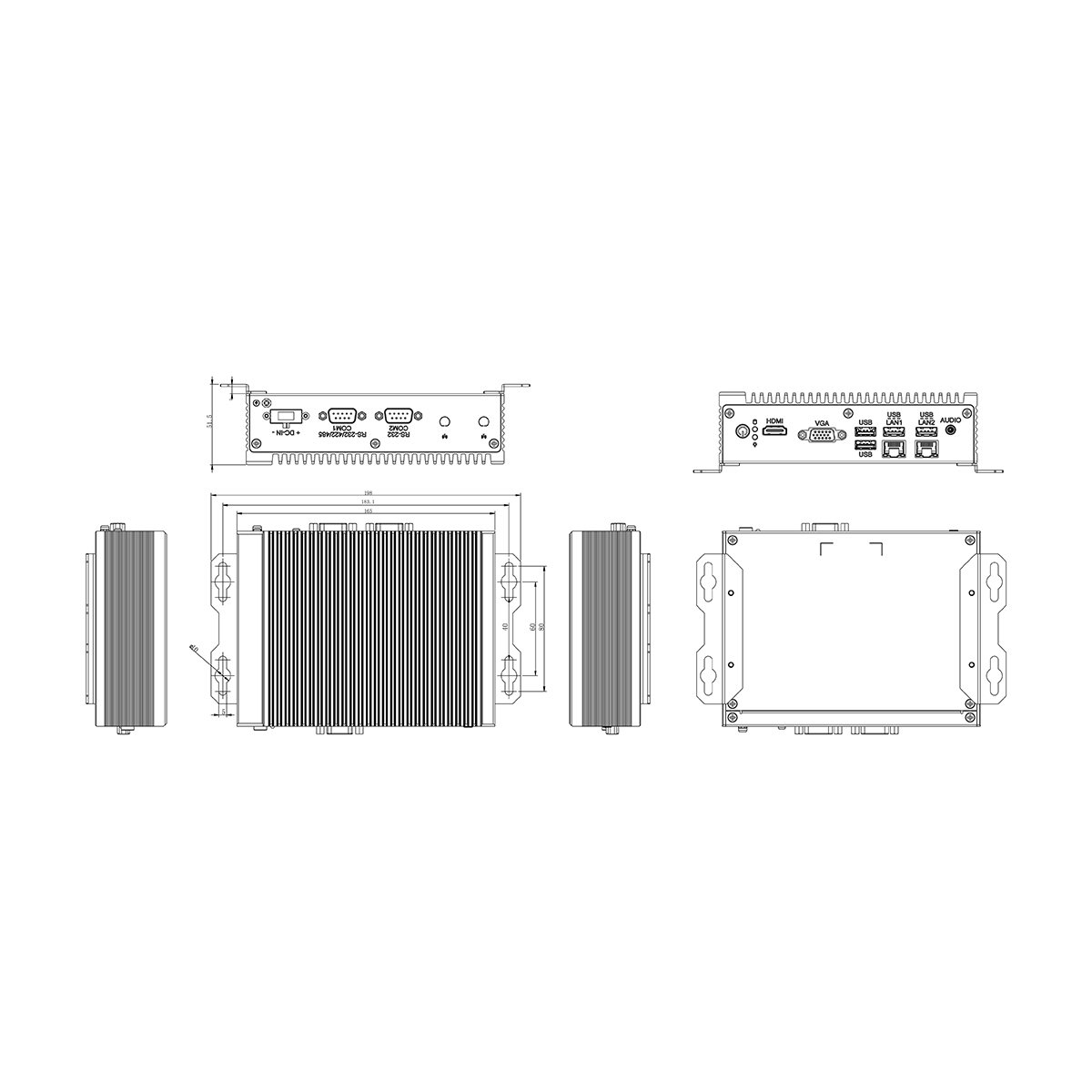

尺寸 Dimension
|
165 x 125 x 45 mm
|
|
重量 Weight
|
0.8kg
|
|
环境 Environmental
|
|
操作温度 OperatingTemp.
|
-10℃ ~ 60℃ (SSD), 0℃ ~ 40℃ （HDD）
|
|
存储温度 Storage Temp.
|
-40℃ ~ 85℃
|
|
湿度 Relative Humidity
|
5% ~ 95%, 非凝结状态 Non-condensing
|
|
振动 Vibration
|
SSD: 5~500Hz, 2Grms operation
|
|
机械冲击 Shock
|
Operation: 10G@11ms
Non-operation: 30G@11ms
|
|
外部接口 External I/O
|
|
网口 Ethernet
|
2 x RJ45 Intel® i211AT GbE (10/100/1000 Mbps)
|
|
显示 Display
|
1 x VGA: max resolution up to 2560 x 1600
1 x HDMI: max resolution up to 1920 x 1200
|
|
音频 Audio
|
1 x Audio(Line-out&Mic-in 2 in 1)
Realtek® ALC269 HD Audio codec
|
|
串口 COM
|
1 x RS232/422/485
1 x RS232
|
|
USB
|
3 x USB 2.0 (USB SR Pro supported)
1 x USB 3.0 (USB SR Pro supported)
|
|
GPIO
|
1 x 8-bit programmable GPIO (optional）
|
|
按钮 Button
|
1 x Power button
|
|
指示灯 LED
|
1 x Power LED(Green for Power-on, blink for Sleep mode,Off for Power-off)
1 x HDD LED (Red blink for Data read or write)
|
|
内部接口 Internal I/O
|
|
扩展接口 Expansion
|
1 x Mini-PCIe Slot (PCIe/SATA signal supported)
|
|
SIM 卡
|
1 x SIM socket
|
|
电源 Power
|
|
电源输入 Power Input
|
9~36V DC, 2-pin phoenix connector
|
|
认证 Certification
|
|
安规认证 Safety Certification
|
CCC
|
|
■ 订购清单 Order List
|
|
标配
Standard
|
型号 Model
|
描述 Description
|
|
2G151DT00-HUH-G
|
M2-2242_THERMAL-PAD,28*26*1.5mm
|
|
34046QH00-GLA-G
|
2pin DC-IN Phoenix Connector,5mm,FOXCONN
|
|
2T71A7V00-3G1-G
|
Standard desktop bracket kit
|
|
选配
Optional
|
型号 Model
|
描述 Description
|
|
CTO-040W-DC12
|
CEA-040W-DC12,40W ADAPTER,150cm power cord
|
|
2T71A7Y00-JTW-G
|
DIN-RAIL/VESA Bracket,165mm*115mm*10.5mm
|
