CEB-H31I-D100

■ 规格 Specification

处理器 Processor

Intel® 8th/9th Gen Core ™ i7/i5/i3/Pentium®/Celeron® Processor, TDP up to 65W

芯片组 Chipset

Intel® H310

内存 Memory

2 x DDR4 2400/2666 MHz SO-DIMM Slot, up to 64GB

存储 Storage

2 x SATA3.0, 1 x MSATA(SATA3.0)

显示 Display

Intel® HD Graphics

网口 Ethernet

1 x Intel® i219-LM GbE, 1 x Intel® i210-AT colay i211-AT (10/100/1000 Mbps)

音频 Audio

Realtek® ALC888S HD Audio codec, supports 5.1-channel

BIOS

AMI UEFI BIOS

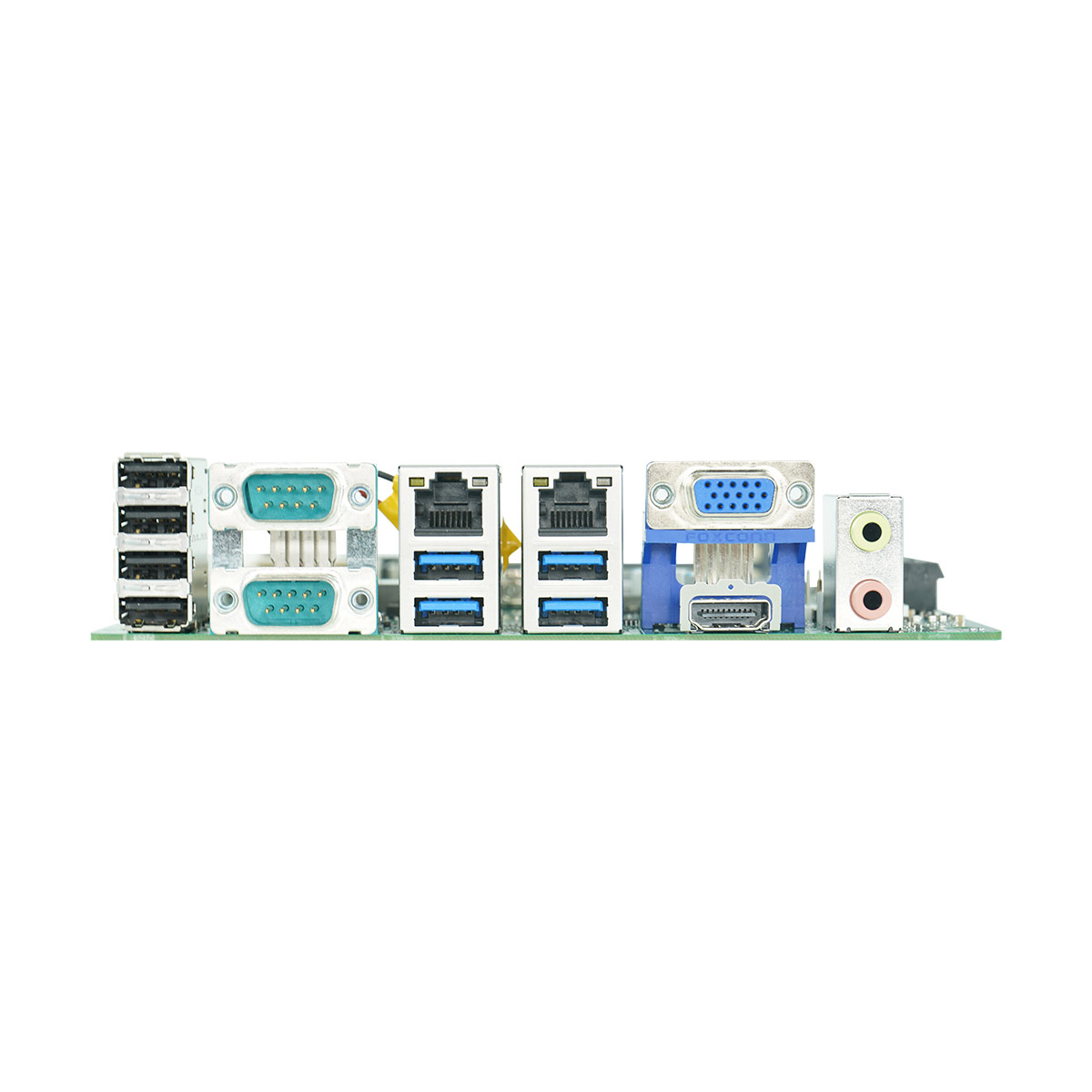

外部接口 Rear I/O

1 x VGA: max resolution up to 1920 x 1200@60Hz

1 x HDMI: max resolution up to 4096 x 2304@24Hz

4 x USB3.0, 4 x USB2.0

2 x RJ45

2 x RS232/422/485 (with auto flow control)

1 x Line-out, Mic-in

内部接口 Internal I/O

4 x RS232

1 x USB2.0 (1 x Type-A)

1 x 8 bit GPIO

2 x SATA3.0

1 x Speaker out (3W/4ohm)

1 x CPU_FAN

1 x SYS_FAN

1 x FP(power button,power led,reset,HDD led)

扩展接口 Expansion

1 x PCIe X4 (Gen2, X4 link)

1 x Mini-PCIe (SATA3.0/PCIe2.0、USB2.0)

看门狗 Watchdog Timer

System Reset, Programmable via software from 1 to 255 seconds

环境 Environment

操作温度 Operation Temp.: 0℃ ~ 60℃

存储温度 Storage Temp.: -40℃ ~ 85℃

操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing

存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing

电源输入 Power Input

19~24V DC-IN

尺寸 Dimensions

170 x 170 mm (6.75" x 6.75")

操作系统 OS

Windows10, Linux

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

35091AW00-JTU-G

SATA Signal Cable Assembly, 400mm+/-20mm

7B328WV00-59Y-G

CPU Cooler Mounting bracket kit

2T71BAR00-81T-G

IO SHIELDING

选配
Optional

型号 Model

描述 Description

351086700-JTU-G

COM3/4/5/6,COM Cable without bracket, 450mm+/-10mm

480301K00-JV0-G

CPU Cooler, support 65W, LGA115X Series
