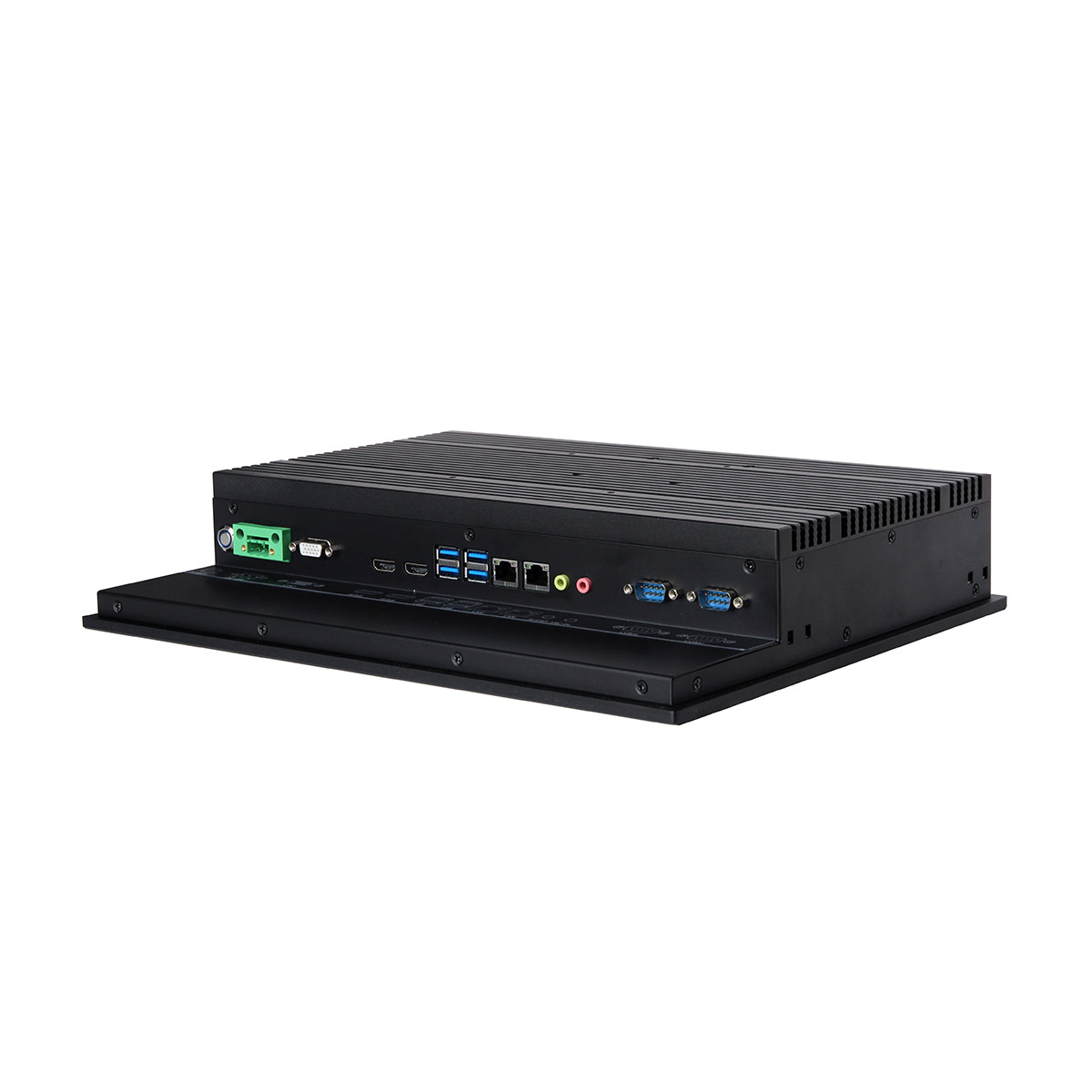

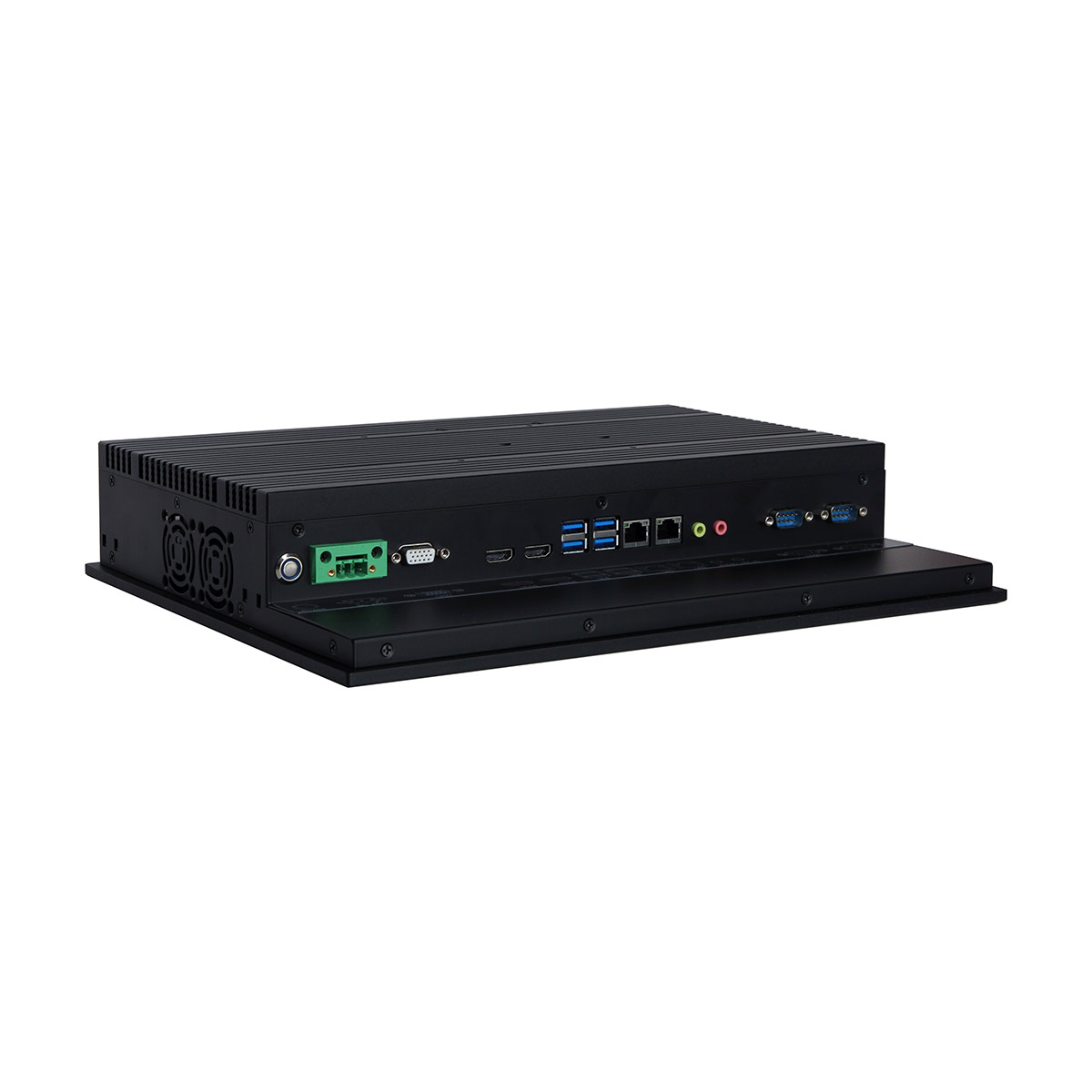

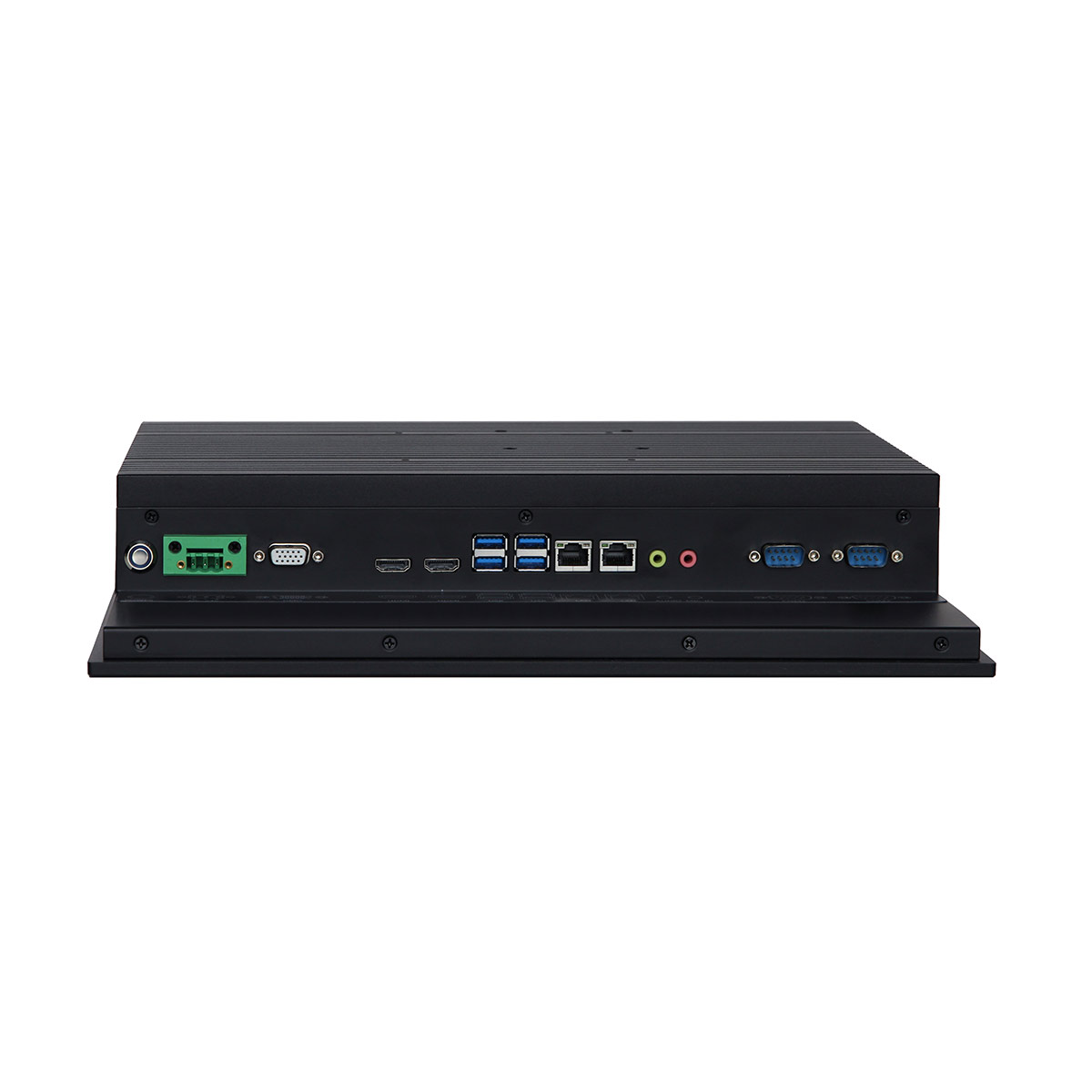

PPC-151R-H11B
IntelH110Chipset
2xSO-DIMM DDR4 up to 32GB
⽀持2*LAN ⽀持2*COM
⽀持 GPIO x 8 bit
⽀持HDMI/LVDS显⽰输出⽀持4xUSB3.0,2xUSB 2.0(by pin header)
⽀持2xSATAIII，1xmSATA(support Mini Pcle)
尺⼨(宽x深x⾼):362x290x69mm
|
■ 规格 Specification |
|
||||
|
系统 System |
|||||
|
处理器 Processor |
Intel®LGA1151 Socket Supports 6/7th GenCore™/Celeron® |
||||
|
芯片组 Chipest |
Intel® H110 Chipset |
||||
|
内存 Memory |
1xDDR4 SODIMM up to32GB |
||||
|
图形 Graphics |
Intel®6/7th Gen.CPU Integrated |
||||
|
BIOS |
AMI UEFI BIOS |
||||
|
操作系统 OS |
Windows 10, Linux |
||||
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval，from 1~255 sec/min |
||||
|
外部接口 External I/O |
|||||
|
串口 COM |
2x RS232 by pin header |
||||
|
GPIO 口 |
1 x 8 bit GPIO |
||||
|
USB |
4 xUSB 3.0 |
||||
|
SATA |
2x SATA III |
||||
|
网口 Ethernet |
2xRealtek8111G |
||||
|
显示 Video |
HDMI:4096x2160 @24Hz |
||||
|
音频 Audio |
ALC 887 |
||||
|
BIOS |
AMI |
||||
|
电源输入 Power Input |
1 x Power Connector (3P Phoenix) |
||||
|
内部接口 Internal I/O |
|||||
|
扩展接口 Expansion |
1xMicroSIM(Optional) |
||||
|
显示屏 Display |
|||||
|
尺寸 Size |
15 inches |
||||
|
分辨率 Resolution |
1024(H) x 768(V) |
||||
|
屏幕宽高比 Ratio |
4:3 |
||||
|
亮度 Brightness |
350 cd/m²Visual angle: full angle of view |
||||
|
可视角 Viewing Angle |
89/89/89/89（Typ.）CR ≥ 10 |
||||
|
对比度 Contrast Ratio |
1000:1 |
||||
|
背光Backlight |
LED Backlight |
||||
|
背光寿命 Backlight Lifetime |
50000Hrs |
||||
|
触摸屏 Touchscreen |
|||||
|
触摸屏 Touch Type |
全平面五线电阻屏 5-Wire Resistive Touch |
||||
|
触击 Touch |
50,000,000 times |
||||
|
机构 Mechanical |
|||||
|
前框 Front Panel |
铝 Aluminum |
||||
|
铝挤 Heat-Sink |
铝 Aluminum |
||||
|
底板 Rear Cover |
铁 SECC |
||||
|
安装方式 Mounting |
Panel Mount, Wall and VESA-mount (100 x 100mm) |
||||
|
尺寸 Dimension |
362 x 289.5 x 68.6mm |
||||
|
建议开孔尺寸 Cut Out |
353 x 280mm |
||||
|
重量 Weight |
7.2kg |
||||
|
环境 Environmental |
|||||
|
操作温度 Operating Temp. |
-10℃ ~ 60℃ |
||||
|
存储温度 Storage Temp. |
-40℃ ~ 85℃ |
||||
|
操作湿度 Operating humidity |
10%~90%,非凝结状态 Nno condensation |
||||
|
存储湿度 Storage Humidity |
5%~90%, 非凝结状态 Non-condensing |
||||
|
电源 Power |
|||||
|
电源输入 Power Input |
12~36V DC |
||||
|
■ 订购清单 Order List |
|
||||
|
标配 |
型号 Model |
描述 Description |
|||
|
PPC-151R-H11B |
根据客户要求定制 |
||||
