■ 规格 Specification
|
|
|
系统 System
|
|
处理器 Processor(可选）
|
Intel® Elkhart Lake Celeron® J6412 processor ( 2.00 GHz )
|
|
存储 Storage
|
1 x M.2 2242 SSD slot
|
|
内存 Memory
|
1 x DDR4 3200hz SO-DIMM slot, up to 8GB
|
|
图形 Graphics
|
Intel® UHD Graphics for 10th Gen Intel® Processors
|
|
操作系统 OS
|
Windows 10, Linux
|
|
看门狗定时器 Watchdog Timer
|
Programmable 255 levels timer interval, from 1~255 sec/min
|
|

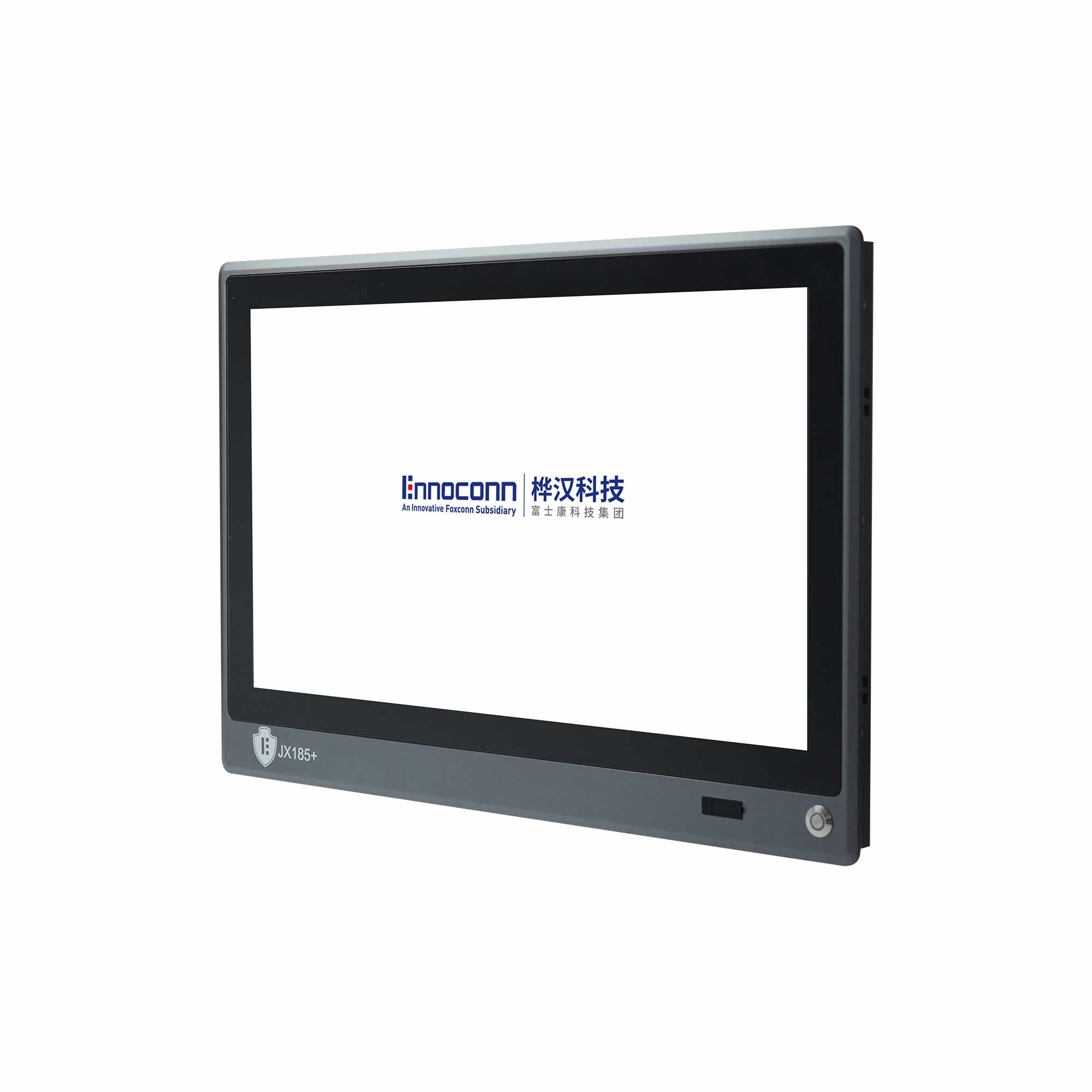

显示屏 Display
|
|
尺寸 Size
|
18.5 inches
|
|
分辨率 Resolution
|
1920(H) × 1080(V)
|
|
屏幕宽高比 Ratio
|
16:9
|
|
亮度 Brightness
|
350 nits
|
|
可视角 Viewing Angle
|
85/85/85/85 (Typ.)(CR ≥ 10)
|
|
对比度 度 Contrast Ratio
|
1200
|
|
背光 Backlight
|
LED Backlight
|
|
背光寿命 Backlight Lifetime
|
30000Hrs
|
|
触摸屏 Touch Screen
|
|
触摸屏 Touch Type
|
10 点投射式电容屏 P-cap Multi-Touch
|
|
触击 Touch
|
35,000,000 times
|
|

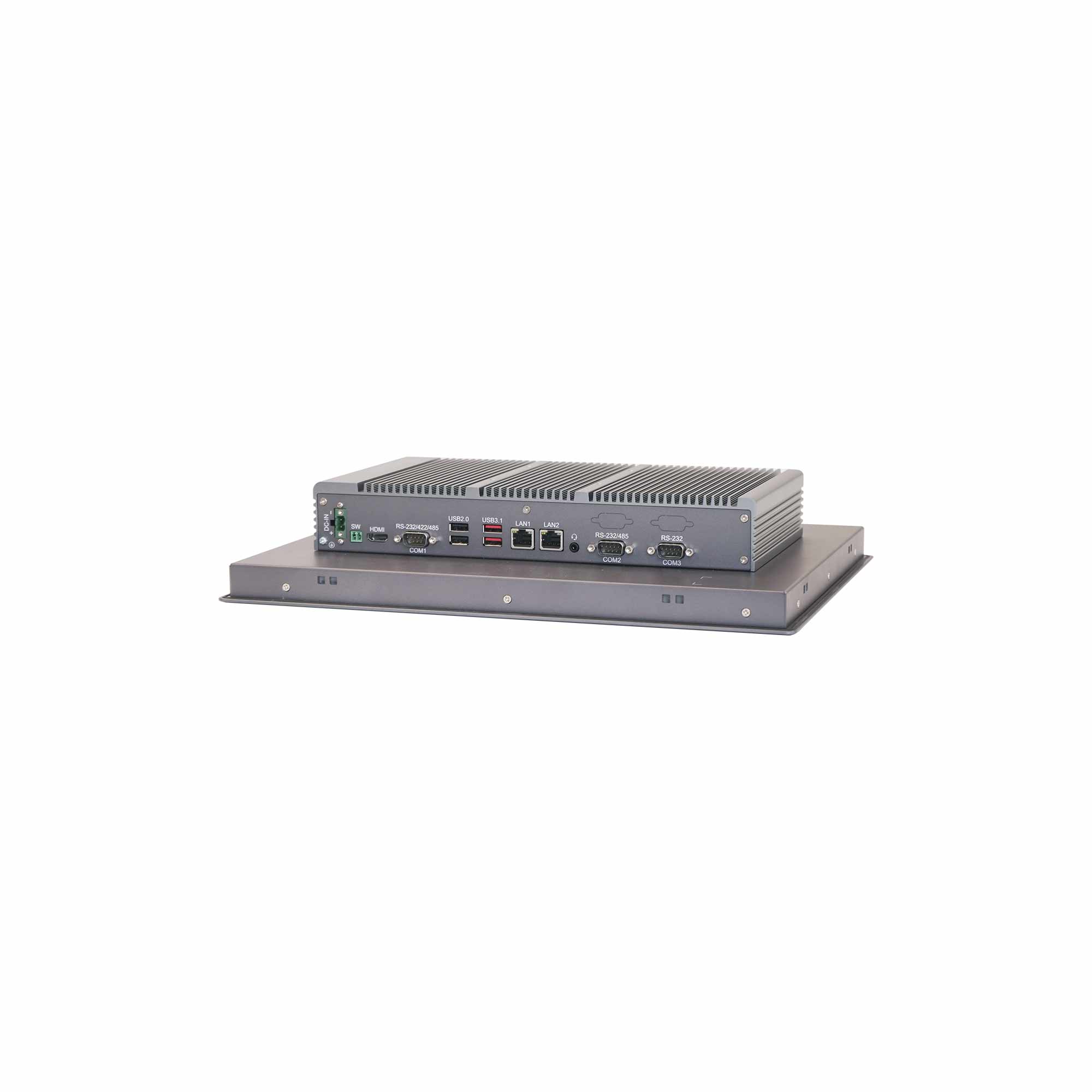

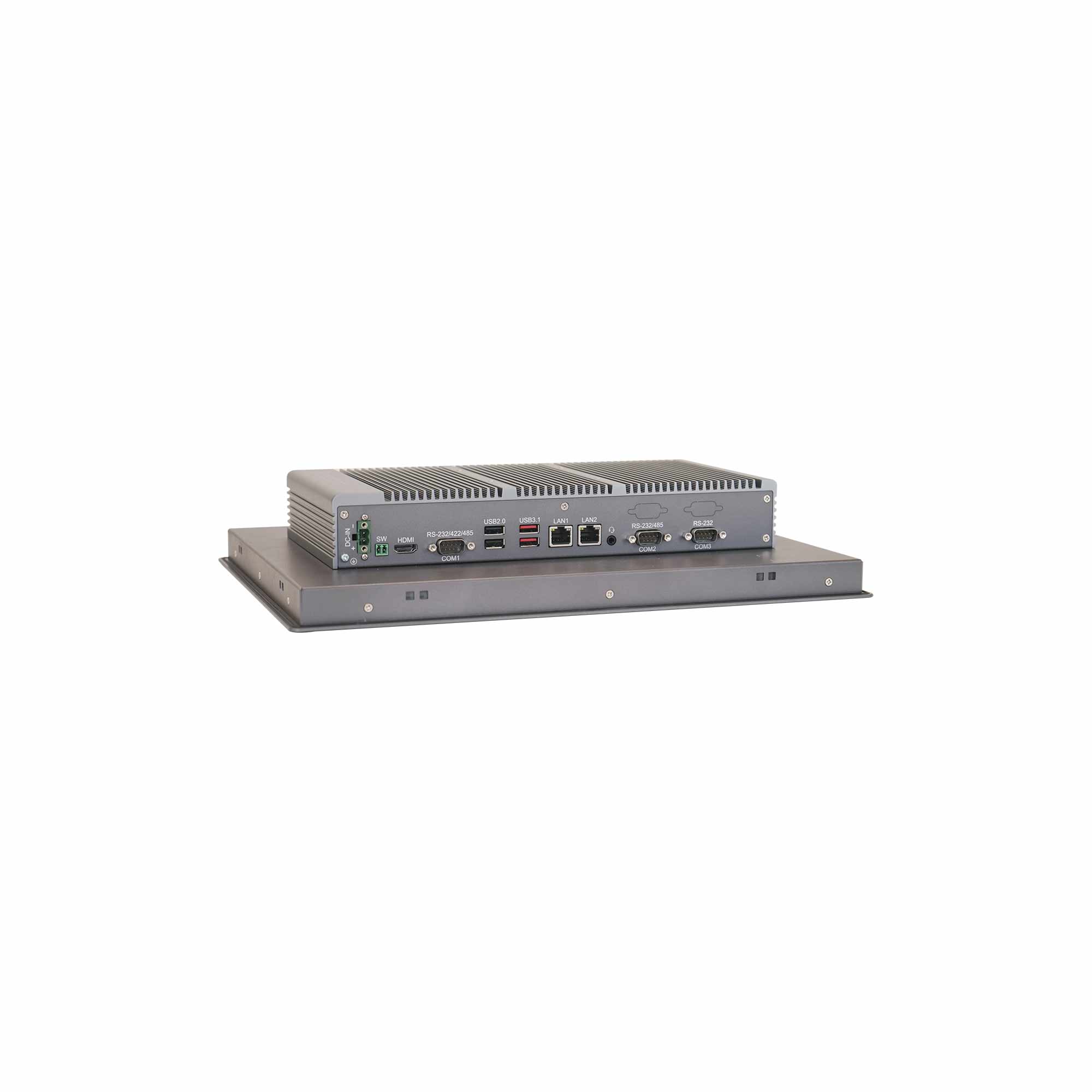

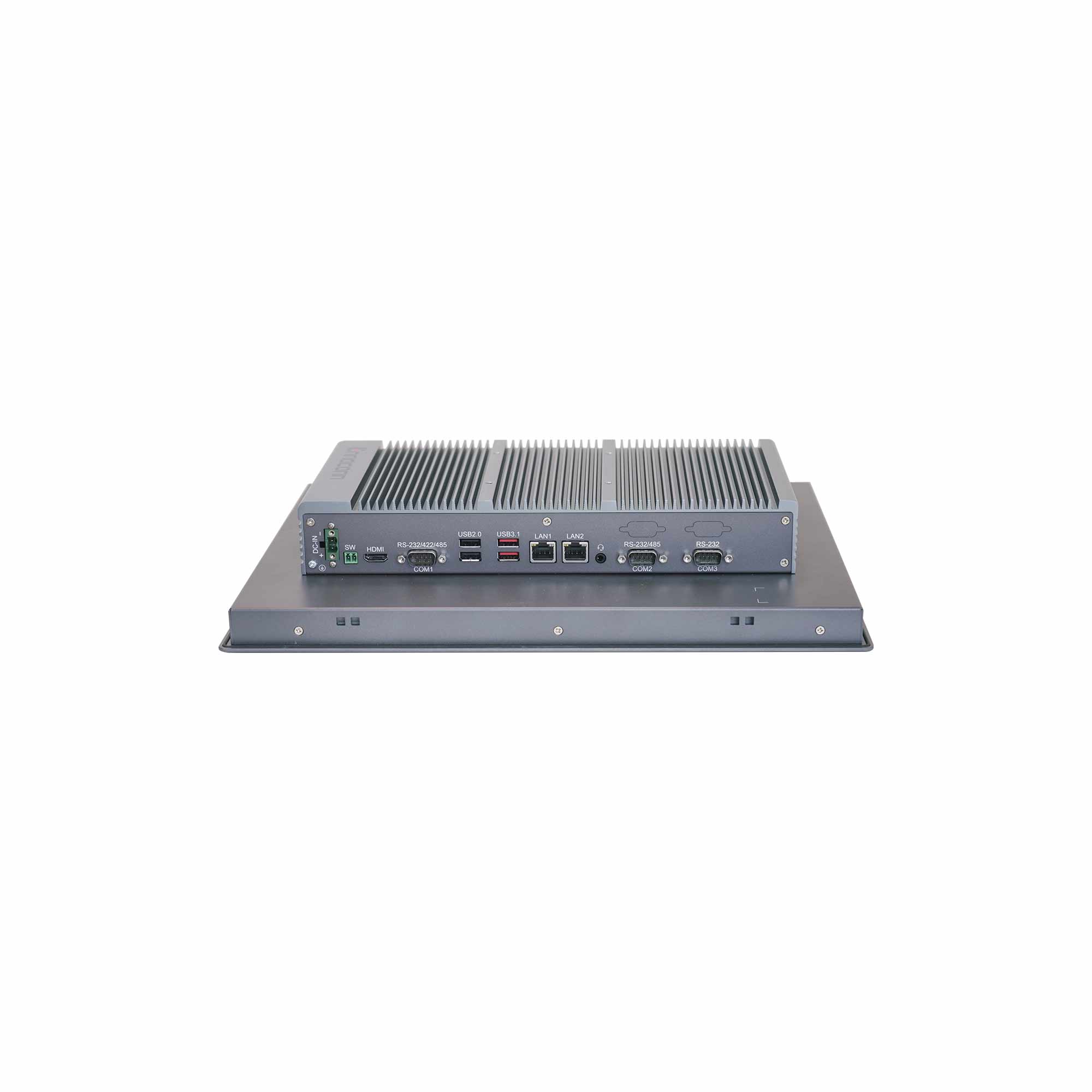

外部接口 External I/O
|
|
串口 COM
|
1 x RS232/RS422/RS485-COM1
1 x RS232( default)/RS 485 (Jumper) - COM2
1 x RS232-COM3
|
|
USB
|
4 x USB 2.0,2 x USB 3.1
1x USB 2.0 on the front panel
|
|
网口 Ethernet
|
2 x RJ45, Intel® I211AT GbE (10/100/1000 Mbps)
|
|
显示 Video
|
1 x HDMI (up to 1920 x 1200)
|
|
音频 Audio
|
1 x Audio(Line-out&Mic-in 2 in 1),
Realtek® ALC888S HD Audio codec 4Ω3W speaker x 2
|
|
远程开关 Remote ON-OFF
|
1 x Remote ON-OFF
|
|
电源输入 Power Input
|
1 x Power Connector (2P Phoenix)
|
|
内部接口 Internal I/O
|
|
扩展接口 Expansion
|
1 x Mini-PCle slot ( PCle / SATA signal supported )
1 x M.2 2230 slot ( WiFi supported )
1 x SIM socket
1 x 8bit GPIO 3.3V (jumper)/5V(default) power
2 x RS232
2 x USB2.0--For Touch
1 x SATA3.0/Power 5V for HDD
2 x RS 232
|
|
环境 Environmental
|
|
操作温度 Operating Temp.
|
-10℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD)
|
|
存储温度 Storage Temp.
|
-40°C - 70°C
|
|
湿度 Relative Humidity
|
5% ~ 95%, 非凝结状态 Non-condensing
|
|
随机振动 Random Vibration
|
5~500Hz, 1Grms (HDD)operation,
5~500Hz, 2Grms (SSD)operation
|
|
正弦振动 Sine Vibration
|
5~500Hz, 2G Non-operation
|
|
机械冲击 Shock
|
10g 11ms operation, 30g 11ms Non-operation
|
|
前面板防护 Ingress Protection
|
Front panel IP66
|
|
机构 Mechanical
|
|
前框 Front Panel
|
铝 Aluminum
|
|
铝挤 Heat-Sink
|
铝 Aluminum
|
|
底板 Rear Cover
|
铁 SECC
|
|
安装方式 Mounting
|
Panel Mount, Wall and VESA-mount (75 x 75mm)
|
|
尺寸 Dimension
|
470.8(W) x 317.4(H) x73(D)mm
|
|
建议开孔尺寸 Cut Out
|
457.8 x 304.4mm
|
|
重量 Weight
|
6.6kg
|
|
电源 Power
|
|
电源输入 Power Input
|
12~36V DC
|
|
认证 Certification
|
|
安规认证 Safety Certification
|
CCC
|
|
■ 订购清单 Order List
|
|
|
型号
|
配置信息
|
|
标配
Standard
|
34046QH00-GLA-G
|
1x2P DC in Phoenix conn(5.00), female
|
|
34046QJ00-600-G
|
Conn,3.5mm,PA,DIP-2,FIT,TEPE123-11G00-DF
|
|
35074RQ00-JTU-G
|
1xSATA, 7+4P, 150mm, w/ lock, 180° / 90°
|
|
1A03DRW00-88A-G
|
panel hook(4pcs in 1 package)
|
|
选配
Optional
|
CTO-606W-FSP0
|
CEA-060W-FSP0, FSP 60W adapter, 3750px power cord
|
|
CTO-606W-LT00
|
CEA-060W-LT00, LITEON 60W adapter, 3750px power cord
|
