CEFS-EQ37-W62X

■ 规格 Specification

系统 System

处理器 Processor

Intel® 8/9 Gen. LGA1151 Core ™ i CPU
6 cores max TDP 65W, 8 cores max TDP 35W

芯片 Chipset

Intel Q370 PCH

内存 Memory

2 x DDR4 2400/2666MHz SO-DIMM, up to 64GB

图形 Graphics

Intel® UHD Graphics 630

存储 Storage

1 x Mini-PCIe slot for m SATA SSD
2 x SATA3.0 connector for 2.5inch HDD/SSD

操作系统 OS

Windows 10, Linux

看门狗 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

网口 Ethernet

1 x Intel® I211AT GbE (10/100/1000Mbps)
1 x Intel® I219LM GbE (10/100/1000Mbps)

显示 Video

1 x VGA, max resolution up to 2048 x 1536@50Hz
1 x HDMI 1.4, max resolution up to 4096 x 2304@24Hz

串口 COM

1 x RS-232/422/485 BIOS adjustable & 1 x RS232 (On board)
1 x RS232(Cable expansion, Optional)
8 x RS-232/422/485 (Mini-PCIe card expansion,Optional）

POE

4 x Intel® I211AT GbE (10/100/1000Mbps) 802.3 af, max TDP 15W for each

USB

4 x USB3.1 Gen2 compatible USB 2.0 (On board)
2 x USB2.0 (On board)
4 x USB3.0 compatible USB 2.0 (Mini-PCIe card expansion,Optional）
PS: Share DMI3.0 bandwidth from PCH, total 12Gbps on all ports

存储 Storage

2 x 2.5" SATA 3.0 Bay for 2.5inch HDD/SSD

DIO

Mode: NPN/PNP (Switchable)
8in8out isolated DIO esponse time ≤ 20ms
Input frequency: 1/2 Pin ≤ 200KHz, 3/4/5/6/7/8 Pin ≤ 500Hz
High-voltage isolation up to 3000Vrms for DI & 2450Vrms for
DO on all channels
Driving capacity: 350mA max for NPN mode; 500mA max for
PNP mode
Support 5-24V isolated input on all channels

光源控制
Lighting Controller

4 Port lighting controller
24V output, PWM adjustment
0-100 levels brightness program adjustment
2.5A max current and 60W TDP for each channel, total 70W
on all channels
High-voltage isolation up to 3000Vrms on all channels
Auto detect, dynamic tuning

电源按钮 Power Button

Power Button

指示灯 Indicators

1x Power LED (Green for Power-on, Blink for Sleep mode, Offfor Power-off)
1 x HDD LED (Red blink for Data read or write)

远程开关 Remote ON-OFF

1 x Remote ON-OFF

内部接口 Internal I/O

基础扩展接口
Regular slot

1 x Mini-PCIe , Co-lay with SATA3.0&USB2.0&PCIe X1 signal for multiple module expansion
1 x USB2.0 connector for internal dongle

可选扩展接口
( 两槽扩展卡 )
Optional
(2 slot expansion card)

1 x Mini-PCIe with USB2.0 signal
1 x PCIe X16 (GPU card length no longer than 248mm )
1 x PCI
1 x SIM card for 3G/4G module

可选扩展接口
( 四槽扩展卡 )
Optional
(4 slot expansion card)

1 x Mini-PCIe with USB2.0 signal
1 x M.2 3042/3052 Key-B, Co-lay with USB3.1 G2&PCIe signal
1 x PCIe X16 (GPU card length no longer than 248mm )
2 x PCIe X4
1 x PCI
1 x SIM card for 3G/4G module
1 x SIM card slot for 5G module

环境 Environmental

操作温度 Operating Temp.

-10℃ ~ 50℃
 65W CPU Must have 2pcs 60*20 system fan

存储温度 Storage Temp.

-40℃ ~ 85℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

振动 Vibration

SSD: 5~500Hz, 2Grms operation
HDD: 5~500Hz, 1Grms operation

机械冲击 Shock

Operation: 10G@11ms
Non-operation: 30G@11ms

电磁兼容 ESD

Contact 6KV, Air 10KV

电源 Power

电源输入 Power Input

19-24V DC, AT/ATX Default
Power consumption: Typical 180W; Maximum
330W(Suggestion,not include in package)
Phoenix lockable connector
Protection of over current/voltage and ereverse

显卡电源
GPU Power supply

1. GPU card TDP ≤ 120W, share power supply with system from 330W adapter
2. GPU card TDP > 120W , Need additional power supply separate with system (developing)

机构 Mechanical

外观 Housing

铝合金 Aluminum Alloy

尺寸 Dimension

Regular model: 260 x 100 x 270 mm (W x H x D)

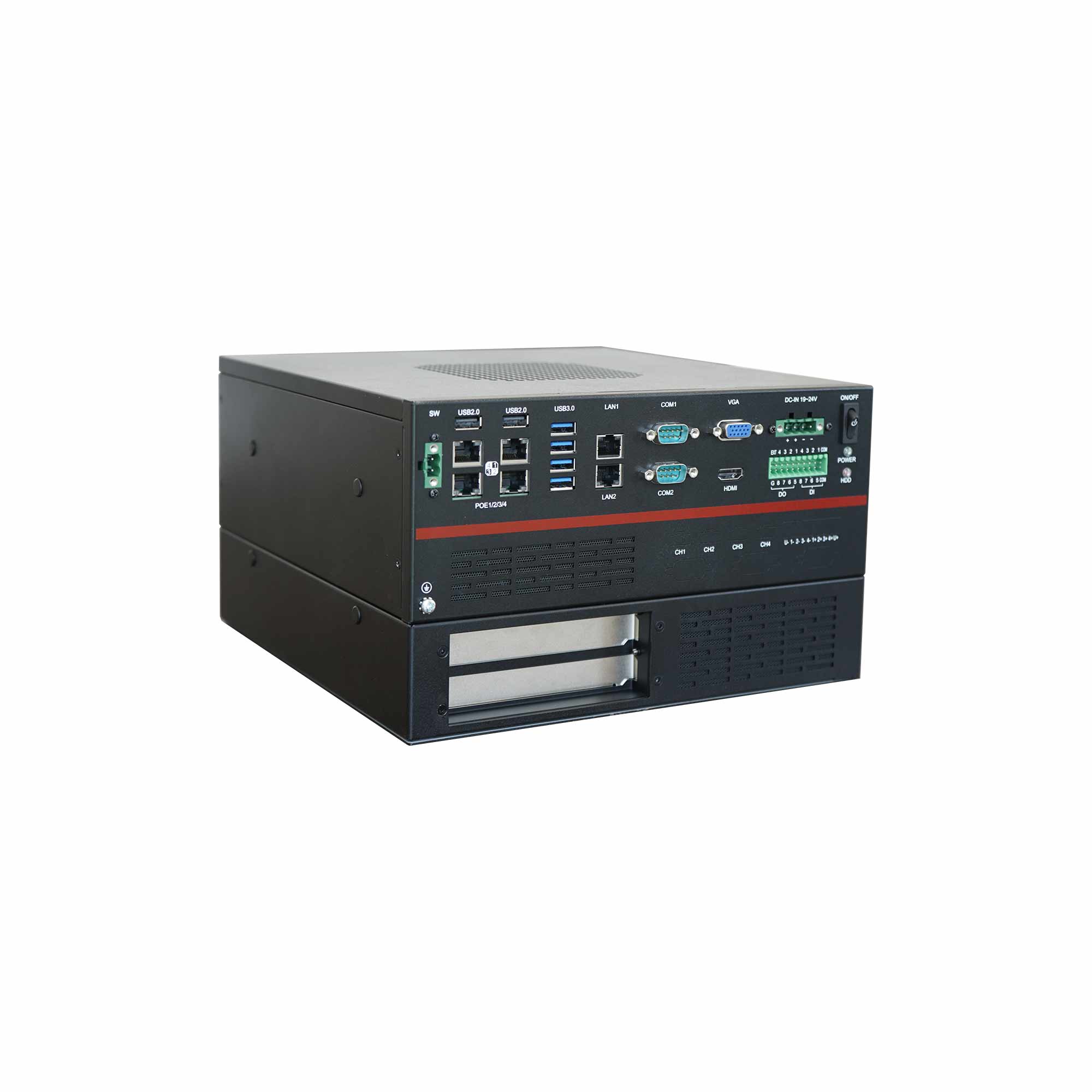

Two slot expansion model: 260 x 156 x 270 mm (W x H x D)

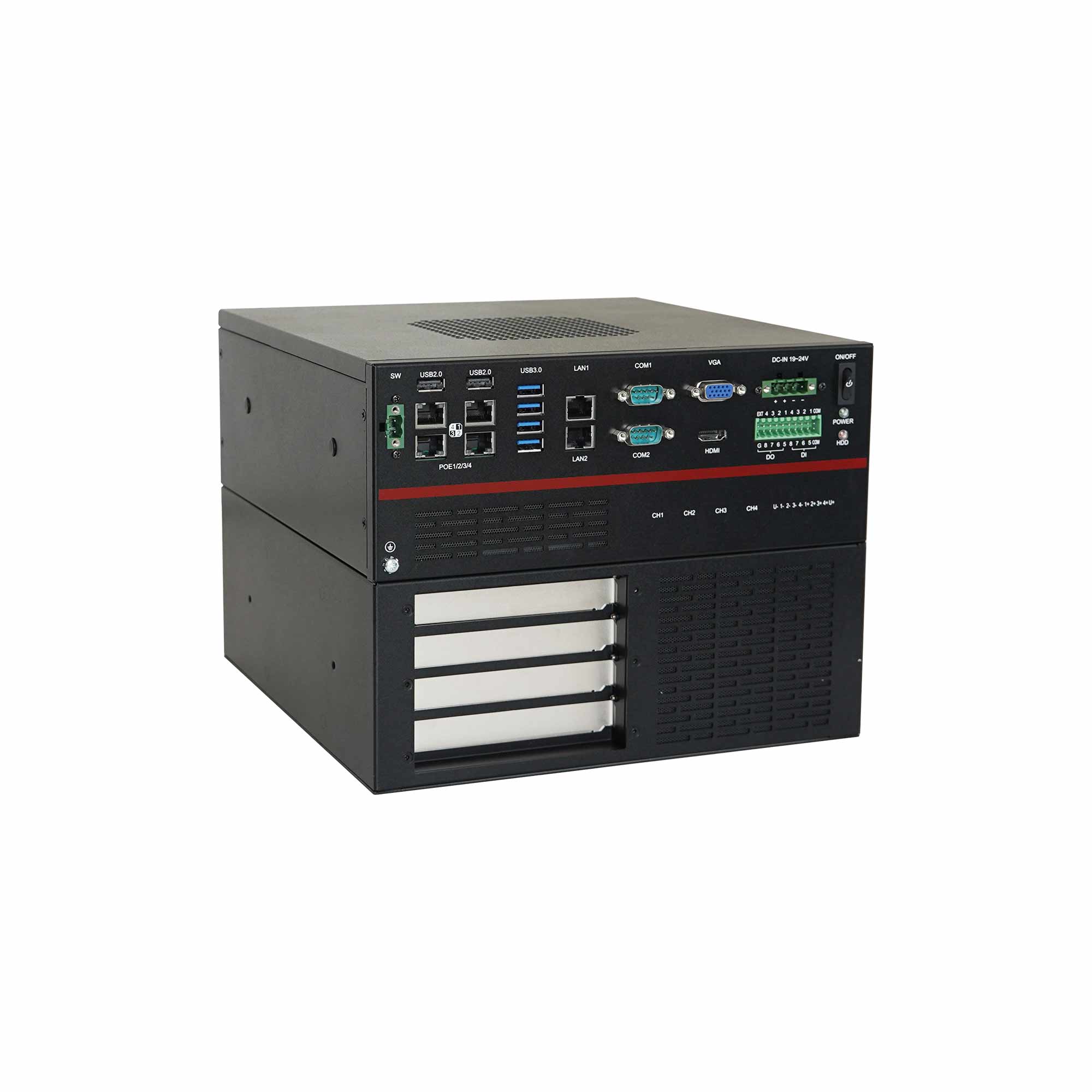

Four slot expansion model: 260 x 200 x 270 mm (W x H x D)

重量 Weight

Regular model: 3.8kg
Two slot expansion model:4.8kg
Four slot expansion model:5.8kg

安装方式 Mounting

桌面式 (Desk-Mount include horizontal and vertical)

认证 Certification

安规认证 Certification

CCC

■ 配置 Configuration

型号 Model

PCIe X 16（0/1）

PCI（0/1）

PCIe X4(0/2)

Lighting（0/4）

Power adapter/DC input
(Suggestion,not include in package)

CEFS-EQ37-W620-STDP0

0

0

0

0

180W/19~24V

CEFS-EQ37-W620-STDPL

0

0

0

4

230W/19~24V

CEFS-EQ37-W622-STDP0

1

1

0

0

180W~330W/19~24V

CEFS-EQ37-W622-STDPL

1

1

0

4

230W~330W/19~24V

CEFS-EQ37-W624-STDP0

1

1

2

0

180W~330W/19~24V

CEFS-EQ37-W624-STDPL

1

1

2

4

230W~330W/19~24V

■ 订购清单 Order List

型号 Model

描述 Description

标配
Standard

CEFS-EQ37

CEFS-EQ37 Bare system

2G1514D00-HUH-G

MEMORY_THERMAL-PAD,SarconGR4

2G151GN00-KDH-G

CPU_THERMAL-PAD, K25, 0.5mm

34046YU00-67Y-G

20pin DIO male connector

2T2702300-998-G

10pin Lighting external trigger male connector(CEFS-EQ37-W620/2-STDPL only)

3406E3U00-38L-G

DC in 1-4pin 5.00mm Phoenix connector

35107DY00-38L-G

Remote Switch cable 10cm

2A582LB00-G7D-G

m SATA SSD screw

2T719P900-JTW-G

Standard Desk

2A582GF00-G5J-G

Mount kits screw P HEAD M4.0*P0.7*8

35074RR00-JTU-G

2.5inch SATA cable

选配
Optional

870110L00-289-G

180W adapter, 19.5V @9.23A, 4pin phoenix connector

350744V00-704-G

1500mm power cable, Mickey Mouse connector.use with 180W adapter

870110C00-289-G

230W adapter, 19.5V @11.79A, 4pin phoenix connector

870110R00-289-G

330W adapter, 19.5V @11.79A, 4pin phoenix connector

35074KN00-704-G

1500mm power cable, product prefix connector, use
with 230W/330W adapter

100396Q00-34U-G

Mini PCle expansion module, USB to dual lsolated CAN Open

100381200-34U-G

Mini PCle expansion module.USB to duallsolated CANbus 2.0B

100381600-34U-G

Mini PCle expansion module.mPCle to Four RS232/422/485
