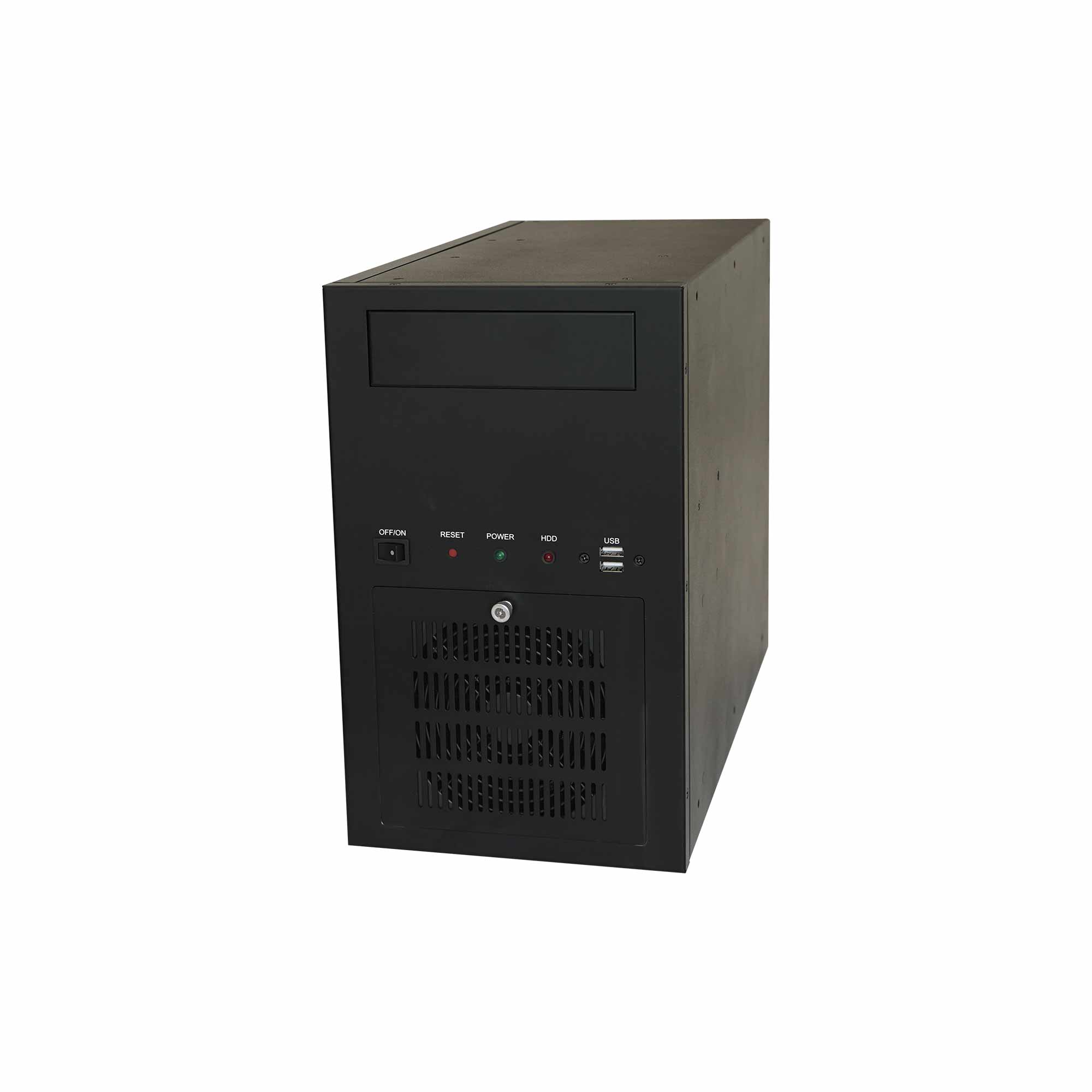

CEFS-TA31-Q47A

■ 规格 Specification

系统 System

处理器 Processor

Intel® 10th/11th Gen Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor, LGA1200, TDP up to 95W

芯片 Chipset

Intel® Q470E

内存 Memory

Dual Channel,4 x U-DIMM Slot,DDR4 2400/2666/2933 MHz, up to 128GB

图形 Graphics

Intel® UHD Graphics 630(10th CPU)750(11th CPU), triple display

存储 Storage

4 x SATA 3.0, 1 x M.2 (SATA3.0/PCIe 3.0 x 4) 2242/2280,1 x M.2( PCIe3.0 x 4 NVME )2242/2280 only 11th CPU supported

操作系统 OS

Windows 10, Linux

看门狗 Watchdog Timer

System Reset, Programmable via software from 1 to 255 seconds

信赖平台模块 TPM

Nuvoton TPM2.0(optional, need MOQ)

外部接口 External I/O

网口 Ethernet

1 x Intel® i219-LM GbE, 2 x Intel® i211-AT/i210-AT (10/100/1000 Mbps)

显示 Video

1 x DVI-D: max resolution up to 1920 x 1200 @ 60Hz
1 x VGA: max resolution up to 1920 x 1200 @ 60Hz
1 x DP: max resolution up to 4096 x 2304 @ 60Hz
(10th CPU)/5120x3200@60Hz(11th CPU)

音频 Audio

1 x Line-in, 1 x Line-out, 1 x Mic-in

串口 COM

2 x RS232/422/485(with auto flow control)

USB

6 x USB3.2 Gen2, 2 x USB2.0

按钮 Button

1 x Power Button, 1 x Reset Button

指示灯 LED

1 x Power LED, 1 x HDD LED

内部接口 Internal I/O

扩展Expansion

2 x PCIe3.0 X16 (1 x 16 or 2 x 8 link), 3 x PCIe X4 (X4 link), 2 x PCI

USB

6 x USB2.0 (1 x Type-A)

风扇 FAN

1 x CPU Fan, 2 x System Fan

GPIO

1 x 16-bit GPIO

串口 COM

1 x RS232/422/485 (with auto flow control), 2 x RS232/485, 2 x RS232

LPT

1 x LPT

PS/2

1 x PS/2 (keyboard and mouse)

环境 Environmental

操作温度 Operating Temp.

0°C - 40°C

存储温度 Storage Temp.

-20°C - 60°C

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

随机振动 Random Vibration

5~500Hz, 1Grms (HDD)operation

正弦振动 Sine Vibration

5~500Hz, 2G Non-operation

机械冲击 Shock

10G @ 11ms operation

电源 Power

电源输入 Power Input

100~240V(AC)

电源功耗 Power Watt

300W

机构 Mechanical

外观 Housing

SGCC

尺寸 Dimension

200(L) x 430(W) x 330(H)mm

重量 Weight

9.96kg( 约 )

安装方式 Mounting

壁挂式(Wallmount)

认证 Certification

安规认证 Certification

CCC

■ 订购清单 Order List

型号

配置信息

标配
Standard

35074KN00-704-G

AC Power Cable,1500mm,+70/-0mm,I-SHENG,T

35091AW00-JTU-G

SATA Signal Cable Assembly,400mm,+/-20mm

选配
Optional

860117E00-289-G

Desktop SPS,500W,LITEON,G,PS-8501-2EN

860117D00-289-G

Desktop SPS,650W Non PFC,LITEON,PS-8651-

86020E400-66A-G

Server SPS,850W 1U,GREATWALL,GW-ATX850BL

35107V900-JTU-G

LPT cable with bracket, 450mm

351061S00-JTU-G

GPIO cable with bracket,350mm

35106BR00-38L-G

1 to 2 USB Cable with bracket,300mm+/-15mm

35106WJ00-38L-G

COM2,COM Cable witht Bracket,400+/-10mm

35107VA00-38L-G

PS2 KBMS /1*6Pin,400mm,+/-10mm,VSO,SR4H05621

35106WK00-38L-G

COM3~4/COM5~6,COM Cable with Bracket,400+/-10mm

480301K00-JV0-G

CPU Cooler, support 65W, LGA115X Series
