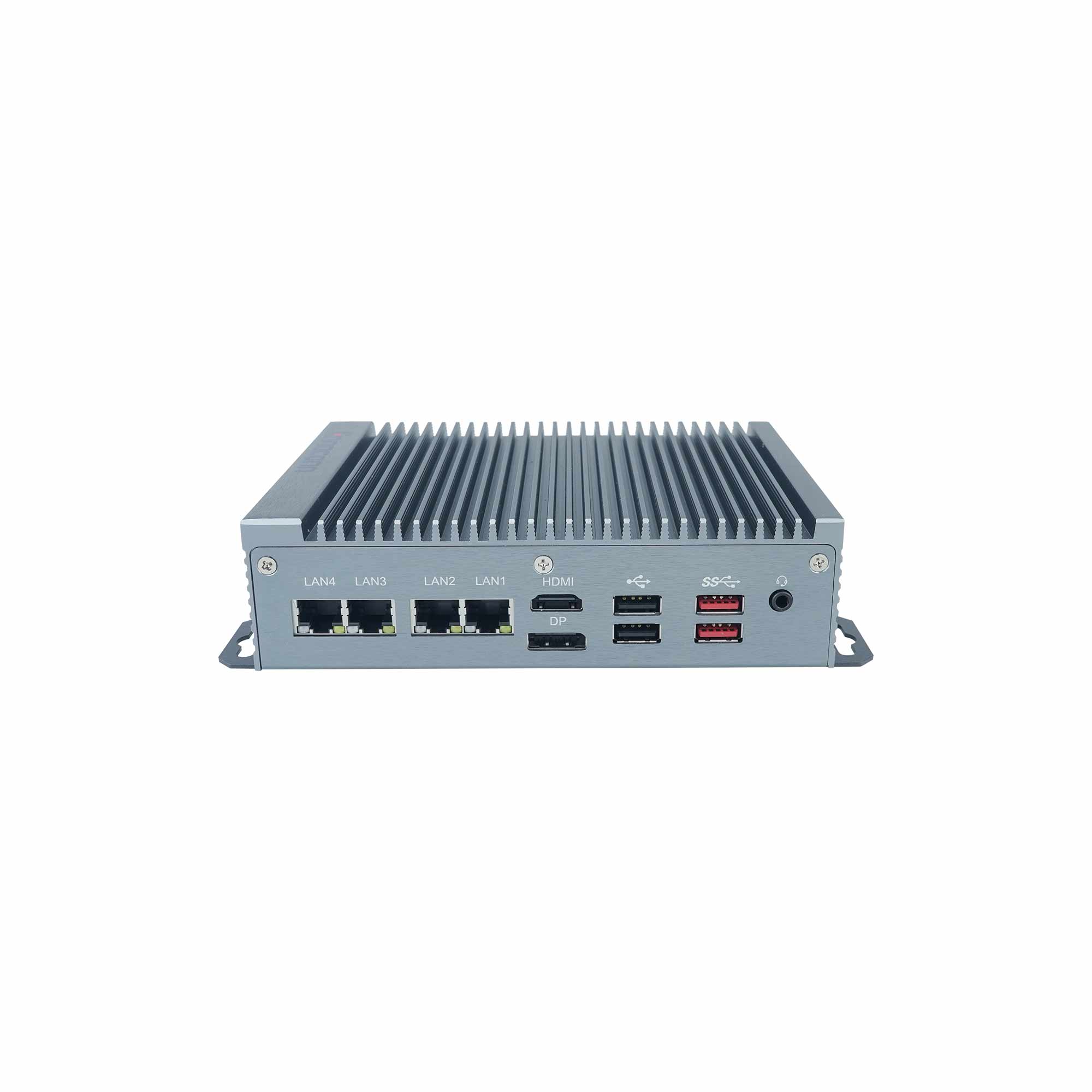

CES-P64X-W42A

■ 规格 Specification

系统 System

处理器 Processor

Intel(R) Celeron(R) J6412 CPU, Elkhart Lake(2.0 GHz/2.6GHz) (CES-P642-W42A)
Intel(R) Celeron(R) J6413 CPU, Elkhart Lake(1.8 GHz/3.0GHz) (CES-P643-W42A)

内存 Memory

1 x SDRAM DDR4 3200 MHz (max. 32G)

图形 Graphics

Intel® UHD Graphics for 10th Gen Intel® Processors

存储 Storage

1 x SATA 3.0,
1 x M.2 2242 (SATA3.0)

操作系统 OS

Windows 10, Ubuntu18.04

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

网口 Ethernet

4 x RJ45 Intel I226-V for 10/100/1000 Mbps(CES-P642-W42A)
3 x RJ45 Intel I226-V for 10/100/1000/2500 Mbps 1 x RJ45 Intel I226-V for 10/100/1000 Mbps (CES-P643-W42A)

显示 Video

1 x HDMI up to 4096 x 2160 @ 24 Hz
1 x DP up to 4096 x 2160 @ 60 Hz

音频 Audio

1 x Audio(Line-out & Mic-in ) ( 芯片888S/897)

串口 COM

2 x RS232/422/485 auto-flow(default RS-232) with auto flow control

USB

2 x USB3.1 2 x USB2.0

GPIO

1 x 8bit programmable GPIO (default 3.3V, 5V optional)(optional by internal pin head )

按钮 Button

1 x Power button

指示灯 LED

1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off)

内部接口 Internal I/O

扩展Expansion

1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported)
1 x E-Key M.2 2230 slot (PCIe/USB2.0 signal supported)
1 x M.2 2242 SSD slot(SATA signal supported)

SIM 卡

1 x SIM Card socket for 3G/4G module

环境 Environmental

操作温度 Operating Temp.

-10℃ ~ 60℃ (SSD)

存储温度 Storage Temp.

-40℃ ~ 85℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

振动 Vibration

SSD: 5~500Hz, 2Grms operation
HDD: 5~500Hz, 1Grms operation

机械冲击 Shock

Operation: 10G@11ms
Non-operation: 30G@11ms

电源 Power

电源输入 Power Input

12-24V DC, 2-pin phoenix connector

机构 Mechanical

外观 Housing

铝合金 Aluminum Alloy

尺寸 Dimension

165 x 125 x 45 mm

重量 Weight

0.9Kg

安装方式 Mounting

Desk-Mount, Wall-Mount, DIN-Rail(optional)
VESA-mount (75 x 75mm,100 x 100mm optional)

认证 Certification

安规认证 Certification

CCC

■ 订购清单 Order List

型号 Model

描述 Description

标配
Standard

2T71A7V00-3G1-G

Standard desktop bracket kit

2G151DT00-HUH-G

M2-2242_THERMAL-PAD,28*26*1.5mm

2G151DS00-HUH-G

memory_thermal-pad_3w-1_5,HS300 3W

34046QH00-GLA-G

2pin DC-IN Phoenix Connector,5mm,FOXCONN

选配
Optional

CTO-060W-FSP0

CEA-060W-FSP0,FSP 60W adapter,150cm power cord

CTO-060W-LT00

CEA-060W-LT00,LITEON 60W adapter,150cm power cord

2T71A7Y00-JTW-G

DIN-RAIL/VESA Bracket,165mm*115mm*10.5mm
