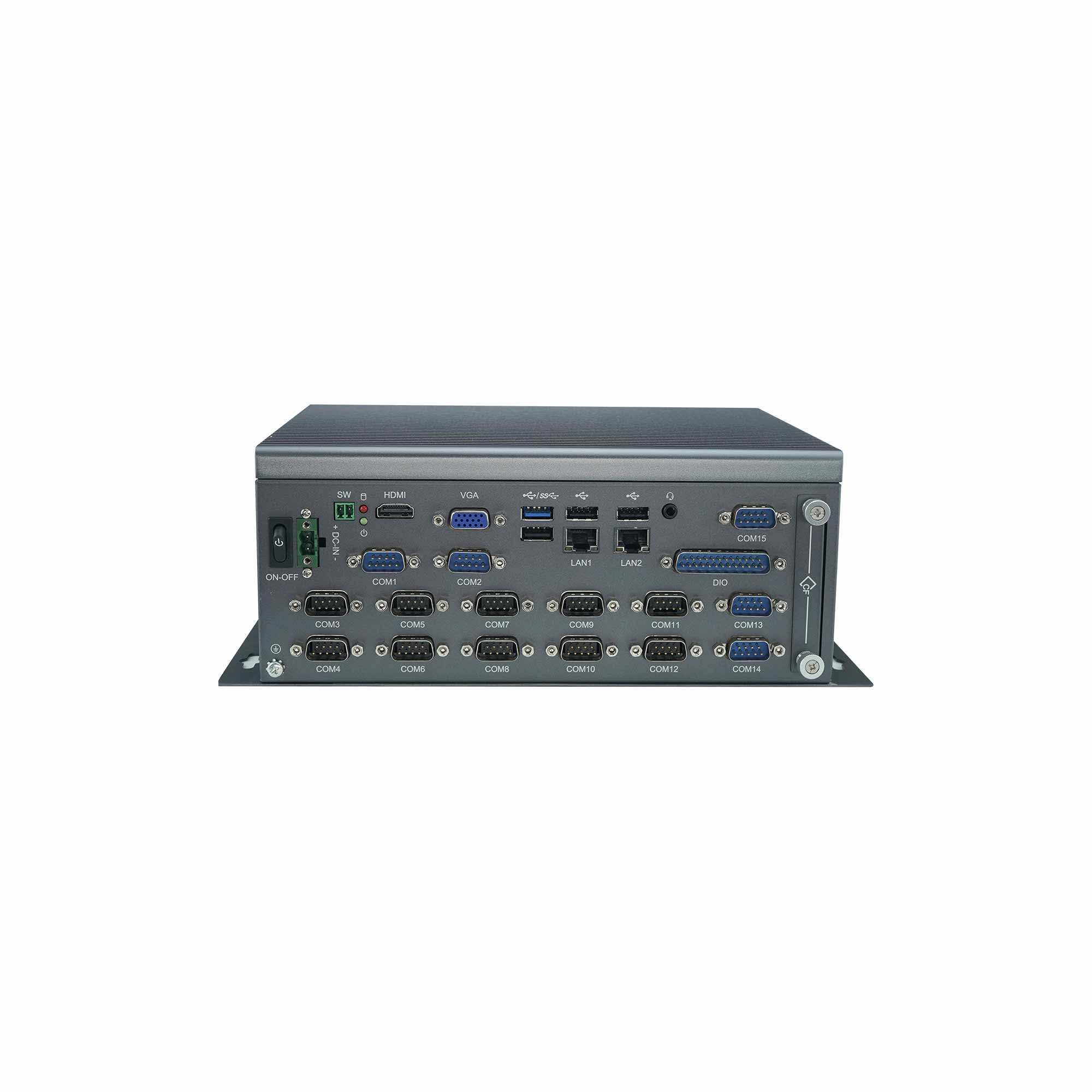

CES-RTJ19-W2XX
支持单通道DDR3L 1333 SO-DIMM内存插槽，内存容量最大可达8GB
支持双千兆网口
支持VGA/HDMI多扩展显示
内置2 x SATA2.0及1 x M.2 支持多种模块扩展
宽压设计, 支持9-36V的 DC-IN 电压输入
|
■ 规格 Specification |
|
||||||||
|
系统 System |
|||||||||
|
处理器 Processor |
Intel® Bay Trail Celeron® J1900 Processor (2.00 GHz) |
||||||||
|
内存 Memory |
Single Channel, 1 x SO-DIMM Slot, DDR3L (1.35V) 1333MHz, up to 8 GB |
||||||||
|
存储 Storage |
1 x SATA2.0, 1 x M.2 2242 (mSATA supported) |
||||||||
|
操作系统 |
Win7,Win10,Linux |
||||||||
|
外部接口 External I/O |
|||||||||
|
网口 Ethernet |
2 x Intel® I211AT GbE (10/100/1000 Mbps) |
||||||||
|
显示 Video |
1 x VGA, max resolution up to 2048 x 1536@50Hz |
||||||||
|
串口 COM |
10 x RS232/422/485(COM1&COM2 BIOS 可选, |
||||||||
|
USB |
3 x USB2.0 (USB SR Pro supported) |
||||||||
|
电源 Power |
Power Button |
||||||||
|
Audio |
1 x Line-out, 1 x Mic-in |
||||||||
|
指示灯 LED |
1 x Power,1 x HDD |
||||||||
|
DIO |
8 x DI & 8 x DO |
||||||||
|
CF |
1 x CF |
||||||||
|
内部接口 Internal I/O |
|||||||||
|
硬件看门狗 |
Programmable 255 levels timer interval, from 1~255 sec/min |
||||||||
|
USB |
4 x USB2. 0 |
||||||||
|
GPIO |
1 x 8bit GPIO |
||||||||
|
SATA |
1 x SATA2.0 |
||||||||
|
扩展接口 Expansion |
|||||||||
|
扩展Expansion |
1 x SIM |
||||||||
|
环境 Environmental |
|||||||||
|
操作温度 Operating Temp. |
0°C - 60°C |
||||||||
|
电源 Power |
|||||||||
|
电源输入 Power Input |
宽压 9-36V DC-IN |
||||||||
|
机构 Mechanical |
|||||||||
|
尺寸 Dimension |
200 x 99.2 x240 mm |
||||||||
|
■ 配置Configuration |
|
||||||||
|
Model |
CPU |
Memory |
LAN |
COM |
USB |
CF Tray |
|||
|
CES-RTJ19-W2X4 |
J1900 |
DDR3L |
2 |
10,up to 16(6port by cable expansion) |
4 |
Yes |
|||
|
CES-RTJ19-W2X5 |
J1900 |
DDR3L |
2 |
10,up to 16(6port by cable expansion) |
5 |
Yes |
|||
|
CES-RTJ19-W2X6 |
J1900 |
DDR3L |
2 |
10,up to 16(6port by cable expansion) |
6 |
Yes |
|||
