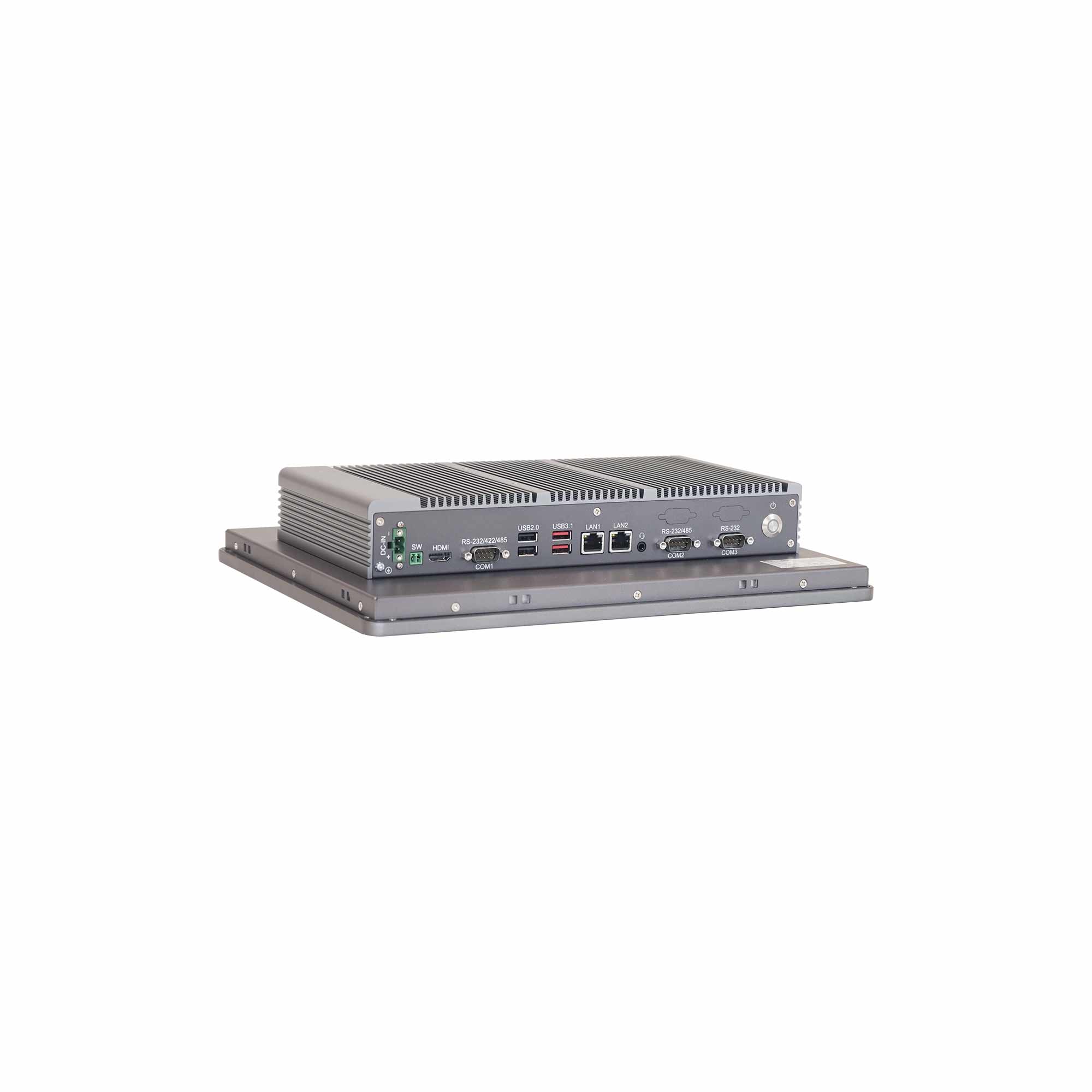

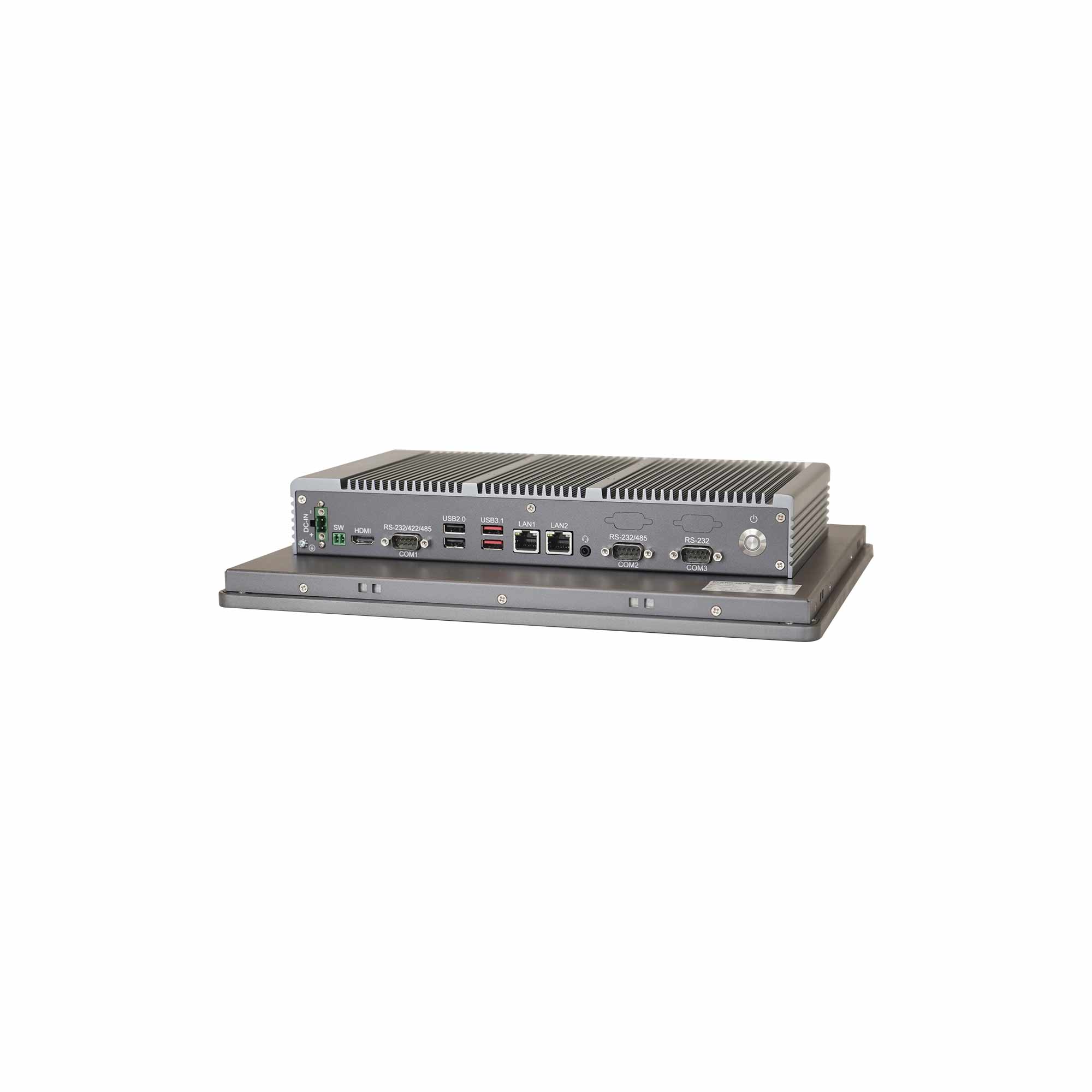

CEP-15RS-J64A
15寸 450nits高亮LED背光显示屏，前面框支持IP66防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级五线全平面电阻触摸屏
内置Mini-PCIe/M.2支持多种模块扩展
支持双千兆网口
宽压12~36V DC-IN，可锁附凤凰端子接口
支持远程开关
产品外壳接地保护
支持标准VESA及嵌入式安装方式
|
■ 规格 Specification |
|
||||
|
系统 System |
|||||
|
处理器 Processor |
Intel®Elkhart Lake Celeron®J6412 processor (2.00 GHz/2.6GHz) |
||||
|
存储 Storage |
1 x M.2 2242 SSD slot |
||||
|
内存 Memory |
1 x DDR4 2133/2400/3200hz SO-DIMM slot, up to 32GB |
||||
|
图形 Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
||||
|
操作系统 OS |
Windows 10, Linux |
||||
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |
||||
|
显示屏 Display |
|||||
|
尺寸 Size |
15 inches |
||||
|
分辨率 Resolution |
1024(H) x 768(V) |
||||
|
屏幕宽高比 Ratio |
4:3 |
||||
|
亮度 Brightness |
300 nits |
||||
|
可视角 Viewing Angle |
80° (T)/80° (B) 80° (L)/80° (R) |
||||
|
对比度 度 Contrast Ratio |
800 |
||||
|
背光 Backlight |
LED Backlight |
||||
|
背光寿命 Backlight Lifetime |
30000Hrs |
||||
|
触摸屏 Touch Screen |
|||||
|
触摸屏 Touch Type |
全平面五线电阻屏 5-Wire Resistive Touch |
||||
|
触击 Touch |
35,000,000 times |
||||
|
外部接口 External I/O |
|||||
|
串口 COM |
1 x RS232/RS422/RS485-COM1 |
||||
|
USB |
2 x USB2.0, 2 x USB3.1 |
||||
|
网口 Ethernet |
2 x RJ45，Intel® L226V GbE (10/100/1000 Mbps) |
||||
|
显示 Video |
1 x HDMI (up to 4096x2160@60hz) |
||||
|
音频 Audio |
1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC888S HD Audio codec 4Ω3W speakerx2 |
||||
|
远程开关 Remote ON-OFF |
1 x Remote ON-OFF |
||||
|
电源输入 Power Input |
1 x Power Connector (2P Phoenix) |
||||
|
内部接口 Internal I/O |
|||||
|
扩展接口 Expansion |
1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) |
||||
|
环境 Environmental |
|||||
|
操作温度 Operating Temp. |
-10℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD) |
||||
|
存储温度 Storage Temp. |
-40°C - 70°C |
||||
|
湿度 Relative Humidity |
5% ~ 95%, 非凝结状态 Non-condensing |
||||
|
随机振动 Random Vibration |
5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation |
||||
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
||||
|
机械冲击 Shock |
10g 11ms operation, 30g 11ms Non-operation |
||||
|
前面板防护 Ingress Protection |
Front panel IP66 |
||||
|
机构 Mechanical |
|||||
|
前框 Front Panel |
铝 Aluminum |
||||
|
铝挤 Heat-Sink |
铝 Aluminum |
||||
|
底板 Rear Cover |
铁 SECC |
||||
|
安装方式 Mounting |
Panel Mount, Wall and VESA-mount (75x 75mm) |
||||
|
尺寸 Dimension |
351.6(W) x 275.6(H) x 68.4(D)mm |
||||
|
建议开孔尺寸 Cut Out |
341.4 x 265.4mm |
||||
|
重量 Weight |
4.5Kg |
||||
|
电源 Power |
|||||
|
电源输入 Power Input |
12~36V DC |
||||
|
认证 Certification |
|||||
|
安规认证 Safety Certification |
CCC,CE,FCC |
||||
|
■ 订购清单 Order List |
|||||
|
标配 |
型号 |
配置信息 |
|||
|
34046QH00-GLA-G |
1x2P DC in Phoenix conn(5.00), female |
||||
|
34046QJ00-600-G |
Conn,3.5mm,PA,DIP-2,FIT,TEPE123-11G00-DF |
||||
|
35074RQ00-JTU-G |
1xSATA, 7+4P,150mm, w/ lock, 180° / 90° |
||||
|
1A03DRW00-88A-G |
panel hook(4pcs in 1 package) |
||||
|
选配 |
型号 |
配置信息 |
|||
|
CTO-060W-LT00 |
CEA-060W-LT00,LITEON 60W adapter,150cm power cord |
||||
|
CTO-060W-HK00 |
CEA-060W-HK00, Huntkey 60W adapter,150cm power cord |
||||
