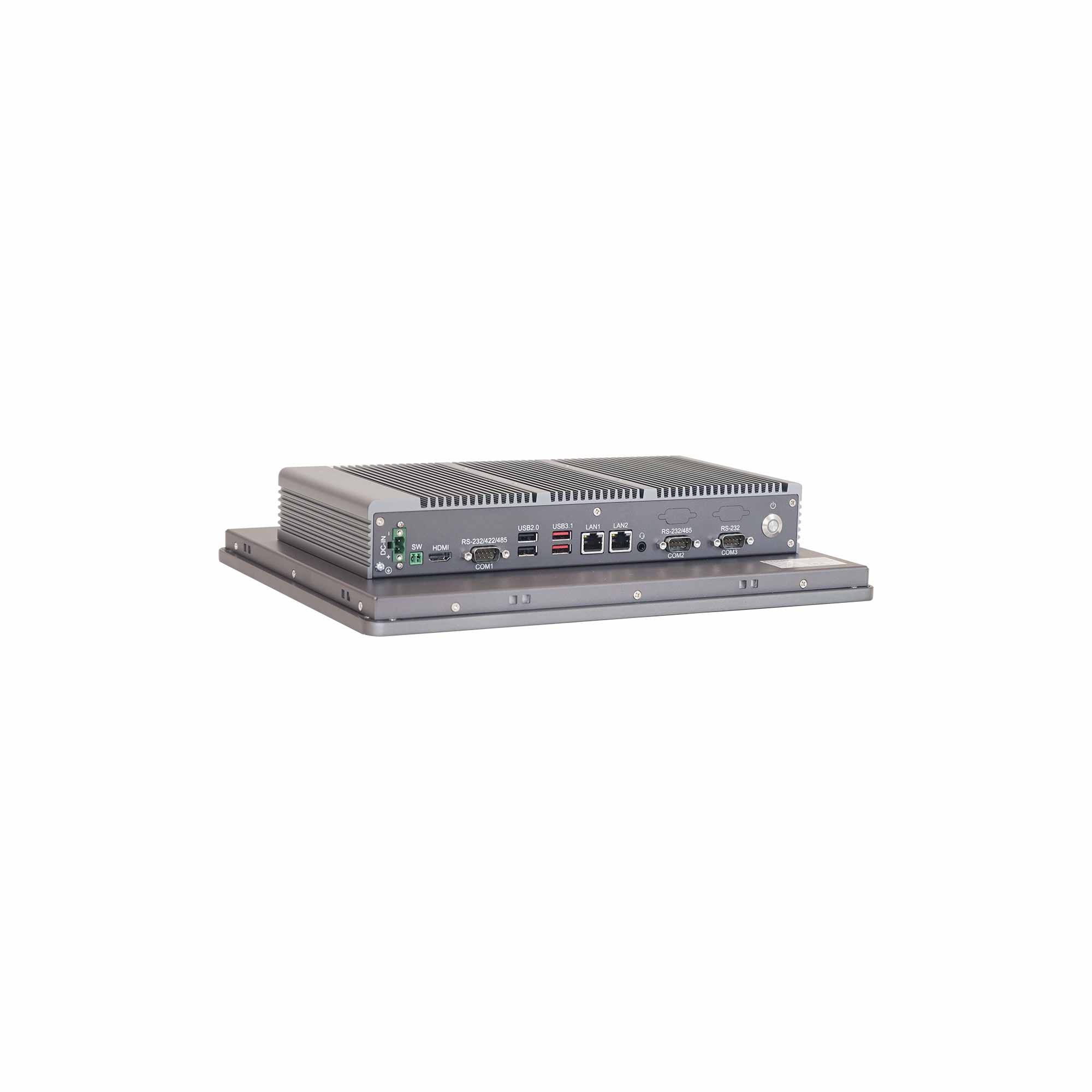

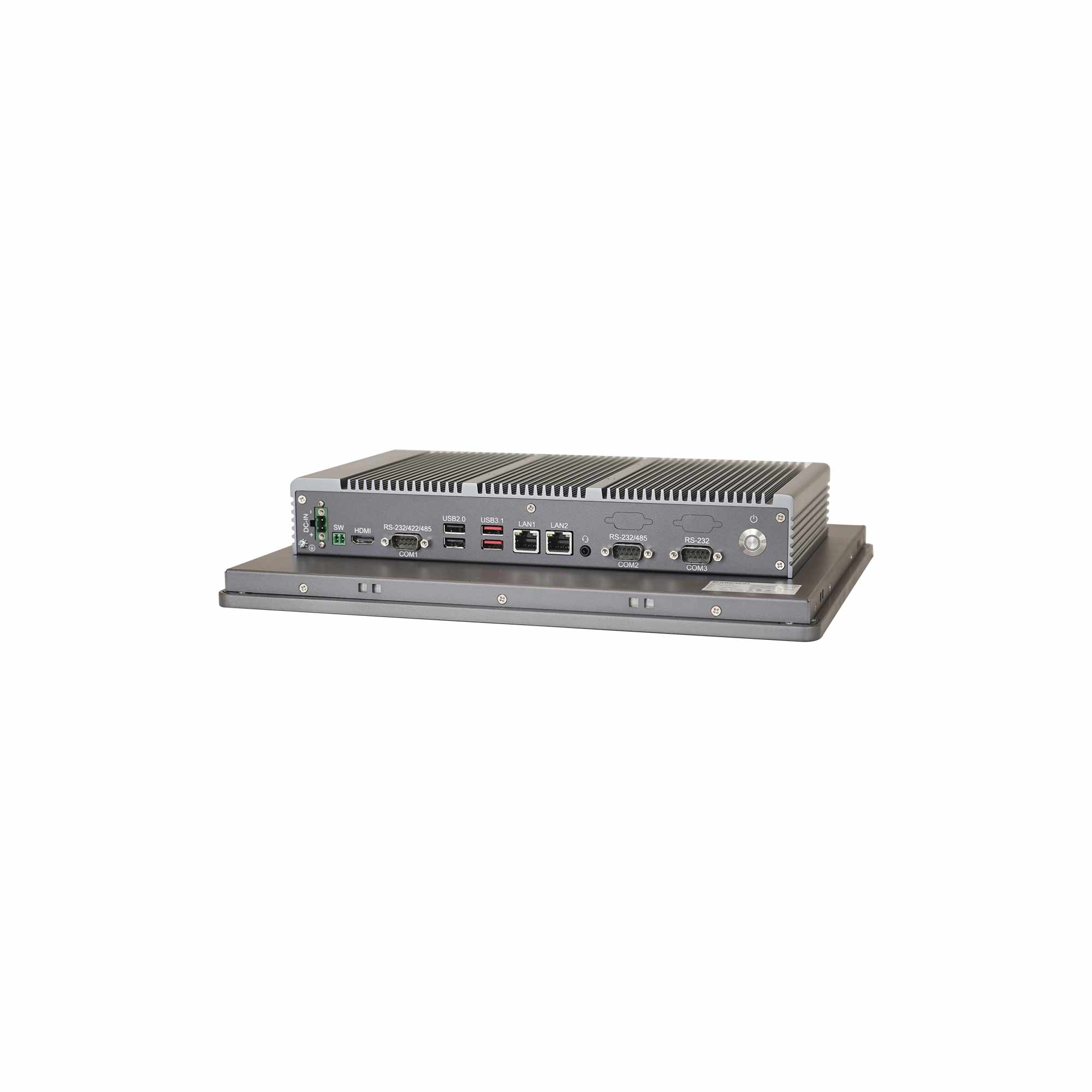

CEP-17RS-J64A

板载Intel® Celeron® J6412高性能低功耗四核处理器,主频最大可以达到2.6GHz

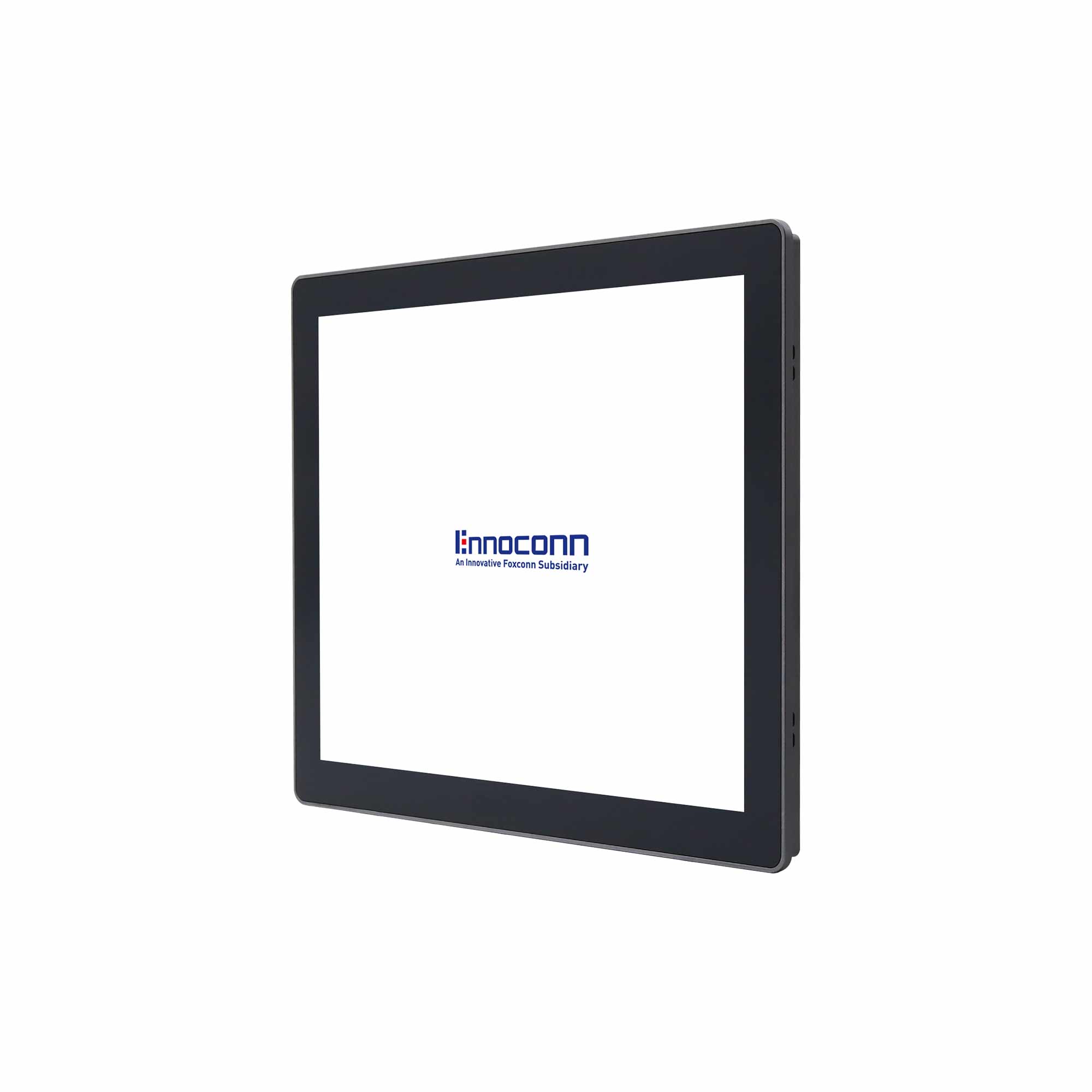

17寸 LED背光显示屏,前面框支持IP66防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级五线全平面电阻触摸屏
内置Mini-PCIe/M.2支持多种模块扩展
支持双千兆网口
宽压12~36V DC-IN, 可锁附凤凰端子接口
支持远程开关
产品外壳接地保护
内置1 x 2.5寸HDD/SSD可扩充支架
支持标准VESA及嵌入式安装方式
返回列表
联系我们
首页    CEP    17寸    CEP-17RS-J64A

■ 规格 Specification

系统 System

处理器 Processor

Intel®Elkhart Lake Celeron®J6412 processor (2.00 GHz/2.6GHz)

内存 Memory

1 x DDR4 2133/2400/3200hz SO-DIMM slot, up to 32GB

存储 Storage

1 x M.2 2242 SSD slot

图形 Graphics

Intel® UHD Graphics for 10th Gen Intel® Processors

操作系统 OS

Windows 10, Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

显示屏 Display

尺寸 Size

17 inches

分辨率 Resolution

1280(H) x 1024(V)

屏幕宽高比 Ratio

4:3

亮度 Brightness

250 nits

可视角 Viewing Angle

CR ≥ 10,170° (H)/160° (V) ;CR ≥ 5,178° (H)/170° (V)

对比度 度 Contrast Ratio

1000

背光 Backlight

LED Backlight

背光寿命 Backlight Lifetime

50000Hrs

触摸屏 Touch Screen

触摸屏 Touch Type

全平面五线电阻屏 5-Wire Resistive Touch

触击 Touch

35,000,000 times

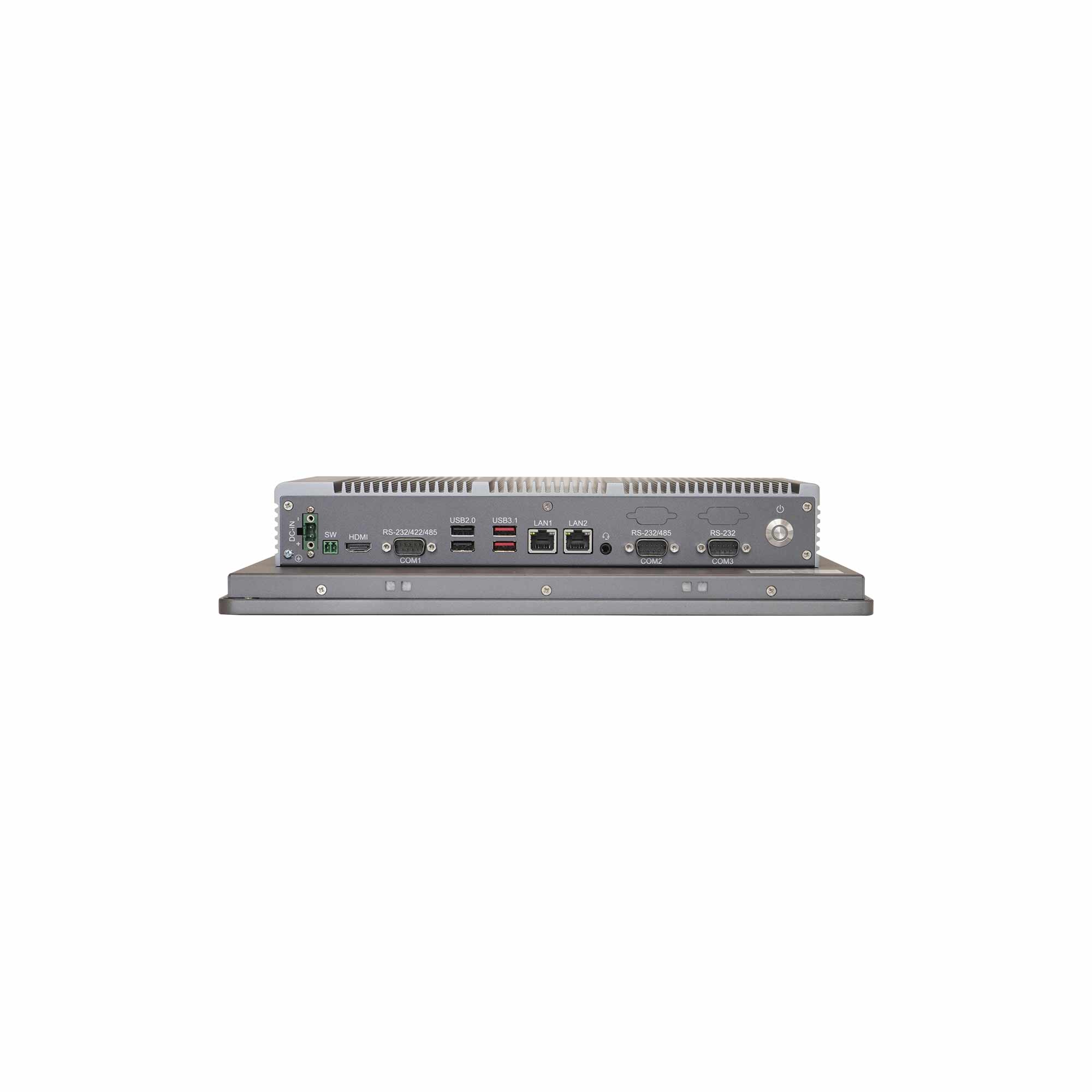

外部接口 External I/O

串口 COM

1 x RS232/RS422/RS485-COM1
1 x RS232(default)/RS485(Jumper)-COM2
1 x RS232-COM3

USB

2 x USB2.0, 2 x USB3.1

网口 Ethernet

2 x RJ45,Intel® L226V GbE (10/100/1000 Mbps)

显示 Video

1 x HDMI (up to 4096x2160@60hz)

音频 Audio

1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC888S HD Audio
 codec 4Ω3W speakerx2

远程开关 Remote ON-OFF

1 x Remote ON-OFF

电源输入 Power Input

1 x Power Connector (2P Phoenix)

内部接口 Internal I/O

扩展接口 Expansion

1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported)
1 x M.2 2230 slot (PCIe/ USB2.0 signal supported)
1 x M.2 2242 slot(SATA signal supported)
1 x SIM socket for 3G/4G
1x 8bit GPIO 3.3V(jumper)/5V(default) power
1 x RS232-COM4
2 x RS232(RX/TX)-COM5/6
2x USB2.0--For Touch
1x SATA3.0/Power 5V for HDD

环境 Environmental

操作温度 Operating Temp.

-10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD)

存储温度 Storage Temp.

-40℃ ~ 70℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

随机振动 Random Vibration

5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation

正弦振动 Sine Vibration

5~500Hz, 2G Non-operation

机械冲击 Shock

10g 11ms operation, 30g 11ms Non-operation

前面板防护 Ingress Protection

Front panel IP66

机构 Mechanical

前框 Front Panel

铝 Aluminum

铝挤 Heat-Sink

铝 Aluminum

底板 Rear Cover

铁 SECC

安装方式 Mounting

Panel Mount, Wall and VESA-mount (75x 75mm)

尺寸 Dimension

392.4(W) x 327.7(H) x 66(D)mm

建议开孔尺寸 Cut Out

382.2 x 317.5mm

重量 Weight

5.2kg

电源 Power

电源输入 Power Input

12~36V DC

认证 Certification

安规认证 Safety Certification

CCC/CE/FCC

■ 订购清单 Order List

标配
Standard

型号

配置信息

34046QH00-GLA-G

1x2P DC in Phoenix conn(5.00), female

34046QJ00-600-G

Conn,3.5mm,PA,DIP-2,FIT,TEPE123-11G00-DF

35074RQ00-JTU-G

1xSATA, 7+4P,150mm, w/ lock, 180° / 90°

1A03DV400-88A-G

panel hook (4pcs in 1 package)

选配
Optional

型号

配置信息

CTO-060W-LT00

CEA-060W-LT00,LITEON 60W adapter,150cm power cord

CTO-060W-HK00

CEA-060W-HK00, Huntkey 60W adapter,150cm power cord
