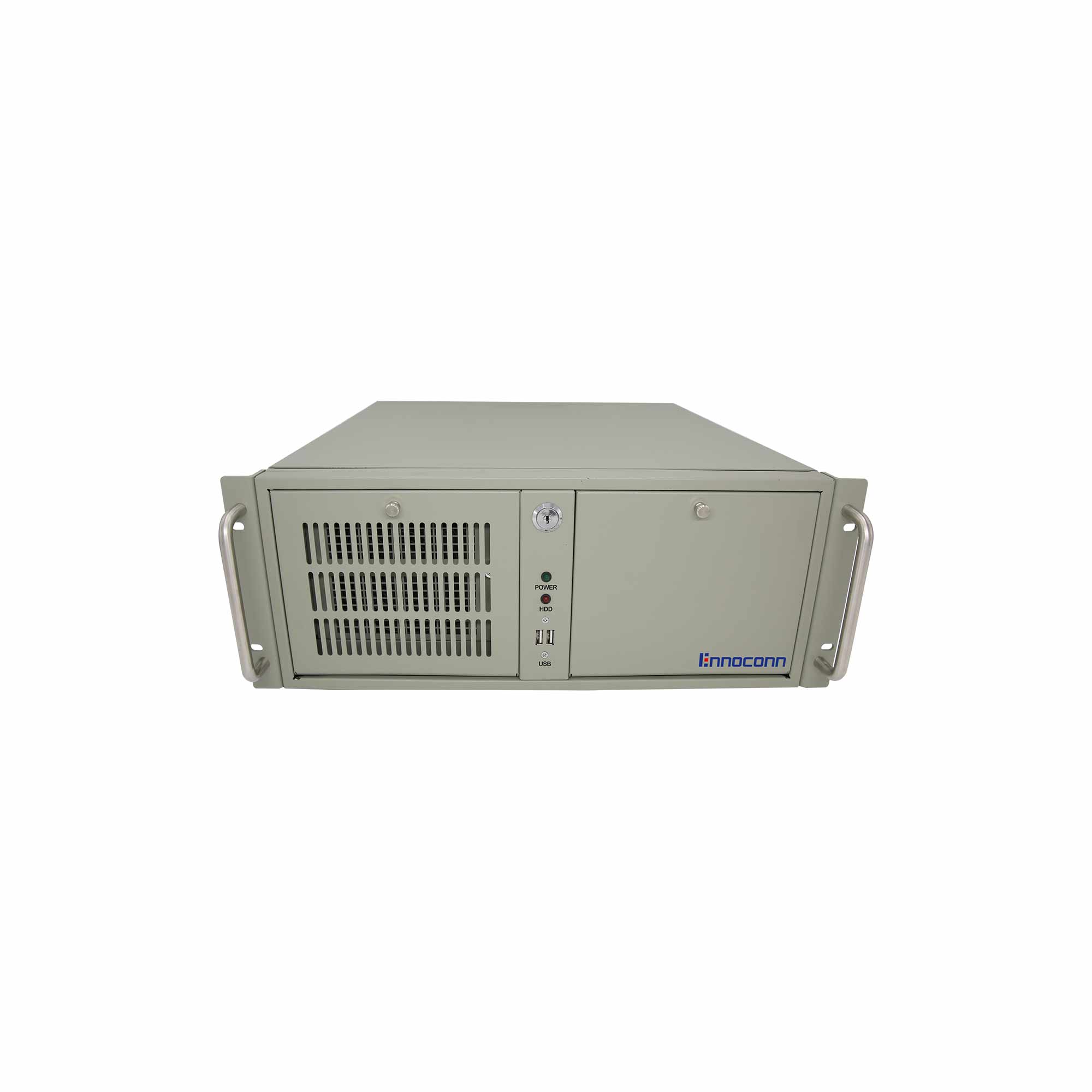

CEFS-RA21-R68A-4U
双通道4插槽 DDR4 ECC/Non-ECC 2400/2666/2933/3200MHz, 高达128GB
支持VGA, HDMI, DP三屏显示
支持双Intel GbEs, USB3.2 Gen1/2, 8位GPIO
内置PCI,PCIe插槽，支持多种模块扩展
抗震动磁盘架设计，可支持1个5.25寸光驱、2个2.5"SSD、3个3.5"HDD硬盘
前部可访问 USB接口，更易于数据传输
海岸线上的USB端口支持Ennoconn USB SR Pro
|
■ 规格 Specification |
|
||||
|
系统 System |
|||||
|
处理器 Processor |
Intel® 12th/13th Gen Core ™ i9/i7/i5/i3/Pentium®/Celeron® Processor, LGA1700, |
||||
|
芯片 Chipset |
Q680E |
||||
|
内存 Memory |
4 x DDR4 2400/2666/2933/3200 MHz U-DIMM Slot, up to 128GB |
||||
|
图形 Graphics |
Intel® UHD Graphics 770 |
||||
|
存储 Storage |
4 x SATA 3.0, 1 x M.2( PCIe4.0x4 NVMe ) 2242/2280 |
||||
|
操作系统 OS |
Windows 10 64bit, Linux |
||||
|
看门狗 Watchdog Timer |
System Reset, Programmable via software from 1 to 255 seconds |
||||
|
信赖平台模块 TPM |
Nuvoton TPM2.0 |
||||
|
外部接口 External I/O |
|||||
|
网口 Ethernet |
1 x Intel® i219-LM GbE, 1 x Intel®I226-V co-lay I225-LM (10/100/1000/2500 Mbps) |
||||
|
显示 Video |
1 x VGA: max resolution up to 1920 x 1200 @ 60Hz |
||||
|
音频 Audio |
1 x Line-out,Mic-in |
||||
|
串口 COM |
1 x RS232/422/485 ( with auto flow control ) |
||||
|
USB |
8 x USB3.2 Gen2，2 x USB2.0 |
||||
|
按钮 Button |
1 x Power Button, 1 x Reset Button |
||||
|
指示灯 LED |
1 x Power LED, 1 x HDD LED |
||||
|
内部接口 Internal I/O |
|||||
|
扩展Expansion |
2 x PCIe4.0 X16 ( 1 x 16 or 2 x 8 link),2 X PCIe4.0 X4 (X4 link), |
||||
|
USB |
2 x USB3.2 Gen1, 2 x USB2.0 (2 x Type-A) |
||||
|
风扇 FAN |
1 x CPU Fan, 2 x System Fan |
||||
|
LPT |
1 x LPT |
||||
|
PS/2 |
1 x PS/2 (keyboard and mouse) |
||||
|
GPIO |
1 x 8 bit GPIO |
||||
|
串口 COM |
1 x RS232/422/485 ( with auto flow control ) , 4 x RS232 |
||||
|
环境 Environmental |
|||||
|
操作温度 Operating Temp. |
0°C - 40°C |
||||
|
存储温度 Storage Temp. |
-20℃ ~ 60℃ |
||||
|
湿度 Relative Humidity |
5% ~ 95%, 非凝结状态 Non-condensing |
||||
|
随机振动 Random Vibration |
5~500Hz, 1Grms (HDD)operation |
||||
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
||||
|
机械冲击 Shock |
10G @ 11ms operation |
||||
|
电源 Power |
|||||
|
电源输入 Power Input |
100~240V(AC) |
||||
|
电源功耗 Power Watt |
300W |
||||
|
机构 Mechanical |
|||||
|
外观 Housing |
SGCC |
||||
|
尺寸 Dimension |
464(L) x 430(W) x 177(H)mm |
||||
|
重量 Weight |
15kg( 约 ) |
||||
|
安装方式 Mounting |
机柜式 (Rack-Mount) |
||||
|
认证 Certification |
|||||
|
安规认证 Safety Certification |
CCC |
||||
|
■ 订购清单 Order List |
|||||
|
|
型号 Model |
描述 Description |
|||
|
标配 |
35074KN00-704-G |
AC Power Cable,1500mm,+70/-0mm,I-SHENG,T |
|||
|
35091AW00-JTU-G |
SATA Signal Cable Assembly,400mm,+/-20mm |
||||
|
选配 |
860117E00-289-G |
Desktop SPS,500W,LITEON,G,PS-8501-2EN |
|||
|
860117D00-289-G |
Desktop SPS,650W Non PFC,LITEON,PS-8651- |
||||
|
86011BA00-01T-G |
Desktop SPS,750W PFC,HUNTKEY,HK850-17PP |
||||
|
86020E400-66A-G |
Server SPS,850W 1U,GREATWALL,GW-ATX850BL |
||||
|
351061R00-JTU-G |
LPT cable with bracket, 450mm |
||||
|
351052K00-JTU-G |
GPIO Cable Assembly,110mm,+/-10mm |
||||
|
35106BR00-38L-G |
1 to 2 USB Cable with bracket,300mm+/-15mm |
||||
|
351063G00-JTU-G |
USB 3.0 A(F)*2/2*10pin 280mm,+/-30mm |
||||
|
35108U500-3LG-G |
COM2 Cable with Bracket, 700mm |
||||
|
35108U400-3LG-G |
COM3/4, COM5/6 Cable with Bracket, 700mm |
||||
