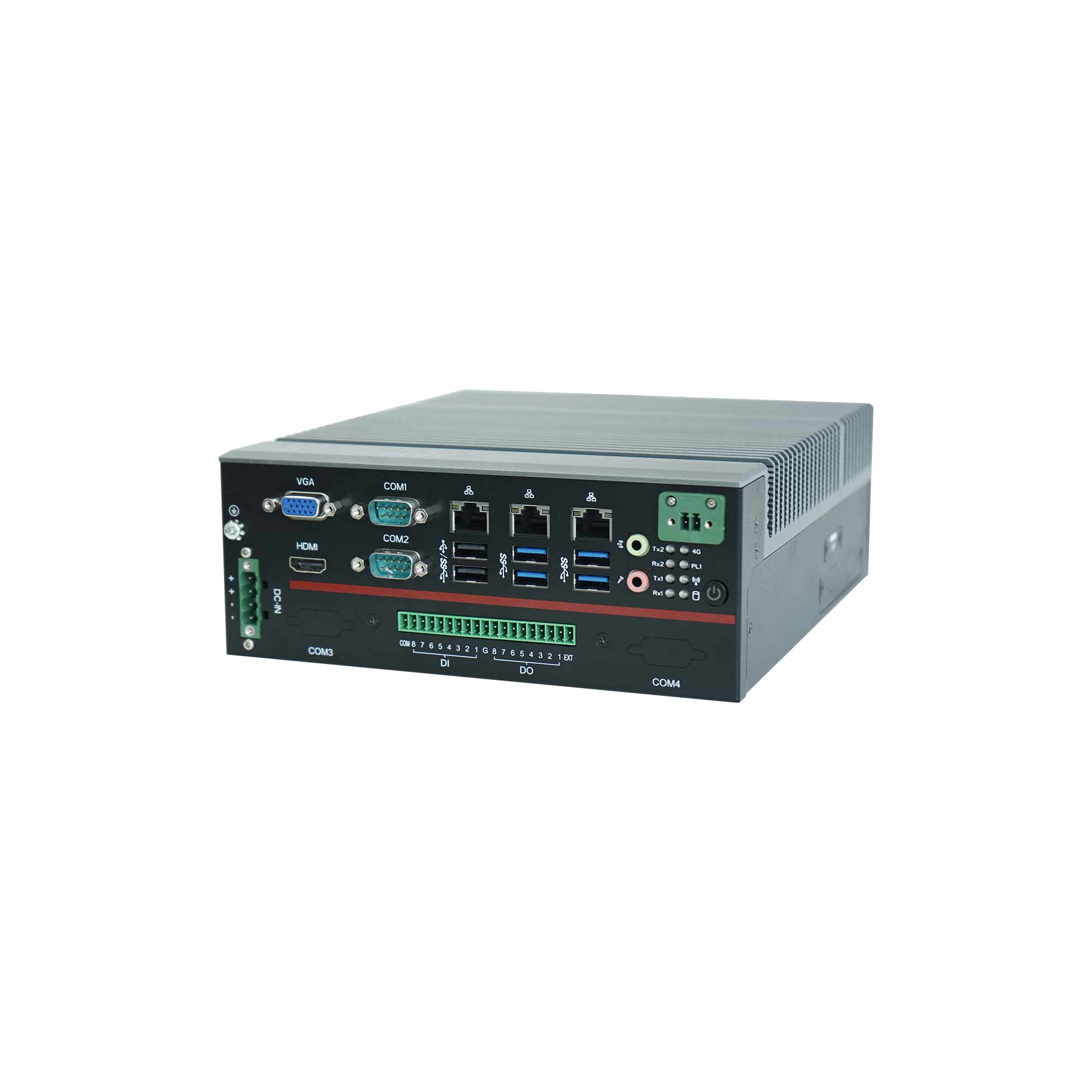

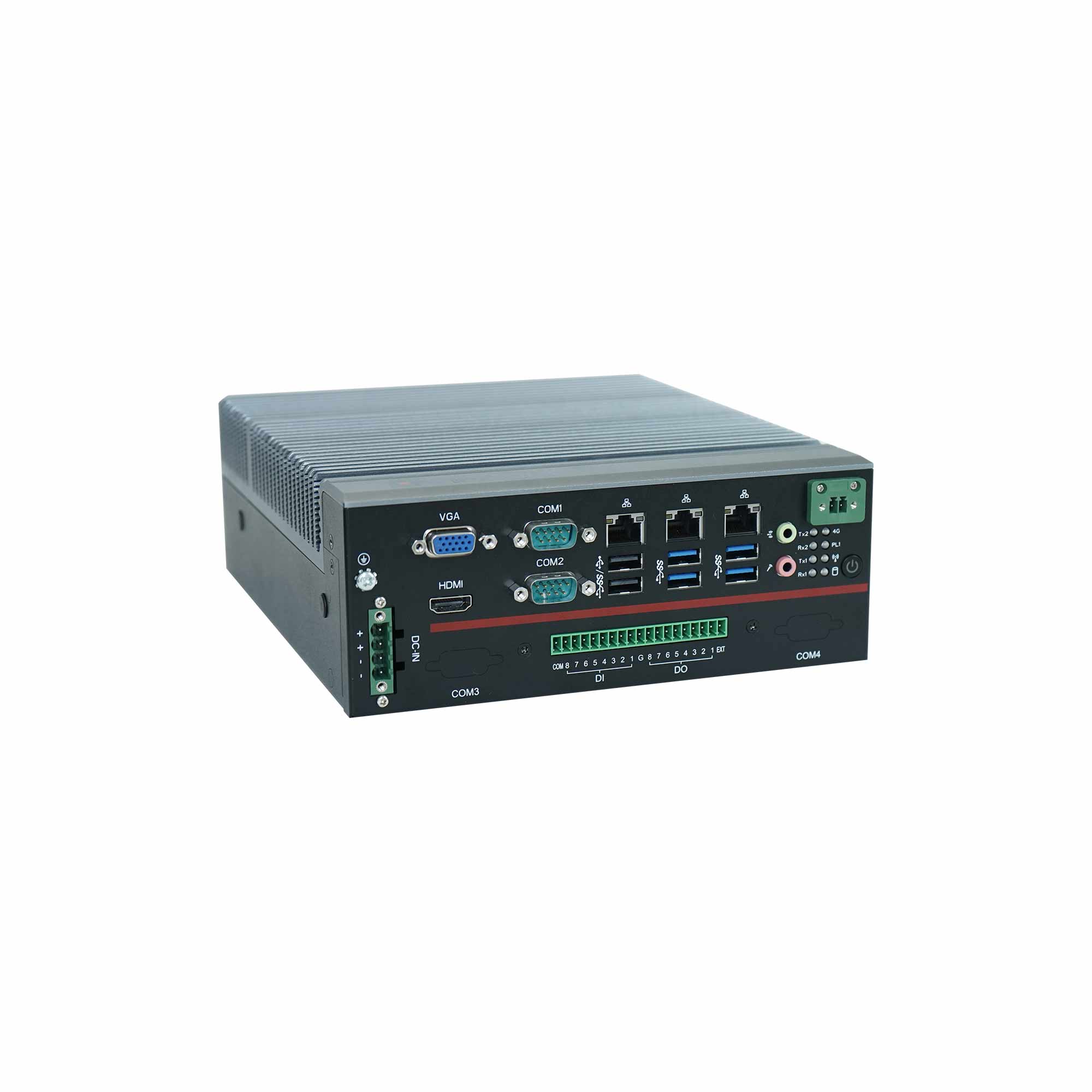

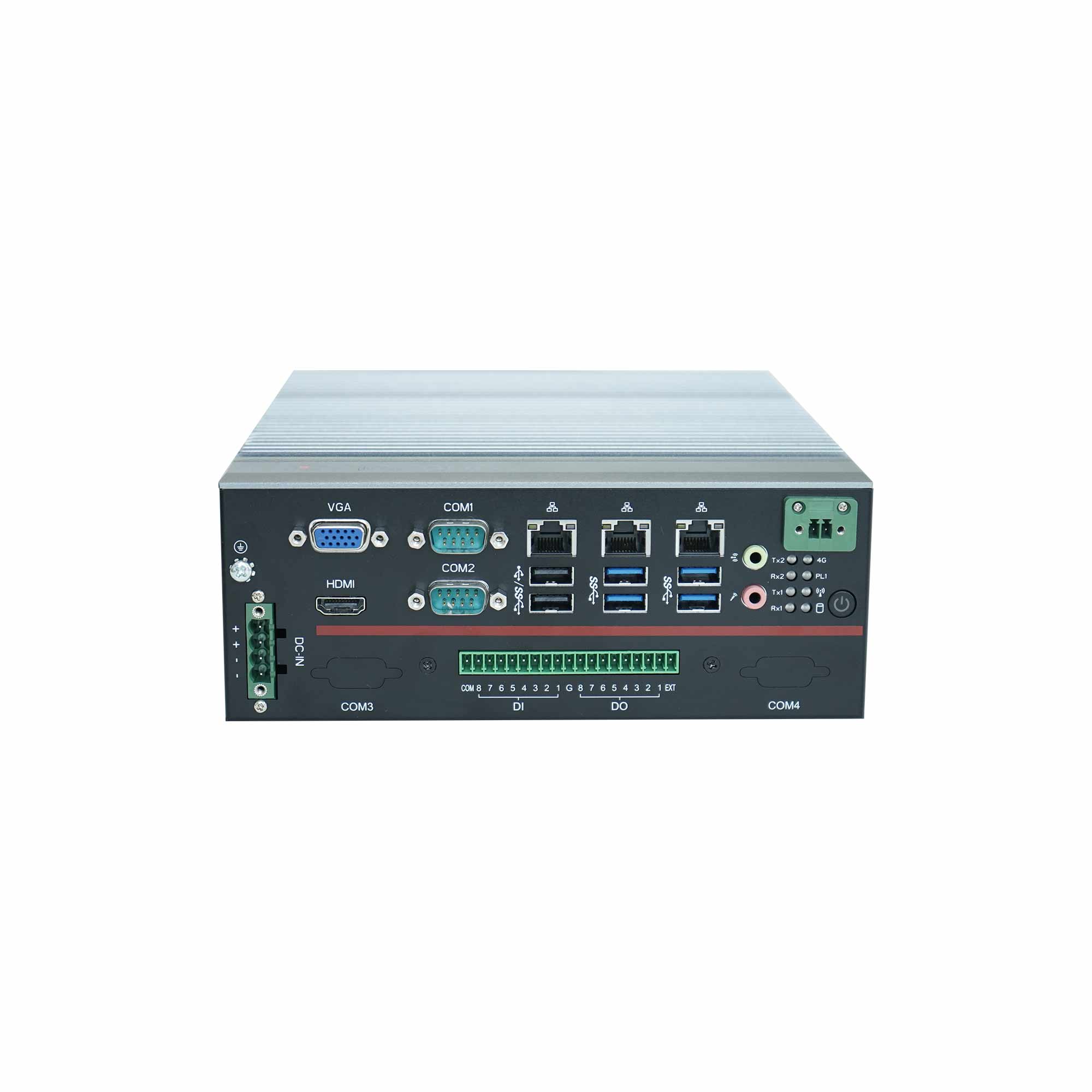

CES-EQ17 EH11-D32B

■ 规格 Specification

系统 System

处理器 Processor

Intel® Core ™ 6th/7th generation i7/i5/i3/Pentium/Celeron,up to 65W

芯片组 Chipset

Intel Q170/H110 PCH

内存 Memory

2 x DDR4 2133/2400MHz SO-DIMM, Up to 32GB

存储 Storage

1 x 2.5" SATA 3.0 HDD/SSD Bay
1 x mSATA slot(only support on Q170 platform)
1 x M.2 2242 SSD slot

操作系统 OS

Windows 7/8/10，Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval，from 1~255 sec/min

外部接口 External I/O

网口 Ethernet

2 x RJ45, Intel® i211AT GbE (10/100/1000 Mbps)
1 x RJ45, Intel® I219LM GbE (10/100/1000 Mbps)

显示 Video

1 x VGA: max resolution up to 1920 x 1200
1 x HDMI: max resolution up to 4096 x 2160

音频 Audio

1 x Line-out, 1 x Mic-in, Realtek® ALC888S HD Audio codec

串口 COM

2 x RS232/422/485
2 x RS232/422/485(optional by internal pin header)
2 x RS232 (optional by internal pin header)

USB

4 x USB 3.0, 2 x USB 2.0

DIO

(1) 输入电压 DC 5-24V, LPC 方案，理论响应时间≤ 2ms
(2) 输入频率≤ 500Hz；隔离等级 :8 x 隔离 DI, 8 x 隔离 DO，DI3000Vrms，DO 2450Vrms
(3) 制式切换 : 兼容 PNP 和 NPN 传感器输入，NPN 和 PNP 可选 ,程式切换；
(4) 驱动能力 :NPN 最大可达 350mA, PNP 最大可达 500mA

指示灯 LED

1 x Power LED (White for Power-on, Blink for Sleep mode, Off for Power-off)
1 x HDD LED (Yellow blink for Data read or write)
2 x COM1 LED for Rx1 and Tx1
2 x COM2 LED for Rx2 and Tx2
1 x WiFi communication LED (Green blink for communication)
1 x 4G communication LED (Green blink for communication)
1 x PL1 for user defination (can indicate CPU temperature, voltage dectact, etc）

远程开关 Remote ON-OFF

1 x Remote ON-OFF

SIM 卡

1 x SIM Card 插槽

内部接口 Internal I/O

扩展Expansion

1 x Full-size Mini-PCIe Slot (co-lay with mSATA) Only Q170 support
1 x M.2 2242 Slot
1 x M.2 2230 Slot for Wifi module

环境 Environmental

操作温度 OperatingTemp.

-10℃ ~ 40℃ (65WCPU,SSD) 带0.7m/s 空气流，
 -10℃ ~ 50℃ (35W/45WCPU,SSD) 带 0.7m/s 空气流

存储温度 Storage Temp.

-40℃ ~ 85℃

湿度Relative Humidity

5% ~ 95%, 非凝结状态Non-condensing

振动 Vibration

SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation

机械冲击 Shock

Operation: 10G@11ms Non-operation: 30G@11ms

电源 Power

电源输入 Power Input

19/24V DC，4-pin phoenix connector

机构 Mechanical

外观 Housing

铝合金 Aluminum Alloy

尺寸 Dimension

桌面式 (Desk-Mount), 壁挂式 (Wall-Mount)

重量 Weight

200 x 230 x 78mm

安装方式 Mounting

3.5kg

认证 Certification

安规认证 Certification

CCC, CE, FCC
