■ 规格 Specification
|
|
|
系统 System
|
|
芯片 Chipset
|
Q470E chipset
|
|
内存 Memory
|
DDR4 2666/2933, 2 x SO-DIMM Slot, (up to 32GB per socket)
|
|
图形 Graphics
|
Core i: Intel®HD Graphics 630, 支持DirectX 12
Pentium/Celeron: Intel®HD Graphics 610, 支持DirectX 12
|
|
存储 Storage
|
2 x 2.5" SATA 3.0 HDD/SSD Bay，Raid 0/1
1 x M.2 2242 SSD slot
1 x mSata
1 x M.2 2280 SSD slot[1]
|
|
操作系统 OS
|
Windows 10, Ubuntu20.04
|
|
看门狗定时器 Watchdog Timer
|
Programmable 255 levels timer interval, from 1~255 sec/min
|
|
外部接口 External I/O
|
|
网口 Ethernet
|
1 x Intel® I219-LM（10/100/1000 Mbps）
1 x Intel® i226-V (10/100/1000/2500 Mbps)
2 x Intel® I210AT（10/100/1000 Mbps)[1]
|
|
显示 Video
|
1 x HDMI: 最大分辨率4096x2160@24Hz
1 x VGA: 最大分辨率1920 x 1200@60Hz
1 x DP: (optional by internal pin head )
|
|
POE
|

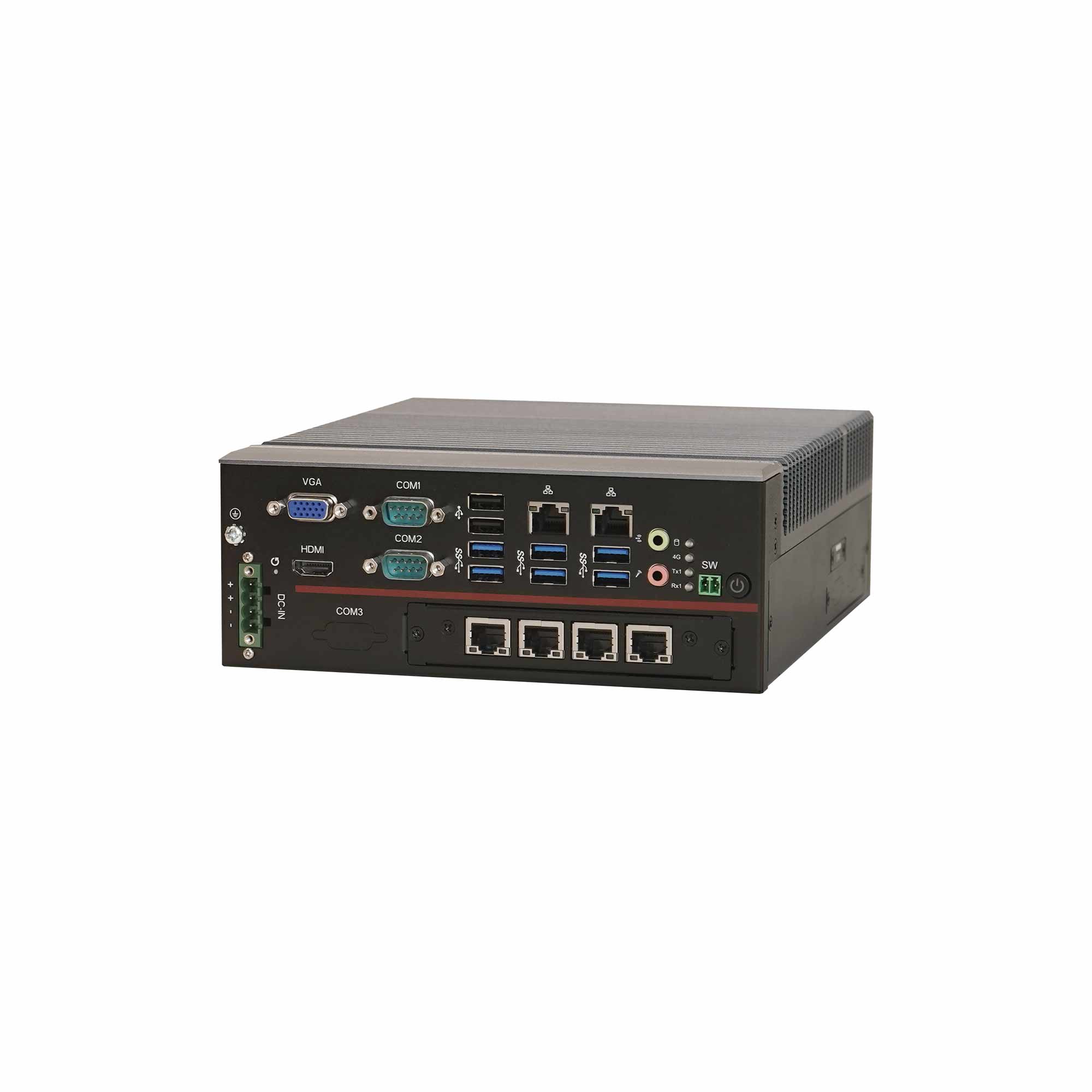

4 x Intel® I210AT GbE (10/100/1000Mbps)[2]
802.3 af, max TDP 15W for each
|
|
音频 Audio
|
1 x Audio(Line-out & Mic-in ) ( 芯片888S/897)
|
|
串口 COM
|
2 x RS-232/422/485 (default RS-232) with auto flow control
4 x RS232 (optional by internal pin head)
|
|
USB
|
6 x USB3.1
2 x USB3.0 (optional by internal pin head )
2 x USB2.0
1 x USB3.0 加密狗
|
|
GPIO
|
1 x 16bit programmable GPIO (default 3.3V, 5V optional)(optional by internal pin head )
|
|
按钮 Button
|
1 x Power button, 1 x Reset button
|
|
指示灯 LED
|
1 x HDD LED
1 x 4G Led
2 x COM1 LED for Rx1 and Tx1
|
|
远程开关 Remote ON-OFF
|
1 x Remote ON-OFF
|
|
内部接口 Internal I/O
|
|
SIM卡
|
1 x SIM Card socket for 3G/4G module
1 x SIM Card socket for 5G module[1]
|
|
扩展Expansion
|
1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported)
1 x E-Key M.2 2230 slot (PCIe signal supported)
1 x M-Key SATA M.2 2242 SSD slot(SATA signal supported)
1 x M-Key 2280 NVMe(PCIe x4 Gen.4 for PCIe SSD), optional SATA[1]
1 x B-Key 3052 slot (USB3.0 signal supported) w/ Nano-SIM[1]
|
|
环境 Environmental
|
|
操作温度 Operating Temp.
|
-10℃ ~ 40℃ with 0.7m/s air flow (with 65W CPU and industrial SSD)[2]
-10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD)[2]
0℃ ~ 30℃ with 0.7 m/s air flow (HDD)
|
|
存储温度 Storage Temp.
|
-40℃ ~ 85℃
|
|
湿度 Relative Humidity
|
5% ~ 95%, 非凝结状态Non-condensing
|
|
随机振动 Random Vibration
|
SSD: 5~500Hz, 2Grms operation
HDD: 5~500Hz, 1Grms operation
|
|
机械冲击 Shock
|
Operation: 10G@11ms
Non-operation: 30G@11ms
|
|
电源 Power
|
|
电源输入 Power Input
|
19-24V DC, 4-pin phoenix connector
|
|
机构 Mechanical
|
|
外观 Housing
|
铝合金 Aluminum Alloy
|
|
尺寸 Dimension
|
桌面式 (Desk-Mount), 壁挂式 (Wall-Mount)
|
|
重量 Weight
|
CES-EQ47-D220: 200 x 230 x 78 mm
CES-EQ47-D222: 200 x 230 x 129 mm
CES-EQ47-D224: 200 x 230 x 169 mm
|
|
安装方式 Mounting
|
CES-EQ47-D220: 3.5kg
CES-EQ47-D222: 3.95kg
CES-EQ47-D224: 4.15kg
|
|
认证 Certification
|
|
安规认证 Certification
|
CCC，CE，FCC
|
|
[1]在安装2LAN小卡时可支持
[2]在安装POE网卡时可支持
[3]CPU 睿频打开后表面比较烫，可选配CPU FAN进行散热。
|
|
■ 订购清单 Order List
|
|
标配
Standard
|
型号 Model
|
描述 Description
|
|
34046YV00-67Y-G
|
1 x 4P DC in conn (5.00), female
|
|
34046QJ00-600-G
|
1 x 2P Remote conn (3.50), female
|
|
2G151DE00-HUH-G
|
M2-PAD,HS300,27*24*2,NA,G,00
|
|
2G1514D00-HUH-G
|
MEMORY_THERMAL-PAD
|
|
2G151GN00-KDH-G
|
CPU-PAD
|
|
2T719QH00-JTW-G
|
standard wall mount kit
|
|
选配
Optional
|
型号 Model
|
描述 Description
|
|
CEA-EQ47-2S11
|

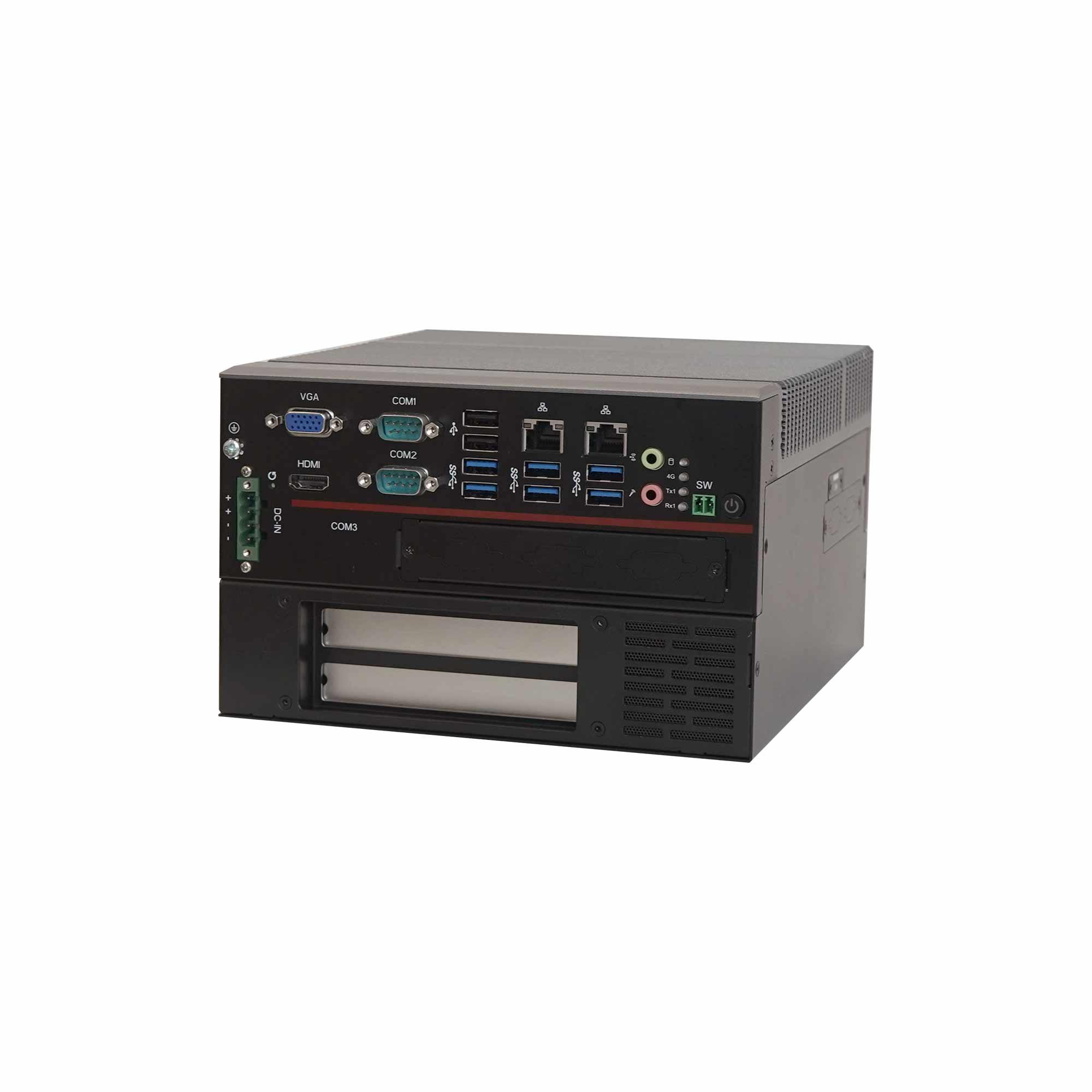

2 slots module (1 x PCIe X16 slot and 1 x PCI slot for CES-EQ47/EH42)
|
|
CEA-EQ47-2S20
|
2 slots module (1 x PCIe X16 slot and 1 x PCIe X4 slot for CES-EQ47)
|
|
CEA-EQ47-2S2A
|
2 slots module(1 x PCIe X16 slot and 1 x PCIe X1 slot for CES-EQ47/EH42)
|
|
CEA-EQ47-4S13
|

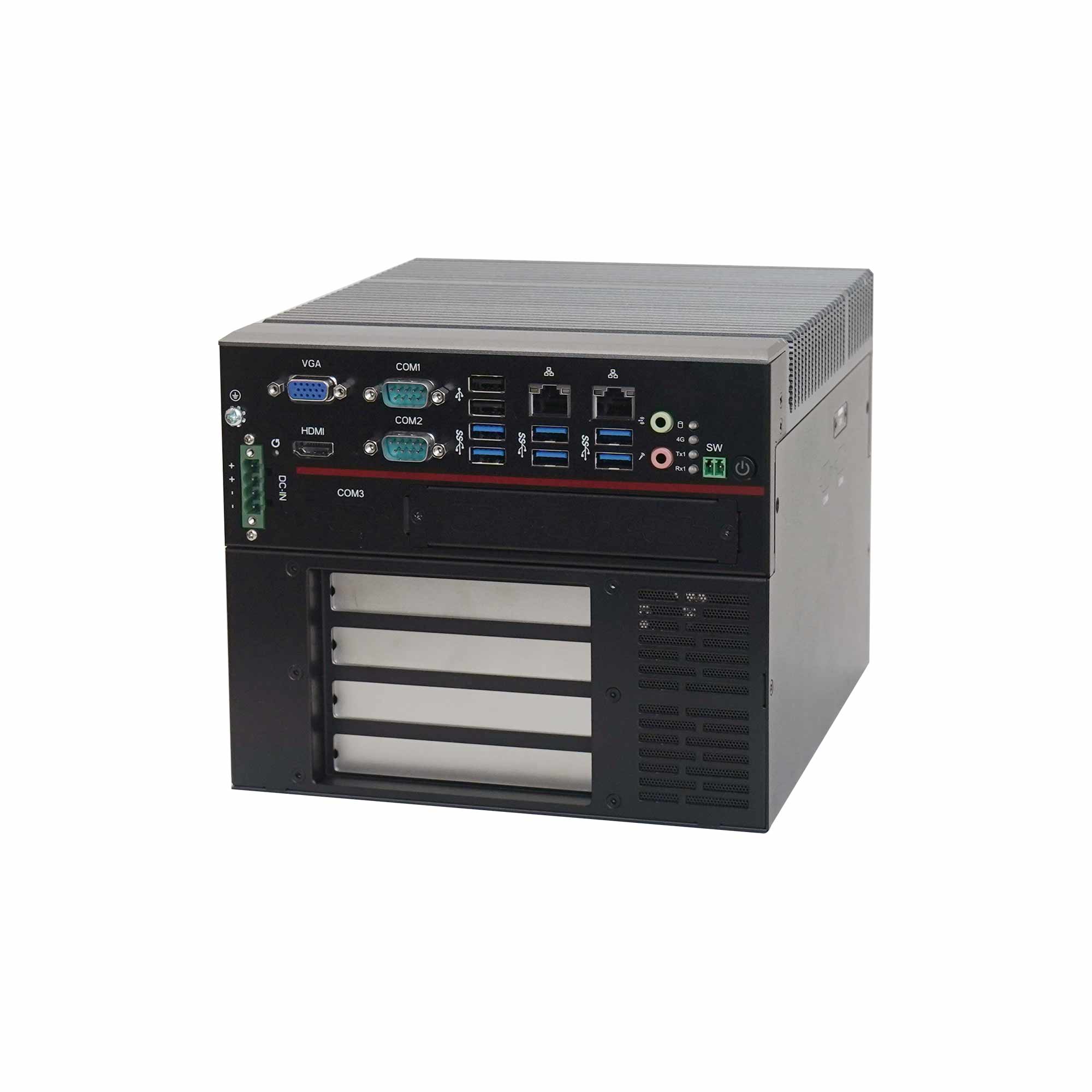

4 slots module (1 x PCIe X16 slot and 3 x PCI slot for CES-EQ47/EH42)
|
|
CEA-EQ47-4S22
|
4 slots module(1 x PCIe X16 slot and 2 x PCI slot and 1 x PCIe X4 slot for CES-EQ47)
|
|
CEA-150W-LIT0
|
LITEON 150W adapter,19.5V @7.7A，4Pin terminal
|
|
CEA-180W-LIT0
|
LITEON 180W adapter,19.5V @9.23A，4Pin terminal
|
|
CEA-230W-LIT0
|
LITEON 230W adapter,19.5V @11.8A，4Pin terminal
|
|
CEA-330W-LIT0
|
LITEON 330W adapter,19.5V @16.6A，4Pin terminal
|
|
35107G600-JTU-G
|
2*5Pin COM cable，300mm±10mm
|
|
CEA-EQ47-FAN
|
EQ47-EH42 CPU FAN
|
|
CEA-EQ47-8DIO[4]
|

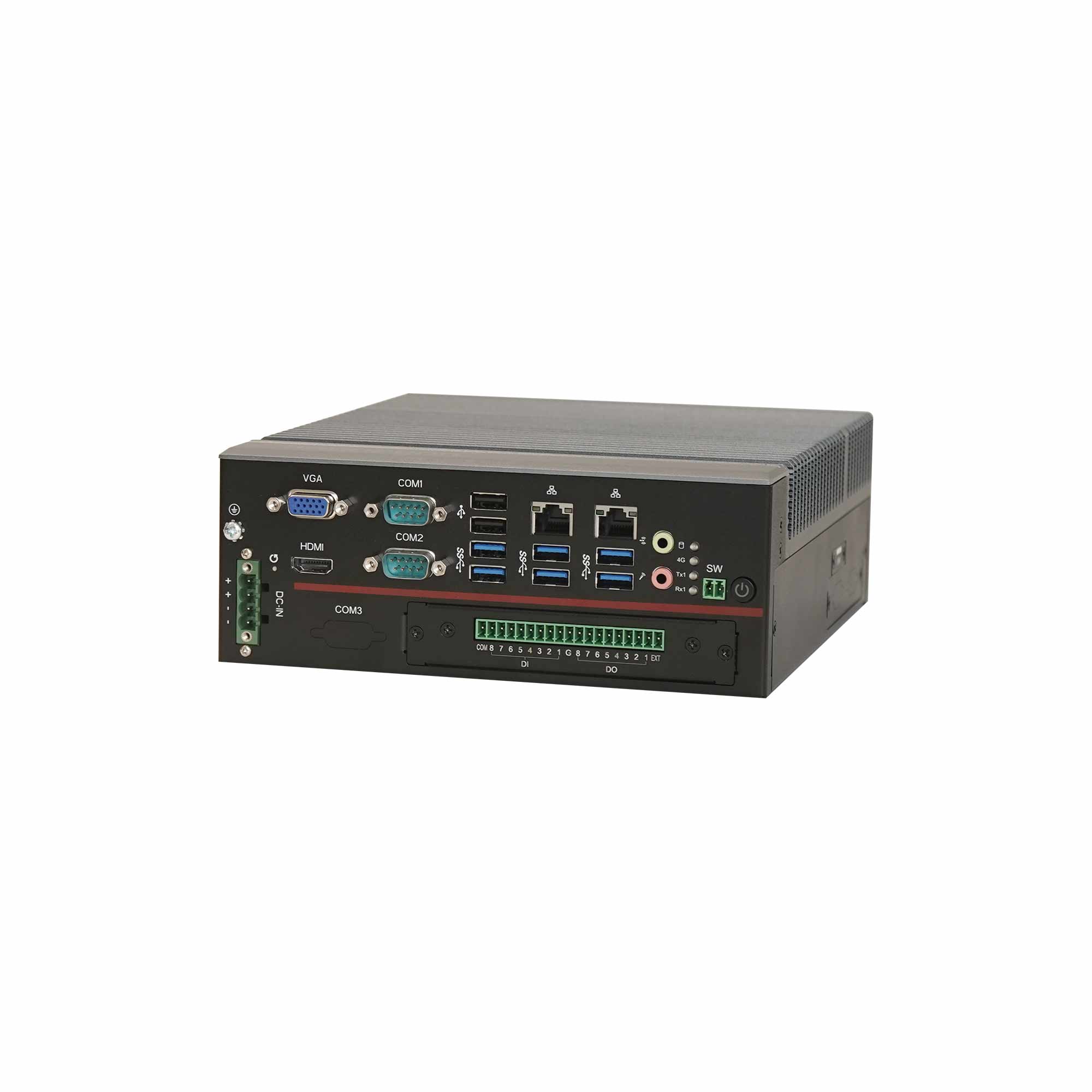

8DI-8DO扩展小卡，理论响应时间≤2ms ，NPN 最大可达 350mA， PNP 最大可达 500mA
|
|
CEA-EQ47-GPIO[5]
|
1 x 16bit programmable GPIO
|
|
CEA-EQ47-DP[6]
|
DP扩展显示接口
|
|
CEA-EQ47-2USB[7]
|
EQ47扩展USB3.0接口
|
|
[4] 8DI-DO小卡只能安装在CES-EQ47-D220上
[5]、[6]、[7] 选配件，安装在侧面Odoor，不可同时选配
|
|
|
|
|
