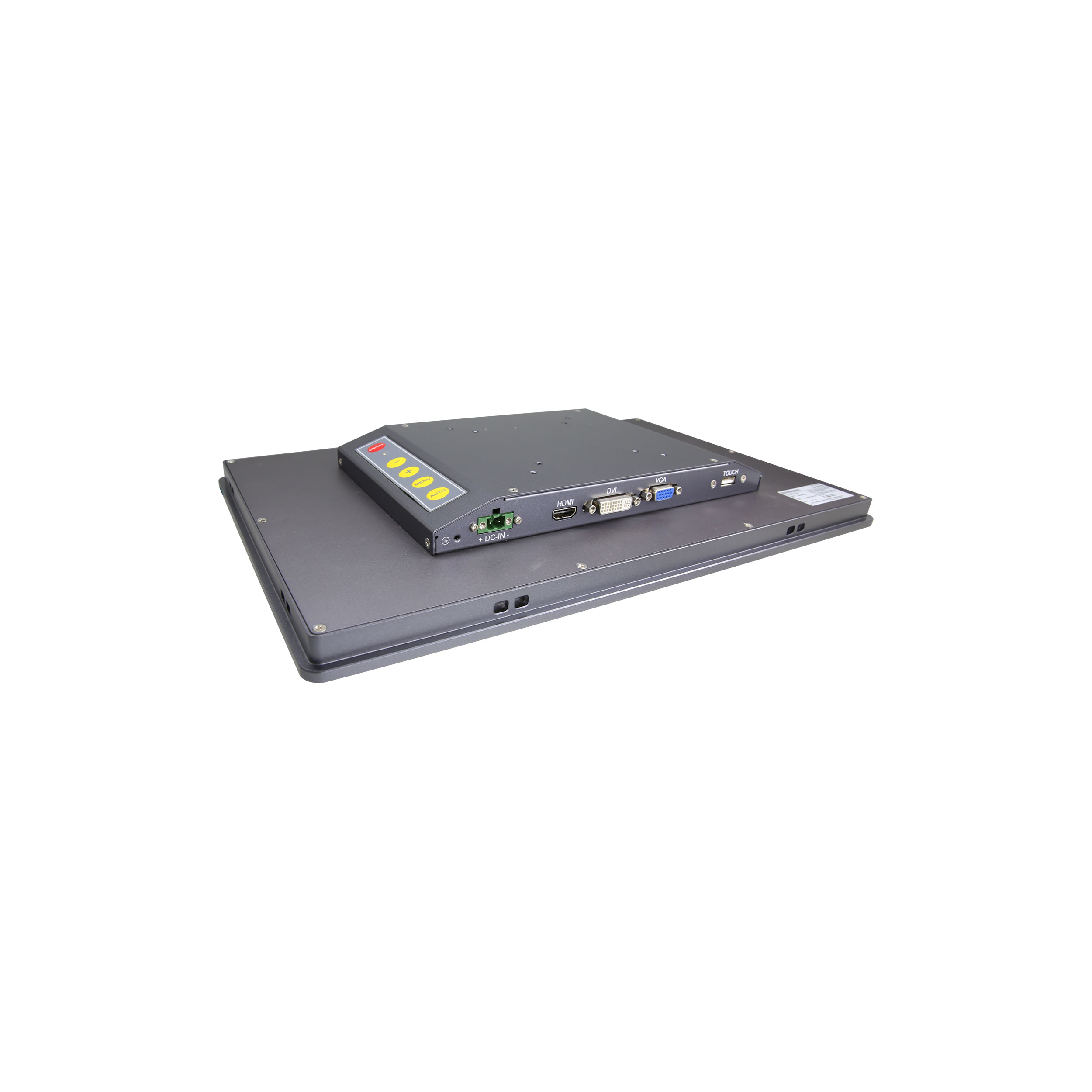

CEM-15PW-VDH0
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级10点投射式电容触摸屏
12V DC-IN，可锁附凤凰端子接口
支持标准VESA及嵌入式安装方式
|
■ 规格 Specification |
|
||||
|
触摸屏 Touchscreen |
|||||
|
触摸屏 Touch Type |
10点投射式电容屏 P-cap Multi-Touch |
||||
|
触击 Touch |
35,000,000 times |
||||
|
显示屏 Display |
|||||
|
尺寸 Size |
15.6 inches |
||||
|
分辨率 Resolution |
1366(H) x 768(V) |
||||
|
屏幕宽高比 Ratio |
16:9 |
||||
|
亮度 Brightness |
500 nits |
||||
|
可视角 Viewing Angle |
CR ≥ 10; θx 160(H)/ θy 150° (V) |
||||
|
对比度 Contrast Ratio |
600 |
||||
|
背光 Backlight |
LED Backlight |
||||
|
背光寿命 Backlight Lifetime |
50000Hrs |
||||
|
机构 Mechanical |
|||||
|
前框 Front Panel |
铝 Aluminum |
||||
|
底板 Rear Cover |
铁 SECC |
||||
|
后盖Back Cover |
铁 SECC |
||||
|
安装方式 Mounting |
Panel Mount, Wall and VESA-mount (75 x 75mm) |
||||
|
尺寸 Dimension |
395x 245.5 x 44mm |
||||
|
建议开孔尺寸 Cut Out |
387x 237.5mm |
||||
|
重量 Weight |
3.05Kg |
||||
|
外部接口 External I/O |
|||||
|
USB |
1 x USB for Touch |
||||
|
显示 Video |
1 x HDMI |
||||
|
电源输入 Power Input |
1 x Power Connector (2P Phoenix) |
||||
|
OSD 菜单功能 |
|||||
|
ON/OFF |
Power On/Off |
||||
|
MENU |
菜单 Menu/确认 Confirm |
||||
|
AUTO |
手动切换输入信号 Signal input swithch/退出Quit |
||||
|
+ |
上移 Up/增加 Incraese |
||||
|
- |
下移 Down/减少 Decrease |
||||
|
电源 Power |
|||||
|
电源输入 Power Input |
12V DC |
||||
|
环境 Environmental |
|||||
|
操作温度 Operation Temp |
-10℃ ~ 60℃ |
||||
|
存储温度 Storage Temp |
-40℃ ~ 70℃ |
||||
|
湿度 Relative Humidity |
5% ~ 95%, 非凝结状态 Non-condensing |
||||
|
随机振动 Random Vibration |
5~500Hz, 2Grms operation |
||||
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
||||
|
机械冲击 Shock |
10g 11ms operation, 30g 11ms Non-operation |
||||
|
■ 订购清单 Order List |
|||||
|
标配 |
型号 Model |
描述 Description |
|||
|
1A03DV400-88A-G |
panel hook（4pcs in 1 package） |
||||
|
35106E900-0R7-G |
VGA Cable |
||||
|
35061BL00-0R7-G |
USB Cable |
||||
|
CTO-040W-DC12 |
40W Adpter& power cord |
||||
