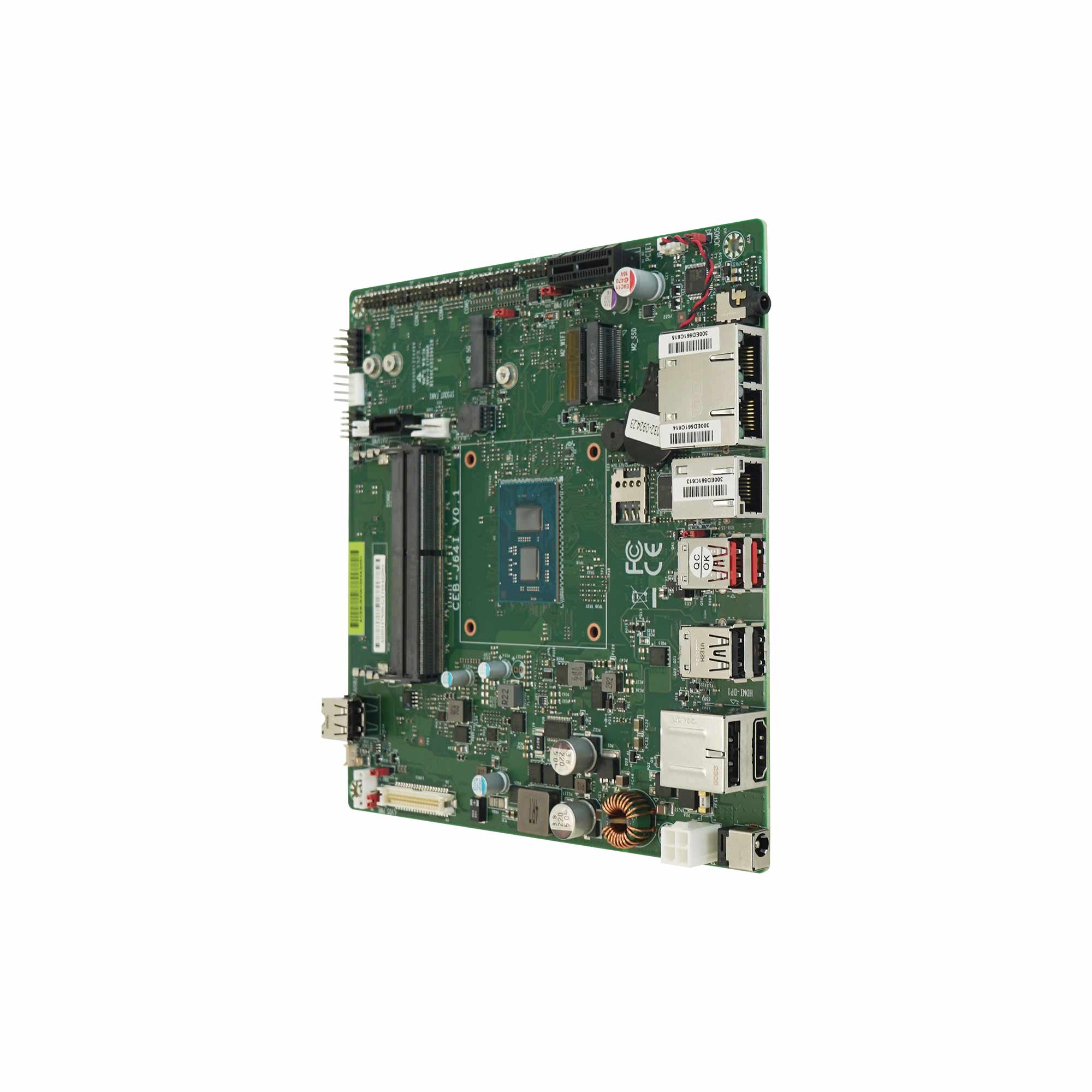

CEB-J64I-W100(W101)

■ 规格 Specification

处理器 Processor

Intel® Celeron® Processor J Series J6412 quad-cord 2.0GHz (up to 2.60 GHz), TDP 10W

内存 Memory

2 x DDR4 3200MHz SO-DIMM Slot, up to 32GB

存储 Storage

1 x SATA3.0, 1 x M.2 2242 M Key (SATA)

显示 Display

Intel® UHD Graphics for 10th Gen Intel® Processors

网口 Ethernet

1 x Intel® 210 AT(10/100/1000 Mbps), 2 x Intel® 226V colay 225V (LAN2&LAN3) (10/100/1000/2500 Mbps)

音频 Audio

Realtek® ALC888S/ALC897 HD Audio codec, supports 5.1-channel

BIOS

AMI UEFI BIOS

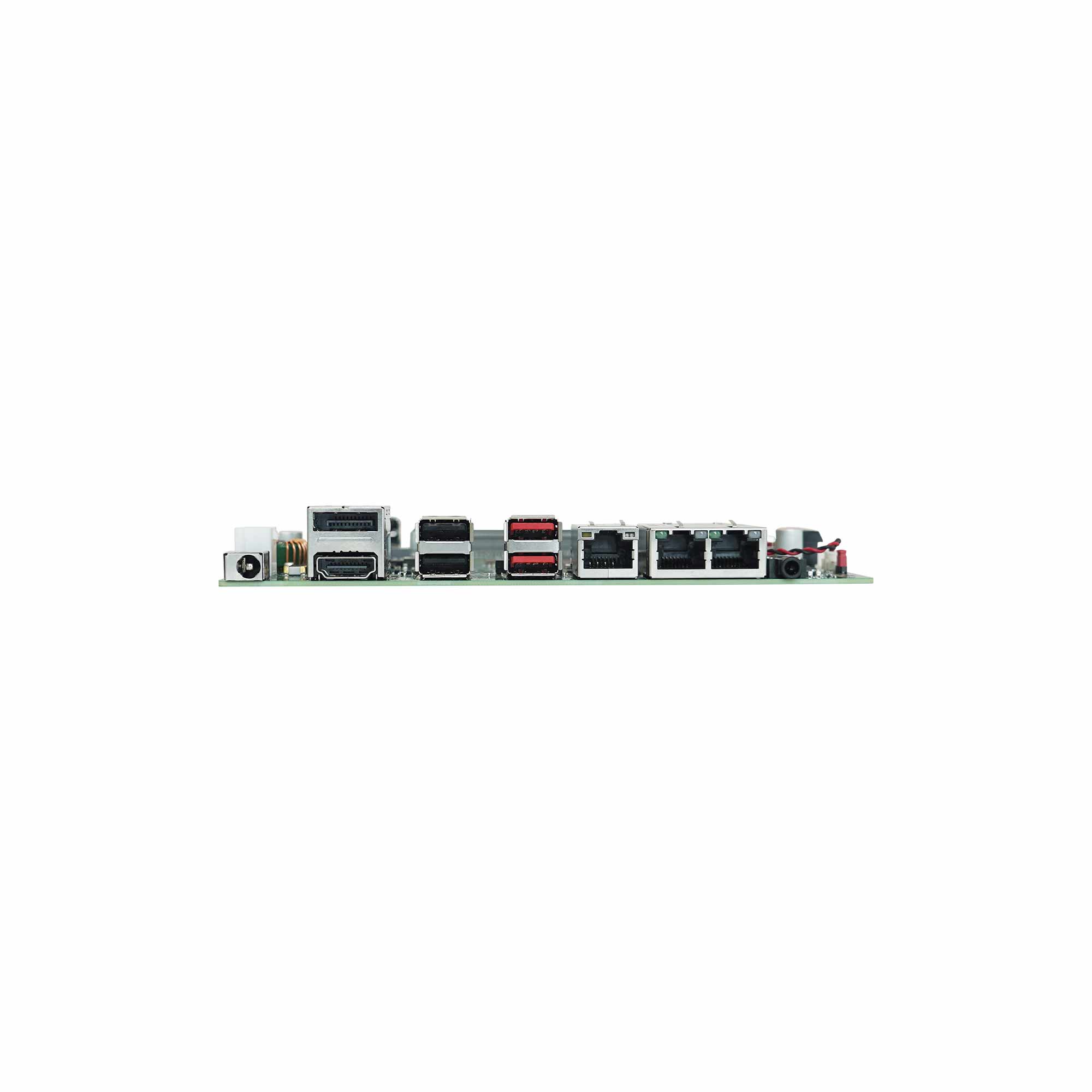

外部接口 Rear I/O

1 x DP1.4a, up to 4096 x 2160 @60Hz
1 x HDMI 2.0, up to 4096 x 2304 @60Hz
2 x USB3.1 Gen2(10Gbps)(支持USB SR Pr o技术), 2 x USB2.0
3 x RJ45
1 x Line out&Mic in(2 in 1 audio combo Jack)
1 x DC-IN Jack

内部接口 Internal I/O

1 x LVDS: Dual Channel 18/24-bit, up to 1920 x 1200@60Hz
1 x eDP: up to 4096x2160@60Hz (BOM option with LVDS)
4 x RS232/422/485 (with auto flow control), 2 x RS232
4 x USB2.0(1xPin header 2*5, 1xPin header 1*4(Touch), 1 x Type-A）
1 x 8bit GPIO
1 x SATA3.0
1 x CPU_FAN,1 x SYS_FAN
1 x FP(power button, power led, reset, HDD led)
1 x 4-pin (2x2) power connector

扩展接口 Expansion

1 x M.2 3042/3052 B Key (PCIe3.0 X1/USB2.0) for 5G module
1 x M.2 2230 E Key (PCIe3.0 X1/USB2.0) for WiFi/BT module
1 x M.2 2242 M key(SATA3.0) for SATA SSD
1 x Nano SIM socket（connected toM.2 B Key）
1 x PCIe3.0 X1

看门狗 Watchdog Timer

System Reset, Programmable via software from 1 to 255 seconds

环境 Environmen

操作温度 Operation Temp.: 0℃ ~ 60℃
存储温度 Storage Temp.: -40℃ ~ 85℃
操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing

电源输入 Power Input

宽压12~24V DC-IN

尺寸 Dimensions

170 x 170 mm (6.75" x 6.75")

操作系统 OS

Windows10, Linux

■配置 Configuration

型号 Model

处理器 CPU

CEB-J64I-W100

LVDS/DP/HDMI

CEB-J64I-W101

eDP/DP/HDMI

■订购清单 Order List

标配
 Standard

型号 Model

描述 Description

351082U00-JTU-G

2*2pin power cable，250mm＋/-10mm

35091B100-38L-G

S-ATA Cable Assembly,150mm,+/-10mm

34046YV00-67Y-G

4pin凤凰端子

选配
Optional

型号 Model

描述 Description

35105J200-JTU-G

COM1/2/3/4/5/6 com cable,150mm,+/-10mm

49020RK00-92N-G

CPU Cooler, Support to 15W

35105R200-JTU-G

1 to 2 USB2.0 cable, 200mm+/-10mm

340637R00-998-G

GPIO cable with bracket, 350mm
