CES-R11X-W44A

■ 规格 Specification

系统 System

处理器 Processor

Intel® Tiger lake i3-1115G4 3.0G(6M Cache,up to 4.1GHz)
Intel® Tiger lake i5-1135G7 2.4G(8M Cache,up to 4.2GHz)
Intel® Tiger lake i5-1145GRE 1.5G(8M Cache,up to 4.1GHz)
Intel® Tiger lakeI7-1165G7 2.8G(8M Cache,up to 4.7GHz)

内存 Memory

1 x SDRAM DDR4 3200 MHz (max. 32G)

图形 Graphics

Intel® Iris® Xe graphics, up to 96 graphics execution units (EU)

存储 Storage

1 x M.2 2242 1 x Sata 3.1(2.5 寸硬盘)

操作系统 OS

Windows 10, Ubuntu20.04

看门狗定时器
 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

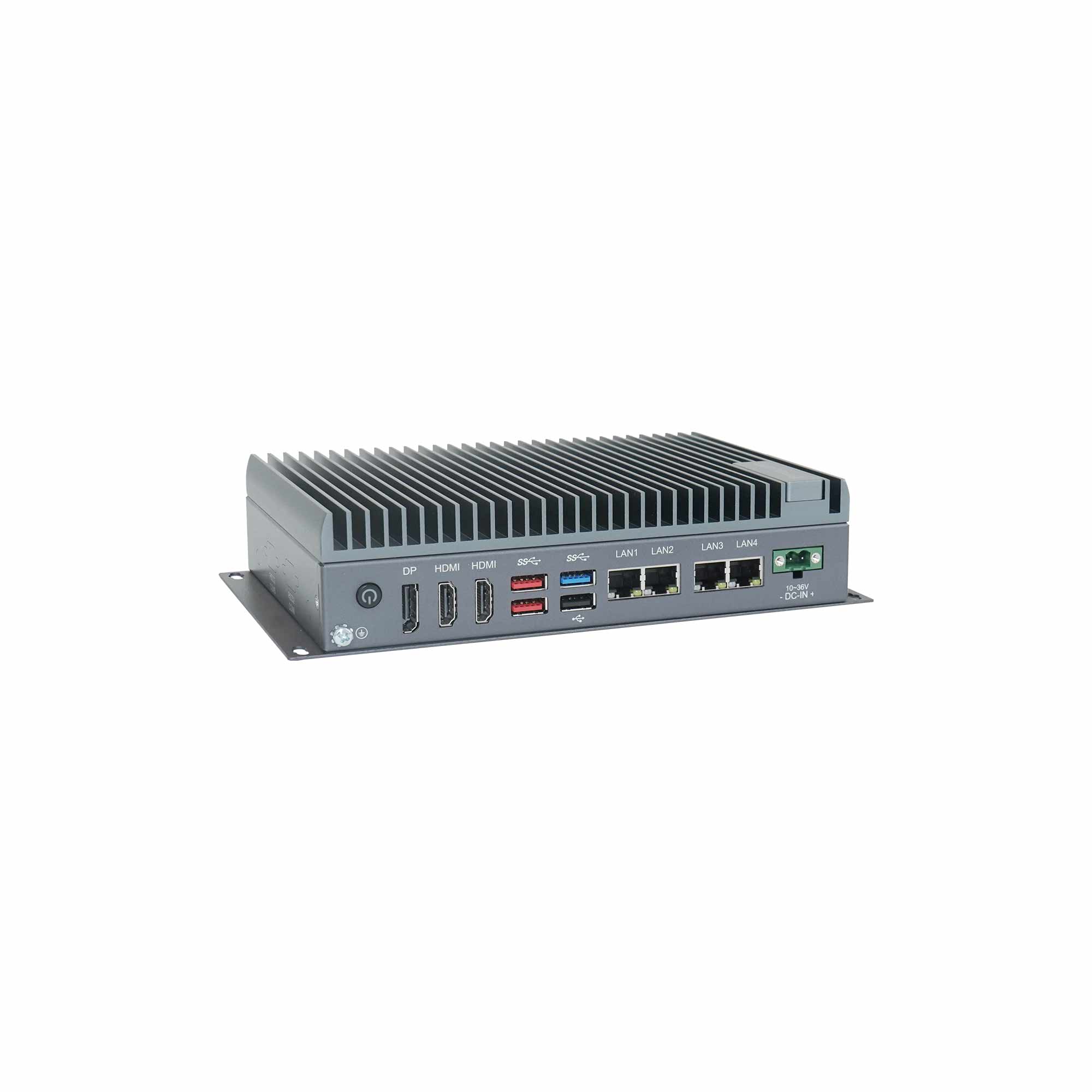

外部接口 External I/O

网口 Ethernet

1 x RJ45 Intel i219LM GbE (10/100/1000 Mbps)
3 x RJ45, Intel® i210 GbE (10/100/1000 Mbps)【Colay 1211GbE】

显示 Video

2 x HDMI, up to 4K x 2K x 24bpp@24Hz
1 x DP, up to 4096 x 2304 x 36bpp@60Hz

音频 Audio

1 x Audio(Line-out & Mic-in ) ( 芯片888S/897)

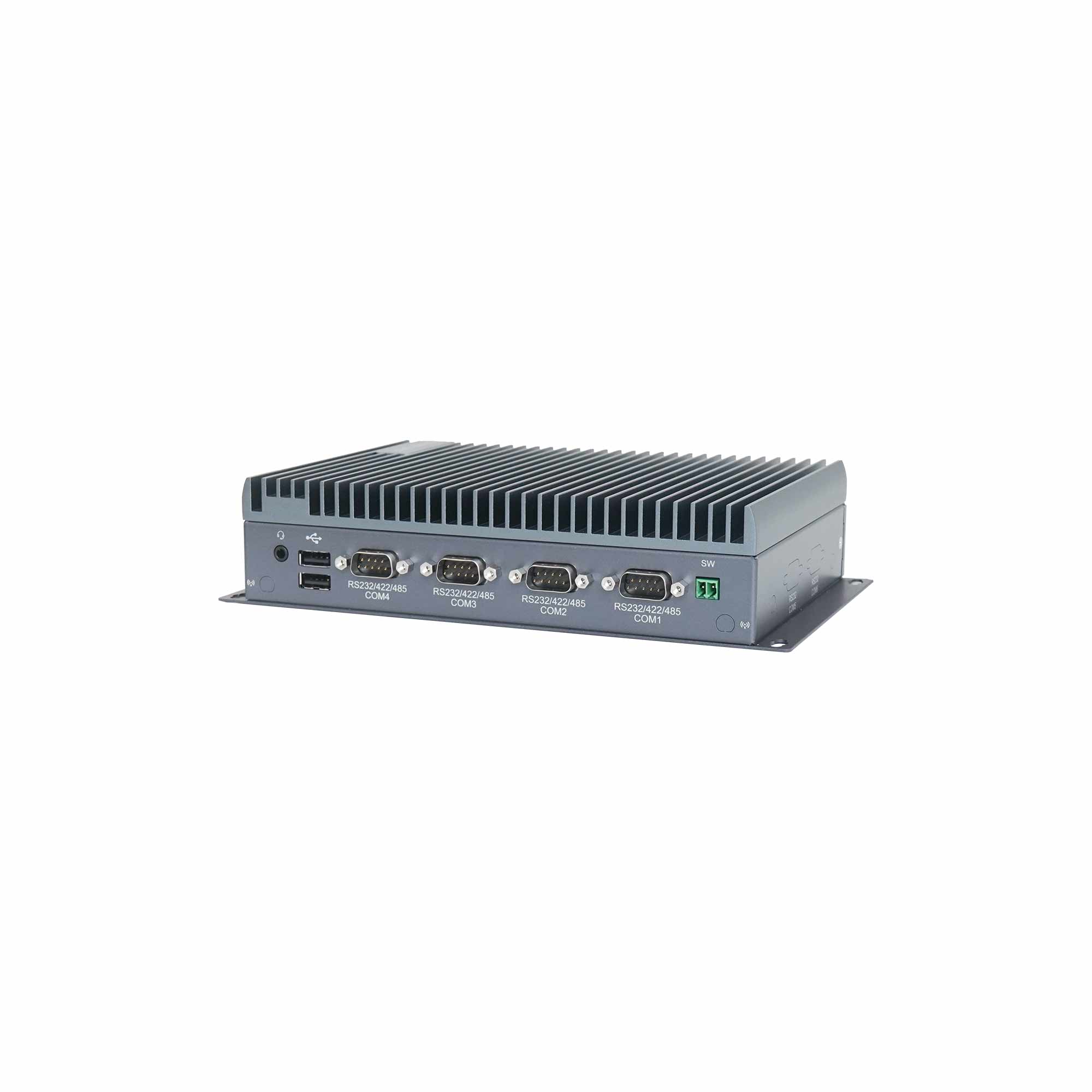

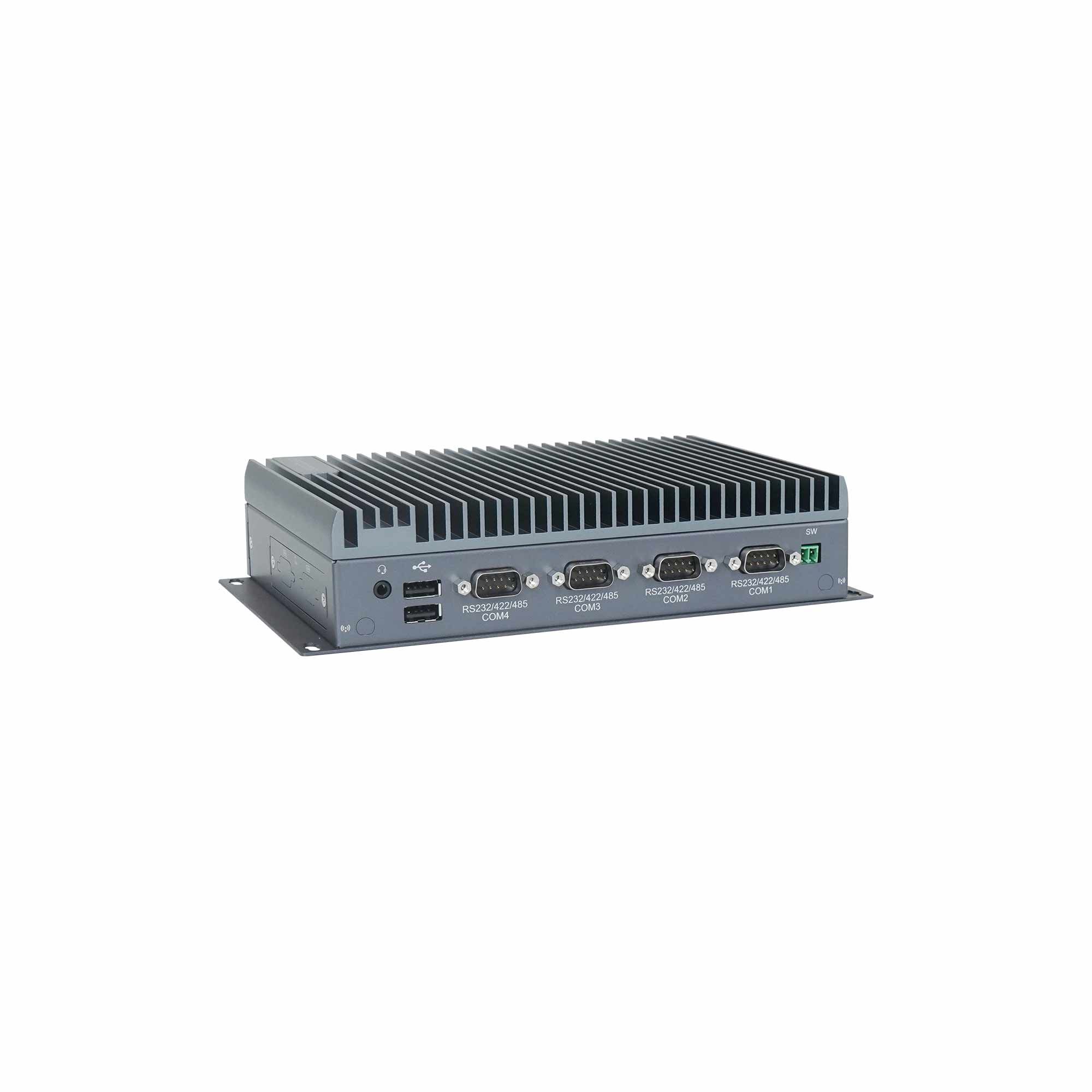

串口 COM

4 x RS-232/422/485 (default RS-232) with auto flow control

USB

3 x USB3.2 Gen.2 3 x USB2.0

按钮 Button

1 x Power button W/Led

远程开关 Remote ON-OFF

1 x SW LED

内部接口 Internal I/O

扩展接口 Expansion

1 x E-Key M.2 2230 slot (PCIe X1 / USB2.0 signal supported)
1 x mPCIe (PCIe/ USB2.0/USB 3.0 signal supported)

GPIO

1 x 8bit programmable GPIO pin header【3.3 | 5V Jump adjustable】

SIM 卡

1 x SIM Card socket for 3G/4G module

USB

2 x USB 2.0 by Pinhead

串口

2 x COM232 by Pinhead

环境 Environmental

操作温度 Operating Temp

-20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD)

存储温度 Storage Temp.

-40℃ ~ 85℃

湿度Relative Humidity

5% ~ 95%, 非凝结状态Non-condensing

振动 Vibration

SSD: 5~500Hz, 2Grms operation
HDD: 5~500Hz, 1Grms operation

机械冲击 Shock

Operation: 10G@11ms
Non-operation: 30G@11ms

电源 Power

电源输入 Power Input

10~36VDC, 2-pin phoenix connector

机构 Mechanical

外观 Housing

铝合金 Aluminum Alloy

安装方式 Mounting

Desk-Mount, Wall-Mount, DIN-Rail(optional)
VESA-mount (75 x 75mm, 100 x 100mm optional)

尺寸 Dimension

224 x 140 x 49.2 mm

重量 Weight

1.6 kg

认证 Certification

安规认证
Safety Certification

CCC, CE, FCC

■ 配置Configuration

型号 Model

CPU

DP

HDIM

USB3.0

USB2.0

GbE

COM

SW

M.2

SATA

Mini-PCIe

M.2 2230

电源

CES-R111-W44A

Intel® Tiger lake i3-1115G4

1

2

3

3 最多 5 ( 可选)

4

4, 最多 6 ( 可选)

1

1

1

1

1

10-36V

CES-R113-W44A

Intel® Tiger lake i5-1135G7

1

2

3

3 最多 5 ( 可选)

4

4, 最多 6 ( 可选)

1

1

1

1

1

10-36V

CES-R114-W44A

Intel® Tiger lake i5-1145GRE

1

2

3

3 最多 5 ( 可选)

4

4, 最多 6 ( 可选)

1

1

1

1

1

10-36V

CES-R116-W44A

Intel® Tiger lake i7-1165G7

1

2

3

3 最多 5 ( 可选)

4

4, 最多 6 ( 可选)

1

1

1

1

1

10-36V

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

2G151DE00-HUH-G

M2-2242_THERMAL-PAD_28*26*2

2G151DT00-HUH-G

Memory_thermal-pad_57*12.5*1.5

34046QJ00-600-G

1 x 2P Remote conn (3.50), female

34046QH00-GLA-G

2pin DC-IN Phoenix Connector,5mm,FOXCONN

选配
Optional

型号 Model

描述 Description

TO-090W-HK00

HK 12V 90W adapter,150cm power cord

CTO-135W-LT00

LITEON 19V 135W adapter,150cm power cord

35105R800-JTU-G

8bit GPIO Cable (DB9 Connect )

35107YP00-JTU-G

2*RS232 Y Cable

061001D00-187-G

Wireless Card,M.2,Bluetooth,INTEL,3165.N

2T71A7Y00-JTW-G

DIN-RAIL/VESA Bracket,165mm*115mm*10.5mm
