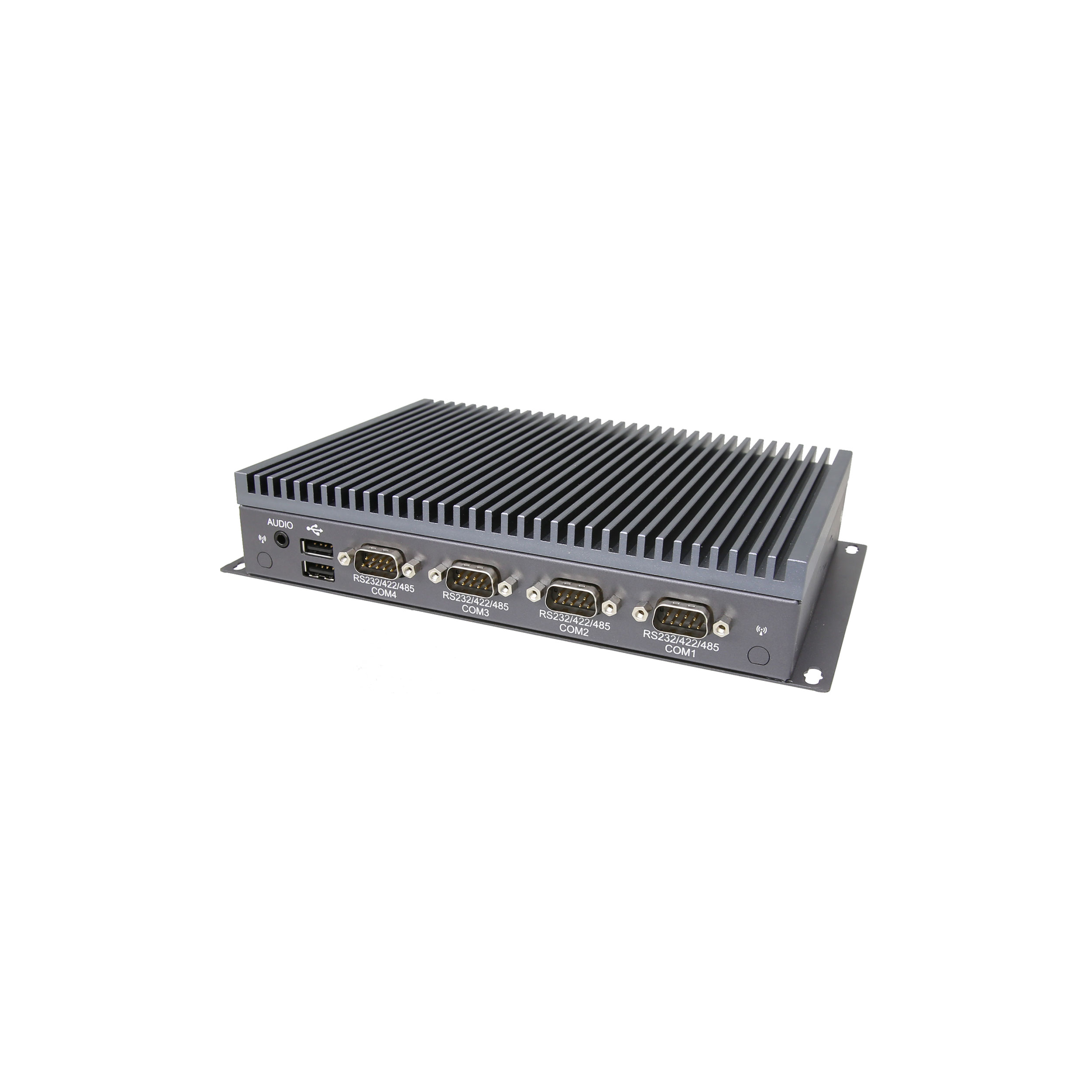

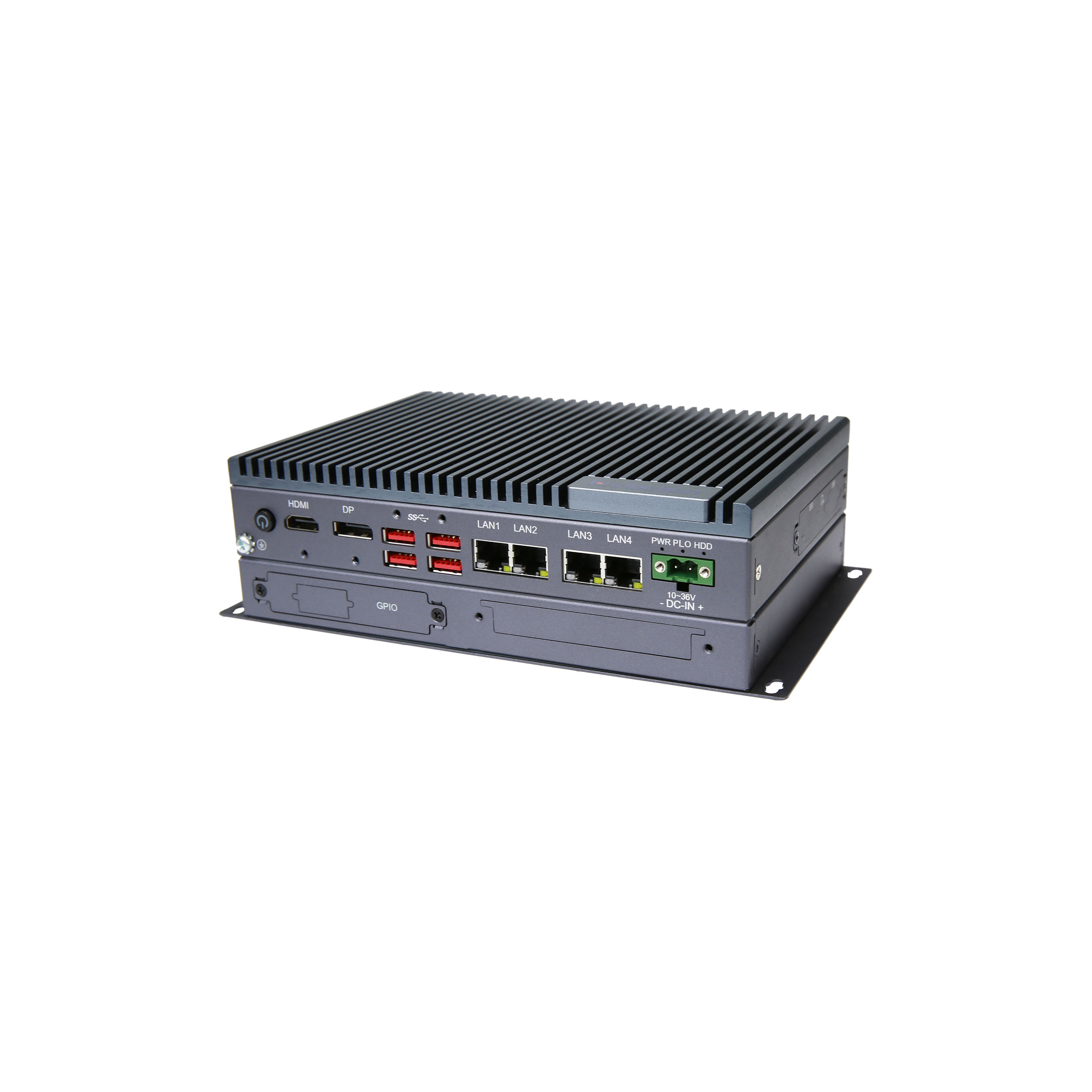

CES-R814(R836)(R866)-W44A

■ 规格 Specification

系统 System

处理器 Processor

Intel® 8th Gen. U Dual Core Processors i3-8145UE (2.2GHz up to 3.9GHz)
Intel® 8th Gen. U Quad Core Processors i5-8365UE (1.6GHz up to 4.1GHz)
Intel® 8th Gen. U Quad Core Processors i7-8665UE (1.7 GHz up to 4.4GHz)

内存 Memory

1 x DDR4 2133/2400MHz SO-DIMM up to 32 GB

图形 Graphics

Intel@UHD Graphics620, dual display

存储 Storage

1 x mSATA Colay Mini-PCIe Connect
1 x M.2 2242 SSD
1 x 2.5" SATA 3.0 HDD/SSD BAY（与M.2 2242 组Raid 0/1）

操作系统 OS

Windows 10, Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

网口 Ethernet

4 x RJ45, Intel® (2x i211 and 2x i210) GbE (10/100/1000 Mbps),
 support Wake On Lan

显示 Video

1 x HDMI: max resolution up to 4096x2304@24Hz
1 x DP: max resolution up to 4096x2304@60Hz

音频 Audio

1 x Audio(Line-out & Mic-in ) ( 芯片888S/897)

串口 COM

4 x RS232/422/485 auto-flow
2 x RS232 (optional by 3*3 pin-head)

USB

4 x USB 3.1 Gen2

2 x USB 2.0

按钮 Button

1 x Power button

指示灯 LED

1 x Power LED (Green for DC-IN)
1 x HDD LED (Green blink for Data read or write)
1 x programmable LED (Green Default monitoring CPU temperature)

内部接口 Internal I/O

功放 Speaker

1 x Internal (3W 4Ω) Speaker pin-head

LPC

1 x LPC

GPIO

1 x Internal 8bit programmable GPIO pin-head

SIM 卡

1 x SIM Card socket for 3G/4G module

扩展Expansion

1 x Mini-PCIe slot(PCIE/SATA/USB2.0 Singal Support）
1 x M.2 2230 Key-E slot(only supported CNVI Wifi module )

扩展模组 Extension module

Extension Module A (optional)

1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported）
1 x M.2 3042/3052 Key-B slot (5G communication module supported)
1 x EDP: max resolution up to 4096x2304@60Hz
1 x SIM socket for 5G module

Extension Module B (optional)

1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported)
1 x Built-in USB3.0
1 x eDP: max resolution up to 4096x2304@60Hz

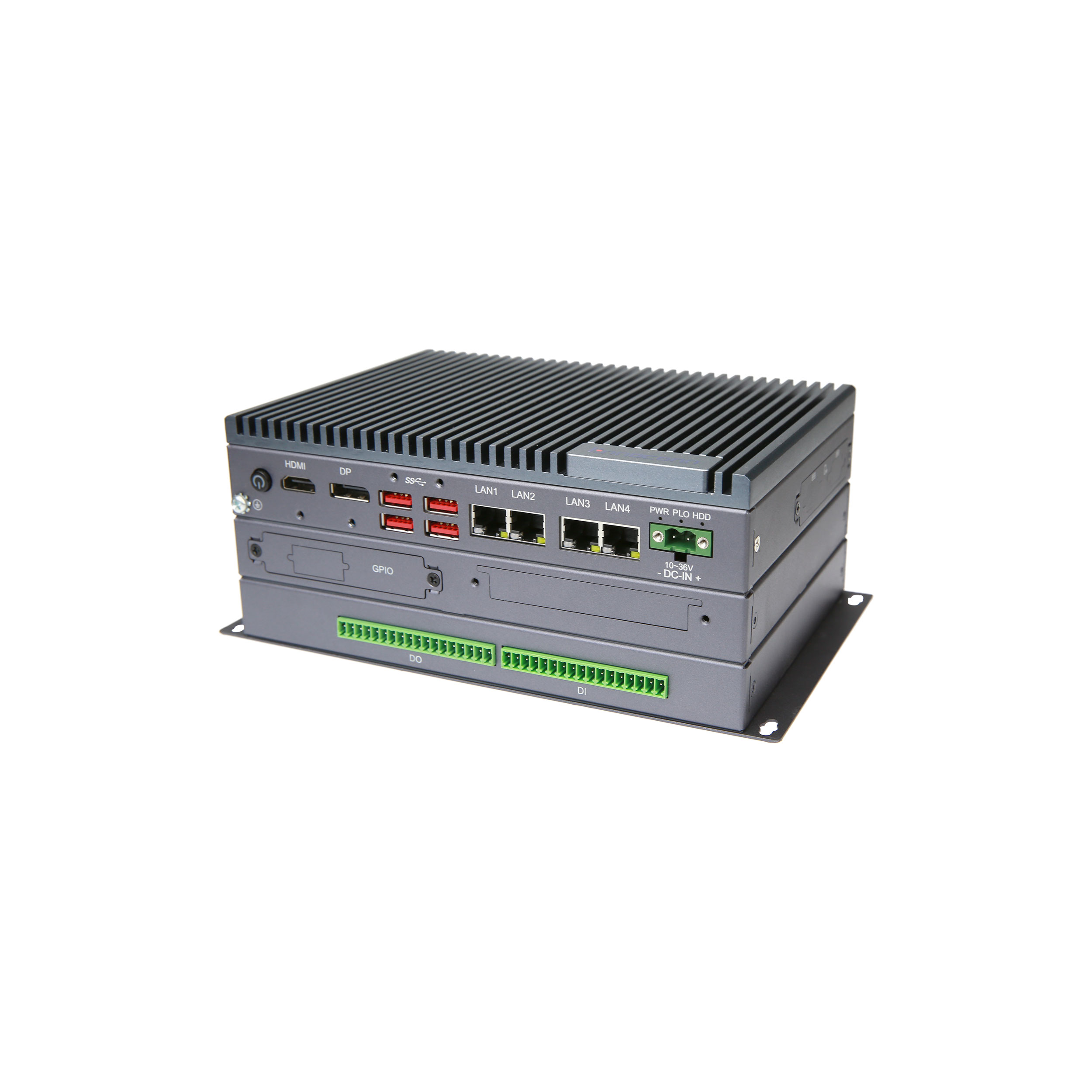

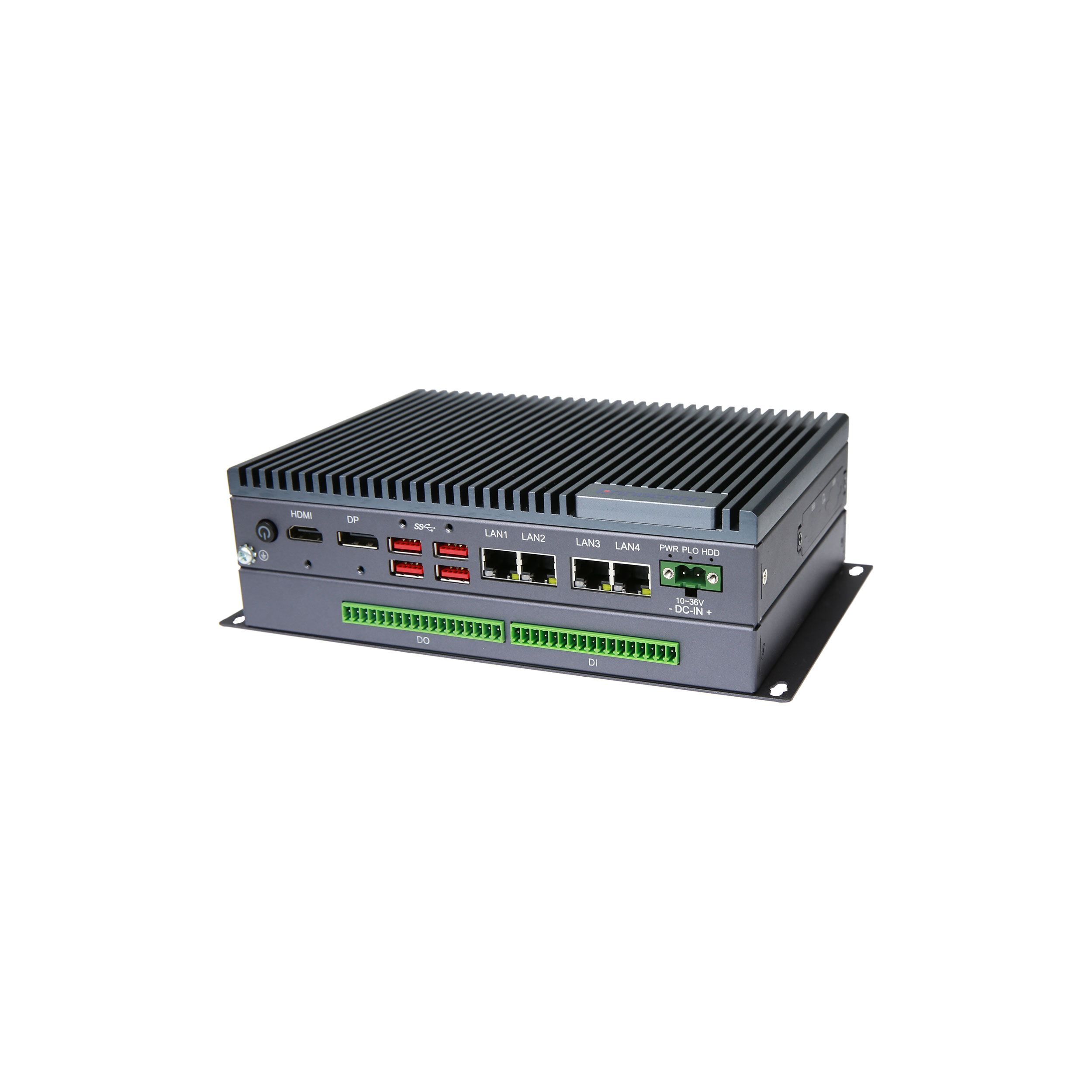

Extension Module C (optional)

1 x 32bit DI/O with optocoupler isolation DI 2500vrms, DO 2500vrms, response time ≤2ms，Output Frequency≤500Hz ,Maximum driving capacity 100mA ,NPN or PNP by optional

环境 Environmental

操作温度 Operating Temp

-20℃ ~ 60℃(SSD), 0℃ ~ 40℃(HDD)

存储温度 Storage Temp

-40℃ ~ 85℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态Non-condensing

振动 Vibration

SSD: 5~500Hz, 5Grms operation (Only Use Solid state SSD)
HDD: 5~500Hz, 1Grms operation

机械冲击 Shock

Operation: 50G@11ms（Only Use Solid state SSD）
Non-operation: 30G@11ms

电源 Power

电源输入 Power Input

10~36V DC, 2-pin phoenix connector

机构 Mechanical

外观 Housing

铝合金 Aluminum Alloy

尺寸 Dimension

224 x 140 x 40.2 mm (基础型)
224 x 140 x 64 mm (一层扩展)
224 x 140 x 87.8 mm (二层扩展)

重量 Weight

1.35Kg

安装方式 Mounting

Desk-Mount（桌面式）
Wall-Mount（壁挂式）
VESA-Mount (100 x 100mm)(optional)

认证 Certification

安规认证 Safety Certification

CCC/CE/FCC

【1】Module B 与 Module A 不能同时选择

■ 配置Configuration

型号 Model

处理器 CPU

CES-R814-W44A

Intel®8th Gen. U i3-8145UE Dual Core Processor (2.2GHz up to 3.9GHz)

CES-R836-W44A

Intel®8th Gen. U i5-8365UE Quad Core Processor (1.6GHz up to 4.1GHz)

CES-R866-W44A

Intel®8th Gen. U i7-8665UE Quad Core Processor (1.7GHz up to 4.4GHz)

CES-R430-W44A

Intel® Celeron 4305UE Dual Core Processor 2.00 GHz

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

2G151DE00-HUH-G

M2-2242_THERMAL-PAD_28*26*2

2G151DT00-HUH-G

Memory_thermal-pad_57*12.5*1.5

34046QH00-GLA-G

2pin DC-IN Phoenix Connector,5mm,FOXCONN

选配
Optional

型号 Model

描述 Description

CEA-090W-HK00

HUNTKEY 12V 90W adapter,150cm power cord

35105R800-JTU-G

8bit GPIO Cable (DB9 Connect )

35107YP00-JTU-G

2*RS232 Y Cable

061001800-187-G

Wireless Card,CNVI,INTEL 9560NGW

061001E00-187-G

Wireless Card,CNVI,WIFI 6,INTEL AX200NGW,

2T71A7Y00-JTW-G

DIN-RAIL/VESA Bracket,165mm*115mm*10.5mm

Module A

Module A,w/5G,w/Mini-PCIe,w/EDP

Module B

Module B,w/USB3.0,w/Mini-PCIe,w/EDP

Module C

Module C,w/16bit DI/O
