■ 规格 Specification
|
|
|
系统 System
|
|
处理器 Processor
|
i3-1115G4 3.0G (2 Cores, 6M Cache, up to 4.1GHz)
i5-1135G7 2.4G (4 Cores, 8M Cache, up to 4.2GHz)
i7-1165G7 2.8G (4 Cores, 12M Cache, up to 4.7GHz)
i5-1145G7E 1.5G (4 Cores, 8M Cache, up to 4.1GHz)
|
|
内存 Memory
|
1 x DDR4 3200 MHz SO-DIMM, up to 32 GB
|
|
存储 Storage
|
1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot
|
|
图形 Graphics
|
Intel® UHD Graphics for 11th Gen, Intel® Processors & Intel® Iris® Xe Graphics
|
|
操作系统 OS
|
Windows 10, Linux
|
|
看门狗定时器 Watchdog Timer
|
Programmable 255 levels timer interval, from 1~255 sec/min
|
|
显示屏 Display
|
|
尺寸 Size
|
15 inches
|
|
分辨率 Resolution
|
1024(H) x 768(V)
|
|
屏幕宽高比 Ratio
|
4：3
|
|
亮度 Brightness
|
300 nits
|
|
可视角 Viewing Angle
|
CR ≥ 10, 80° (T)/80° (B) 80° (L)/80° (R)
|
|
对比度 Contrast Ratio
|
800
|
|
背光 Backlight
|
LED Backlight
|
|
背光寿命 Backlight Lifetime
|
30000Hrs
|
|
触摸屏 Touchscreen
|
|
触摸屏 Touch Type
|

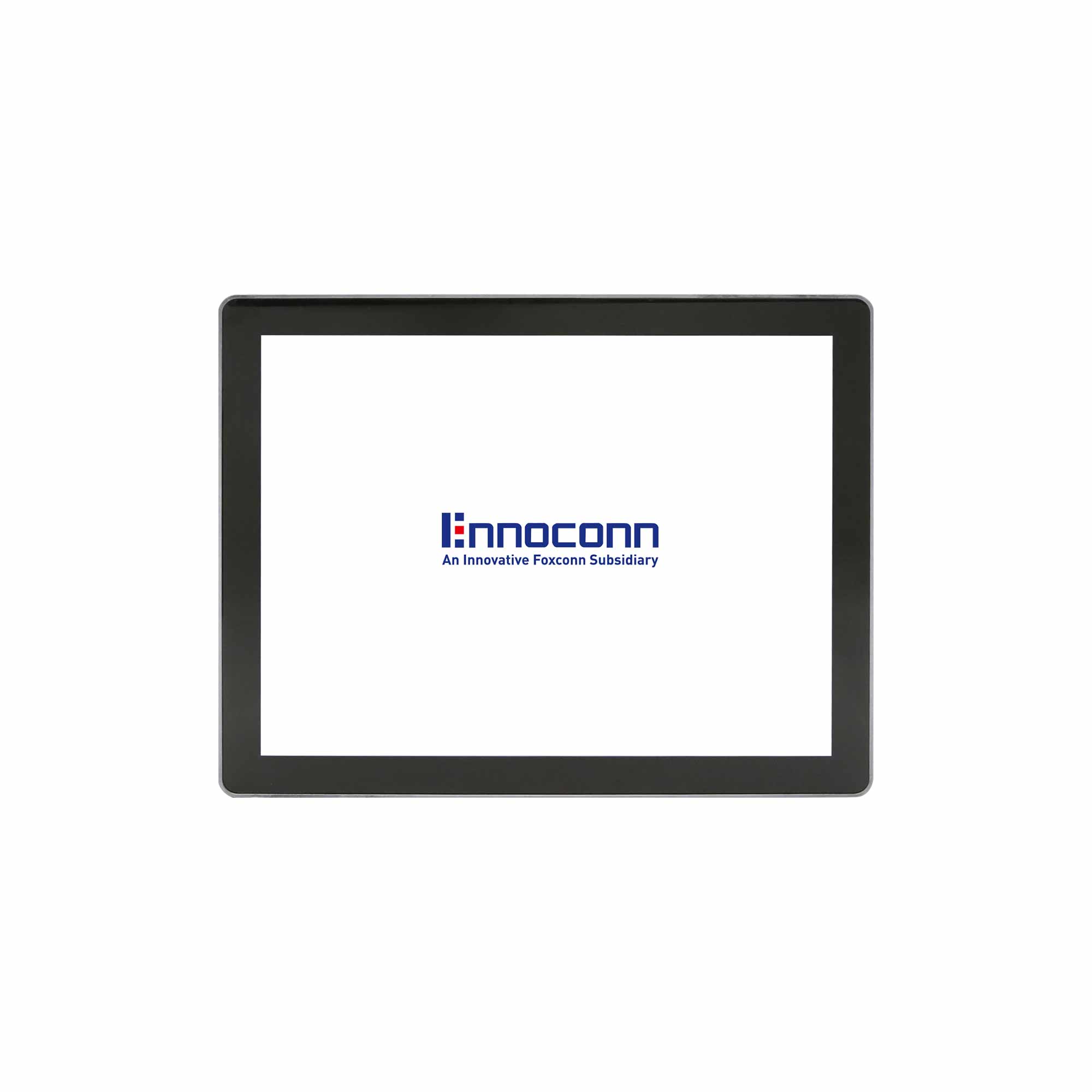

CEP-15RS-TGLU:全平面五线电阻屏 5-Wire Resistive Touch

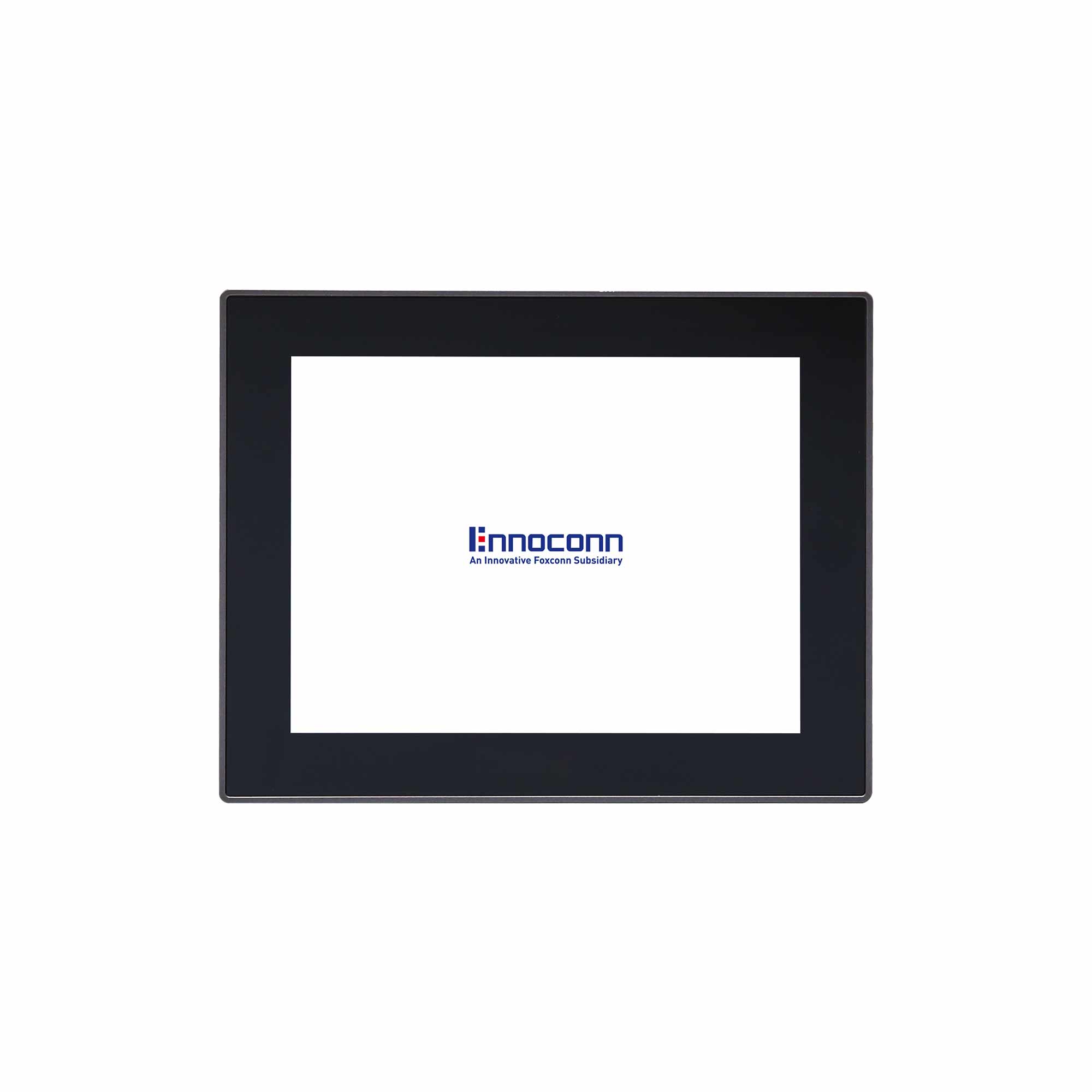

CEP-15RS-TGLJ:嵌入式五线电阻屏 5-Wire Resistive Touch
|
|
触击 Touch
|
35,000,000 times
|
|

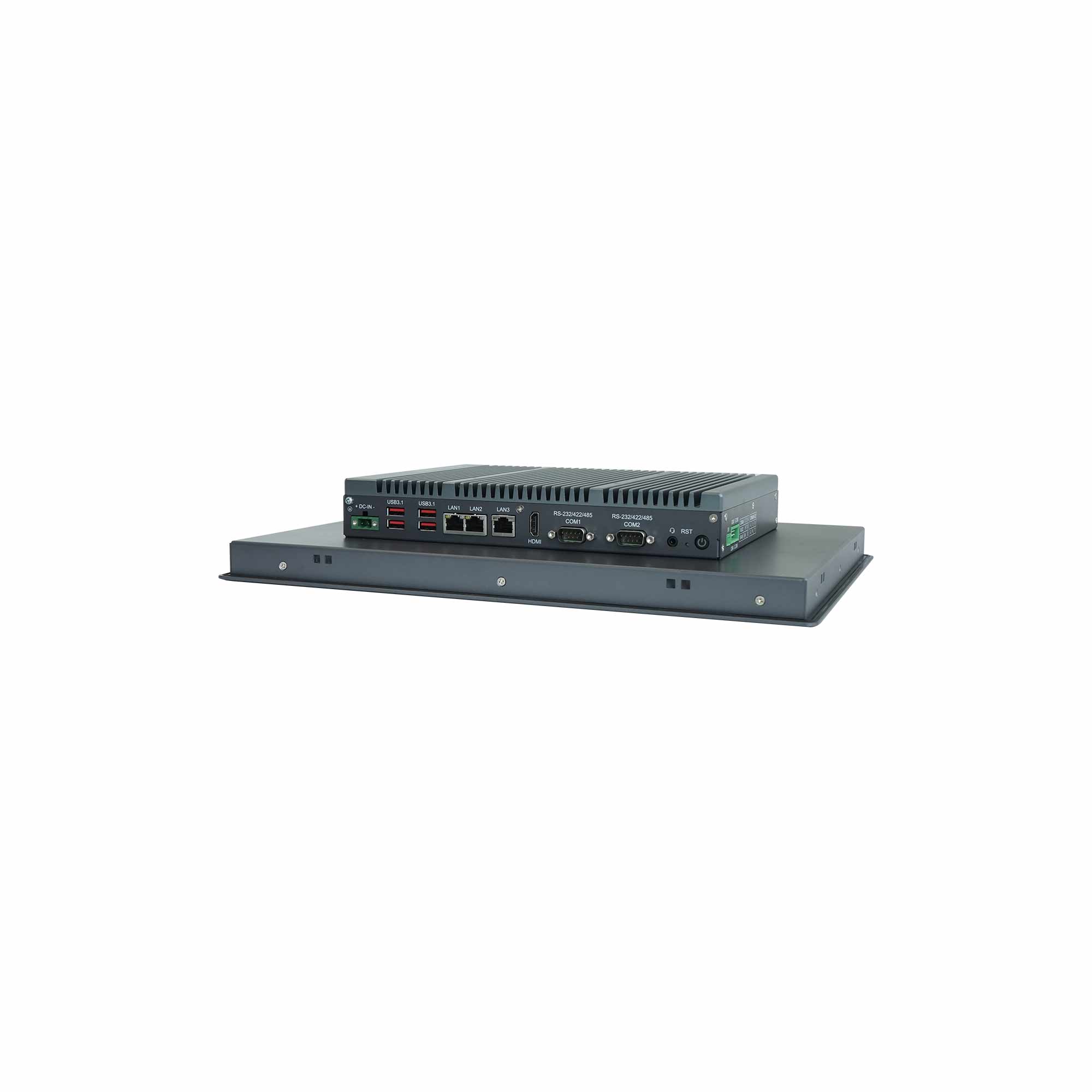

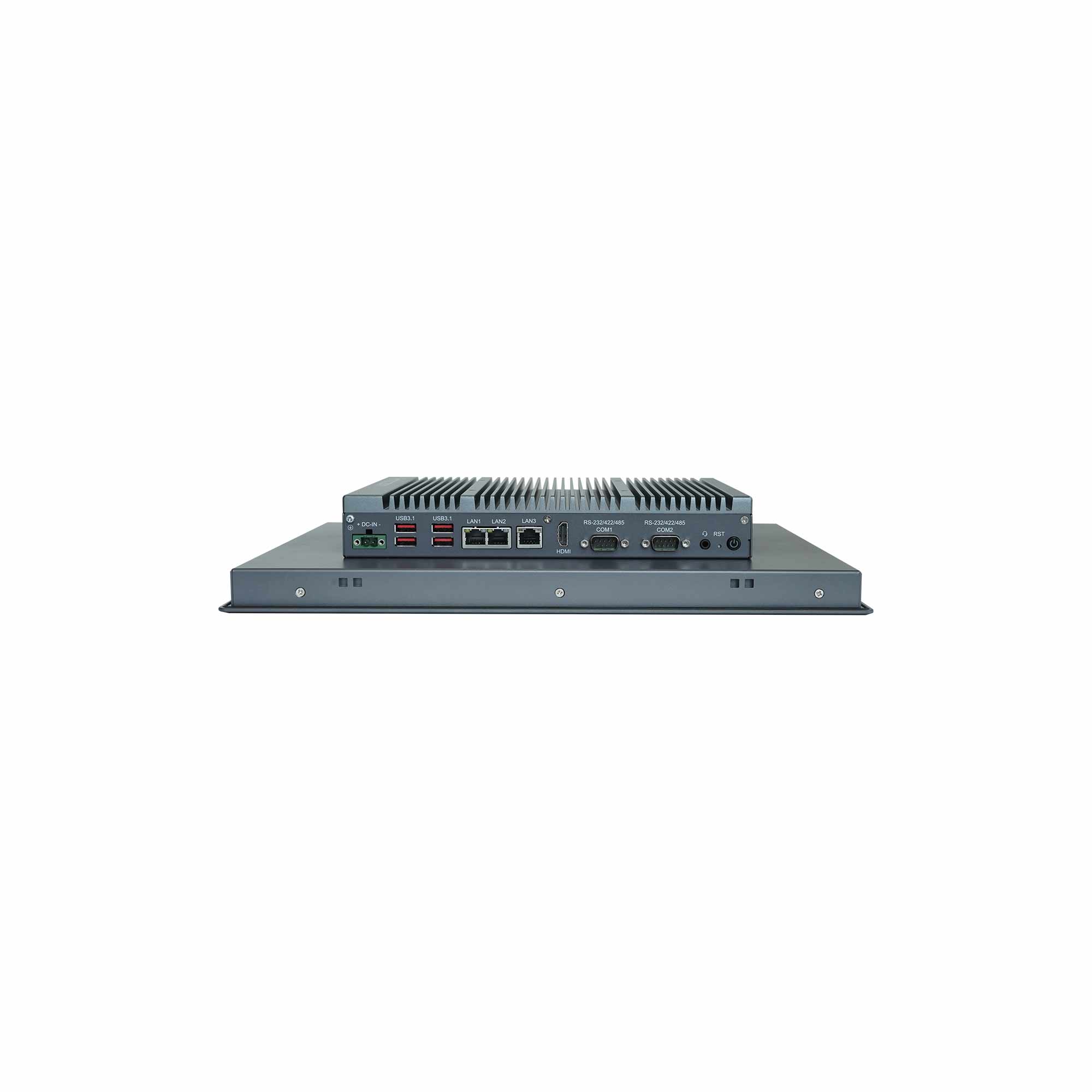

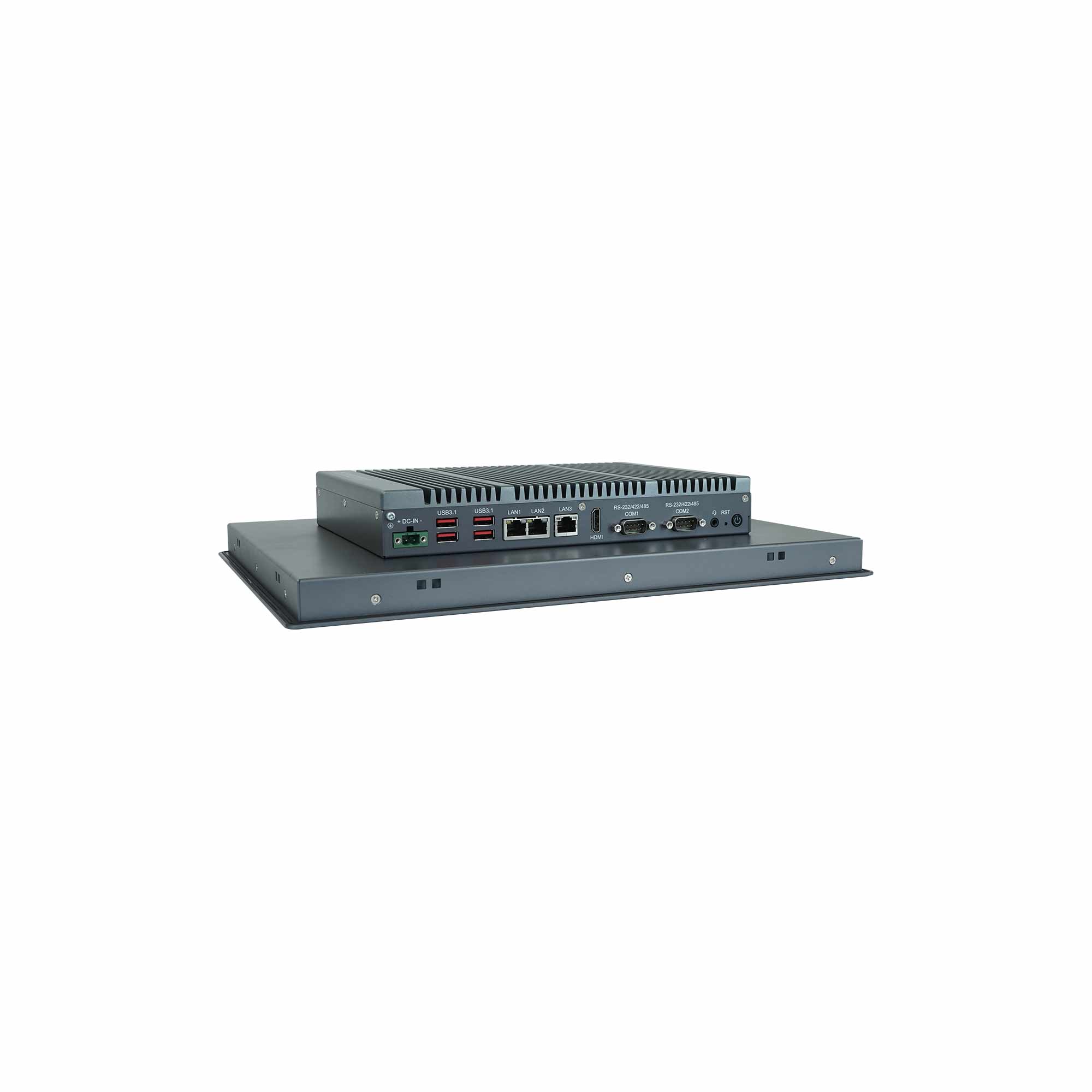

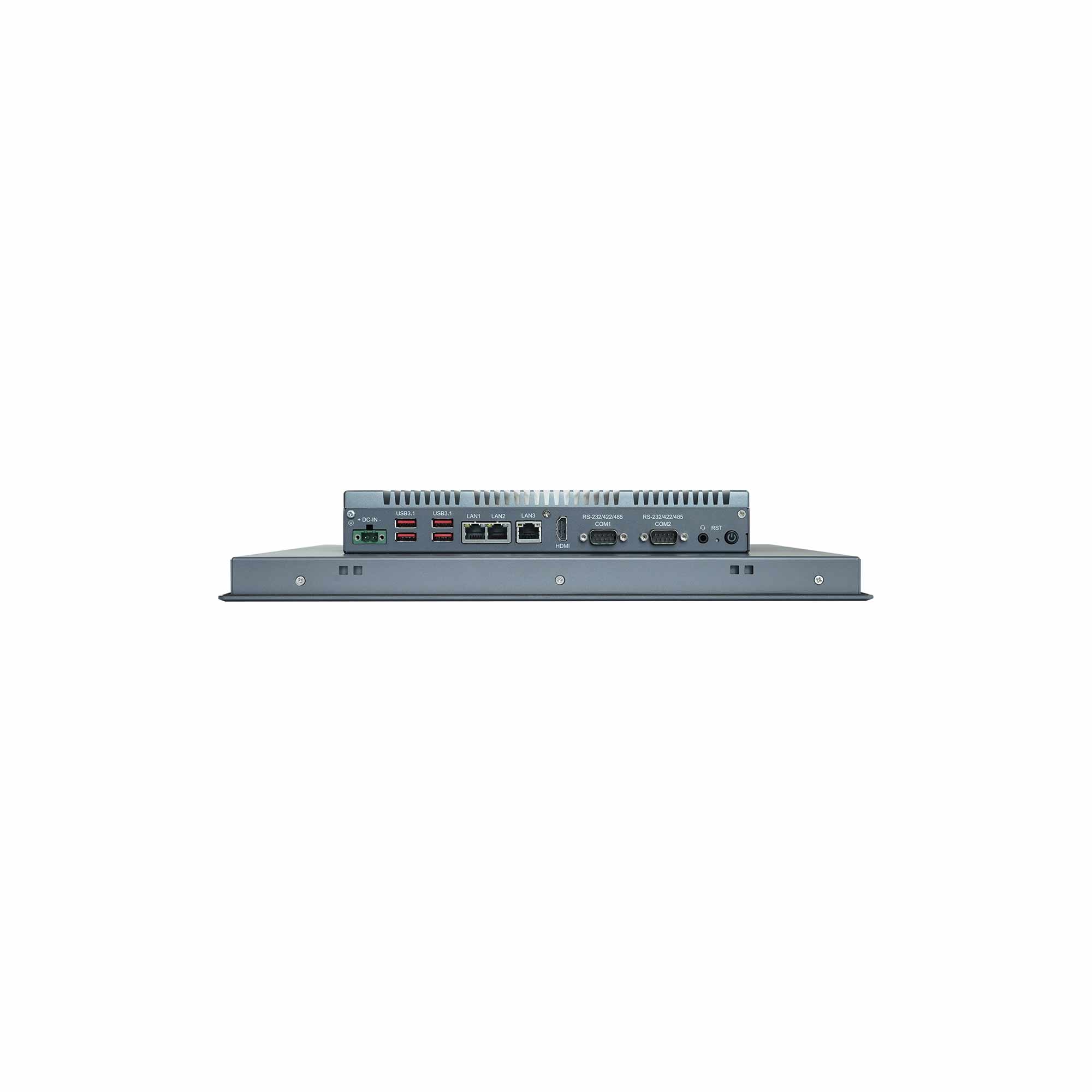

外部接口 External I/O
|
|
串口 COM
|
2 x RS232/422/485 (COM1/2) with DB9 2 x RS232/RS485, 2 x RS232 with 12PIN Phoenix connector
|
|
USB
|
4 x USB 3.1
|
|
网口 Ethernet
|
1 x RJ45 Intel® I226V Gbe (10/100/1000 Mbps) 2 x RJ45 Intel® I210-AT Gbe (10/100/1000 Mbps)
|
|
显示 Video
|
1 x HDMI (up to 4096 x 2304@60Hz)
|
|
音频 Audio
|
1 x Audio(Line-out&Mic-in 2 in 1), ALC888S 2 x Speaker 4Ω3W
|
|
重置Reset
|
1 x OS reset
|
|
开关按键Power bottom
|
1 x Power button W/LED (System 上电 -LED OFF/Power ON LED ON/
Power OFF-LED OFF)
|
|
远程开关 Remote ON-OFF
|
1 x Remote ON-OFF
|
|
电源输入 Power Input
|
1 x Power Connector (2P Phoenix)
|
|
内部接口 Internal I/O
|
|
扩展Expansion
|
1 x Mini-PCIe (PCIe/USB2.0 signal supported)
1 x M.2 Key-E 2230 slot (WiFi +BT supported)
1 x SIM socket
1 x 8Bit GPIO
|
|
环境 Environmental
|
|
操作温度 Operation Temp.
|
-10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD)
|
|
存储温度 Storage Temp.
|
-40℃ ~ 70℃
|
|
湿度 Relative Humidity
|
5% ~ 95%, 非凝结状态 Non-condensing
|
|
随机振动 Random Vibration
|
5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation
|
|
正弦振动 Sine Vibration
|
5~500Hz, 2G Non-operation
|
|
机械冲击 Shock
|
10g 11ms operation, 30g 11ms Non-operation
|
|
前面板防护 Ingress Protection
|
Front panel IP66
|
|
电源 Power
|
|
电源输入 Power Input
|
10-36V DC
|
|
机构 Mechanical
|
|
前框 Front Panel
|
铝 Aluminum
|
|
铝挤 Heat-Sink
|
铝 Aluminum
|
|
底板 Rear Cover
|
铁 SECC
|
|
安装方式 Mounting
|
Panel Mount, Wall and VESA-mount (100 x 100mm)
|
|
尺寸 Dimension
|
CEP-15RS-TGLU: 351.6(W) x 275.6(H) x 61.4(D)mm
CEP-15RS-TGLJ: 385.6(W) x 293(H) x 66(D)mm
|
|
建议开孔尺寸Cut Out
|
CEP-15RS-TGLU: 341.4 x 265.4mm
CEP-15RS-TGLJ: 372 x 280mm
|
|
重量 Weight
|
CEP-15RS-TGLU: 4.6Kg
CEP-15RS-TGLJ: 4.66Kg
|
|
认证 Certification
|
|
安规认证 Safety Certification
|
FCC/CE/CCC
|
|
■ 配置 Configuration
|
|
型号 Model
|
处理器 CPU
|
|
CEP-15RS-111A
|
Intel® Core™i3-1115G4 3.0G (6M Cache,up to 4.1GHz)
|
|
CEP-15RS-113A
|
Intel® Core™ i5-1135G7 2.4G (8M Cache,up to 4.2GHz)
|
|
CEP-15RS-116A
|
Intel® Core™ i7-1165G7 2.8G (12M Cache,up to 4.7GHz)
|
|
CEP-15RS-114A
|
Intel® Core™ i5-1145G7E 1.5G (8M Cache, up to 4.1GHz)
|
|
CEP-15RS-111J (2)
|
Intel® Core™ i3-1115G4 3.0G (6M Cache,up to 4.1GHz)
|
|
CEP-15RS-113J
|
Intel® Core™ i5-1135G7 2.4G (8M Cache,up to 4.2GHz)
|
|
CEP-15RS-116J
|
Intel® Core™ i7-1165G7 2.8G (12M Cache,up to 4.7GHz)
|
|
CEP-15RS-114J
|
Intel® Core™ i5-1145G7E 1.5G (8M Cache, up to 4.1GHz)
|
|
■ 订购清单 Order List
|
|
标配
Standard
|
型号 Model
|
描述 Description
|
|
34046QH00-GLA-G
|
1 x 2P DC in Phoenix conn(5.00), female
|
|
2G151DT00-HUH-G
|
1 x M2-2242 thermal-pad
|
|
2G151DS00-HUH-G
|
1 x Memory thermal-pad
|
|
2A583SB00-G7D-G
|
4 x M3*4 SCREW for HDD
|
|
2A5868R00-G7D-G
|
4 x M4*8 SCREW for VESA
|
|
1A03DV400-88A-G
|
1 x panel hook（4pcs in 1 package）
|
|
34046QJ00-600-G
|
1 x Conn,3.5mm,PA,DIP-2,FIT,TEPE123-11G00-DF
|
|
选配
Optional
|
型号 Model
|
描述 Description
|
|
CTO-090W-HK00
|
Adapter, 100V-240V, 12V, 90W, 2PIN 凤凰端子头, 1.5M, HK
|
|
CTO-090W-LT00
|
Adapter,100V-240V, 12V, 90W, 2PIN 凤凰端子头, 1.5M, LT
|
