■ 规格 Specification
|
|
|
系统 System
|
|
处理器 Processor
|
Intel®Elkhart Lake Celeron®J6412 processor (2.00 GHz)
|
|
内存 Memory
|
1 x DDR4 3200hz SO-DIMM slot, up to 32GB
|
|
存储 Storage
|
1 x M.2 2242 SSD slot
1 x 2.5' HDD（选配）
|
|
图形 Graphics
|
Intel UHD Graphics 16 EUs
|
|
操作系统 OS
|
Windows 10, Linux
|
|
看门狗定时器 Watchdog Timer
|
Programmable 255 levels timer interval, from 1~255 sec/min
|
|
显示屏 Display
|
|
尺寸 Size
|
15.6 inches
|
|
分辨率 Resolution
|
1920(H) x 1080(V)
|
|
屏幕宽高比 Ratio
|
16:9
|
|
亮度 Brightness
|
250 nits
|
|
可视角 Viewing Angle
|
89/89/89/89 (Typ.)(CR ≥ 10)
|
|
对比度 Contrast Ratio
|
700
|
|
背光 Backlight
|
LED Backlight
|
|
背光寿命 Backlight Lifetime
|
15000Hrs
|
|
触摸屏 Touchscreen
|
|
触摸屏 Touch Type
|
10 点投射式电容屏 P-cap Multi-Touch
|
|
触击 Touch
|
35,000,000 times
|
|

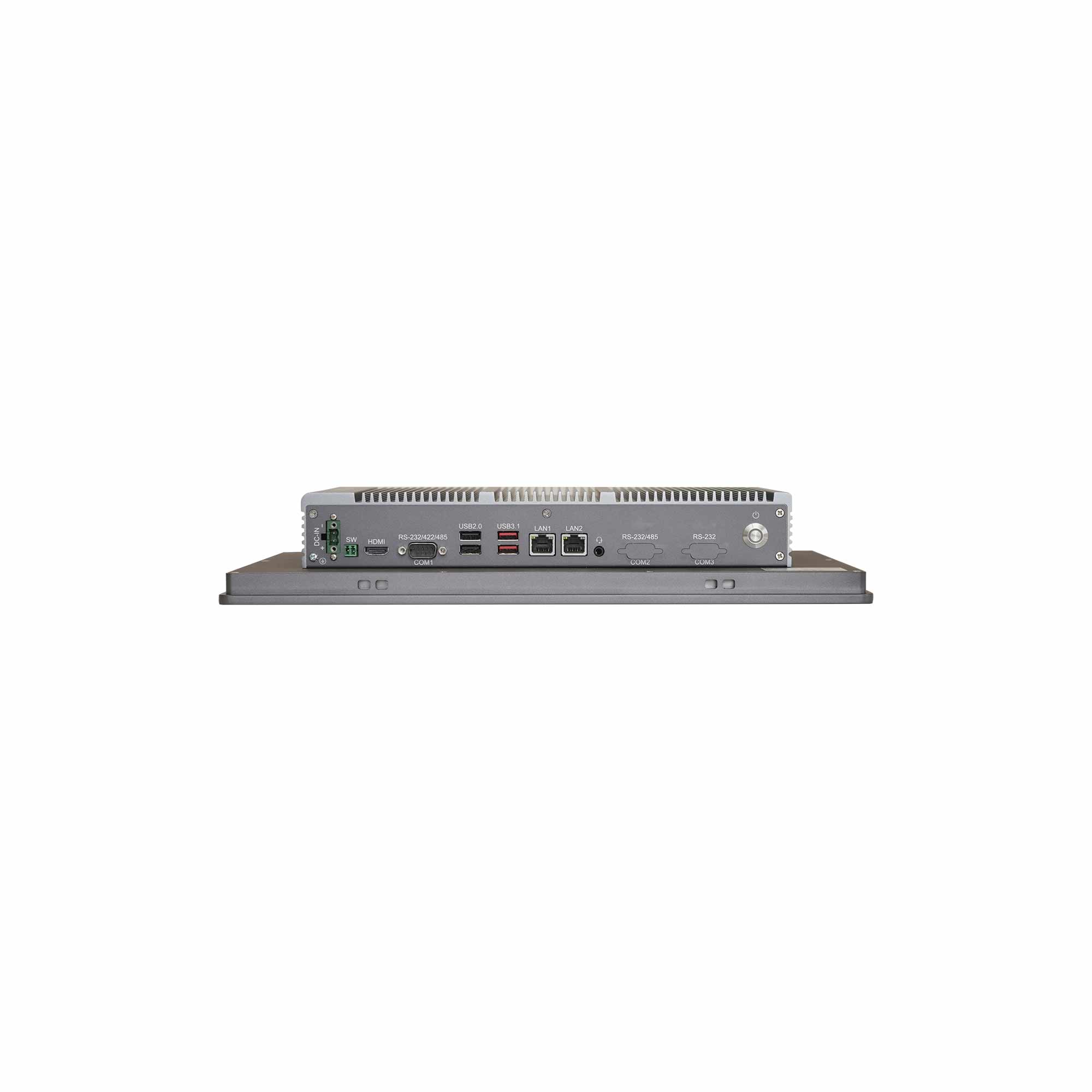

外部接口 External I/O
|
|
串口 COM
|
1 x RS232/RS422/RS485-COM1
1 x RS232(default)/RS485(Jumper)-COM2 /1xRS232-COM3（COM2/3 选配）
|
|
USB
|
2 x USB2.0, 2 x USB3.1
|
|
网口 Ethernet
|
2 x RJ45, Intel® I226V GbE (10/100/1000 Mbps)
|
|
显示 Video
|
1 x HDMI (up to 4K resolution)
|
|
音频 Audio
|
1 x Audio(Line-out&Mic-in 2 in 1),Realtek® ALC888S HD Audio codec
4Ω3W speaker x 2（选配）
|
|
重置Reset
|
1 x Remote ON-OFF
|
|
电源输入 Power Input
|
1 x Power Connector (2P Phoenix)
|
|
内部接口 Internal I/O
|
|
扩展Expansion
|
1 x Mini-PCIe slot (PCIe &USB2.0 signal supported)
1 x M.2 2230 slot (WiFi supported)
1 x SIM socket
1 x 8bit GPIO 3.3V(jumper)/5V(default) power
|
|
环境 Environmental
|
|
操作温度 Operation Temp.
|
0℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD)
|
|
存储温度 Storage Temp.
|
-40℃ ~ 70℃
|
|
湿度 Relative Humidity
|
5% ~ 95%, 非凝结状态 Non-condensing
|
|
随机振动 Random Vibration
|
5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation
|
|
正弦振动 Sine Vibration
|
5~500Hz, 2G Non-operation
|
|
机械冲击 Shock
|
10g 11ms operation, 30g 11ms Non-operation
|
|
前面板防护 Ingress Protection
|
Front panel IP66
|
|
电源 Power
|
|
电源输入 Power Input
|
12V 5V 60W 适配器
|
|
机构 Mechanical
|
|
前框 Front Panel
|
铝 Aluminum
|
|
铝挤 Heat-Sink
|
铝 Aluminum
|
|
底板 Rear Cover
|
铁 SECC
|
|
安装方式 Mounting
|
Panel Mount, Wall and VESA-mount (75 x 75mm)
|
|
尺寸 Dimension
|
395 x 245.5 x 66mm
|
|
重量 Weight
|
387 x 237.5mm
|
|
安装方式 Mounting
|
4Kg
|
|
认证 Certification
|
|
安规认证 Safety Certification
|
CCC/CE/FCC
|
|
■ 配置 Configuration
|
|
型号 Model
|
网口
|
USB
|
COM
|
Speaker
|
支持存储类型
|
|
CEP-15PW-J64M1
|
2
|
4
|
1
|
无
|
1*M.2 2242
|
|
CEP-15PW-J64M2
|
2
|
4
|
3
|
有
|
1*M.2 2242+1*2.5 寸
|
|
■ 订购清单 Order List
|
|
标配
Standard
|
型号 Model
|
描述 Description
|
|
34046QJ00-600-G
|
Conn,3.5mm,PA,DIP-2 for SW
|
|
1A03DV400-88A-G
|
panel hook（4pcs in 1 package）
|
|
CTO-060W-LT00
|
CEA-060W-LT00,LITEON 60W adapter,150cm power cord
|
|
选配
Optional
|
型号 Model
|
描述 Description
|
|
35074RQ00-JTU-G（CEP-15PW-J64M2 选配）
|
SATA Power data cable,150mm,+/-10mm
|
