CEP-12XS-H11I

■ 规格 Specification

系统 System

处理器 Processor

Intel® H110 芯片组，支持 6th Generation Intel® Core ™ i7/i5/i3 处理器
（LGA1151）TDP 35W

内存 Memory

2 x SO-DIMM Slot, DDR4 1866/2133MHz, up to 32GB，优先装上面卡槽

存储 Storage

1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot

图形 Graphics

Intel® HD Graphics 530

操作系统 OS

Windows 7, Windows 10, Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval，from 1~255 sec/min

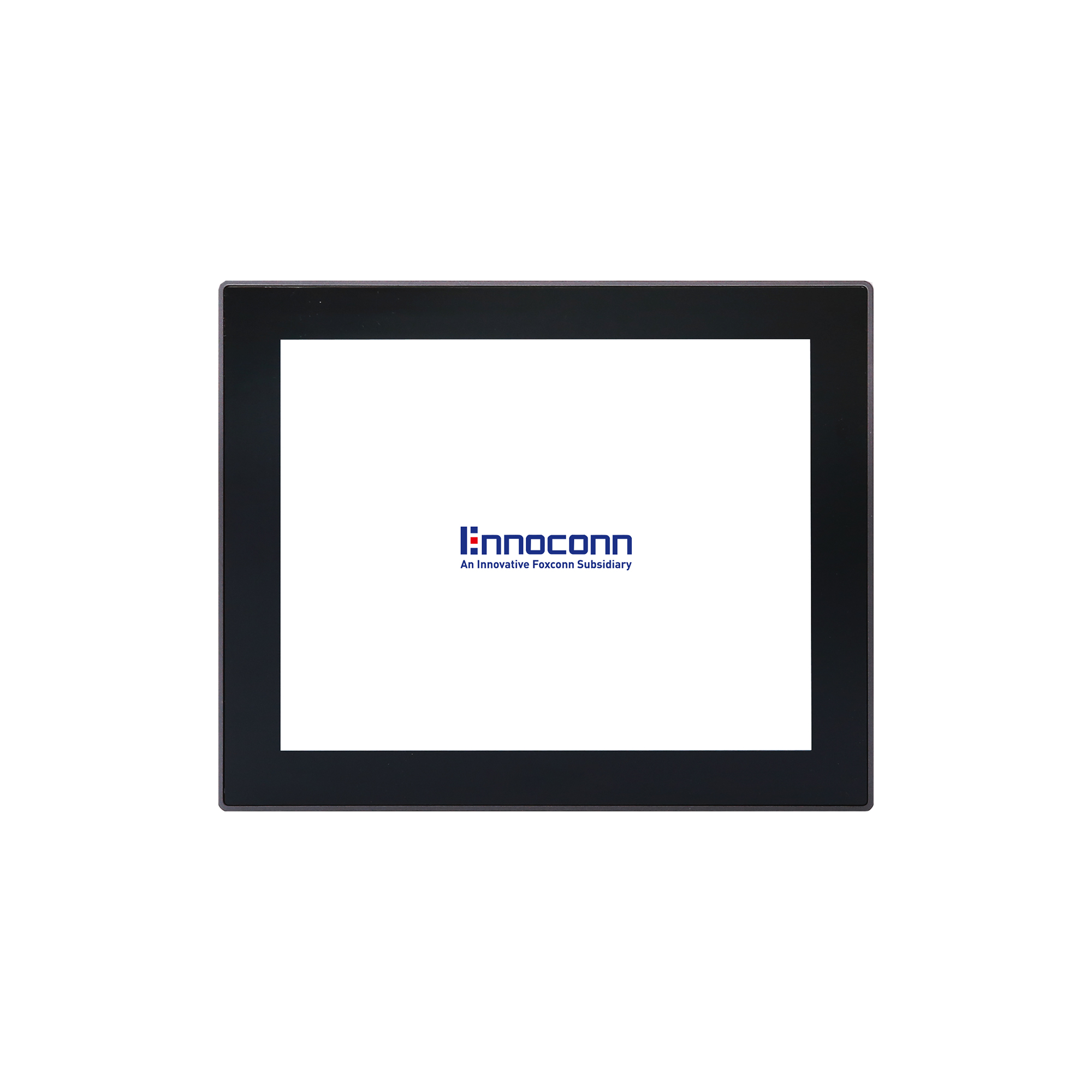

显示屏 Display

尺寸 Size

12.1 inches

分辨率 Resolution

1024(H) x 768(V)

屏幕宽高比 Ratio

4:3

亮度 Brightness

450 nits

可视角 Viewing Angle

CR ≥ 10, 80° (T)/80° (B)/80° (L)/80° ®

对比度 Contrast Ratio

700

背光 Backlight

LED Backlight

背光寿命 Backlight Lifetime

50000Hrs

触摸屏 Touchscreen

触摸屏 Touch Type

10 点投射式电容屏(CEP-12PS-H11I)
全平面五线电阻屏(CEP-12RS-H11I)

触击 Touch

35,000,000 times

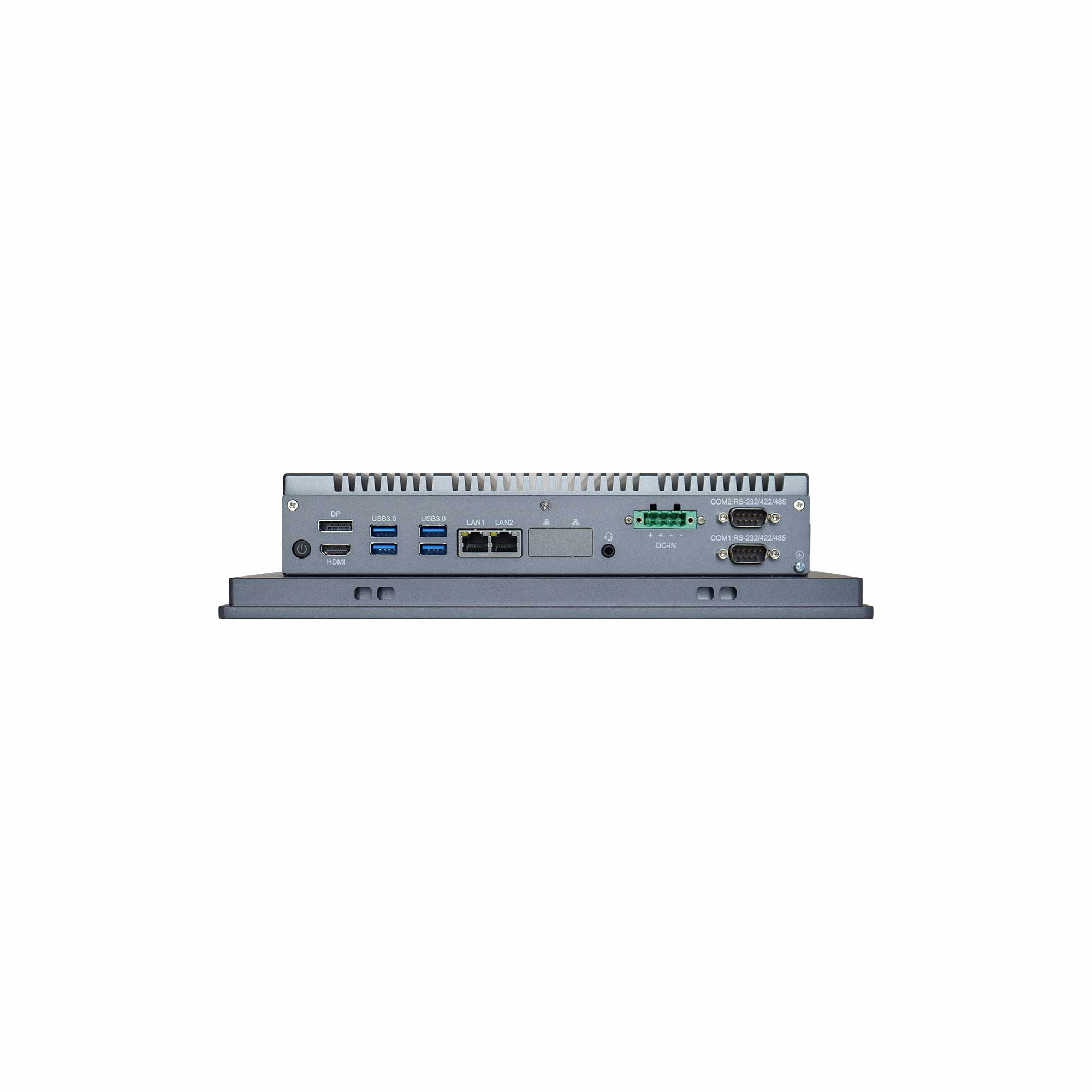

外部接口 External I/O

串口 COM

2 x COM RS485/232/422( 三级防护), 2 x COM RS485/232/422( 可选)

USB

4 x USB 3.0

网口 Ethernet

1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps)
 1 x RJ45 Intel® I210AT GbE (10/100/1000 Mbps)

显示 Video

1 x HDMI (up to 4096 x 2304@24hz)
1 x DP (up to 4096x2304@60Hz)

音频 Audio

1 x Audio(Line-out&Mic-in 2 in 1),Realtek® ALC888S HD Audio codec
2 x Speaker 3W4Ω

开关按键Power bottom

1 x Power bottom W/LED

远程开关 Remote ON-OFF

1 x Remote off(SW)

电源输入 Power Input

1 x Power Connector (4P Phoenix)

内部接口 Internal I/O

扩展Expansion

1 x M.2 Key-E 2230 slot
1 x Mini PCIE slot
1 x SIM socket
2 x RS485/232/422(Pin Header 浪涌（冲击）抗扰度 +/- 2KV)
1 x 8 bit GPIO (Pin Header)

环境 Environmental

操作温度 Operation Temp.

-10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD)
 0℃ ~ 40℃ with 0.7 m/s air flow (HDD)

存储温度 Storage Temp.

-40℃ ~ 70℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

随机振动 Random Vibration

5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation

正弦振动 Sine Vibration

5~500Hz, 2G Non-operation

机械冲击 Shock

10g 11ms operation, 30g 11ms Non-operation

前面板防护 Ingress Protection

Front panel IP66

电源 Power

电源输入 Power Input

10-36V DC

机构 Mechanical

前框 Front Panel

铝 Aluminum

铝挤 Heat-Sink

铝 Aluminum

底板 Rear Cover

铁 SECC

安装方式 Mounting

Panel Mount, Wall and VESA-mount (100 x 100mm)

尺寸 Dimension

307 x 241.6 x 69.2mm

建议开孔尺寸Cut Out

299 x 233.6mm

重量 Weight

4.19Kg

认证 Certification

安规认证 Safety Certification

CCC/CE/FCC

■ 配置 Configuration

型号 Model

处理器 CPU

CEP-12RS-H11I

Intel® H110 芯片组 12.1

CEP-12PS-H11I

Intel® H110 芯片组 12.1

■ 订购清单 Order List

标配
Standard

型号 Model

描述 Description

34046YV00-67Y-G

1 x 4P DC in Phoenix connect

2T71CD500-JWQ-G

1 x Panel hook（4pcs in 1 package）

2G151DT00-HUH-G

1 x M2-2242 thermal-pad

2G151DS00-HUH-G

1 x Memory thermal-pad

2G151HY00-KDH-G

1 x CPU thermal-pad

2A583SB00-G7D-G

4 x M3*4 SCREW for HDD

2A5868R00-G7D-G

4 x M4*8 SCREW for VESA

选配
Optional

型号 Model

描述 Description

CTO-150W-LT00

Lite-on150W 适配器+1.5 米powercord
