CEP-12xS-H61E
12英寸 LED背光显示屏，前面框支持IP66防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级全平面10点投射式电容屏或全平面五线电阻屏设计
支持无线、蓝牙、4G功能扩展
支持4个千兆网口
宽压19-24V DC-IN，可锁附凤凰端子接口
支持远程开关
产品外壳接地保护, 串口防浪涌+/-2KV
内置1 x 2.5寸HDD/SSD可扩充支架
内置2个3W4Ω Speaker
支持标准VESA及嵌入式安装方式
|
■ 规格 Specification |
|
||||
|
系统 System |
|||||
|
处理器 Processor |
Intel® H610 芯片组，支持12th/13th/14thGeneration Intel® Core™ i9/ i7/i5/i3 处理器（LGA1700）TDP 65W |
||||
|
芯片组 Chipset |
Intel® H610 Chipset |
||||
|
内存 Memory |
1 x SO-DIMM Slot DDR5 4800MHz, up to 32GB |
||||
|
存储 Storage |
1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot |
||||
|
图形 Graphics |
Intel® UHD Graphics 770 |
||||
|
操作系统 OS |
Windows10, Windows 11, Linux |
||||
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval，from 1~255 sec/min |
||||
|
显示屏 Display |
|||||
|
尺寸 Size |
12.1 inches |
||||
|
分辨率 Resolution |
1024(H) x 768(V) |
||||
|
屏幕宽高比 Ratio |
4:3 |
||||
|
亮度 Brightness |
450 nits |
||||
|
可视角 Viewing Angle |
CR≥10, 80°(T)/80°(B)/80°(L)/80°(R) |
||||
|
对比度 Contrast Ratio |
700 |
||||
|
背光 Backlight |
LED Backlight |
||||
|
背光寿命 Backlight Lifetime |
50000Hrs |
||||
|
触摸屏 Touchscreen |
|||||
|
触摸屏 Touch Type |
全平面五线电阻屏 5-Wire Resistive Touch；10点投射式电容屏 P-cap Multi-Touch |
||||
|
触击 Touch |
35,000,000 times；35,000,000 times |
||||
|

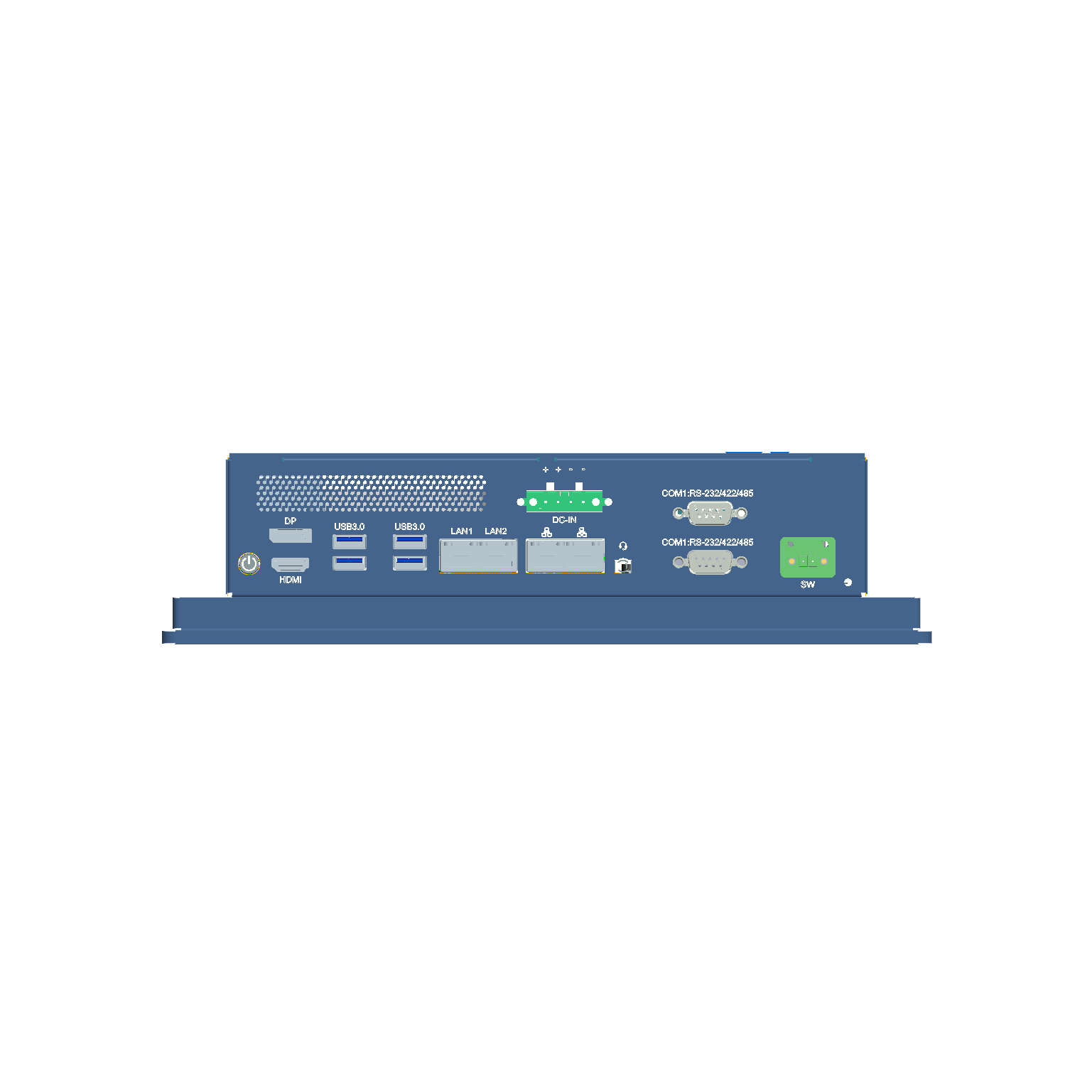

外部接口 External I/O |
|||||
|
串口 COM |
2 x COM RS485/422/232 (COM1~COM2) |
||||
|
USB |
2 x USB3.2（Gen2） 2 x USB3.2（Gen1） |
||||
|
网口 Ethernet |
1 x RJ45 I210AT LAN for 10/100/1000 Mbps |
||||
|
显示 Video |
1 x HDMI: 最大分辨率 4096x2160@24Hz |
||||
|
音频 Audio |
1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC888S HD Audio codec |
||||
|
开关按键Power bottom |
1 x Power bottom W/LED |
||||
|
远程开关 Remote ON-OFF |
1 x remote off (SW) |
||||
|
电源输入 Power Input |
1 x Power Connector (4P Phoenix) |
||||
|
内部接口 Internal I/O |
|||||
|
扩展Expansion |
1 x M.2 Key-E 2230 slot |
||||
|
环境 Environmental |
|||||
|
操作温度 Operation Temp. |
-10℃ ~ 50℃ with 0.7m/s air flow (with 65W CPU and industrial SSD) |
||||
|
存储温度 Storage Temp. |
-40℃ ~ 70℃ |
||||
|
湿度 Relative Humidity |
5% ~ 95%, 非凝结状态 Non-condensing |
||||
|
随机振动 Random Vibration |
5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation |
||||
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
||||
|
机械冲击 Shock |
10g 11ms operation, 30g 11ms Non-operation |
||||
|
前面板防护 Ingress Protection |
Front panel IP66 |
||||
|
电源 Power |
|||||
|
电源输入 Power Input |
19-24V DC |
||||
|
机构 Mechanical |
|||||
|
前框 Front Panel |
铝 Aluminum |
||||
|
后盖 Back cover |
铁 SECC |
||||
|
底板 Rear Cover |
铁 SECC |
||||
|
安装方式 Mounting |
Panel Mount, Wall and VESA-mount (100 x 100mm) |
||||
|
尺寸 Dimension |
307(W) x 241.6(H) x 76.6(D)mm |
||||
|
建议开孔尺寸Cut Out |
299 x 233.6mm |
||||
|
重量 Weight |
4.19Kg |
||||
|
认证 Certification |
|||||
|
安规认证 Safety Certification |
CE/FCC/CCC |
||||
|
■ 配置 Configuration |
|||||
|
型号 Model |
处理器 CPU |
||||
|
CEP-12RS-H61E |
Intel® H610 芯片组, 12' 全平面五线电阻屏, 4:3, 1024(H) x 768(V) |
||||
|
CEP-12PS-H61E |
Intel® H610 芯片组, 12' 全平面10点投射式电容屏, 4:3, 1024(H) x 768(V) |
||||
|
■ 订购清单 Order List |
|||||
|
标配 |
型号 Model |
描述 Description |
|||
|
46010T600-JV0-G |
1*CPU Cooler 5500RPM |
||||
|
34046YV00-67Y-G |
1 x 4Pin DC in Phoenix connect |
||||
|
34046QJ00-600-G |
1 x 2Pin Remote off Phoenix connect |
||||
|
2T71CD400-JWQ-G |
1 x Panel hook（4pcs in 1 package） |
||||
|
2G151VC00-3JM-G |
1 x Memory thermal-pad |
||||
|
2G151VA00-3JM-G |
1 x M2-2242 thermal-pad |
||||
|
2G151HY00-KDH-G |
1 x CPU thermal-pad |
||||
|
2A5868R00-G7D-G |
4 x M4*8 SCREW for VESA |
||||
|
选配 |
型号 Model |
描述 Description |
|||
|
CTO-150W-LT00 |
100V-240V, 19.5V 150W power adapter 4pin phoenix connector, 1.5m Powercode |
||||
