■ 规格 Specification
|
|
|
系统 System
|
|
处理器 Processor
|
Intel® H110 芯片组，支持 6th Generation Intel® Core ™ i7/i5/i3 处理器（LGA1151）TDP 65W
|
|
芯片组 Chipset
|
Intel® H110 Chipset
|
|
内存 Memory
|
2 x SO-DIMM Slot, DDR4 1866/2133MHz, up to 32GB（优先装上面卡槽）
|
|
存储 Storage
|
1 x 2.5"SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot
|
|
图形 Graphics
|
Intel® HD Graphics 530
|
|
操作系统 OS
|
Windows 7, Windows 10, Linux
|
|
看门狗定时器 Watchdog Timer
|
Programmable 255 levels timer interval，from 1~255 sec/min
|
|
显示屏 Display
|
|
尺寸 Size
|
12.1 inches
|
|
分辨率 Resolution
|
1024(H) x 768(V)
|
|
屏幕宽高比 Ratio
|
4:3
|
|
亮度 Brightness
|
450 nits
|
|
可视角 Viewing Angle
|
CR ≥ 10, 80° (T)/80° (B)/80° (L)/80° ®
|
|
对比度 Contrast Ratio
|
700
|
|
背光 Backlight
|
LED Backlight
|
|
背光寿命 Backlight Lifetime
|
50000Hrs
|
|
触摸屏 Touchscreen
|
|
触摸屏 Touch Type
|
10 点投射式电容屏 P-cap Multi-Touch；全平面五线电阻屏5-Wire Resistive Touch
|
|
触击 Touch
|
35,000,000 times；35,000,000 times
|
|

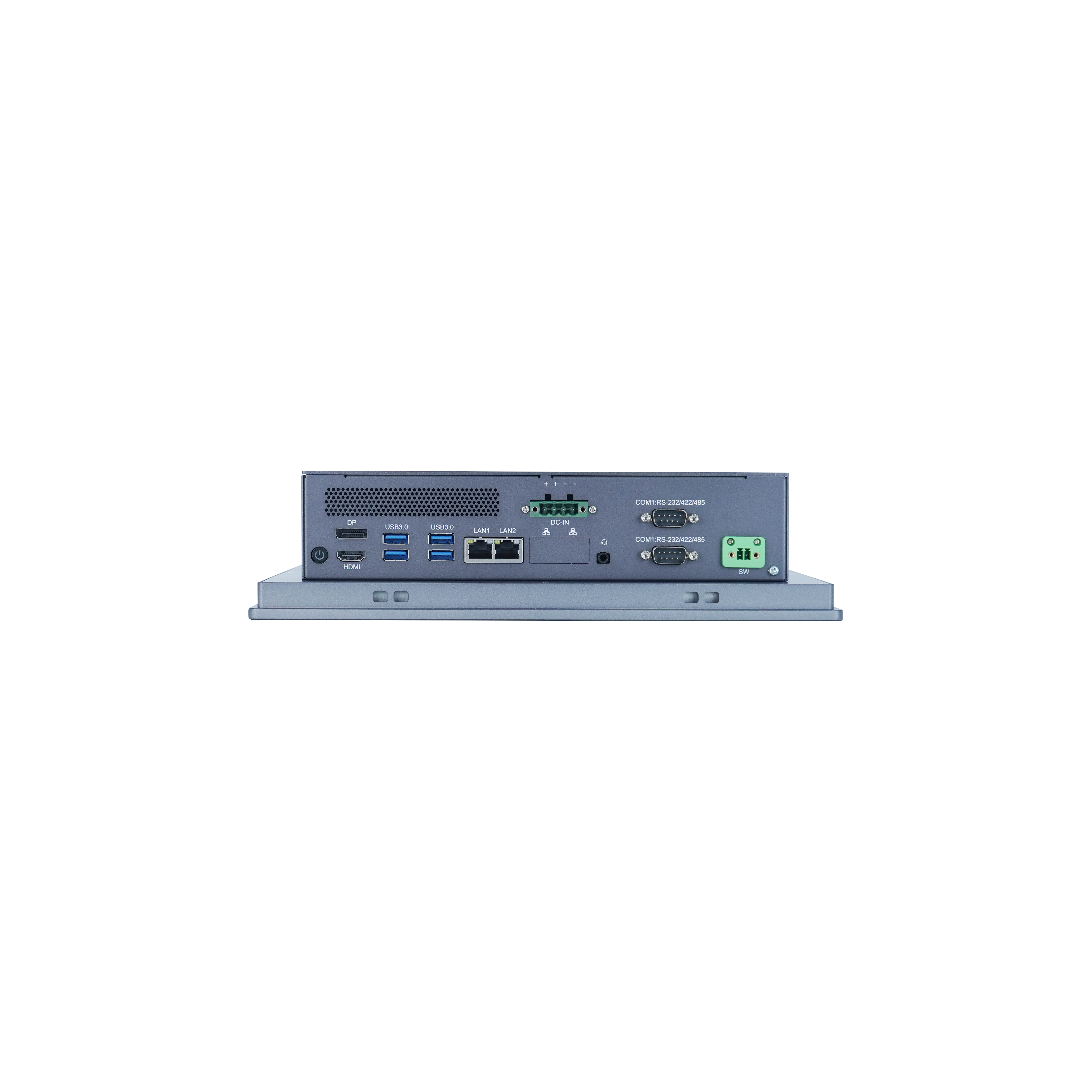

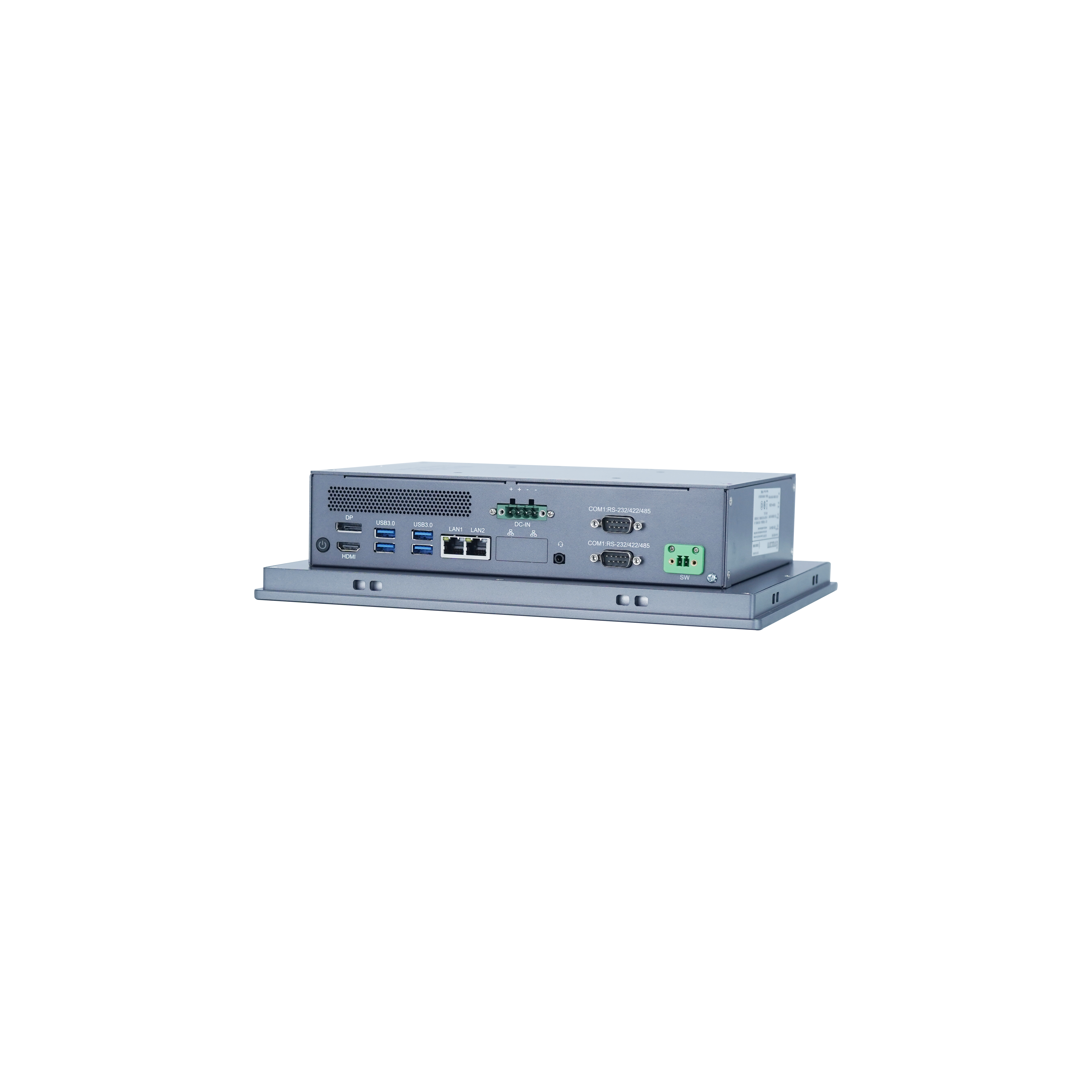

外部接口 External I/O
|
|
串口 COM
|
2 x COM RS485/232/422( 三级防护), 2 x COM RS485/232/422( 可选)
|
|
USB
|
4 x USB 3.0
|
|
网口 Ethernet
|
1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps)
1 x RJ45 Intel® I210AT GbE (10/100/1000 Mbps)
|
|
显示 Video
|
1 x HDMI (up to 4096 x 2304@24hz) 1 x DP (up to 4096x2304@60Hz)
|
|
音频 Audio
|
1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC888S HD Audio codec
2 x Speaker 3W4Ω
|
|
开关按键Power bottom
|
1 x Power bottom W/LED
|
|
远程开关 Remote ON-OFF
|
1 x remote off (SW)
|
|
电源输入 Power Input
|
1 x Power Connector (4P Phoenix)
|
|
内部接口 Internal I/O
|
|
扩展Expansion
|
1 x M.2 Key-E 2230 slot
1 x Mini PCIE slot
1 x SIM socket
2 x RS485 (COM5~6, Pin Header)
1 x 8 bit GPIO (Pin Header)
|
|
环境 Environmental
|
|
操作温度 Operation Temp.
|
-10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD)
0℃ ~ 40℃ with 0.7 m/s air flow (HDD)
|
|
存储温度 Storage Temp.
|
-40℃ ~60℃
|
|
湿度 Relative Humidity
|
5% ~ 95%, 非凝结状态 Non-condensing
|
|
随机振动 Random Vibration
|
5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation
|
|
正弦振动 Sine Vibration
|
5~500Hz, 2G Non-operation
|
|
机械冲击 Shock
|
10g 11ms operation, 30g 11ms Non-operation
|
|
前面板防护 Ingress Protection
|
Front panel IP66
|
|
电源 Power
|
|
电源输入 Power Input
|
10-36V DC
|
|
机构 Mechanical
|
|
前框 Front Panel
|
铝 Aluminum
|
|
铝挤 Heat-Sink
|
铝 Aluminum
|
|
底板 Rear Cover
|
铁 SECC
|
|
安装方式 Mounting
|
Panel Mount, Wall and VESA-mount (100 x 100mm)
|
|
尺寸 Dimension
|
307x 241.6 x 76.6mm
|
|
建议开孔尺寸Cut Out
|
299x 233.6mm
|
|
重量 Weight
|
4.19Kg
|
|
认证 Certification
|
|
安规认证 Safety Certification
|
CE/FCC/CCC
|
|
■ 配置 Configuration
|
|
型号 Model
|
处理器 CPU
|
|
CEP-12RS-H11E
|
Intel® H110 芯片组 '12.1
|
|
CEP-12PS-H11E
|
Intel® H110 芯片组 '12.1
|
|
■ 订购清单 Order List
|
|
标配
Standard
|
型号 Model
|
描述 Description
|
|
34046YV00-67Y-G
|
1 x 4P DC in Phoenix connect
|
|
2T71CD500-JWQ-G
|
1 x Panel hook（4pcs in 1 package）
|
|
2G151DT00-HUH-G
|
1 x M2-2242 thermal-pad
|
|
2G151DS00-HUH-G
|
1 x Memory thermal-pad
|
|
2G151HY00-KDH-G
|
1 x CPU thermal-pad
|
|
2A583SB00-G7D-G
|
4 x M3*4 SCREW for HDD
|
|
460207W00-JV0- G
|
Fan,5500RPM,77mm*75mm*15.4mm,3W,12V,
|
|
2A5868R00-G7D-G
|
4 x M4*8 SCREW for VESA
|
|
选配
Optional
|
型号 Model
|
描述 Description
|
|
CTO-150W-LT00
|
Lite-on150W 适配器+1.5 米powercord
|
