■ 规格 Specification
|
|
|
系统 System
|
|
处理器 Processor
|
Intel® Core ™ i3-7100U Processor (2.4GHz)
Intel® Core ™ i5-7200U Processor (2.5GHz, up to 3.1GHz)
Intel® Core™ i7-7600U Processor (2.8GHz, up to 3.9GHz)
|
|
内存 Memory
|
1 x DDR4 1866/2133MHz SO-DIMM, Up to 16 GB
|
|
存储 Storage
|
1 x 2.5" Drive Bay for SATA3.0 HDD/SSD
1 x M.2 2242 SSD slot, 1 x mSATA
|
|
图形 Graphics
|
Intel® HD Graphics 620
|
|
操作系统 OS
|
Windows 7/8.1/10, Linux
|
|
看门狗定时器 Watchdog Timer
|
Programmable 255 levels timer interval, from 1~255 sec/min
|
|
显示屏 Display
|
|
尺寸 Size
|
15 inches
|
|
分辨率 Resolution
|
1024(H) x 768(V)
|
|
屏幕宽高比 Ratio
|
4:3
|
|
亮度 Brightness
|
300 nits
|
|
可视角 Viewing Angle
|
80° (T)/80° (B) 80° (L)/80° (R)
|
|
对比度 Contrast Ratio
|
800
|
|
背光 Backlight
|
LED Backlight
|
|
背光寿命 Backlight Lifetime
|
30000Hrs
|
|
机构 Mechanical
|
|
前框 Front Panel
|
铝 Aluminum
|
|
铝挤 Heat-Sink
|
铝 Aluminum
|
|
底板 Rear Cover
|
铁 SECC
|
|
安装方式 Mounting
|
Panel Mount, Wall and VESA-mount (75 x 75mm)
|
|

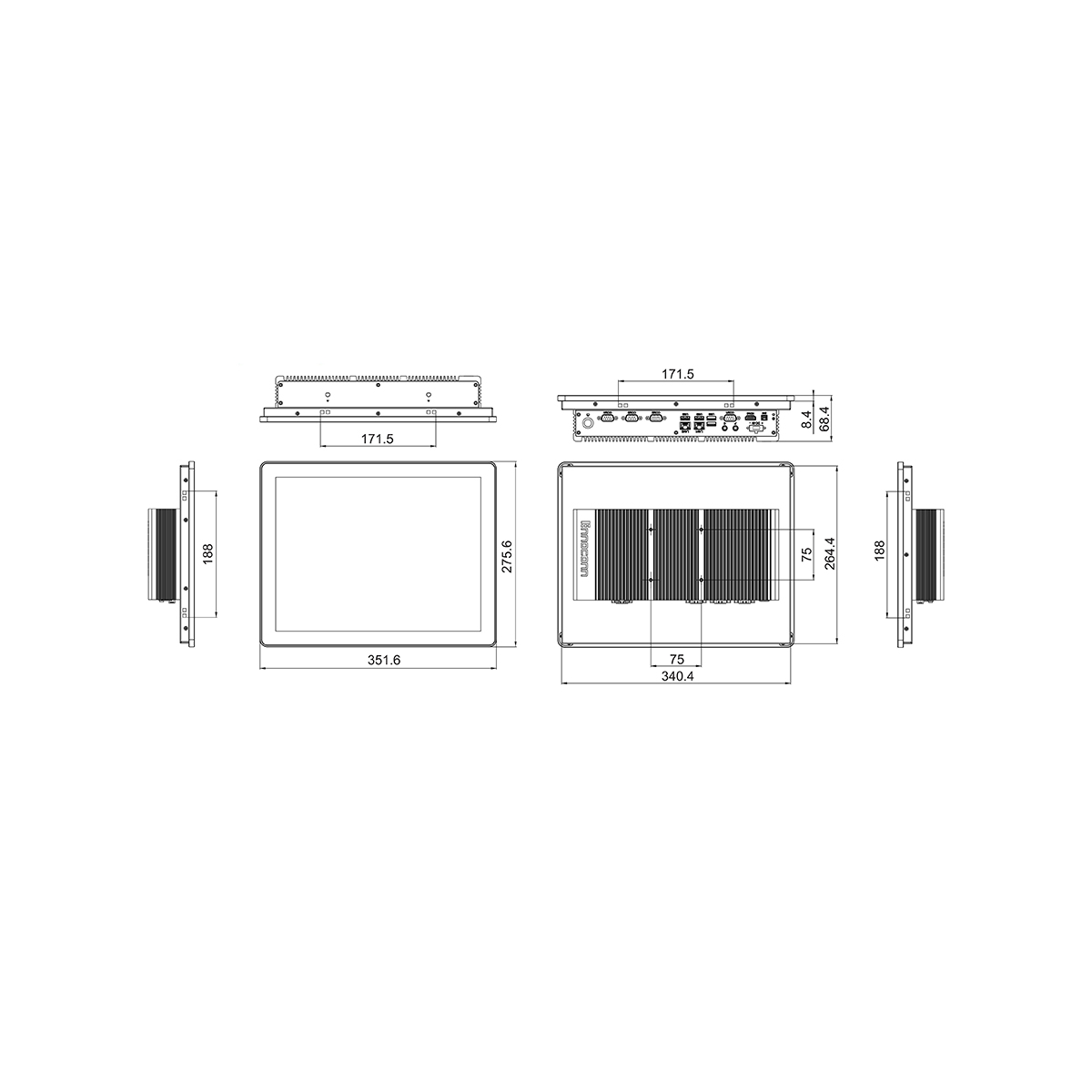

尺寸 Dimension
|
351.6(W) x 275.6(H) x 68.4(D)mm
|
|
建议开孔尺寸 Cut Out
|
341.4 x 265.4mm
|
|
重量 Weight
|
4.2kg
|
|
电源 Power
|
|
电源输入 Power Input
|
9~36V DC
|
|
触摸屏 Touchscreen
|
|
触摸屏 Touch Type
|
全平面五线电阻屏 5-Wire Resistive Touch
|
|
触击 Touch
|
35,000,000 times
|
|
外部接口 External I/O
|
|
串口 COM
|
2 x RS232/RS422/RS485(COM1~2）
2 x RS232(COM3 & COM4)
|
|
USB
|
2 x USB 2.0, 2 x USB 3.0
|
|
网口 Ethernet
|
1 x RJ45 Intel® I211AT (10/100/1000 Mbps)
1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps)
|
|
显示 Video
|
1 x HDMI (up to 4096 x 2160)
|
|
音频 Audio
|
1 x Audio (Line-out&Mic-in 2 in 1), Realtek® ALC269 HD Audio codec
|
|
远程开关 Remote ON-OFF
|
1 x Remote ON-OFF
|
|
电源输入 Power Input
|
1 x Power Connector (2P Phoenix)
|
|
内部接口 Internal I/O
|
|
扩展接口 Expansion
|
1 x Mini-PCIe slot (PCIe/SATA signal supported)
1 x M.2 2242 slot (PCIe/SATA signal supported)
1 x M.2 2230 slot (WiFi supported)
1 x SIM socket
|
|
环境 Environmental
|
|
操作温度 Operating Temp.
|
-10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD)
|
|
存储温度 Storage Temp.
|
-40℃ ~ 70℃
|
|
湿度 Relative Humidity
|
5% ~ 95%, 非凝结状态 Non-condensing
|
|
随机振动 Random Vibration
|
5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation
|
|
正弦振动 Sine Vibration
|
5~500Hz, 2G Non-operation
|
|
机械冲击 Shock
|
10g 11ms operation, 30g 11ms Non-operation
|
|
前面板防护 Ingress Protection
|
Front panel IP65
|
|
认证 Certification
|
|
安规认证 Safety Certification
|
CCC,CE, FCC
|
|
■ 配置Configuration
|
|
型号 Model
|
处理器 CPU
|
|
CEP-15RS-710A
|
Intel® Core ™ i3-7100U Processor (2.4GHz)
|
|
CEP-15RS-720A
|
Intel® Core ™ i5-7200U Processor (2.5GHz, up to 3.1GHz)
|
|
CEP-15RS-760A
|
Intel® Core™ i7-7600U Processor (2.8GHz, up to 3.9GHz)
|
|
■ 订购清单 Order List
|
|
标配
Standard
|
型号 Model
|
描述 Description
|
|
34046QH00-GLA-G
|
1x2P DC in Phoenix conn(5.00), female
|
|
35106A500-0R3-G
|
1x2P Remote conn(2.00), 300mm
|
|
35074RQ00-JTU-G
|
1xSATA, 7+4P,150mm, w/ lock, 180° / 90°
|
|
1A03DV400-88A-G
|
panel hook(4pcs in 1 package)
|
|
选配
Optional
|
型号 Model
|
描述 Description
|
|
CTO-060W-FSP0
|
CEA-060W-FSP0, FSP 60W adapter, 150cm power cord
|
|
CTO-060W-LT00
|
CEA-060W-LT00, LITEON 60W adapter, 150cm power cord
|
