CEP-15RS-Q37E

Intel® Coffee lake处理器
15寸 LED背光显示屏,前面框支持IP66防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级五线全平面电阻触摸屏
支持双千兆网口
支持WiFi/BT/4G/5G(可选)
宽压12~36V DC-IN, 可锁附凤凰端子接口
支持Reset 硬重启
产品外壳接地保护
内置1 x 2.5寸HDD/SSD可扩充支架
支持标准VESA及嵌入式安装方式
支持PCIe X16/PCIe X8/PCIe X4/PCIe X1扩展插槽
返回列表
联系我们
首页    CEP    CEP-15RS-Q37E

■ 规格 Specification

系统 System

处理器 Processor(可选)

IntelCeleron G4900T (2.9GHz)-2 cores/2 Cache
Intel®Core ™ i3-8100T Processor (3.1GHz)-4 cores/4 Cache
Intel®Core ™ i5-8500T Processor (2.1GHz, up to 3.5GHz)-6cores/6 Cache
Intel®Core ™ i7-8700T Processor (2.4GHz, up to 4.0GHz)-6 cores/12 Cache

存储 Storage

1 x 2.5" SATA3.0 HDD/SSD
1 x M.2 2280 SSD slot

内存 Memory

2 x DDR4 2400/2666 MHz SO-DIMM, up to 32 GB

图形 Graphics

Intel® UHD Graphics 610/630

操作系统 OS

Windows 10, Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

显示屏 Display

尺寸 Size

15 inches

分辨率 Resolution

1024(H) x 768(V)

屏幕宽高比 Ratio

4:03

亮度 Brightness

300 nits

可视角 Viewing Angle

80° (T)/80° (B) 80° (L)/80° (R)

对比度 度 Contrast Ratio

800

背光 Backlight

LED Backlight

背光寿命 Backlight Lifetime

30000Hrs

触摸屏 Touch Screen

触摸屏 Touch Type

全平面五线电阻屏 5-Wire Resistive Touch

触击 Touch

35,000,000 times

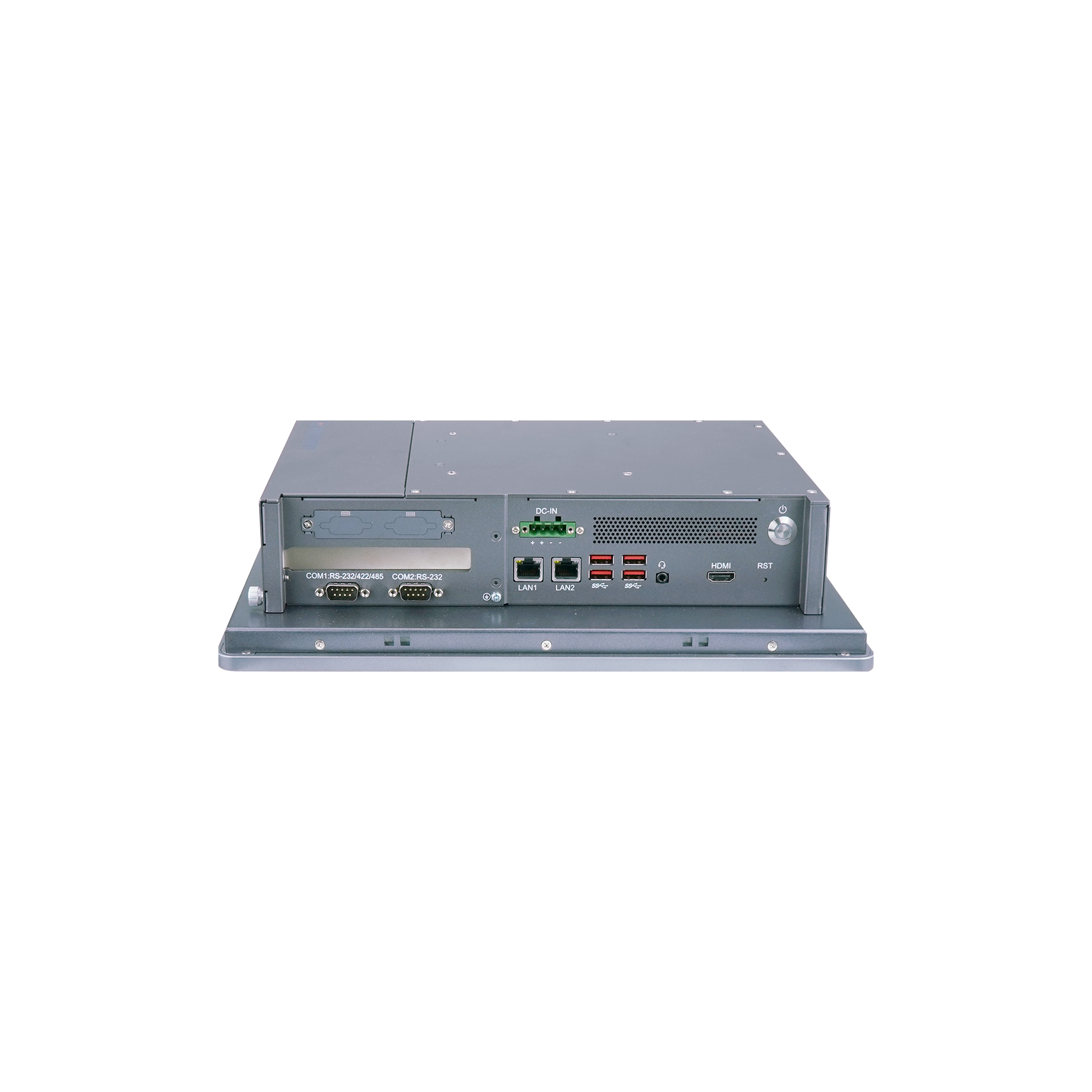

外部接口 External I/O

串口 COM

1 x RS232/RS422/RS485(COM1)
1x RS232

O-Door

2COM/2USB/1 GPIO optional

USB

4 x USB 3.0

网口 Ethernet

1 x RJ45 Intel® I211AT (10/100/1000 Mbps)
1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps)

显示 Video

1 x HDMI (up to 4096 x 2304@24hz)

音频 Audio

1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC888S-VD2-GR HD
Audio codec
2 x Speaker 4Ω3W

HW 重置 Reset

1 x HW reset

开关按键 Power bottom

1x Power bottom W/LED
( System 上电 -LED OFF/Power ON-LED ON/Power OFF-LED OFF)

电源输入 Power Input

1 x Power Connector (4P Phoenix)

内部接口 Internal I/O

扩展接口 Expansion

1 x PCIe X16 expansion Slot , PCIe Card dimension not larger
than174.55mm(W)x111.15mm(H)x30.71mm(D)
1 x 9Pin (SATA LED/Power LED/OS reset)
1 x M.2 Key-B 3052slot(4G/5G supported)
1 x M.2 Key-E 2230 slot (WiFi +BT supported)
1 x SIM socket
2 x USB3.0
2 x USB2.0
2 x RS232

环境 Environmental

操作温度 Operating Temp.

-10°C - 50°C with 0.7m/s air flow ( with 35W CPU and industrial SSD)
0°C - 40°C with 0.7m/s air flow (HDD)

存储温度 Storage Temp.

-40°C - 70°C (-40°F - 158°F)

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

随机振动 Random Vibration

5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation

正弦振动 Sine Vibration

5~500Hz, 2G Non-operation

机械冲击 Shock

10g 11ms operation, 30g 11ms Non-operation

前面板防护 Ingress Protection

Front panel IP66

机构 Mechanical

前框 Front Panel

铝 Aluminum

铝挤 Heat-Sink

铝 Aluminum

底板 Rear Cover

铁 SECC

安装方式 Mounting

Panel Mount, Wall and VESA-mount (100 x 100mm)

尺寸 Dimension

351.6(W) x 275.6(H) x84(D)mm

建议开孔尺寸 Cut Out

341.4 x 265.4mm

重量 Weight

4.7Kg

电源 Power

电源输入 Power Input

12~36V DC

认证 Certification

安规认证 Safety Certification

CCC

■ 配置 Configuration

型号 Model

处理器CPU

110115J00-187-G

Intel Celeron G4900T 2.9G

110113800-187-G

CORE 3.1G 6M 1151P 4CORE i3-8100T

110113600-187-G

CORE 2.1G 9M 6CORE i5-8500T

110113500-187-G

CORE 2.4G 12M 1151P 6CORE i7-8700T

■ 订购清单 Order List

标配
Standard

型号

配置信息

34046YV00-67Y-G

x 4P DC in Phoenix conn (5.00), female

49020L100-JV0-G

Fan,3500RPM,77mm*75mm*15.4mm,3W,12V,

1A03DV400-88A-G

panel hook(4pcs in1 package)

2G151DS00-HUH-G

57*12.5*1.5 thermal pad for Memory/SSD ( x 2pcs)

2G151HY00-KDH-G

30*30*1.5 thermal pad for CPU

2A583SB00-G7D-G

M3X4 SCREW for HDD( x4pcs)

2A5868R00-G7D-G

M4*8 SCREW for VESA( x4pcs)

86020D800-289-G

150W Liteon Adapter

350744V00-704-G

150cm AC power cord

351086700-JTU-G

COM Cable

CTO-2USB-ODOOR

Odoor W/ 2 USB

CTO-1GPIO-ODOOR

Odoor W/ 1 GPIO
