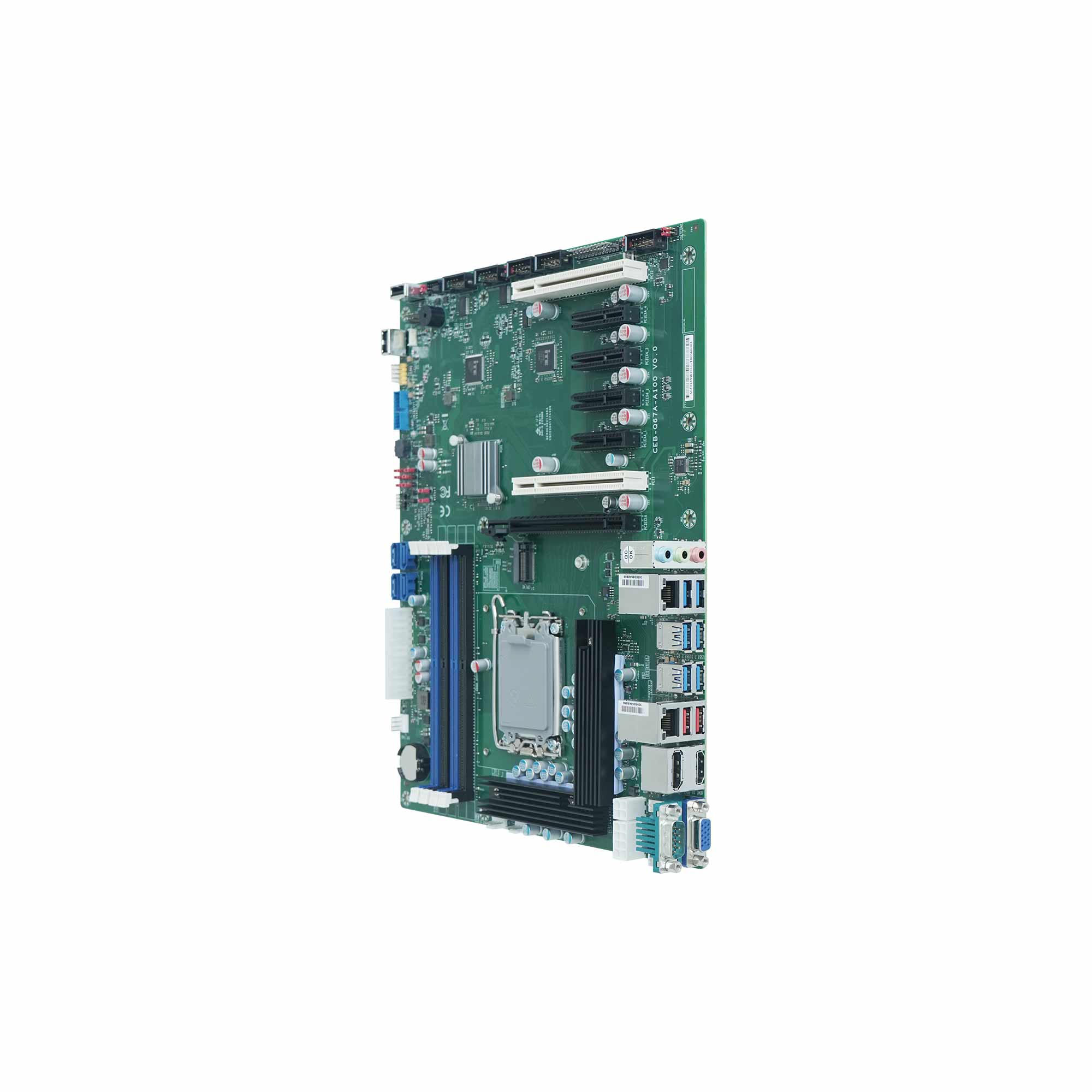

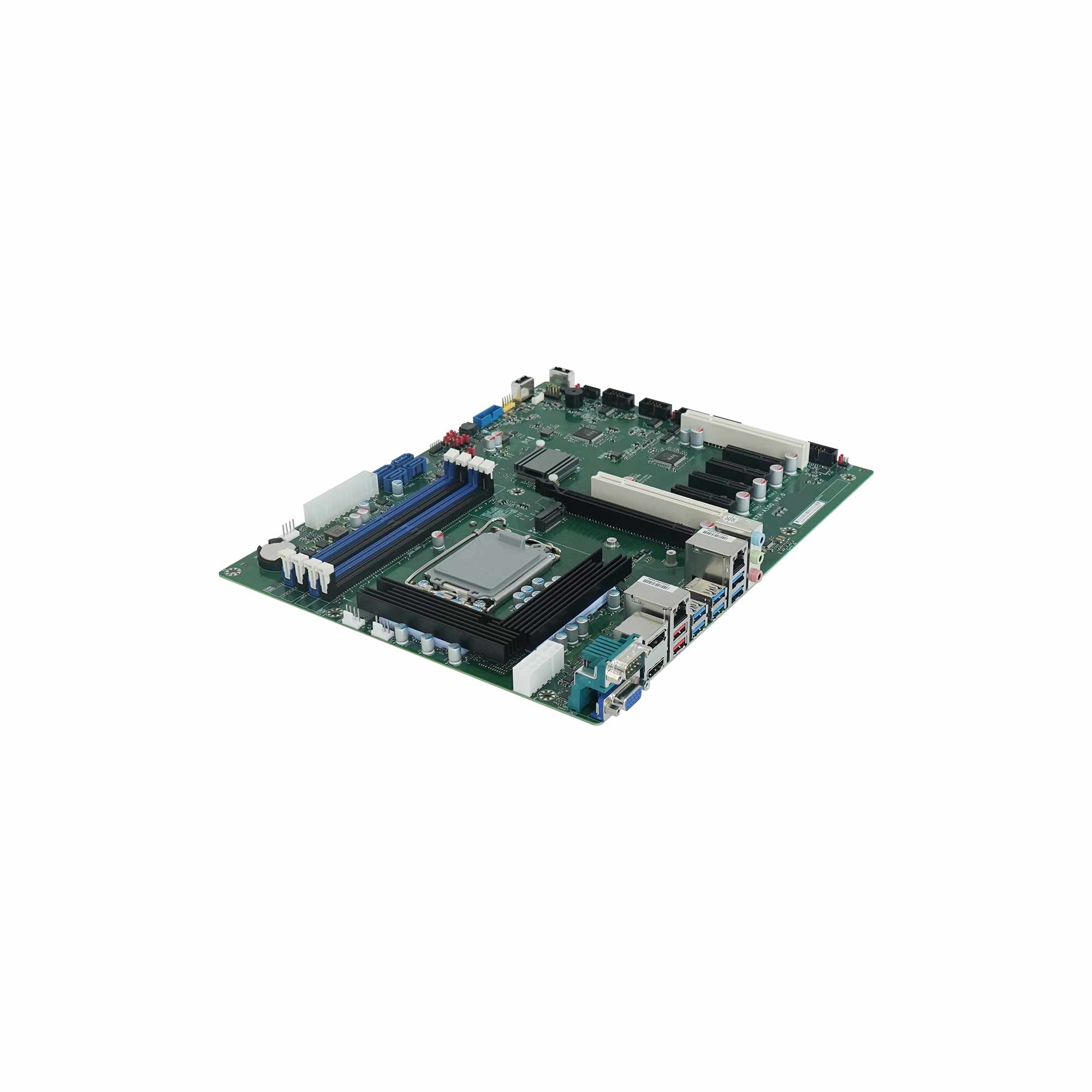

CEB-Q67A-A100

■ 规格 Specification

处理器 Processor

Intel® 12th/13th Gen Core ™ i9/i7/i5/i3/Pentium®/Celeron® Processor, LGA1700, TDP up to 125W

芯片组 Chipset

Q670E

内存Memory

4 x DDR4 2400/2666/2933/3200 MHz U-DIMM Slot, up to 128GB

存储Storage

4 x SATA 3.0, 1 x M.2( PCIe4.0x4 NVMe ) 2242/2280

显示Display

Intel® UHD Graphics 770

网口Ethernet

1 x Intel® I219-V GbE, 1 x Intel®I226-V co-lay I225-LM (10/100/1000/2500 Mbps)

音频Audio

Realtek®ALC888S/ALC897 HD Audio codec, supports 5.1-channel

BIOS

AMI UEFI BIOS

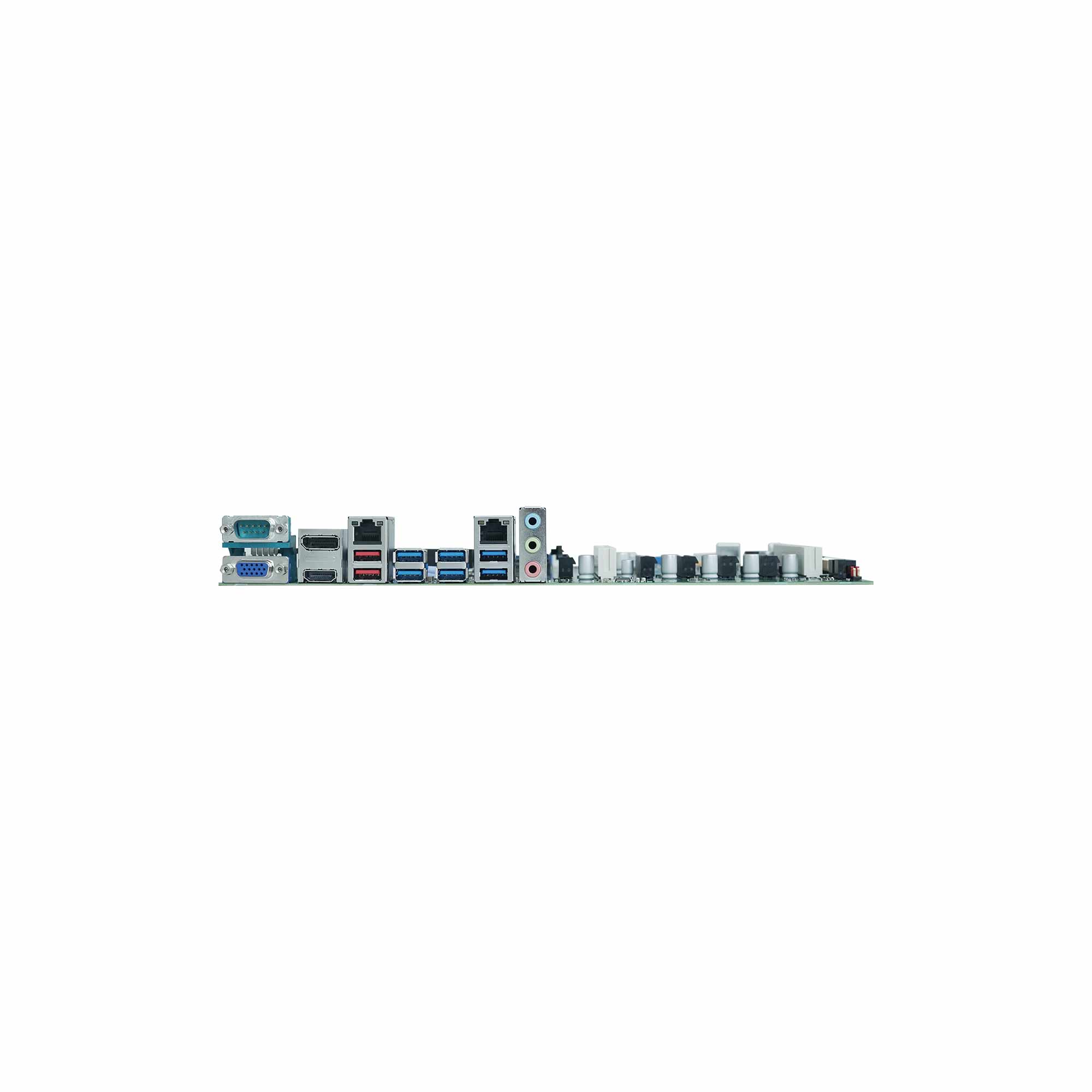

外部接口Rear I/O

1 x VGA: max resolution up to 1920 x 1200 @ 60Hz
1 x HDMI2.0: max resolution up to 3840*2160@60Hz
1 x DP++: max resolution up to 4096x2304 @ 60Hz
2 x USB3.2 Gen2
6 x USB3.2 Gen1
2 x RJ45
1 x RS232/422/485(with auto flow control)
1 x Line-out, Line-in, Mic-in

Internal I/O

1 x RS232/422/485(with auto flow control)
4 x RS232
2 x USB3.2 Gen1
4 x USB2.0 (2 x Type-A)
1 x 8 bit GPIO
4 x SATA3.0
1 x PS/2 (for Keyboard and Mouse)
1 x CPU_FAN
2 x SYS_FAN
1 x LPT
1 x FP(power button,power led,reset,HDD led)

扩展接口Expansion

1 x PCIe4.0 X16 (X16 link)
2 x PCIe4.0 X4 (X4 link)
2 x PCIe3.0 X4 (X4 link)
2 x PCI
1 x M.2(PCIe4.0 X4 NVMe) 2242/2280

看门狗Watchdog Timer

System Reset, Programmable via software from 1 to 255 seconds

信赖平台模块TPM

Nuvoton TPM2.0

环境Environment

操作温度Operation temp: 0℃ ~60℃
存储温度Storage temp: -40℃ ~85℃
操作湿度Operation hum: 5%~90%, 非凝结 non-coagulation
存储湿度Storage hum: 5%~95%, 非凝结 non-coagulation

电源输入Power Input

ATX

尺寸Dimensions

304.8 x 244 mm (12" x 9.6")

操作系统 OS

Windows 10 64bit, Linux

■ 订购清单Order List

标配
Standard

型号 Model

描述 Description

35091AW00-JTU-G

SATA Signal Cable Assembly,400mm+/-20mm

2T71BQ500-G9F-G

CEB-R68A-A100 IO shielding,154mm*2.5mm*40mm

选配
 Optional

型号 Model

描述 Description

351061R00-JTU-G

LPT cable with bracket, 450mm

351052K00-JTU-G

GPIO Cable Assembly,110mm,+/-10mm,

35106BR00-38L-G

1 to 2 USB Cable with bracket,300mm+/-15mm

351063G00-JTU-G

USB 3.0 A(F)*2/2*10pin 280mm,+/-30mm

460209G00-3L5-G

CPU Cooler, support125W, LGA1700 series

35108U500-3LG-G

COM2 Cable with Bracket, 700mm

35108U400-3LG-G

COM3/4, COM5/6 Cable with Bracket, 700mm
