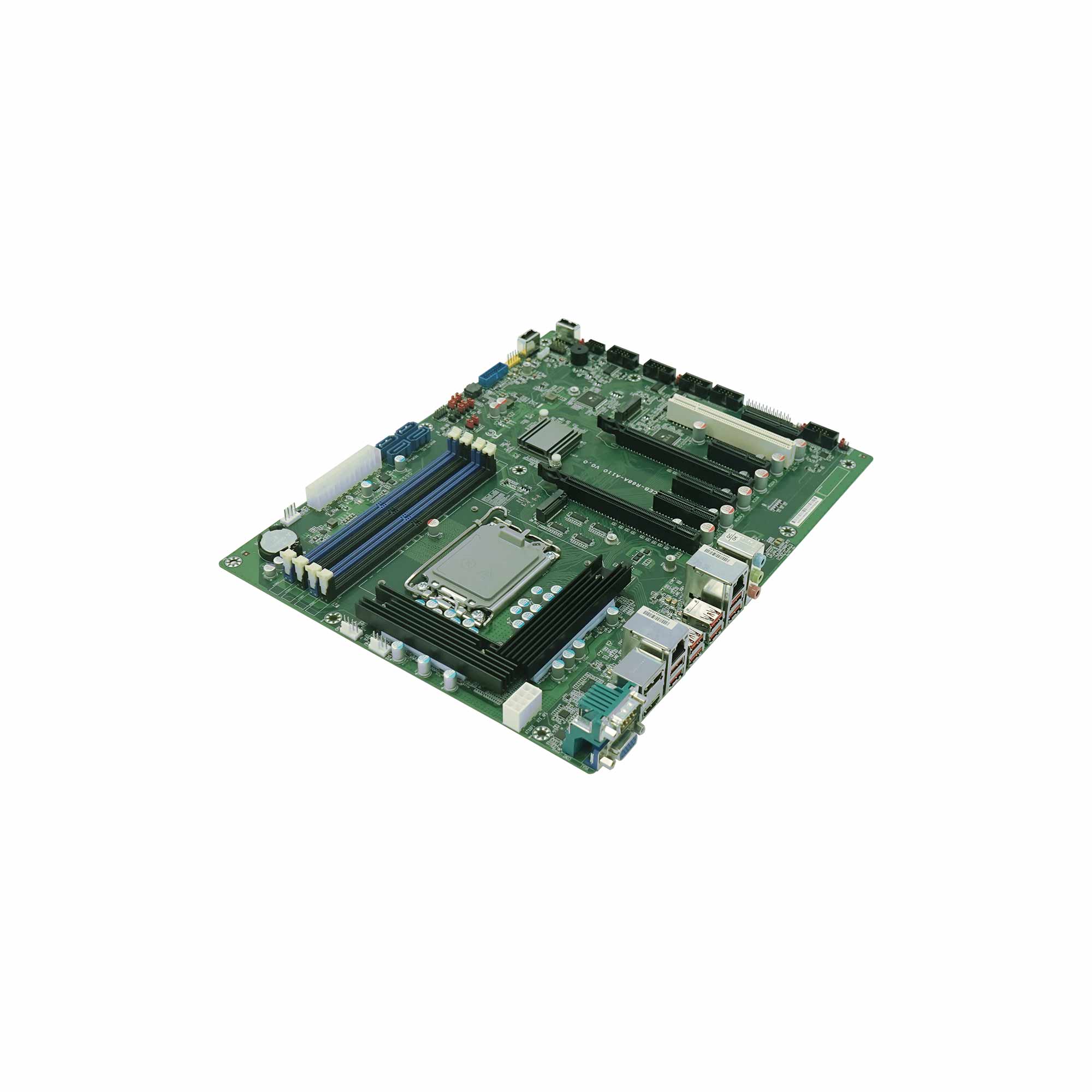

CEB-R68A-A110

■ 规格 Specification

处理器 Processor

Intel® 12th/13th Gen Core ™ i9/i7/i5/i3/Pentium®/Celeron® Processor, LGA1700, TDP up to 125W

芯片组 Chipset

R680E

内存Memory

4 x DDR5 ECC/Non-ECC 3600/4000/4400 MHz U-DIMM Slot, up to 128GB

存储Storage

4 x SATA 3.0, 1 x M.2 (PCIe3.0x4 NVMe/SATA3.0) 2242/2280,
1 x M.2( PCIe4.0 X4 NVMe ) 2242/2280

显示Display

Intel® UHD Graphics 770

网口Ethernet

1 x Intel® i219-LM GbE, 1 x Intel®I226-V co-lay I225-LM (10/100/1000/2500 Mbps)

音频Audio

Realtek® ALC888S/ALC897 HD Audio codec, supports 5.1-channel

BIOS

AMI UEFI BIOS

外部接口Rear I/O

1 x VGA: max resolution up to 1920 x 1200 @ 60Hz
1 x HDMI2.0: max resolution up to 4096 x 2160 @ 60Hz
1 x DP++: max resolution up to 4096x2304 @ 60Hz
8 x USB3.2 Gen2
2 x RJ45
1 x RS232/422/485 with auto flow control
1 x Line-out, Line-in, Mic-in

Internal I/O

1 x RS232/422/485 with auto flow control
4 x RS232
2 x USB3.2 Gen1
4 x USB2.0 (2 x Type-A)
1 x 8 bit GPIO
4 x SATA3.0
1 x PS/2 (for Keyboard and Mouse)
1 x CPU_FAN
2 x SYS_FAN
1 x LPT
1 x FP(power button,power led,reset,HDD led)

扩展接口Expansion

2 x PCIe4.0 X16 ( 1 x 16 or 2 x 8 link)
2 X PCIe4.0 X4 (X4 link)
2 X PCIe3.0 X4 (X4 link)
1 x PCI
1 x M.2 (PCIe3.0 X4 NVMe/SATA3.0)2242/2280
1 x M.2(PCIe4.0 X4 NVMe) 2242/2280

看门狗Watchdog Timer

System Reset, Programmable via software from 1 to 255 seconds

信赖平台模块TPM

Nuvoton TPM2.0

环境Environment

操作温度Operation temp: 0℃ ~60℃
存储温度Storage temp: -40℃ ~85℃
操作湿度Operation hum: 5%~90%, 非凝结 non-coagulation
存储湿度Storage hum: 5%~95%, 非凝结 non-coagulation

电源输入Power Input

ATX

尺寸Dimensions

304.8 x 244 mm (12" x 9.6")

操作系统 OS

Windows 10 64bit, Linux

The PCIe x16 slot, from CPU, can only support graphic cards and storage cards according to the specification recommended by Intel. Other types of add-on
cards might not work properly.

■ 订购清单Order Lis

标配
Standard

型号 Model

描述 Description

35091AW00-JTU-G

SATA Signal Cable Assembly,400mm+/-20mm

2T71BQ500-G9F-G

CEB-R68A-A100 IO shielding,154mm*2.5mm*40mm

选配
 Optional

型号 Model

描述 Description

351061R00-JTU-G

LPT cable with bracket, 450mm

351052K00-JTU-G

GPIO Cable Assembly,110mm,+/-10mm,

35106BR00-38L-G

1 to 2 USB Cable with bracket,300mm+/-15mm

351063G00-JTU-G

USB 3.0 A(F)*2/2*10pin 280mm,+/-30mm

460209G00-3L5-G

CPU Cooler, support125W, LGA1700 series

35108U500-3LG-G

COM2 Cable with Bracket, 700mm

35108U400-3LG-G

COM3/4, COM5/6 Cable with Bracket, 700mm
